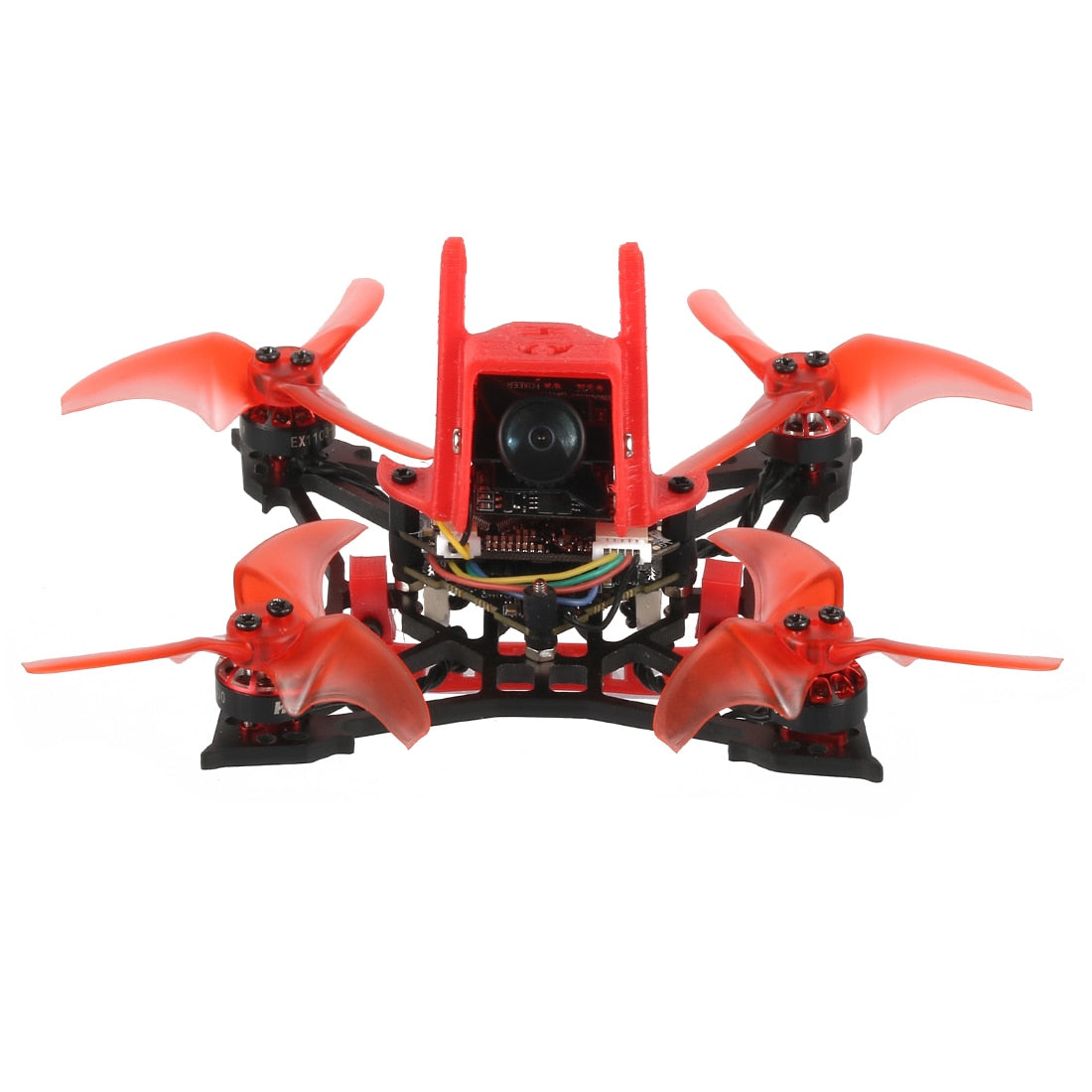

JMT T100 DIY FPV Racing Drone Toothpick Full Kit SPECIFICATIONS
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Remote Control Peripherals/Devices: Motor
Recommend Age: 14+y
RC Parts & Accs: Connectors/Wiring
Origin: Mainland China
Model Number: T100
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters
Brand Name: jmt
DIY Version: Unassembled ,will come with the flight control,vtx Soldered,buyer need assemble it after getting the drone kit.
Functions and features:
Recordable video
Compatible with 2s-4s Lipo / LIHV
Adjustable camera angle
Adjust the battery strap mount to fix batteries of different sizes
Ranch
Specifications:
Brand: JMT
Model: T100
Wheelbase: 100mm
Camera: 1200TVL PAL / NTSC 4: 3/16: 9 optional
Video transmission: 5.8GHz 5 band 40 channels 25 ~ 200mw 3.3V 5.5V TF card support: up to 32G video output format: NTSC
Flight control: F4 2-4S battery input Built-in Betaflight OSD Built-in 5V 1A BEC Built-in 10ABlheli_S 4in1 ESC Dshot600
Motor: 1103 7000KV 2-4S 1.5mm output shaft
Paddle: 2.5inch three-blade paddle
Battery: 11.1V 35C 450MAH
Flight time: about 7 minutes (the specific flight time depends on your flight actions)
Assistant software
https://github.com/betaflight/betaflight-configurator/releases/tag/10.6.0

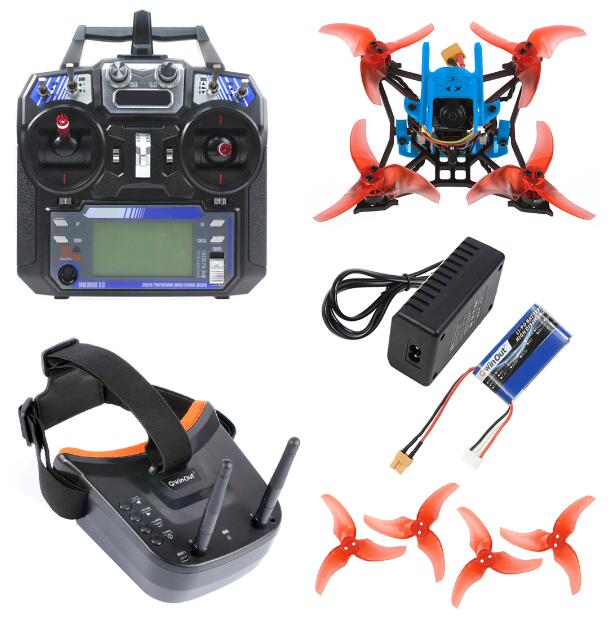

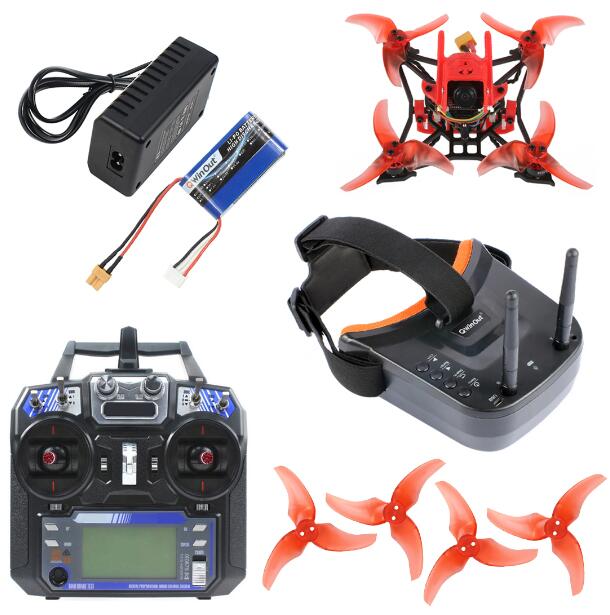

Package include:
1x 100mm Wheelbase Carbon Fiber Frame Kit
1x Crazybee F4 PRO V3.0 Flight Controller built-in Flysky Receiver
2x EX1103 7000kv 1.5MM Shaft 2-4S Motor CW
2x EX1103 7000kv 1.5MM Shaft 2-4S Motor CCW

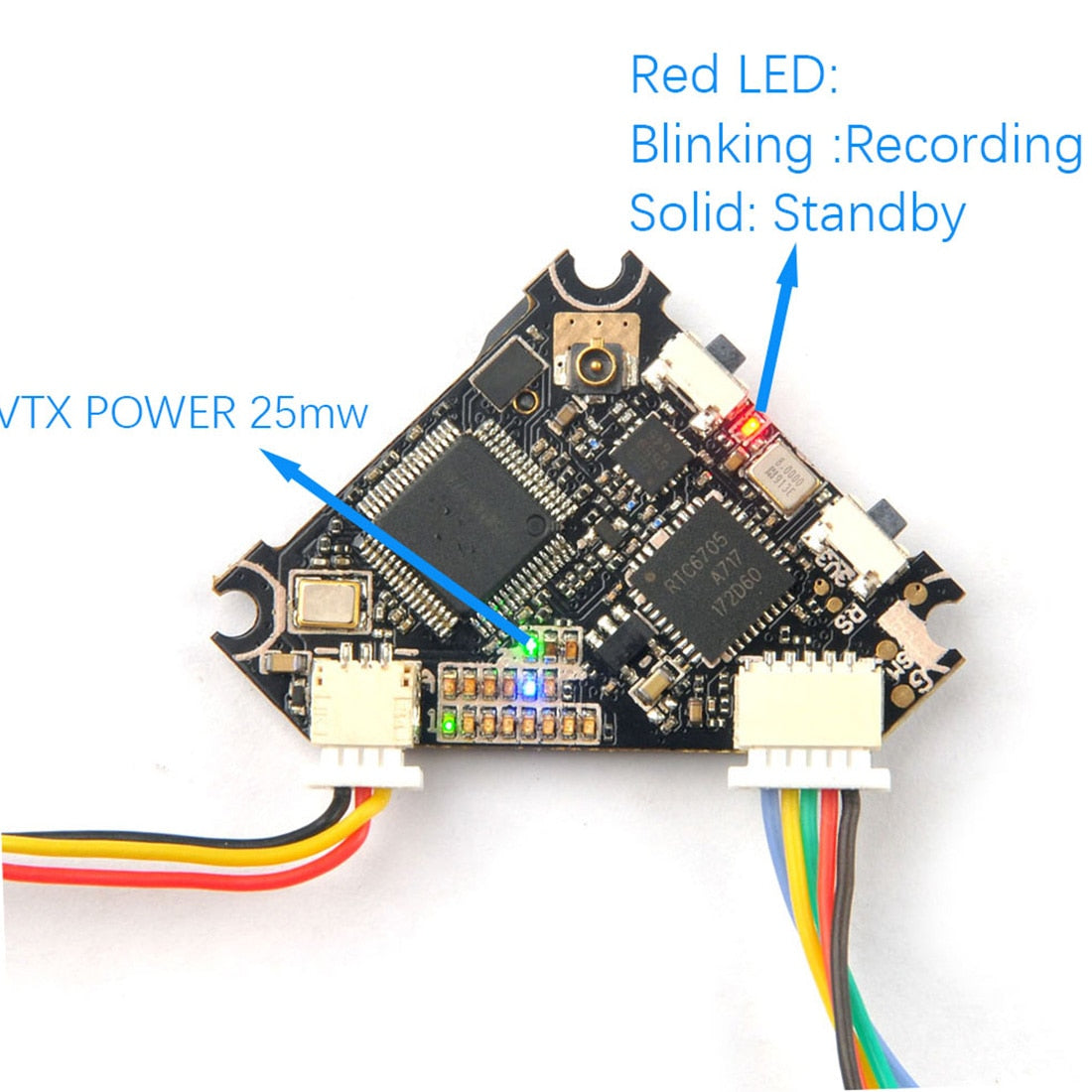

1x Diamond VTX 5.8G 40ch 25mw-200mw VTX
2x AVAN Rush 2.5 inch props (2 Pairs per lot)
1x Razer Micro 1200TVL 1.8mm lens FPV Camera
1x FS I6 Remote Controller
1x 5.8G FPV LST-009 FPV Goggles
1x 11.1V 35C 450MAH Lipo Battery
1x IMAXRC B3 pro Charger
1x 3D Print Battery Strap
1x 3D Print Canopy
1x T100 Screws Kit
1x Buzzer
5.8G FPV Goggles 0 FEATURE: small size and light weight; low ower consumpyion,Working current 300-330mA; built-in super sensitiveness 5.8GHz 4Och receiver; raceband 40 channel, Auto-Searching; 3.7VM1ZOOmAh high-capacity Li-ion polymer Battery; universal USB charging interface; real-time video return, Very low time

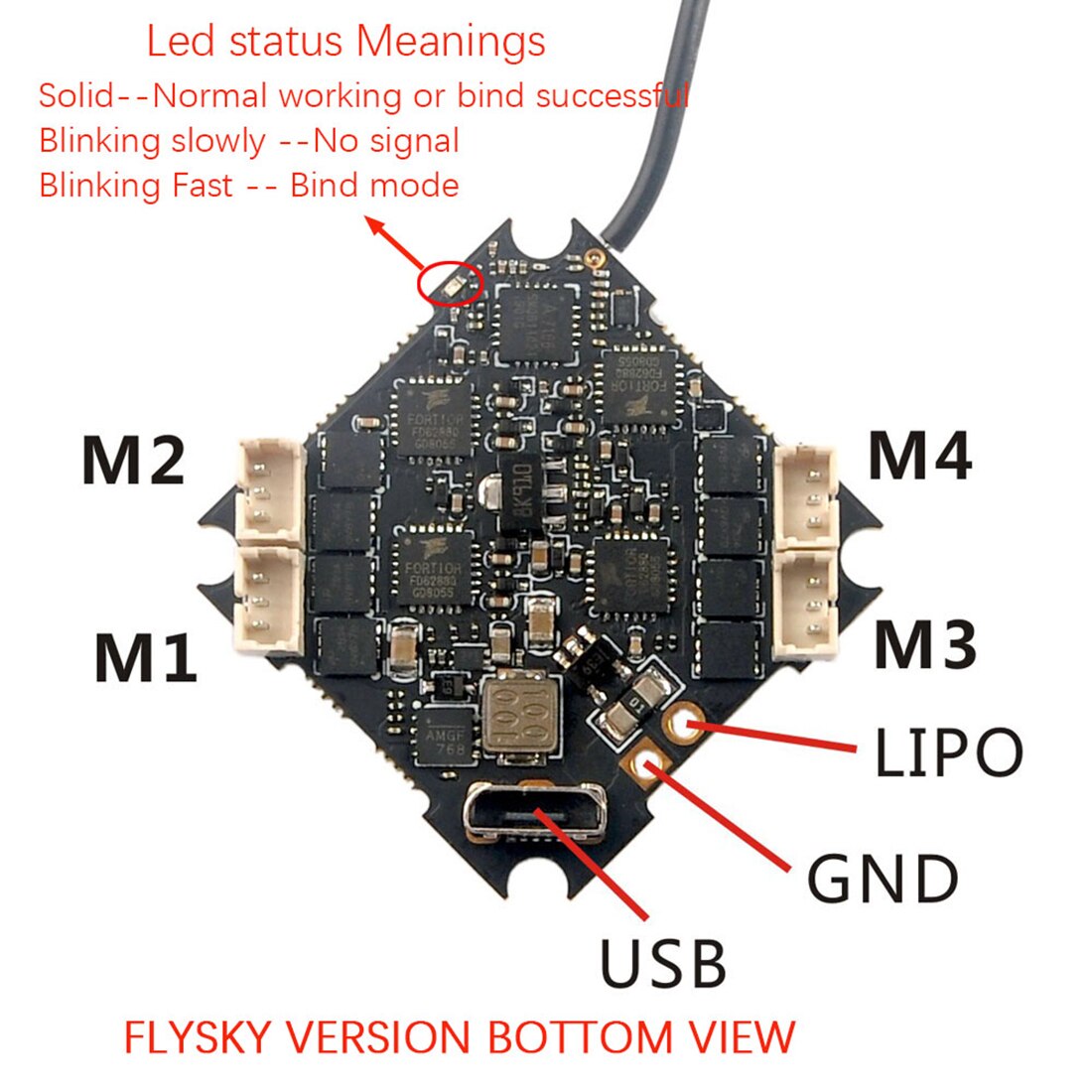

Led status Meanings Solid- Normal working or bind slowly No signal Blinking Fast Bind mode Bot8o FA M2 M4 3 Foation Fuaz 6730ss Ml M3 Amor 768
1 Yl Oo 8L WinOut ISOMAh 3oomat 35C 3G0MAT '456 AOOrata High LI-Po 14 DISCHAR BATTERY 'Goc Iah 's50mAn '80C 3
