Jumper T-Lite V2 Transmitter SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Adapter
Tool Supplies: Assembly Category
Technical parameters: Value 2
Size: As description
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Starter Boxes
Quantity: 1 pcs
Origin: Mainland China
Model Number: Jumper T-Lite V2
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes

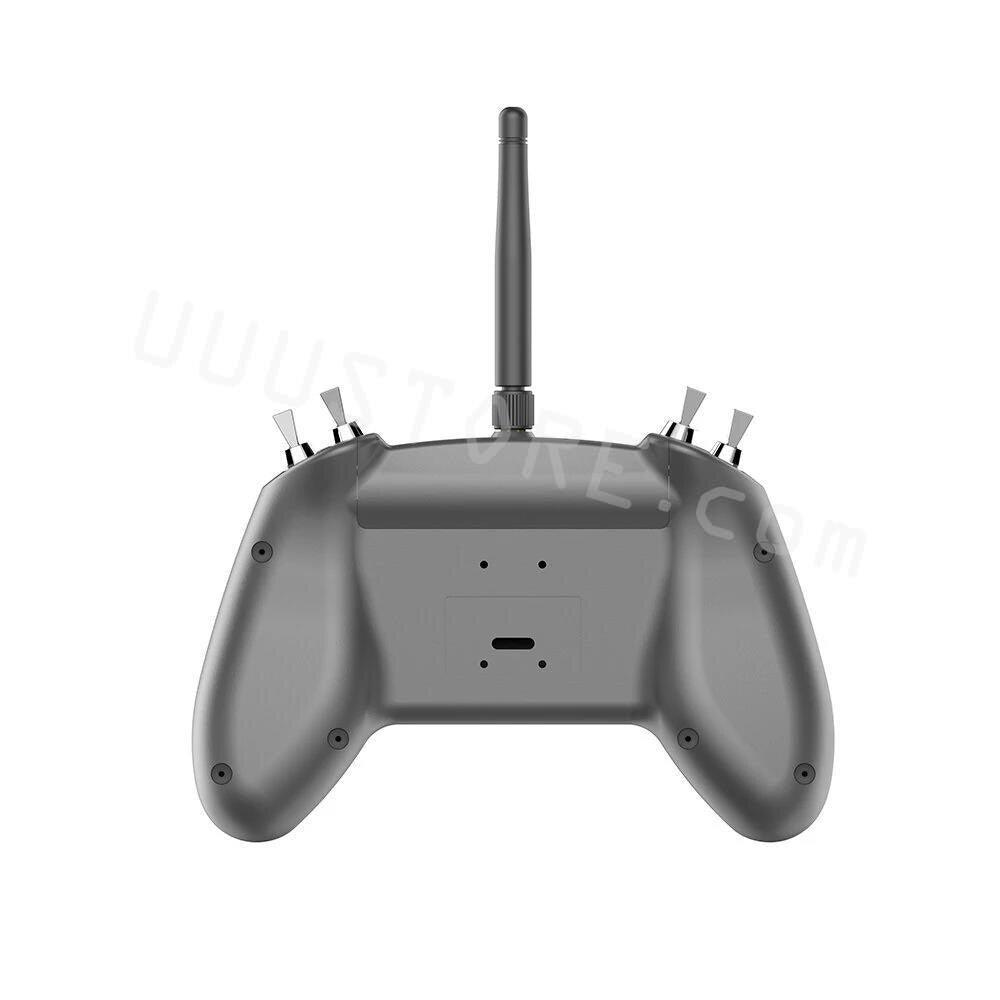

JumperRC T-Lite V2 2.4GHz 16CH Hall Sensor Gimbals 150mW Built-in ELRS/ JP4IN1 Multi-protocol OpenTX Remote Controller RC Radio Transmitter for RC Drone Airplane
Specification:
Brand: JumperRC
Model: T-Lite V2 Remote Controller
Version: Built-in ELRS/ JP4IN1 (Optional)
Size: 166*106*56mm
Weight: 203g
Voltage: DC3.5-4.2V
Battery: 1x18650 (Battery not included)
Channel: 16ch
SD Card Support: External SD card slot
RF Output Power: 25mW/50mW/100mW/150mW
Packet Refresh Rate: 25Hz/50Hz/100Hz/250Hz/500Hz/1000Hz
RF Output Power: 0dBm - 22dBm
Frequency: 2.4GHz ISM
Link Range: >5KM
Features:
* Built-in ELRS Version/ Optional JP4IN1 Version.
* OpenTX/EdgeTX native support.
* Upgrade Power supply.
* Screen: 1.3" 128*64.
* High quality full-size adjustable hall sensor gimbals.
* Internal Multi-protocol module.
* Full power external ELRS/TBS module support.
* USB-C internal charging.
* Single 18650 battery power supply - easily swappable. (Note: Button top 18650 won't fit T-Lite V2)
* Voice and Vibration function.
* Support Full Power Jumper AION ExpressLRS External Module.
Version |
Gimbal |
Screen |
Module Chip |
T-LITE V2 JP4IN1 |
Hall Sensor |
1.3 " LCD screen |
4IN1 Module A7105-Flysky,Hubsan,AFHDS2A etc CC2500-Frsky, Futaba SFHSS, Hitec, Radiolink, Esky etc CYRF6936-DSM / DSMX,Walkera Devo,Wfly etc NRF24L01-HISKY,Syma,ASSAN etc |
T-LITE V2 ELRS |
Hall Sensor |
1.3 " LCD screen |
ExpressLRS |
T-Lite V2 Upgraded:
* Built-in ELRS Version.
* JP4IN1 Version Optional.
* Upgraded Power Supply.
* Upgraded gimbal, smoother and feel better.
* Support full power Jumper AION ExpressLRS External module.
Package Included:
1 x T-Lite V2 Remote Controller (ELRS OR JP4IN1 Version)
T-LITE V2 The World s First Multi-protocol Game Shape Remote Control . Built-in ELRS Version JPAINI Version Optional MODELOL Upgraded Power Supply Supports Full Power Jumper AION ExpressLRS External Module 0R0 ui OpenTx TX Hall Sensor Glmbal OpenTX 13"LCD Scteen USB Charging uu4S?
T-Lite V2 with Internal 2.4G ExpressLRS RF Output Power: 2Smw/SOmW/IOOmW RF Packet Refresh Rate: 2SHz/SOHz/ 1OOHZ/ZSOHZ /SOOHz/ IOOOHZ Frequency: 2.4GHZ ISM Remote Control Distance: > SKM This function is for ELRS version ONLY UusSToREJ EREOI
MMULTI 05 INIEW UPGRADED #IINNI MCDULE Competited with over 50 protocols Control Distance 3KKIM+ SaEn n . mainly used on lots of Chinese toyS drones .
Support Full Power External ELRSITBS Module Ili Perfectly work with Jumper AION ElrS 246 ELRF DUUStORE com .
first radio with reserved mounting holes for FPV displays, etc T-lite has it everything you need! Reserved holes Foldable display holder (coming later)
7.Vibration Function 8.Reserved SD Card Slot 01 4qu TL '3BF ISE; 9.1.3 LCD screen 10.Trim Buttons 0 11.Simulator Interface 12.Full Size Adjustable Hall Sensor Gimbals Nov RE
166*106* Weight: 203g Voltage: DC3.5-4.2V Battery: 1x18650 (Battery not included) Channel: 16ch External Micro SD Card:reserved SD card slot S6mm WSTORE. com 166mm Jobmm.
/ /WWW multi-module org/ basics/supported-protocols Shttp: https://www.open-txorg/ Assai JU om Tiger .
ANI Module T-lite A7105 Flysky, Hubsan, AFHDSZA etc Hall Sensor 13"LCD screen CC2500 Futaba SFHSS, Hitec, Radiolink, Esky; etc .
