SPECIFICATIONS
Brand Name: uuustore
Origin: Mainland China
Material: Composite Material
Recommend Age: 14+y
RC Parts & Accs: Transmitters
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Remote Controller
Quantity: 1 pcs
Model Number: Jumper T14
Jumper T14 2.4GHz/915MHz 1W ELRS VS-M CNC Hall Sensor Gimbals 2.42" OLED Screen EdgeTX Radio Controller for FPV RC Racer Drone

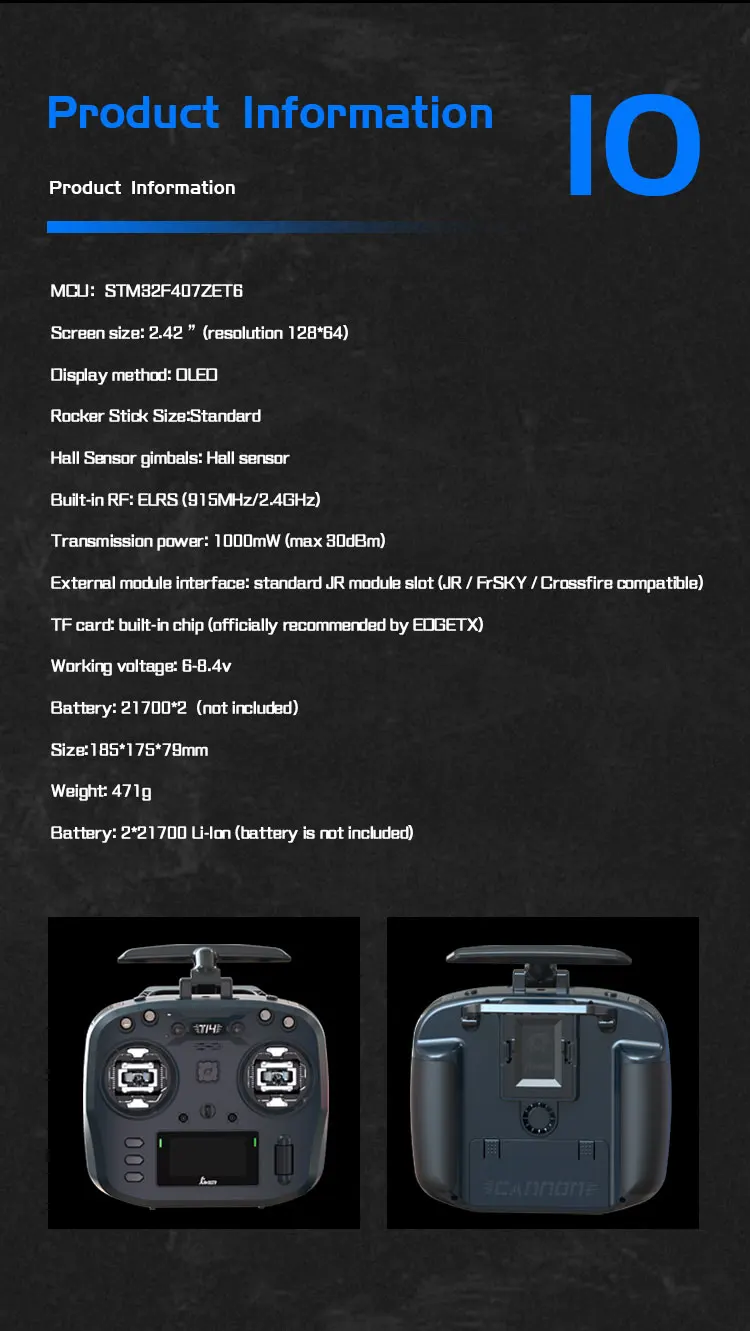

Description:
Brand: JumperRC
Model: T14
MCU: STM32F407ZET6

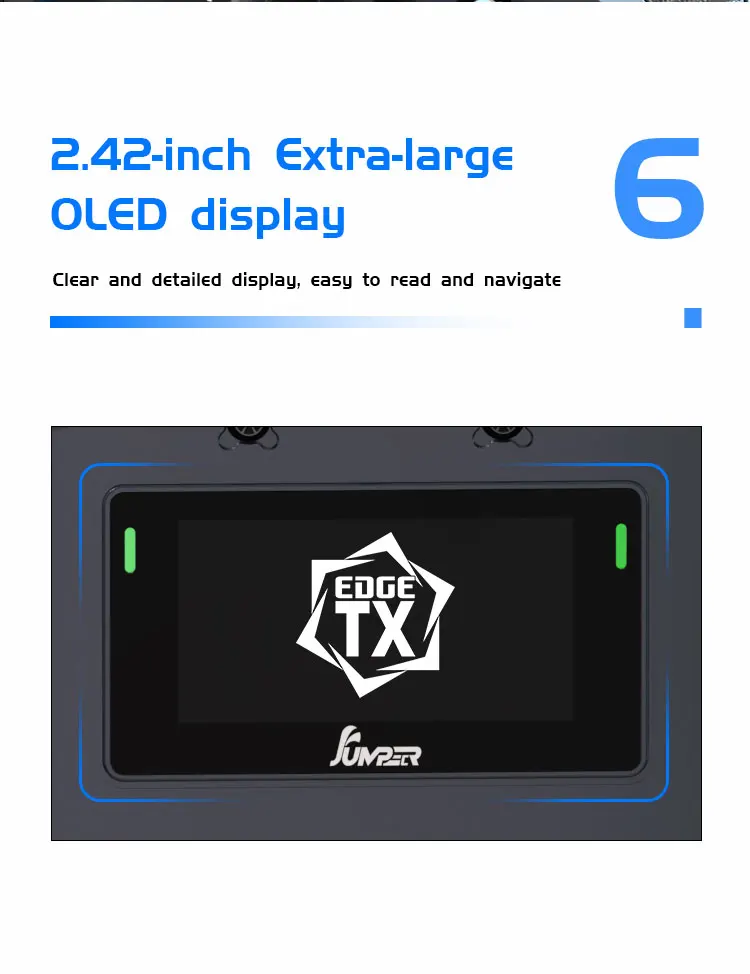

Screen size: 2.42" (resolution 128*64)
Display method: OLED
Rocker Stick Size: Standard
Hall Sensor gimbals: Hall sensor, CNC Hall sensor (Optional)
Built-in RF: ELRS (915MHz/2.4GHz) (Optional)
Transmission power: 1000mW (max 30dBm)
External module interface: standard JR module slot (for Crossfire / JR / FrSKY)
TF card: built-in chip (officially recommended by EDGETX)
Working voltage: 6-8.4v
Battery: 21700*2 (not included)
Size:185*175*79mm
Weight: 471g
Battery: 2*21700 Li-lon (battery is not included)
Package Included:
1x Jumper T14 2.4GHz/915MHz ELRS Radio Controller
JUMPER Tl4 FPV Quadcopter Oriented Radio Perfectly suited for pilot of any Skill bracket ExpressLRS Ti4e bvz Edge TX Simple versatile: Tailor-made for fpv

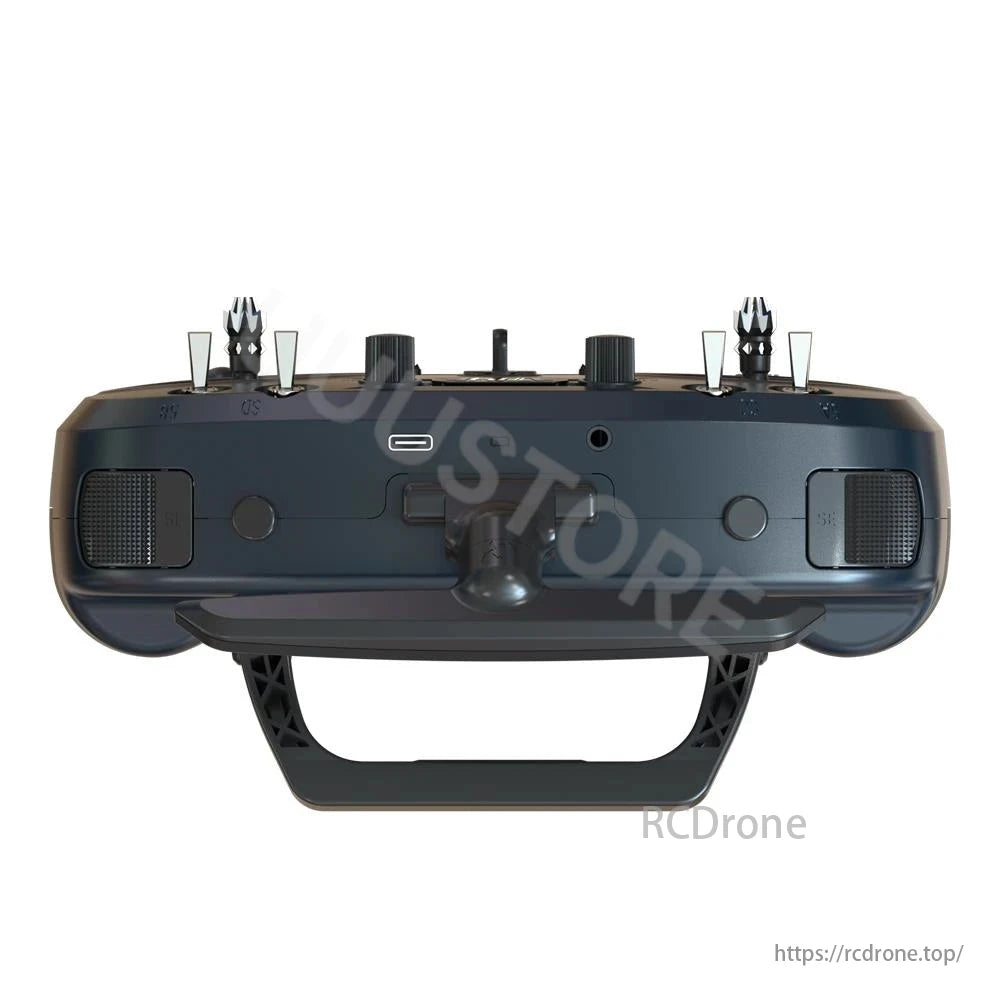

the back of the remote controller Foldable handle SeiR Eans Standard JR module bay Cooling fan Lijuu LIum The back of remote controller extra-large battery compartment (fits 2*21700 Li-lon batteries)

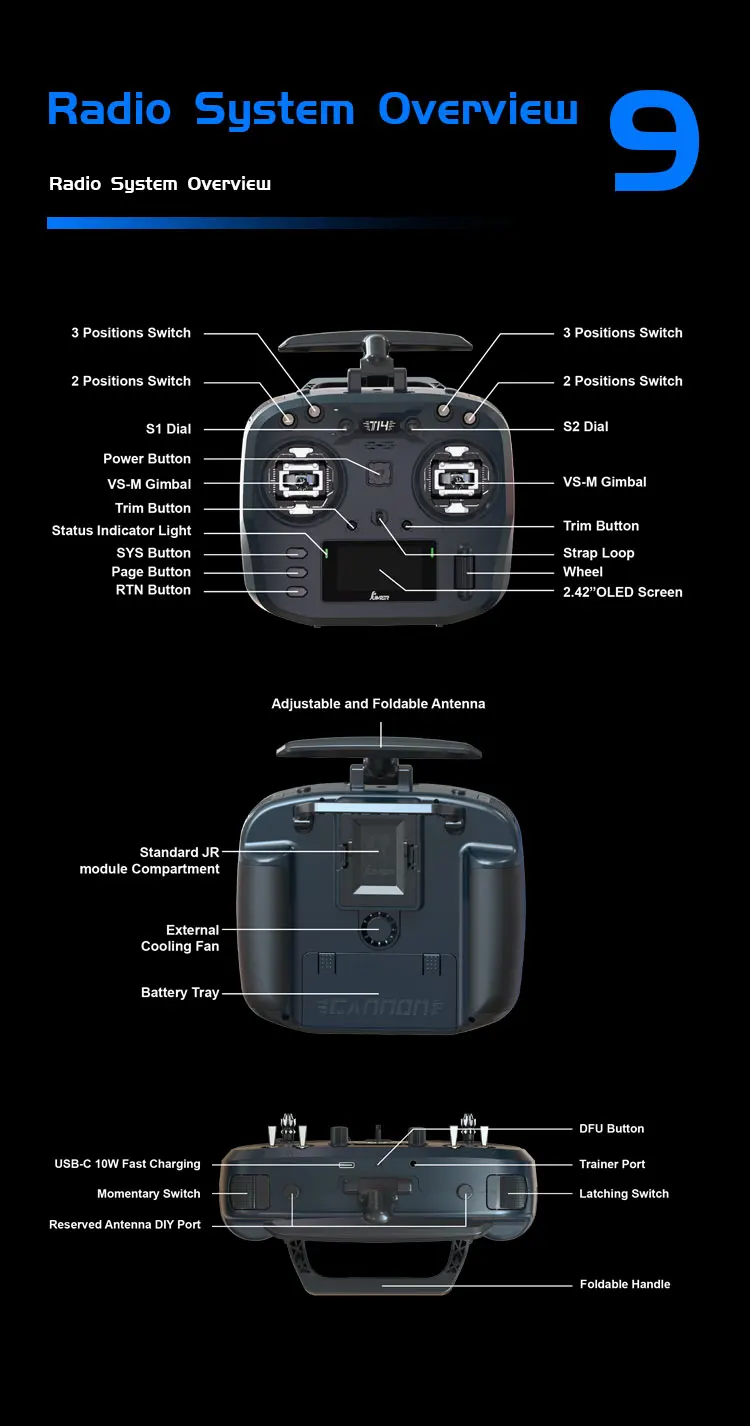

Overview of the radio system, featuring a 9-position switch with three settings: Position 1, Position 2, and Position 3 (also referred to as 'S1' dial).
This product features standard hall sensor gimbals, with a built-in RF module operating on the ELRS frequency band (2.4GHz/915MHz) at a transmission power of up to 100mW (maximum 30dBm). It also has an external module interface compatible with JR and FrSky modules, as well as Crossfire. Additionally, it comes equipped with a built-in TF card chip, officially recommended by EdgeTX. The product dimensions are 185mm x 175mm x 79mm, weighing approximately 471g. It is powered by two 21700 batteries.
