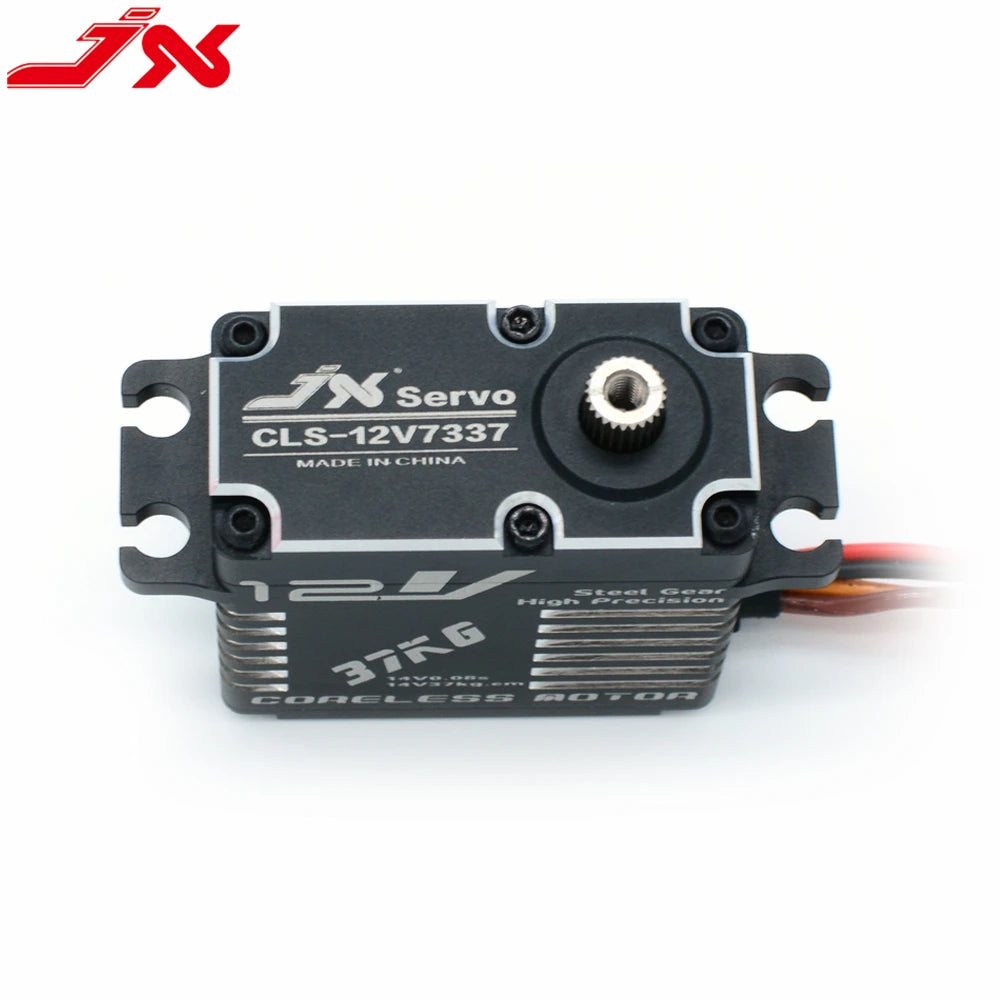

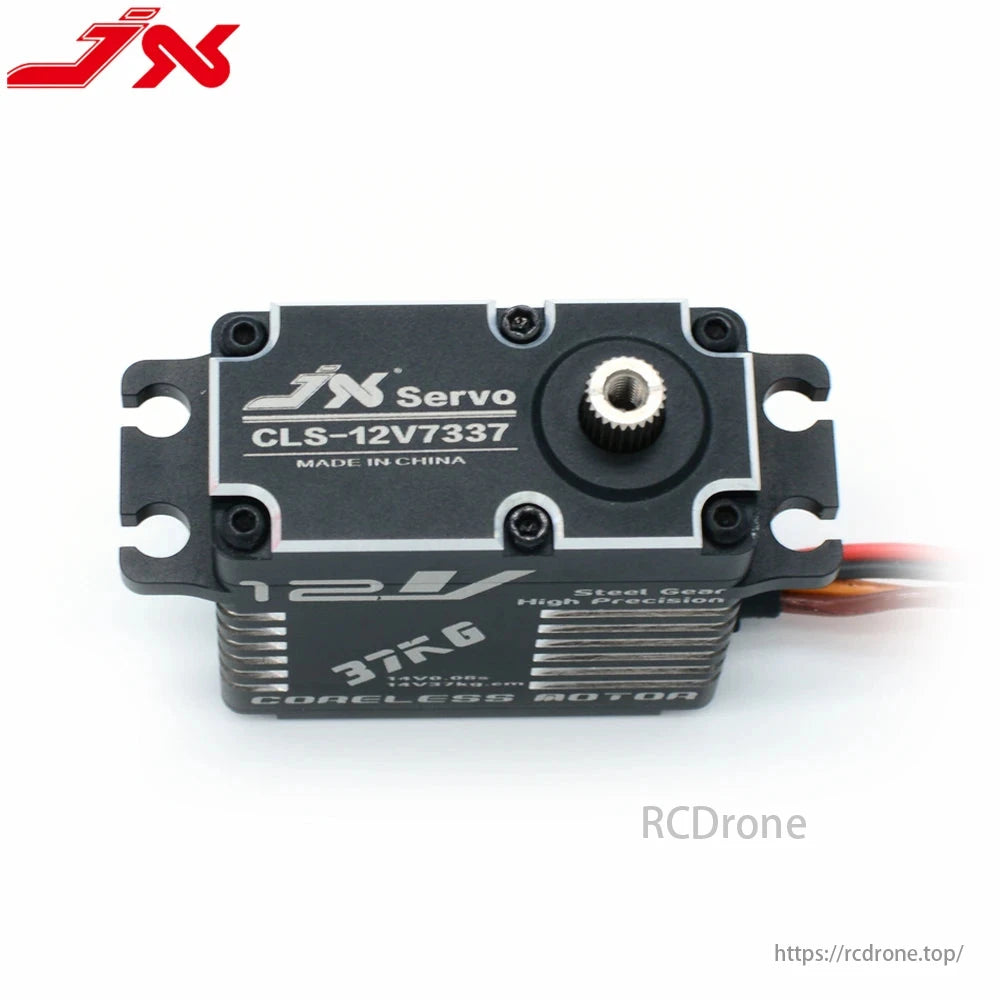

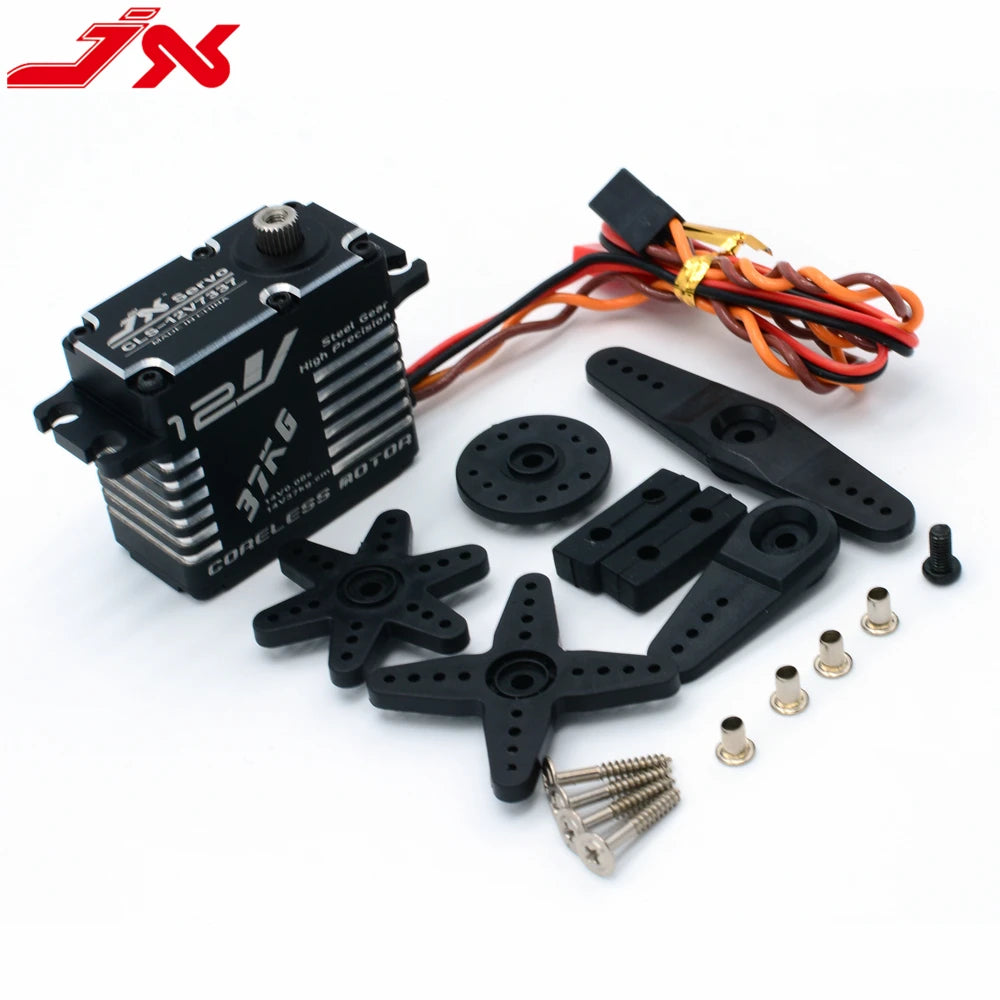

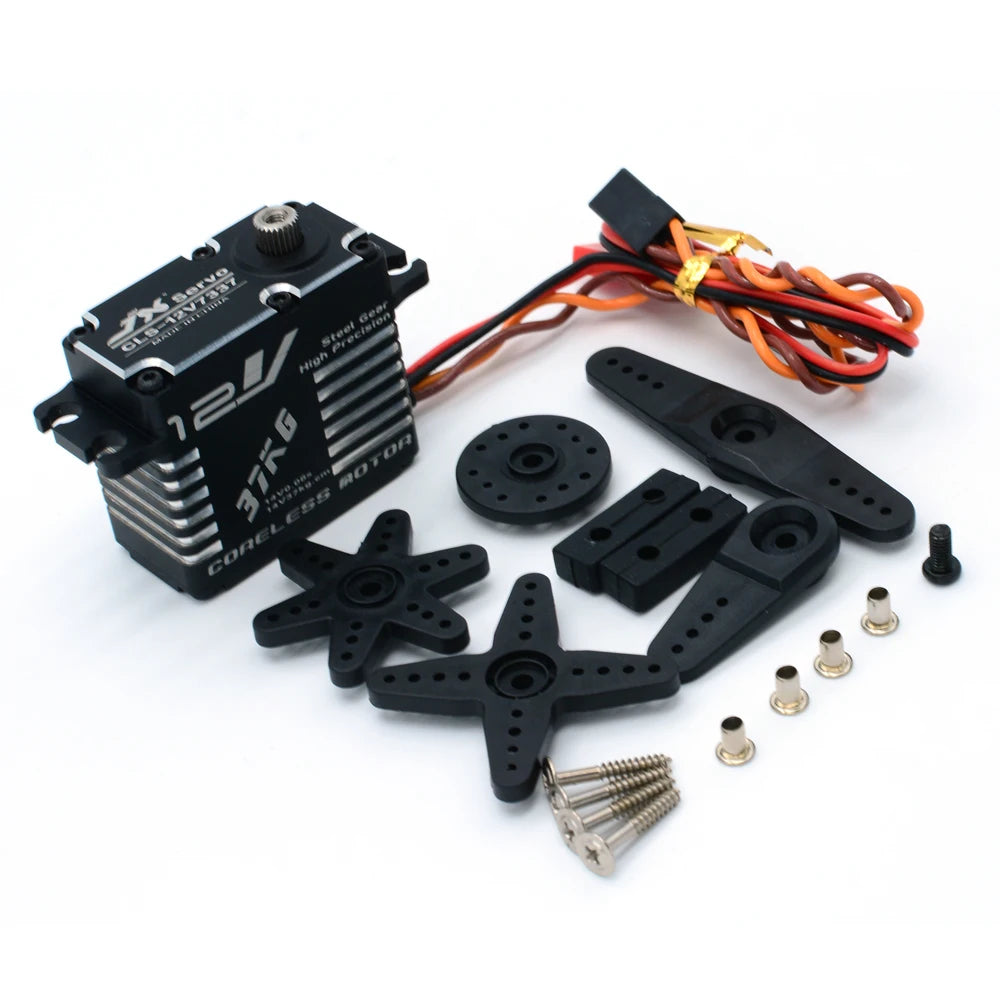

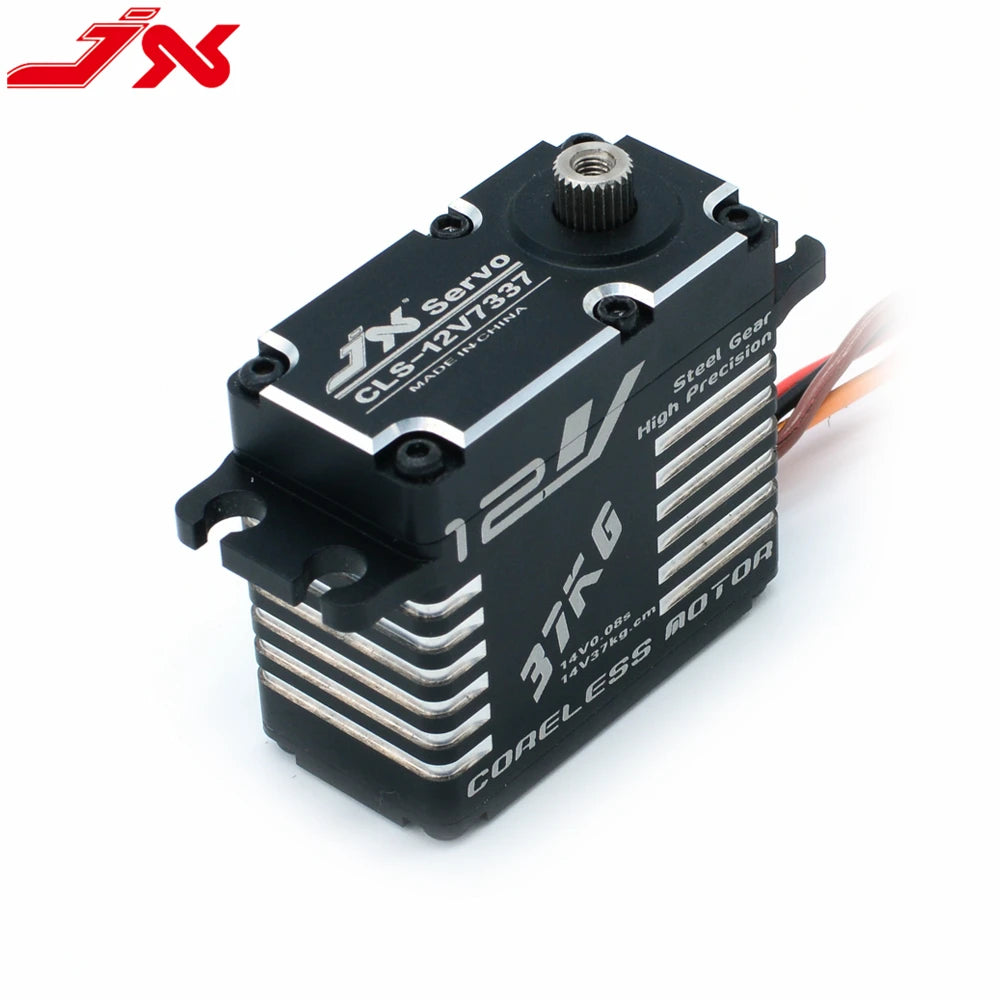

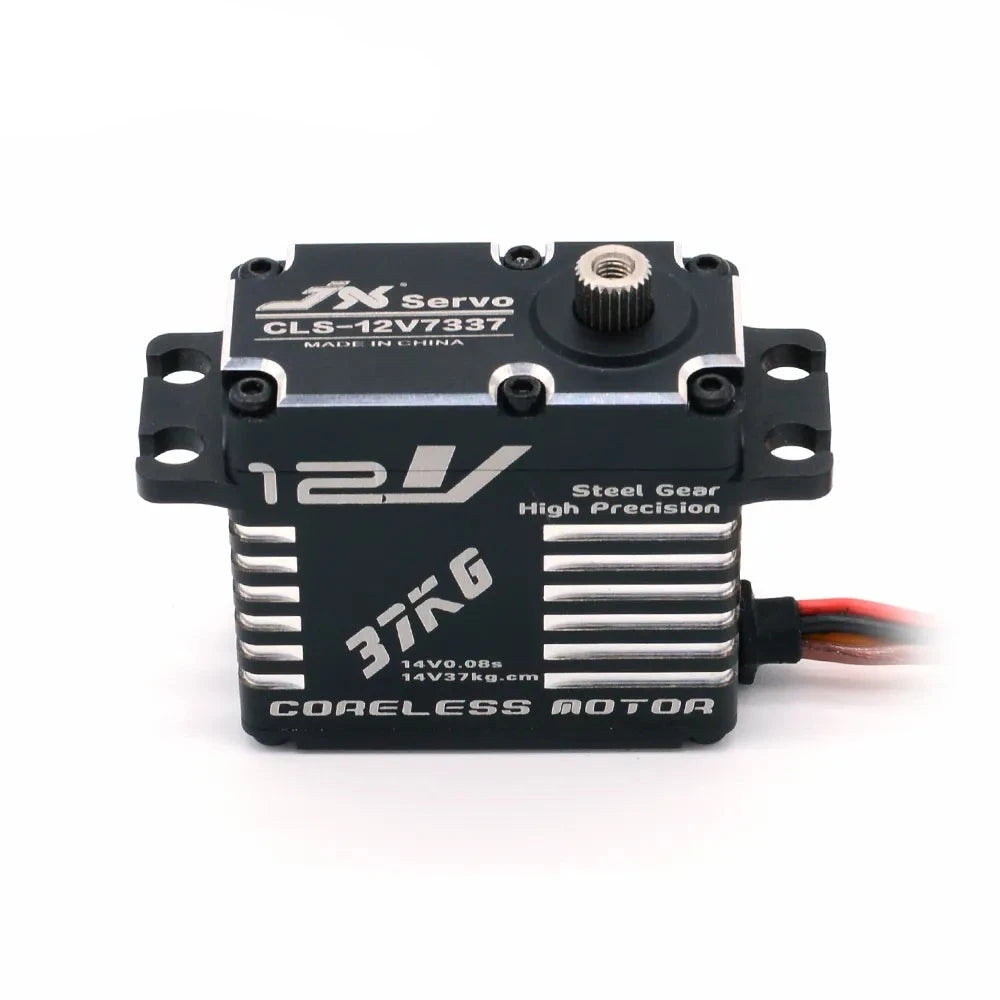

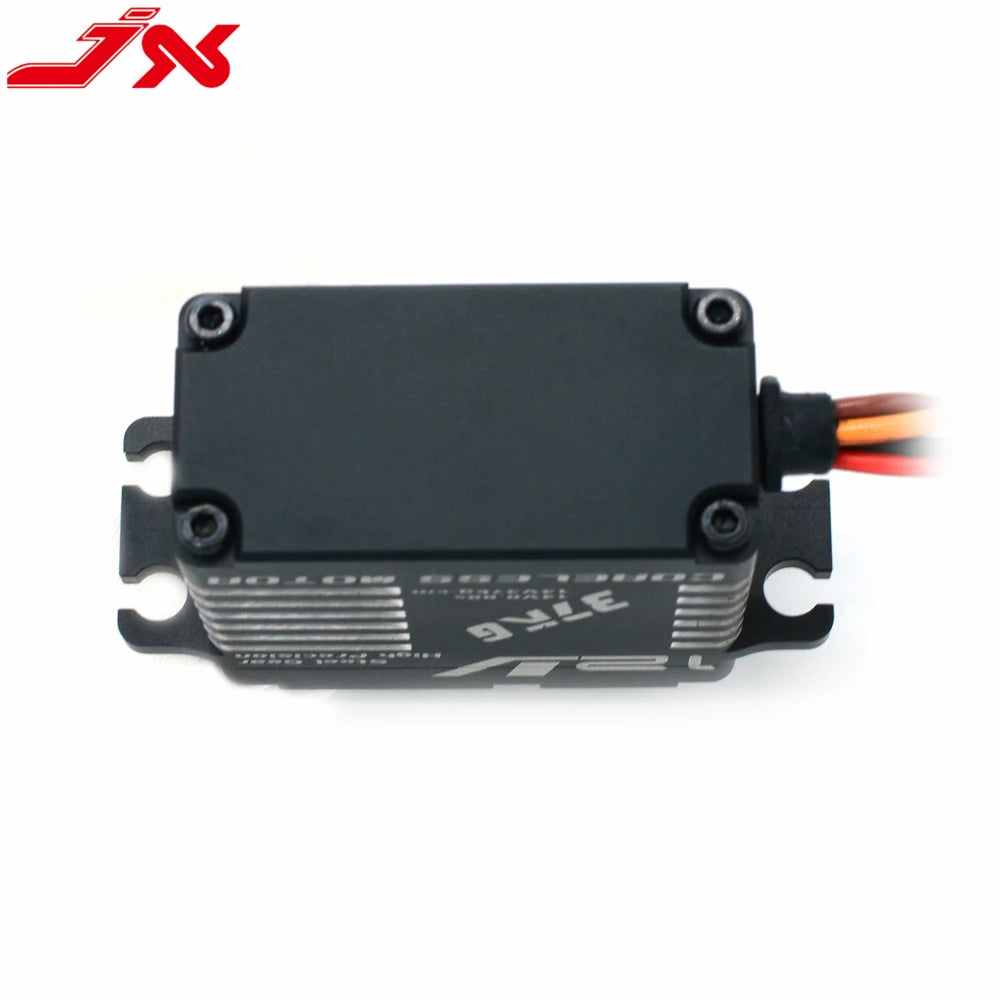

JX Servo CLS-12V7337 - 37kg.cm@14V Large-Torque Full CNC Metal High Precision Steel Gear Digital Coreless Servo for RC Cars Helicopter
JX Servo CLS-12V7337 - 37kg.cm@14V Large-Torque Full CNC Metal High Precision Steel Gear Digital Coreless Servo for RC Cars Helicopter
JX
Couldn't load pickup availability
JX Servo CLS-12V7337 SPECIFICATIONS
Brand Name: JX
Remote Control Peripherals/Devices: Servos
Size: 40X20X37mm
Technical parameters: Value 5
Wheelbase: Screws
Recommend Age: 14+y
RC Parts & Accs: Servos
Certification: CE
Certification: FCC
Certification: RoHS
Use: Vehicles & Remote Control Toys
For Vehicle Type: Cars
Origin: Mainland China
Material: Metal
Upgrade Parts/Accessories: Servo
Model Number: CLS-12V7337
Quantity: 1 pcs
FEATURE:
-- 12V High voltage
-- High performance programmable digital brushless standard servo
-- High-precision Taiwan-made steel gears with hard anodizing
-- Full CNC aluminium Shell structure
-- Dual ball bearings
SPECIFICATIONS:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: brushless motor
Operating Speed (11.1V): 0.1sec/60°
Operating Speed (14V): 0.08sec/60°
Stall Torque (11.1V): 33kg.cm
Stall Torque (14V): 37.5kg.cm
Dimensions: 40X20X37mm
Gear Teeth:25T
Control Angle:120 Degree
Weight: 73 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
