SPECIFICATIONS
Brand Name: JX
Origin: Mainland China
Material: Plastic
Plastic Type: ABS
Recommend Age: 14+y
RC Parts & Accs: Servos
Size: 40.5X20.2X38mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: KV1100
Model Number: PDI-5521MG-360
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
Factory supply,Huge stocks, Support wholesale!Please kindly to contact us, the price can be negotiated :)
JX Servo Technology have established a reputation for reliability and value. JX Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. JX Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.
FEATURE:
-- 360 deg Continuous rotation 20kg digital servo
-- For Robot, industrial machinery and equipment, etc.
-- High performance digital standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- Dual ball bearings
SPECIFICATIONS:
Angle: 360°Continuous rotation
Pulse width: 500-2500μsDead band: 2μs 1520μs / 330hz
Operating Speed (4.8V): 53T/S
Operating Speed (6V): 65T/S
Stall Torque (4.8V): 17.25 kg.cm
Stall Torque (6V): 20.32 kg.cm
Dimensions: 40.5X20.2X38mm
Metal Teeth:25T
Control Angel:360 Degree
Weight: 55.6 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Package including:

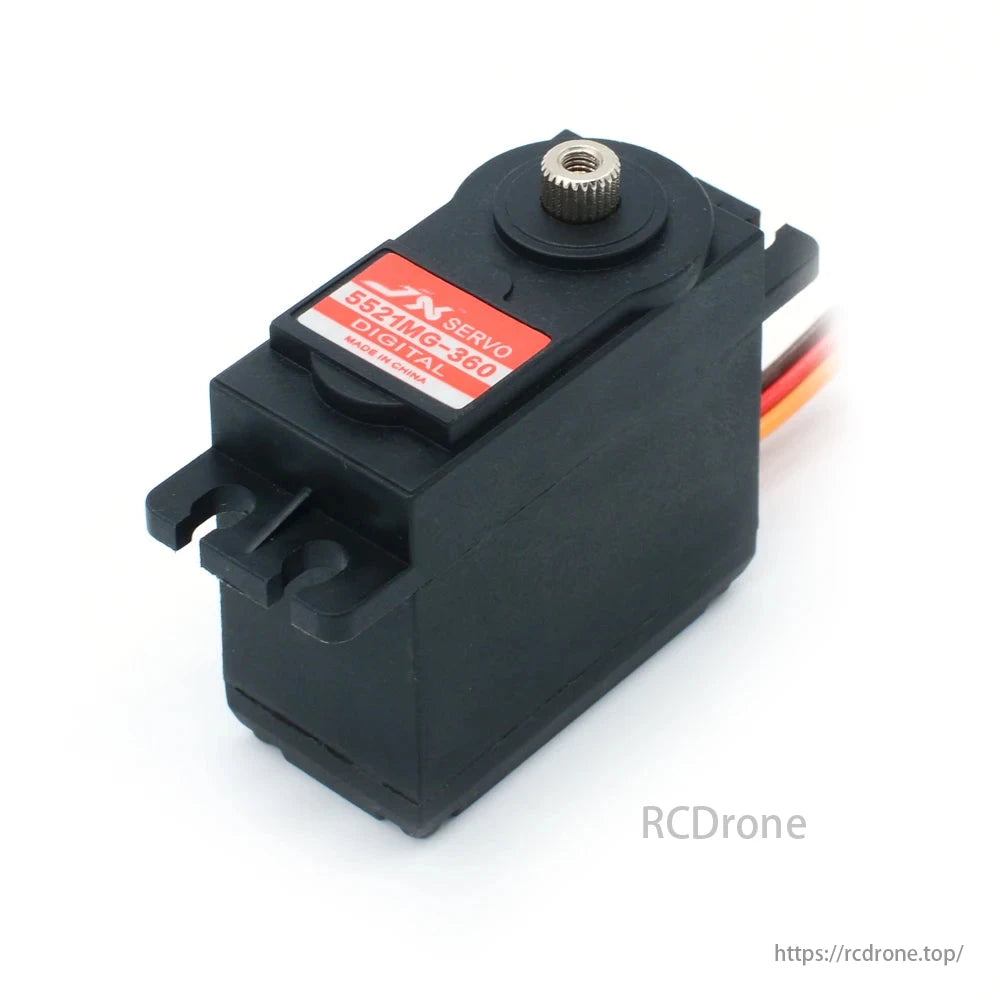

1x JX PDI-5521MG-360 Servo Motor (with accessories)
