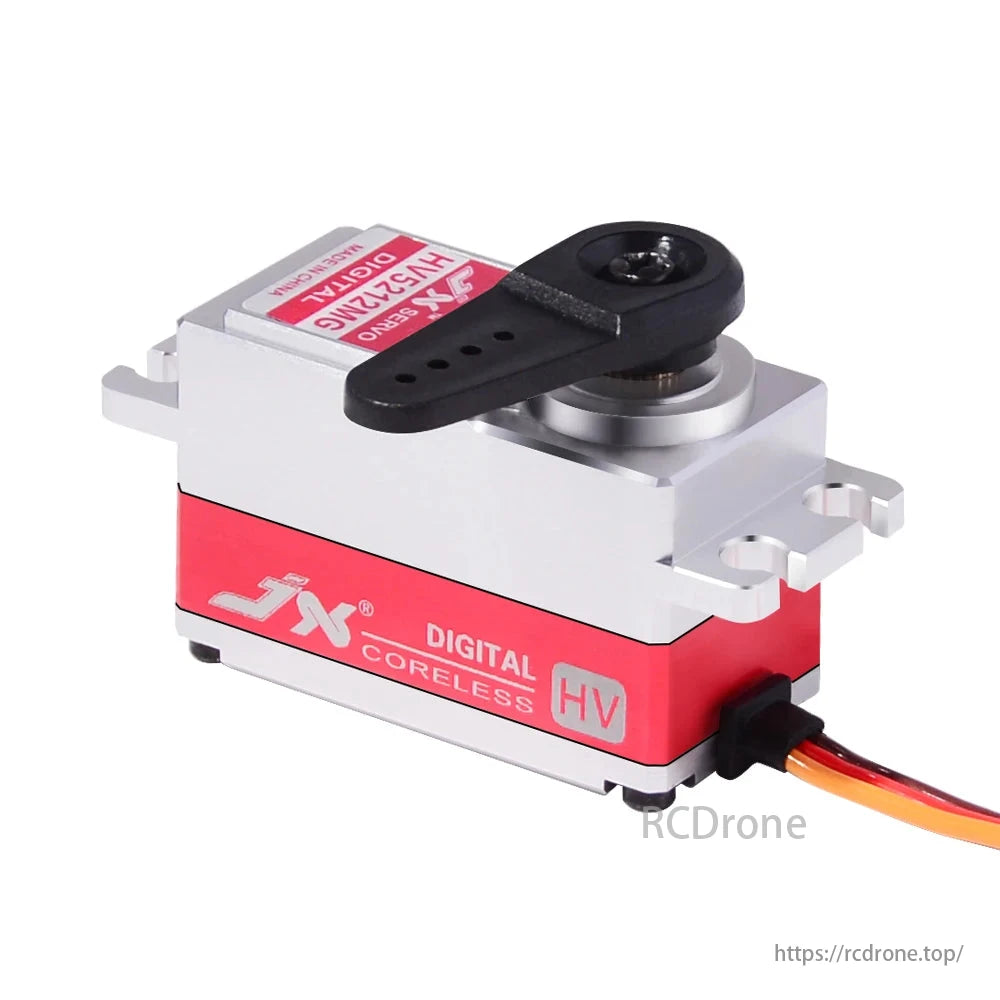

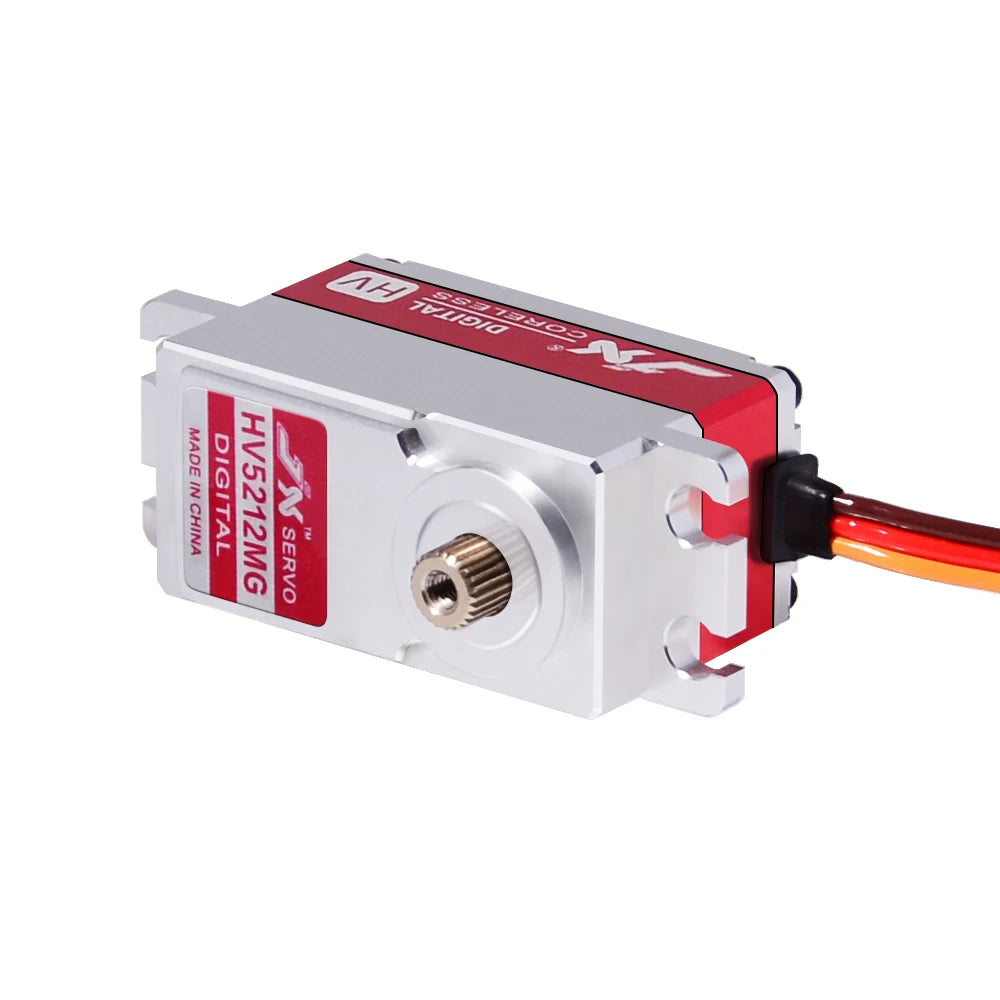

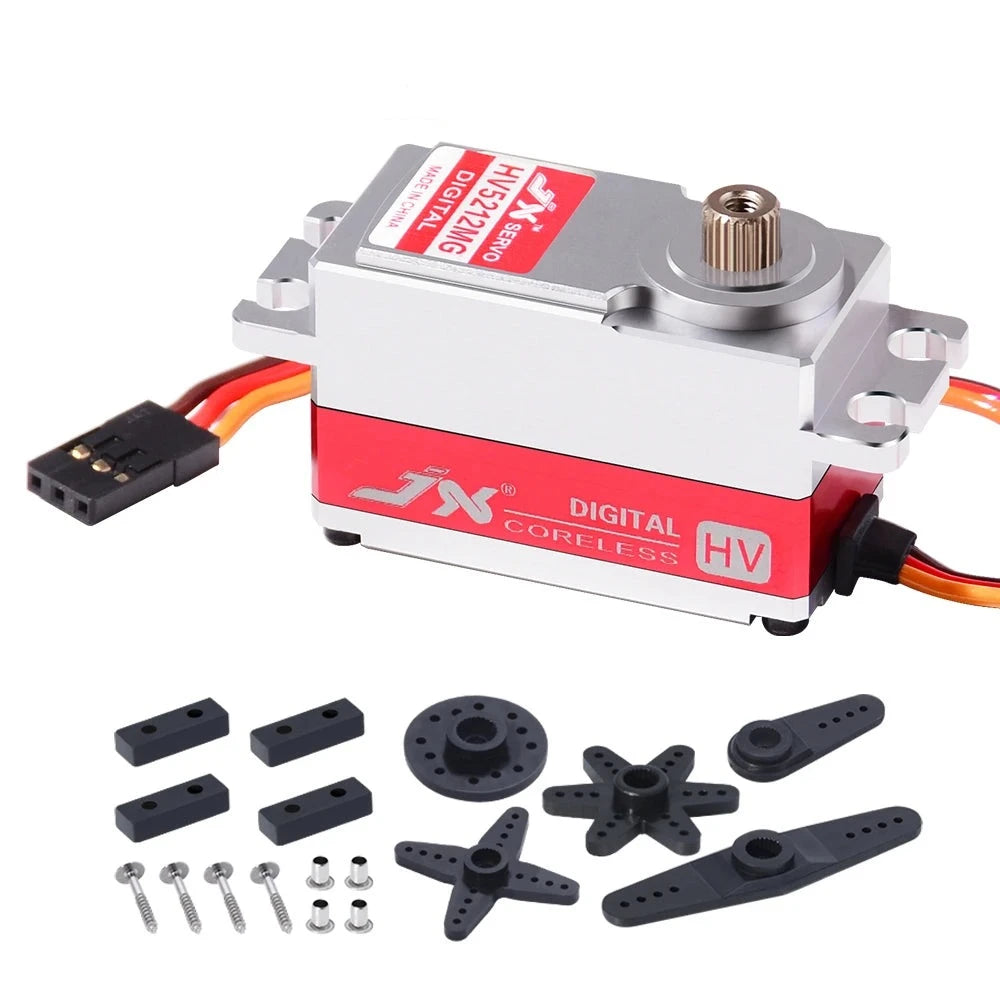

JX Servo PDI-HV5212MG - 12KG 8.4V 0.07sec Digital Coreless Short Waterproof Servo Low Profile 1/10 RC Drift Car yokomo HPI HSP Sakura

JX

$68.65 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color 1pcs 2pcs 4pcs

Quantity

View full details

JX Servo PDI-HV5212MG SPECIFICATIONS

Brand Name: JX

Material: Metal

RC Parts & Accs: Servos

Size: 40.5X20.5X 26.8mm /1.59 X0.80X1.05 in

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembled class

Technical parameters: KV1100

Model Number: PDI-HV5212MG

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

JX Servo PDI-HV5212MG SPECIFICATION

FEATURE:
-- High performance high voltage digital coreless Short body servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- Full CNC aluminium Shell structure
-- Dual ball bearings
-- Waterproof

SPECIFICATIONS:

Dead band: 1μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~8.4V
Motor: coreless motor
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (8.4V): 0.07sec/60°
Stall Torque (6V): 9.4kg.cm (118.9oz/in)
Stall Torque (8.4V): 11.82kg.cm (164.14oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 40.5X20.5X 26.8mm /1.59 X0.80X1.05 in
Weight:52 g (1.67oz)
Connector Wire Length: JR 220 mm
Bearing: 2BB
Tooth Count：25
