JX Servo PS-5521MG - 20KG Large Torque Metal Gear Standrd Analog Servo for RC Car Robot Plane

JX Servo PS-5521MG - 20KG Large Torque Metal Gear Standrd Analog Servo for RC Car Robot Plane

JX

$14.68 USD
$20.55 USD $14.68 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

177 orders in last 90 days

Color
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

JX Servo PS-5521MG SPECIFICATIONS

Brand Name: JX

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Servos

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembled class

Technical parameters: KV1100

Model Number: PS-5521MG

Four-wheel Drive Attributes: Battery

Wheelbase: Screws




JX Servo PS-5521MG SPECIFICATIONS Brand Name

JX Servo PS-5521MG 55.6g High Precision Metal Gear Analog Standard Servo

FEATURE:
-- High-precision Taiwan-made metal gears
-- Dual ball bearings

SPECIFICATIONS:
Dead band: 7μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.18 sec/60°
Operating Speed (6V): 0.16 sec/60°
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V):  20.32 kg-cm (281.89 oz/in)

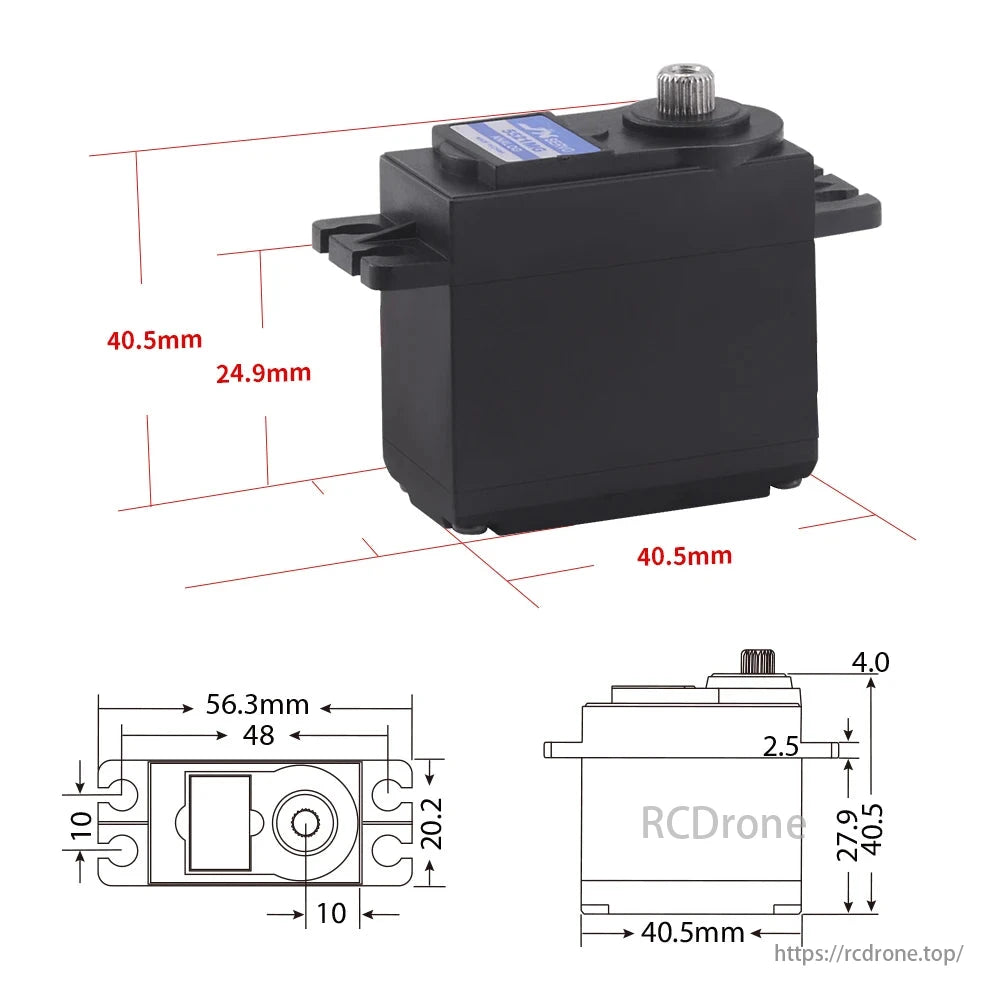

Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight:  55.6 g (1.96oz)
Connector Wire Length: JR  265 mm (10.43in)
Bearing: 2BB
Tooth Count: 25

Package including:

1*JX Servo PS-5521MG

1*Spare parts

JX Servo PS-5521MG SPECIFICATIONS Brand Name
