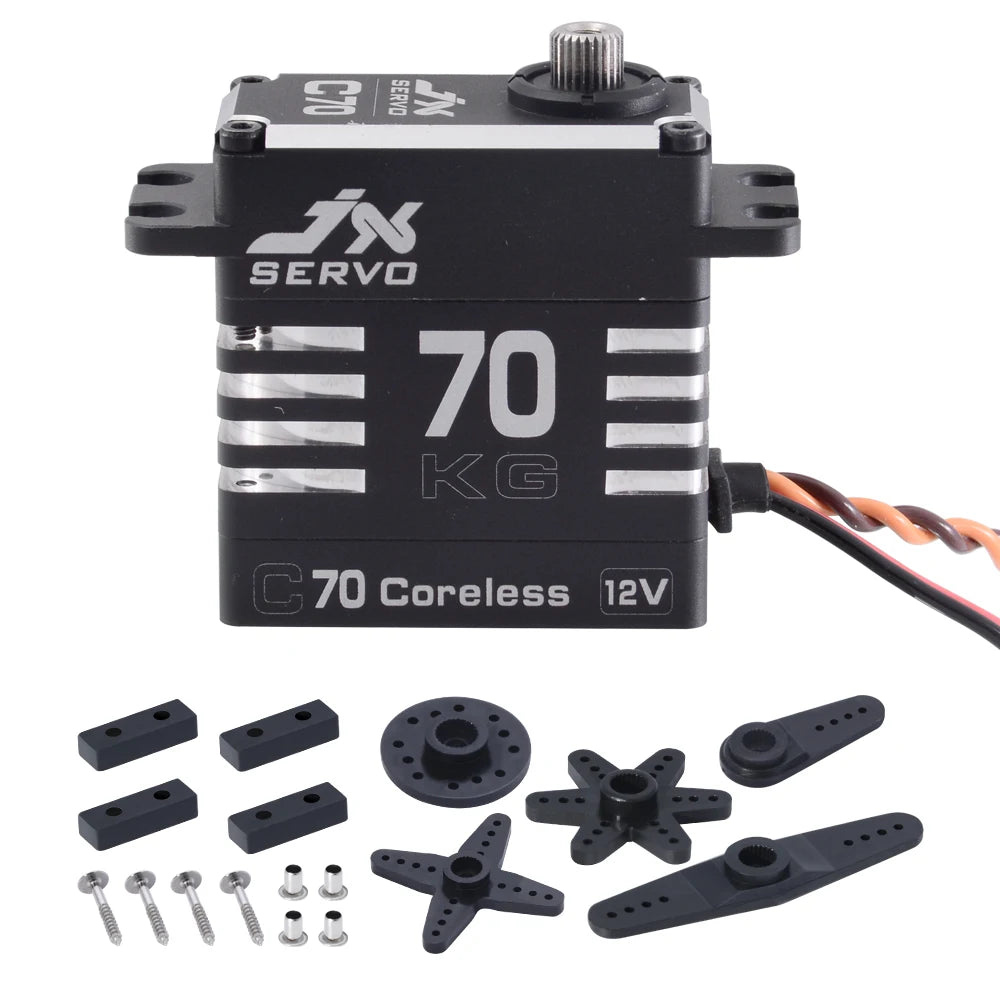

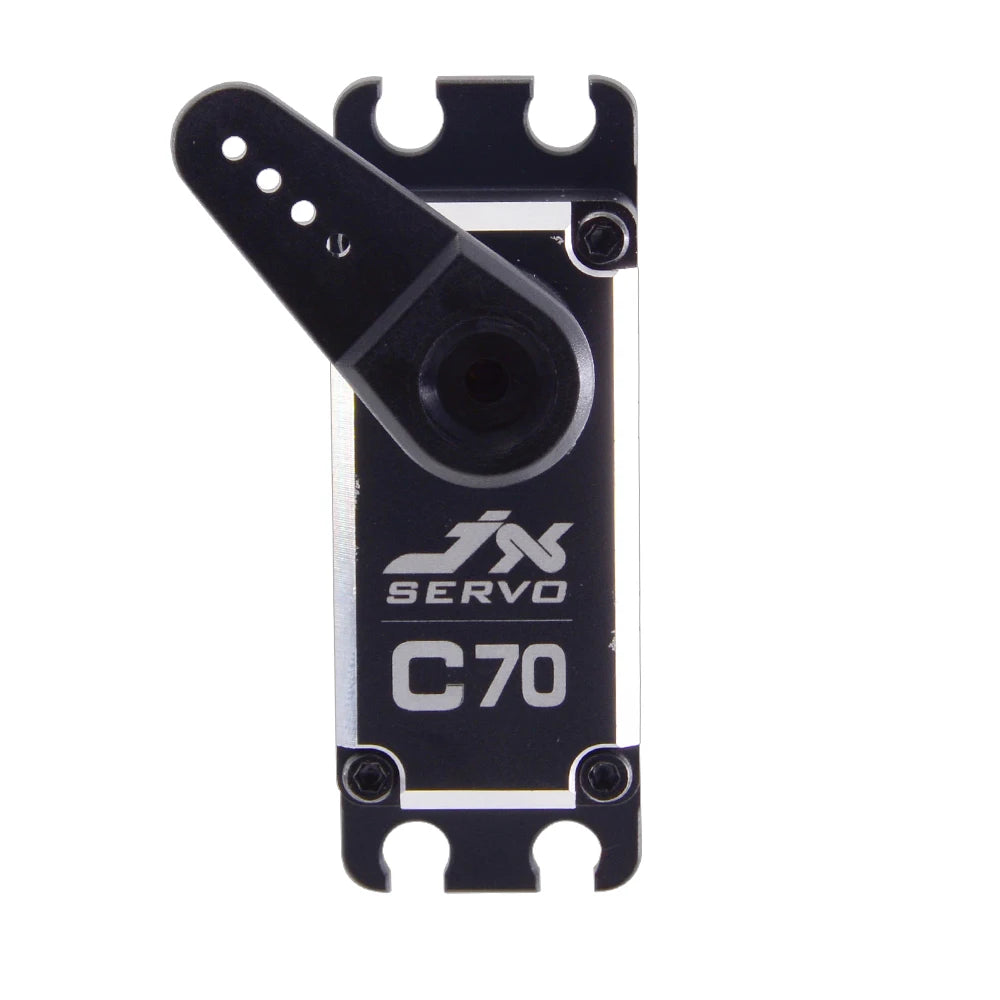

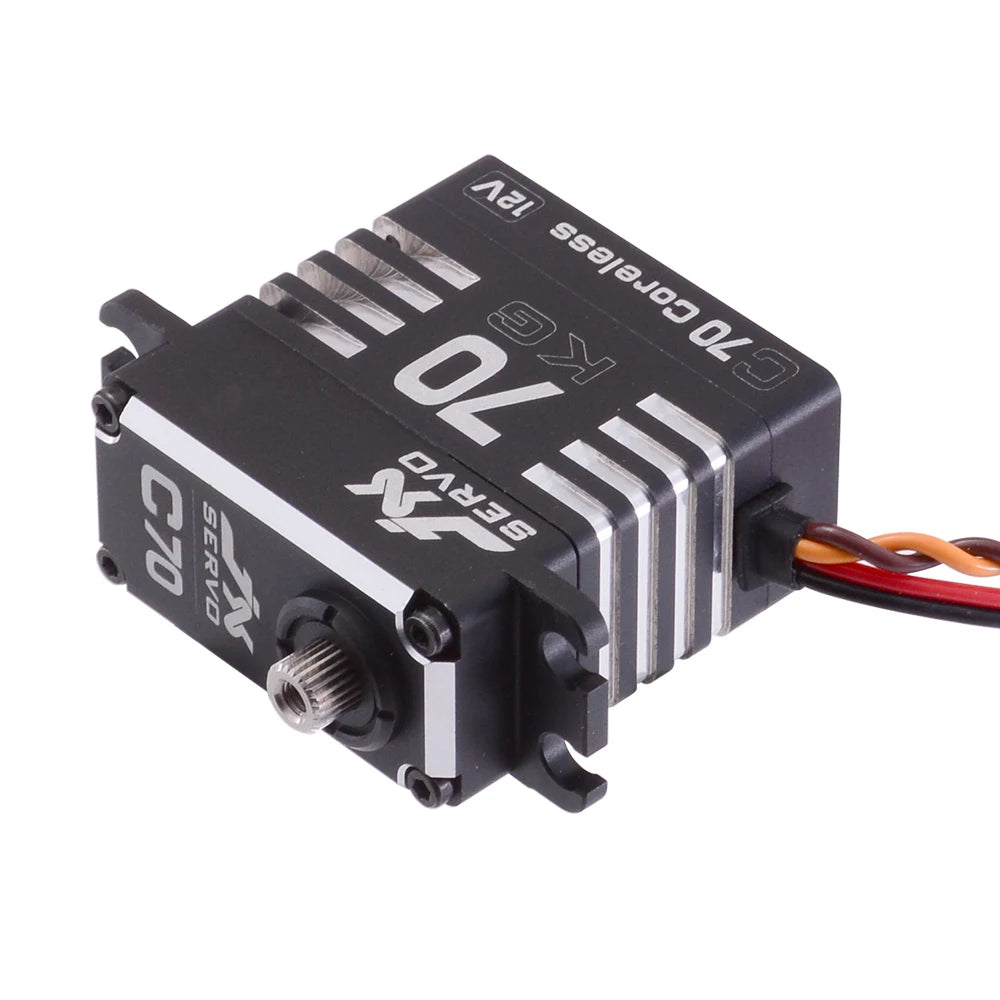

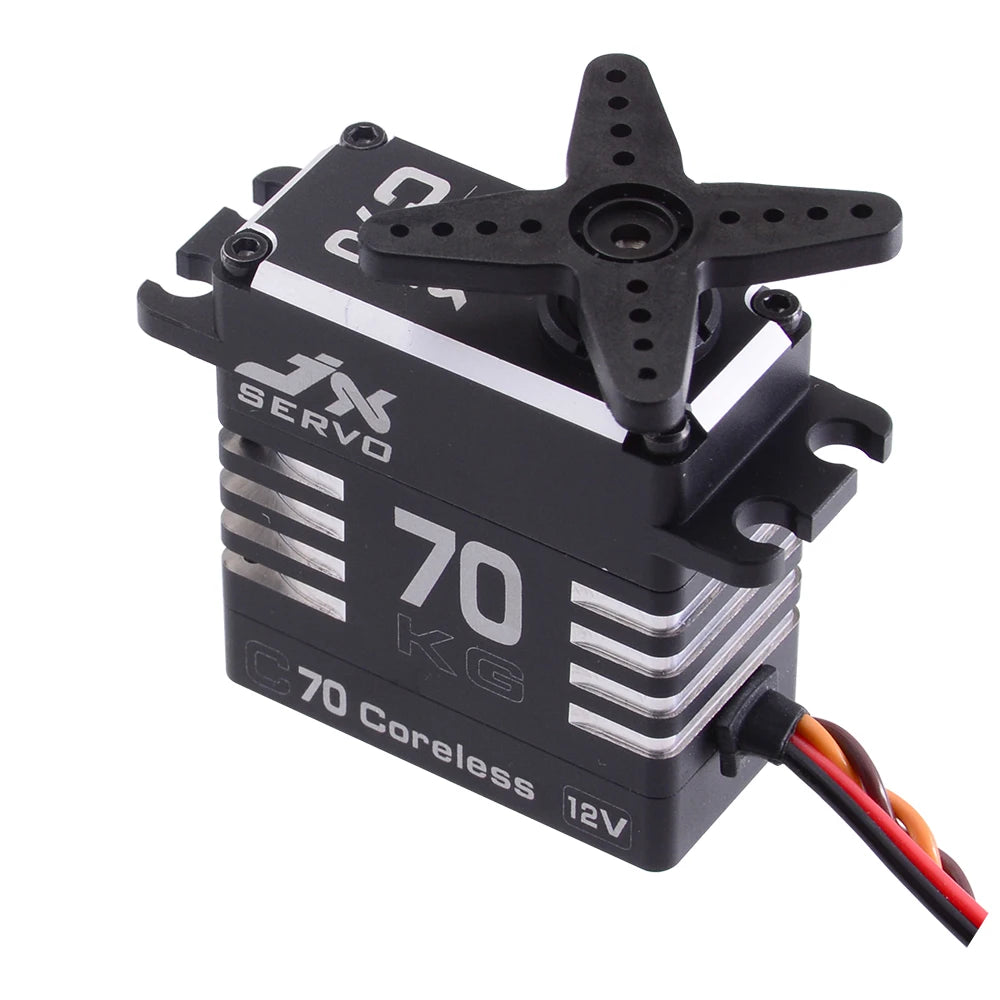

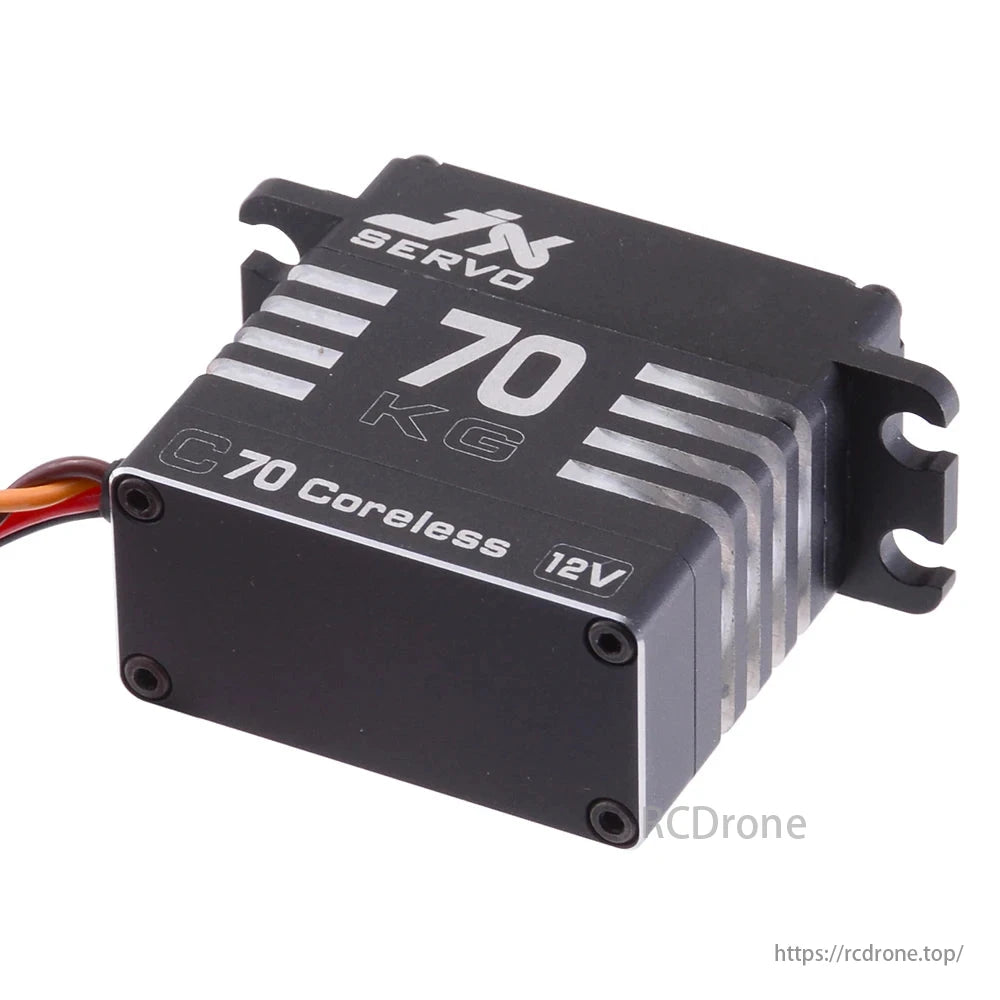

JX Servo C70 SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Servos
Size: 40X20X43.3mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: Value 5
Model Number: C70
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
JX Servo Technology have established a reputation for reliability and value. JX Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. JX Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.
FEATURE:
-- 12V High voltage
-- High performance digital coreless standard servo
-- High-precision Taiwan-made steel gears with hard anodizing
-- Full CNC aluminium Shell structure
-- Dual ball bearings
SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (11.1V): 0.10sec/60°
Operating Speed (12.0V): 0.08sec/60°
Stall Torque (11.1V): 61kg.cm
Stall Torque (12.0V): 72kg.cm
Dimensions: 40X20X43.3mm
Weight: 87 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
