SPECIFICATIONS

Origin: Mainland China

Material: Composite Material

RC Parts & Accs: Servo

Size: 40.5X20.2X38mm

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Servo

Remote Control Peripherals/Devices: Servo

Tool Supplies: Assembled class

Technical parameters: Value 5

Model Number: JX Servo CLS5830HV

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

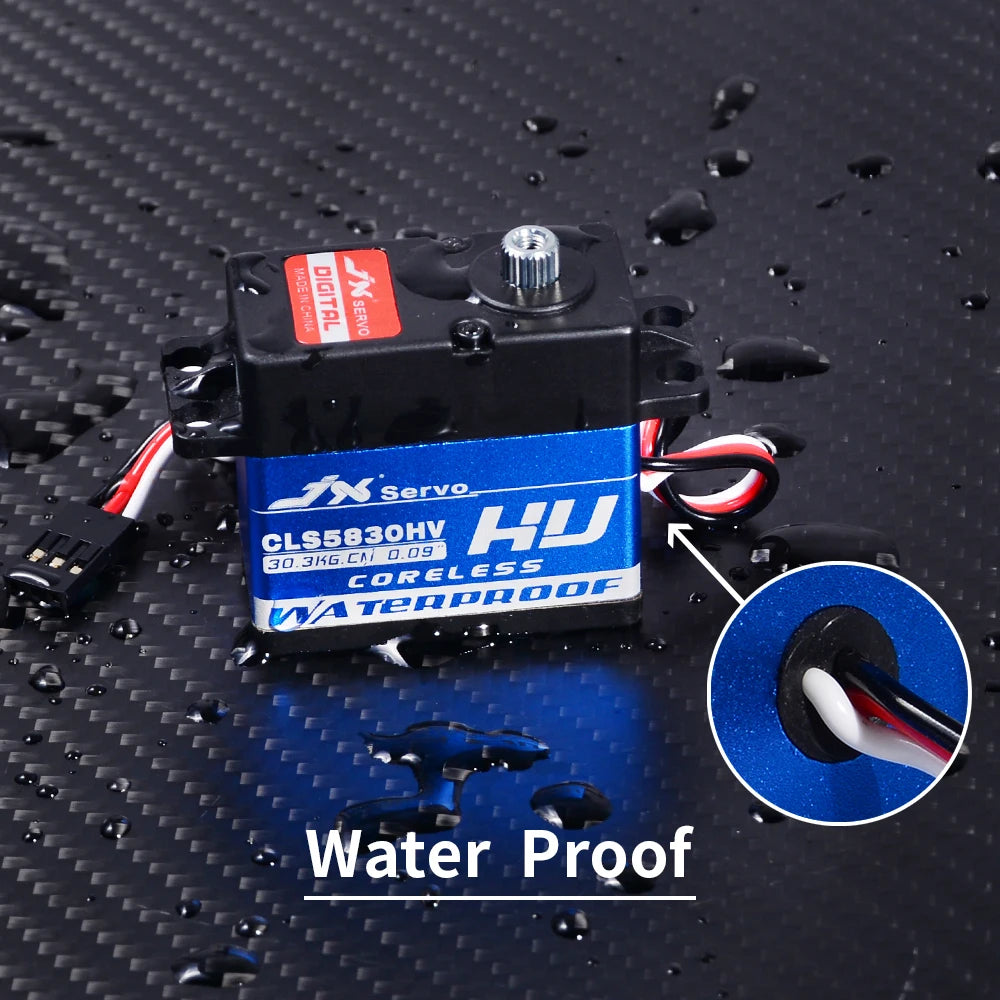

Excellent servo choice for RC rock crawlers, cars or buggys that need a water proof servo solution. Also ideal for boats or or industrial uses where water is a problem.

FEATURE：

-----CNC metal On the cover In the shell
-----High-precision Taiwan-made aluminium gears with hard anodizing
-----High Voltage Coreless Digital Servo

SPECIFICATIONS：

Dead band： 1μs
Working frequence：1520μs / 330hz
Motor：Coreless
Operating Speed 6.0v : 0.11 sec/60°
Operating Speed 8.4v : 0.09 sec/60°
Stall Torque 6.0v : 24.7 kg.cm
Stall Torque 8.4v : 30.3 kg.cm
Dimensions：40.5X20.2X38mm
Weight：58 g
Wire/Color：JR 265 mm/ -Brown +Red S Orange
Bearing：2BB

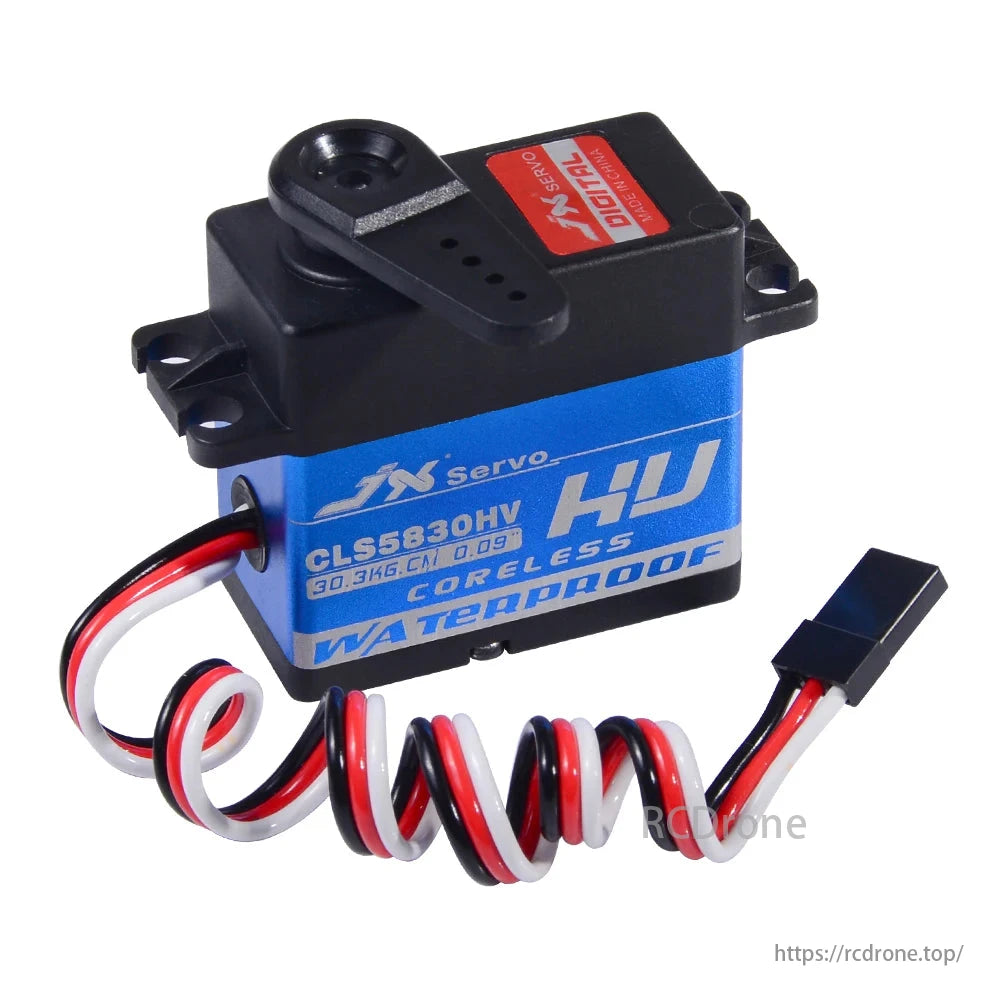

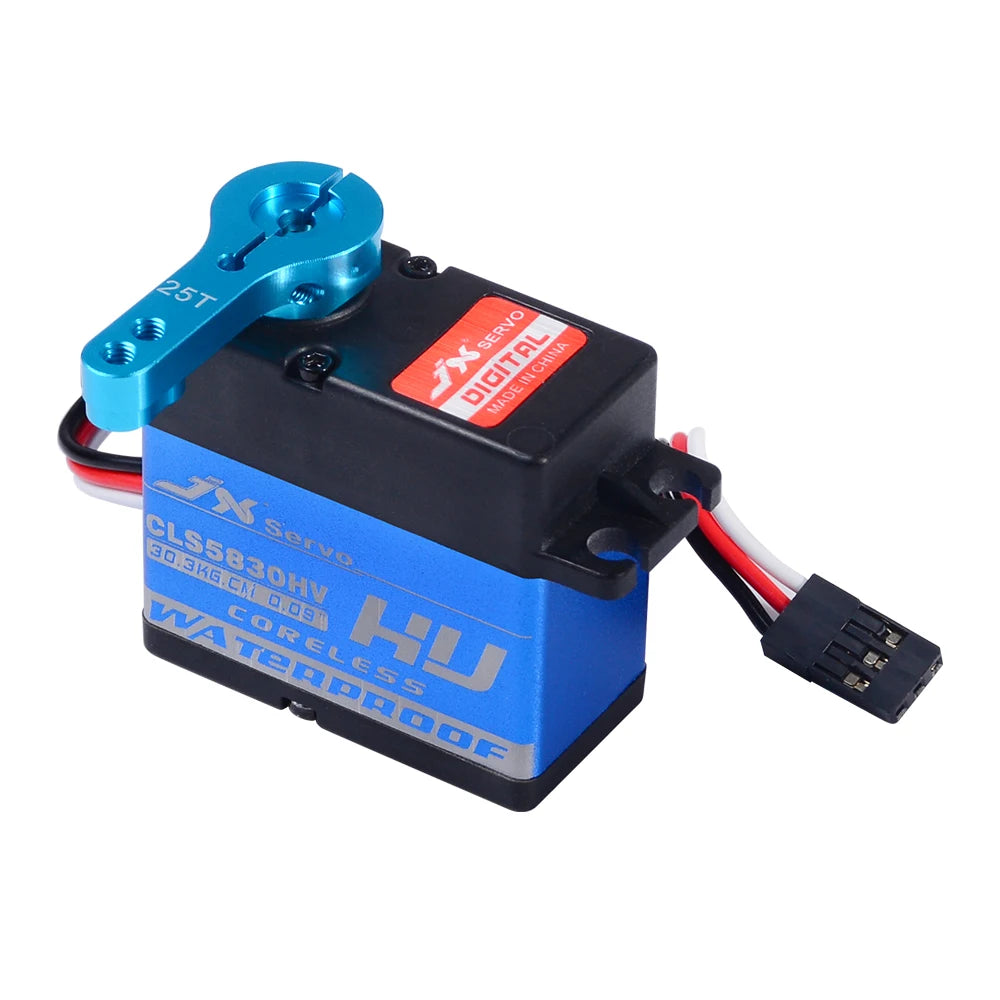

JX Servo CLS-5830HV, an 8.4V, 30kg servo with a speed of 0.09 seconds per 60 degrees, featuring a full waterproof and high-quality coreless HV design for car crawlers, TRX4, SCX10 RC boats, and other RC models.
