Detailed introduction
FEATURE: |
-----CNC metal On the cover In the shell |
-----High-precision Taiwan-made aluminium gears with hard anodizing |
-----High Voltage Coreless Digital Servo |

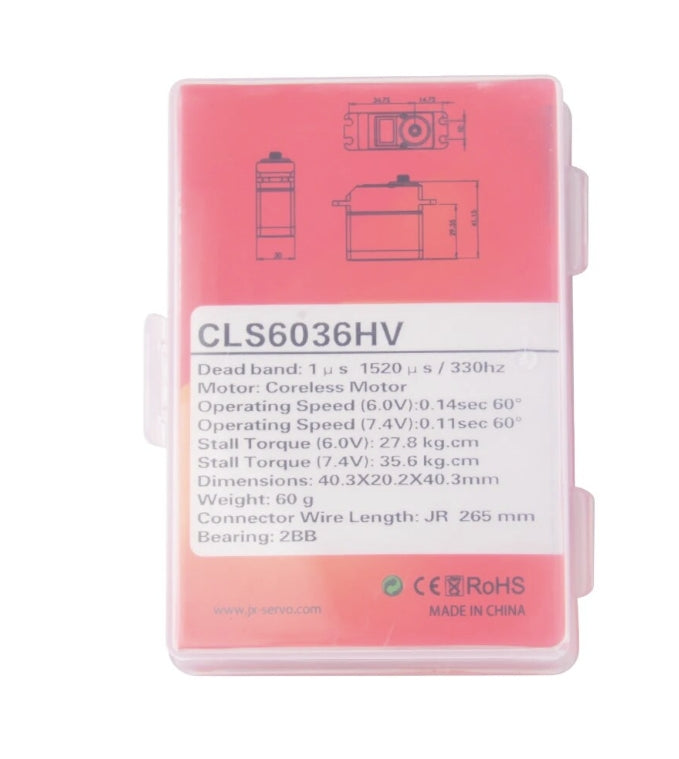

SPECIFICATIONS: | |
Dead band: | 1μs |
Working frequence: | 1520μs / 330hz |
Motor: | Coreless |
Operating Speed6.6v | 0.14 sec/60° |
Operating Speed7.4v | 0.11 sec/60° |
Stall Torque 6.6v | 27.8 kg.cm |
Stall Torque 7.4v | 35.6 kg.cm |

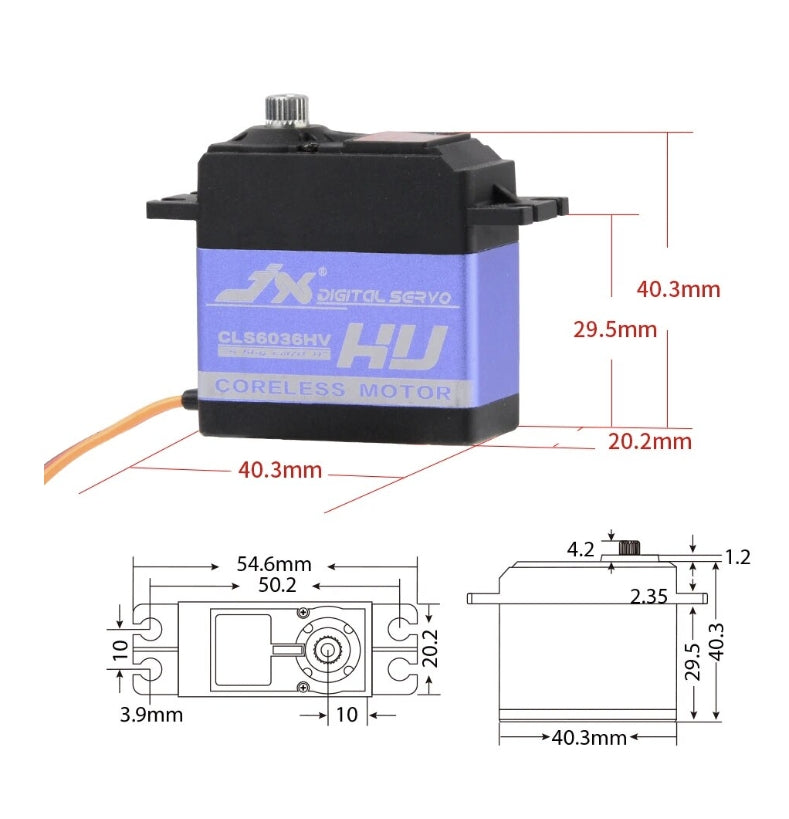

Dimensions: | 40.5X20.5X40mm |
Weight: | 60 g |
Wire/Color: | JR 265 mm/ -Brown +Red S Orange |
Bearing: | 2BB |
