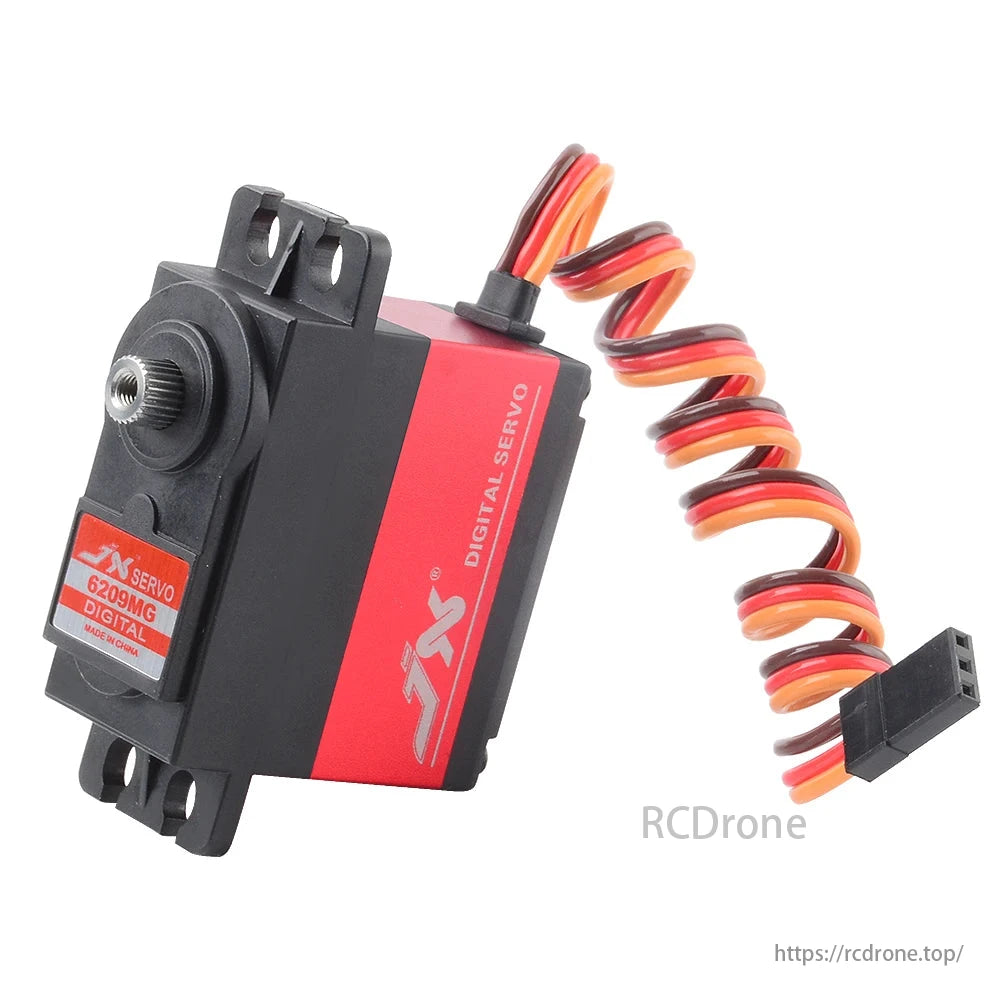

JX Servo PDI-6209MG SPECIFICATIONS
Material: Metal
RC Parts & Accs: Servos
Size: 40.5X20.2X38mm
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Putty class
Technical parameters: Value 4
Model Number: PDI-6209MG
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
FEATURE:
-- High performance digital standard servo -- High-precision Taiwan-made aluminium gears with hard anodizing -- CNC aluminium middle Shell -- Dual ball bearings
SPECIFICATIONS:
Dead band: 2μs Working frequence: 1520μs / 330hz Operating Speed (4.8V): 0.15 sec/60° Operating Speed (6V): 0.13 sec/60° Stall Torque (4.8V): 8.65 kg.cm (120.15 oz/in) Stall Torque (6V): 9.35 kg-cm (129.88 oz/in) Dimensions: 40.5X20.2X38mm/1.59X0.80X1.49in Weight: 62 g (2.18oz) Connector Wire Length: JR 265 mm (10.43in) Bearing: 2BB Tooth Count:25
Product specifications: * Deadband: 2 p/1520 us @ 1330 Hz * Motor: High-quality core motor with operating speeds: + 4.8V: 0.1 seconds per second + 6.0V: 0.23 seconds per second * Stall torque (at 6.0V): 9.35 kg.cm * Dimensions: 40.5mm x 20.2mm x 40mm * Weight: 62 grams * Connector wire length: JR, 260 mm * Bearings: 2x BB bearings and 1x AA bearing
