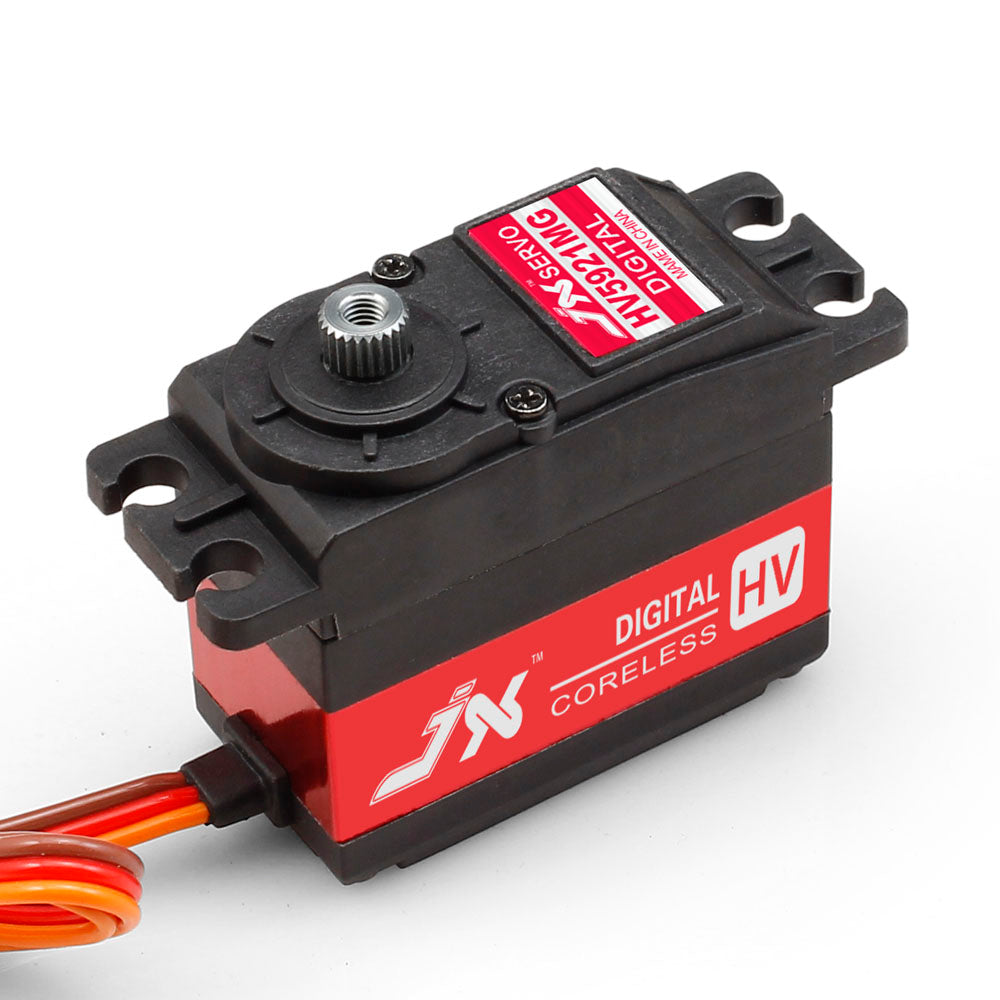

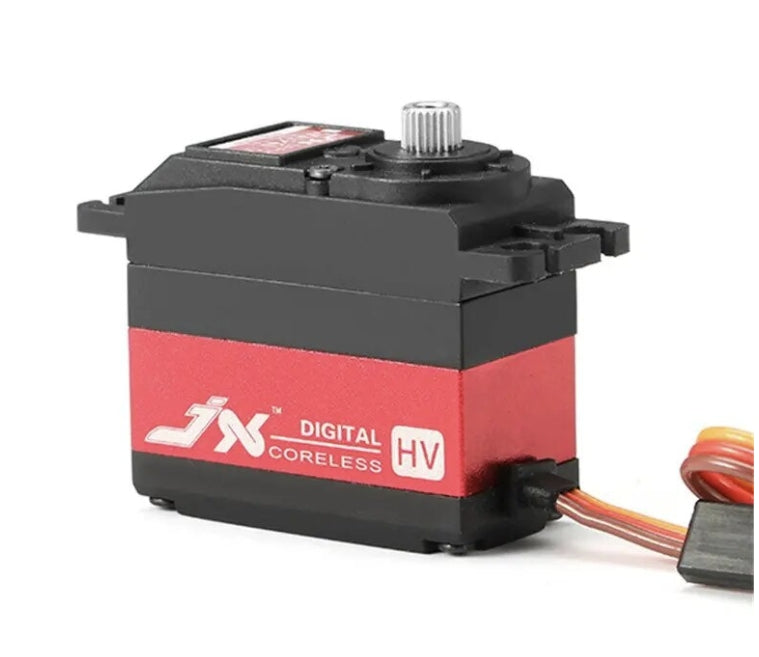

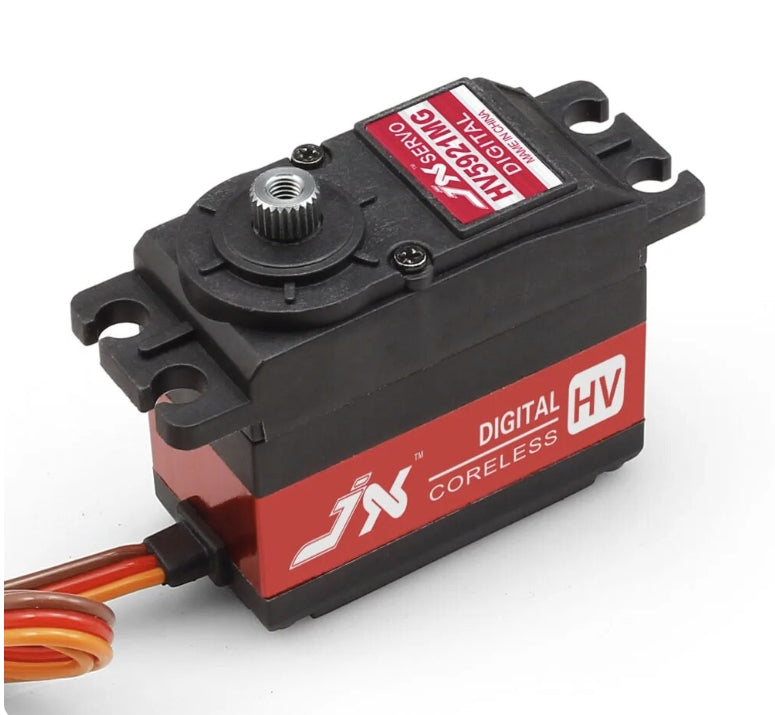

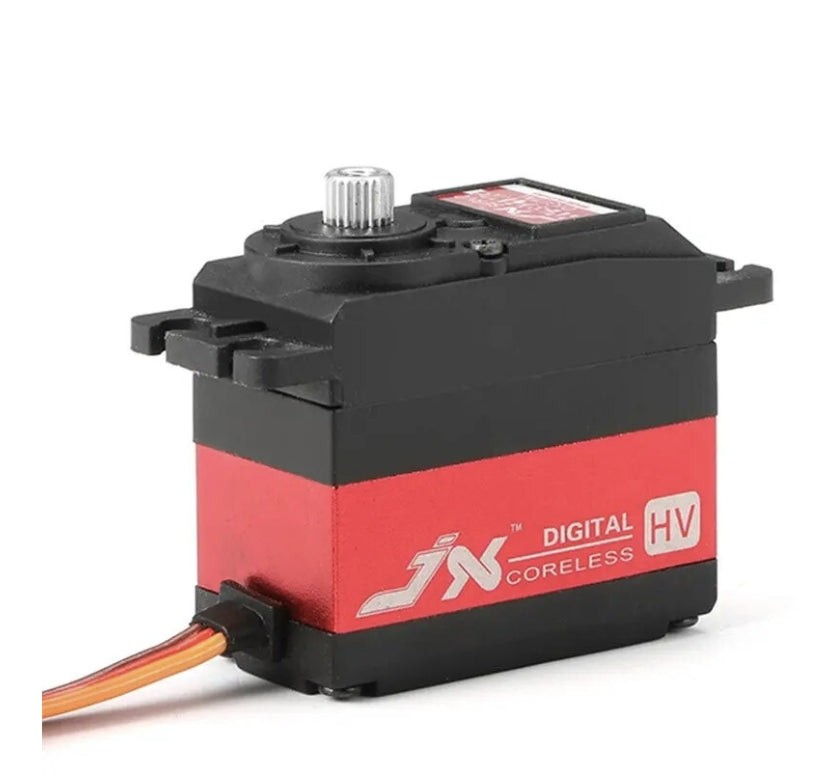

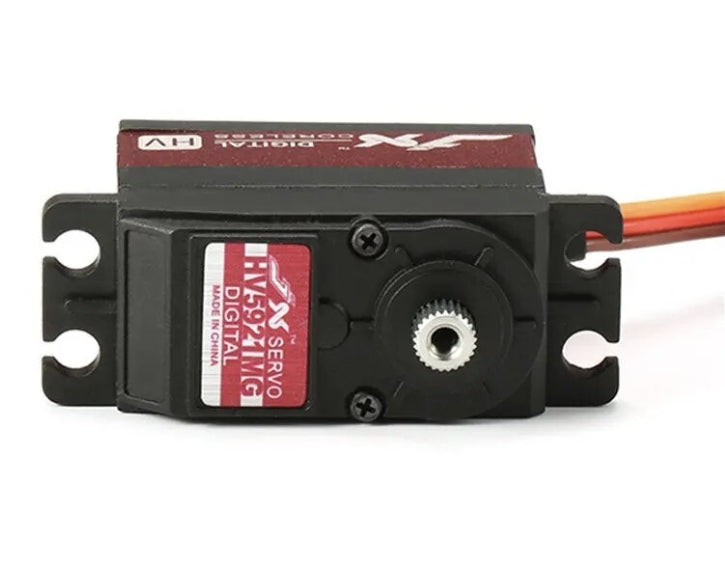

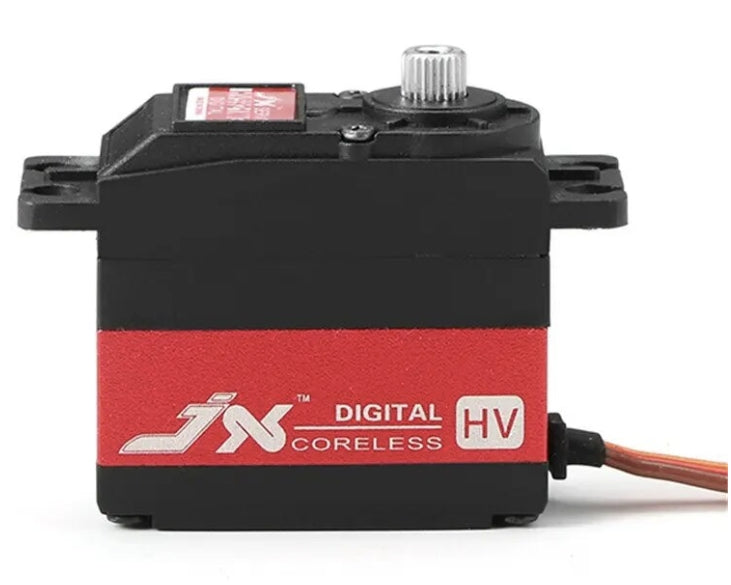

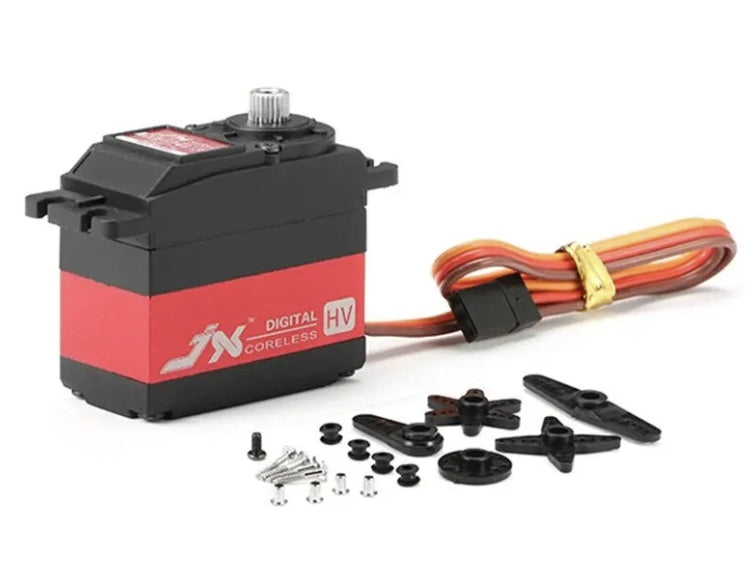

• JX Servo PDI-HV5921MG - 20KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo
  • JX Servo PDI-HV5921MG - 20KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo
  • JX Servo PDI-HV5921MG - 20KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo
  • JX Servo PDI-HV5921MG - 20KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo
  • JX Servo PDI-HV5921MG - 20KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo
  • JX Servo PDI-HV5921MG - 20KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo
  • JX Servo PDI-HV5921MG - 20KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo
1 7

JX Servo PDI-HV5921MG - 20KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo

JX Servo PDI-HV5921MG - 20KG High Precision Metal Gear High Voltage Digital Coreless Standard Servo

JX

$45.00 USD
$45.00 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

68 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Detailed introduction

FEATURE:
-- High performance digital high voltage coreless standard servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- Dual ball bearings
-- CNC aluminium middle hull
-- Waterproof

SPECIFICATIONS:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: coreless motor
Operating Speed (6.0V): 0.152sec/60°
Operating Speed (8.4V): 0.123sec/60°
Stall Torque (6.0V): 17.25 kg.cm (239.55oz/in)
Stall Torque (8.4V): 20.32 kg-cm (281.89 oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight:  59.3g (2.09oz)
Connector Wire Length: JR  265 mm (10.43in)
Bearing: 2BB
