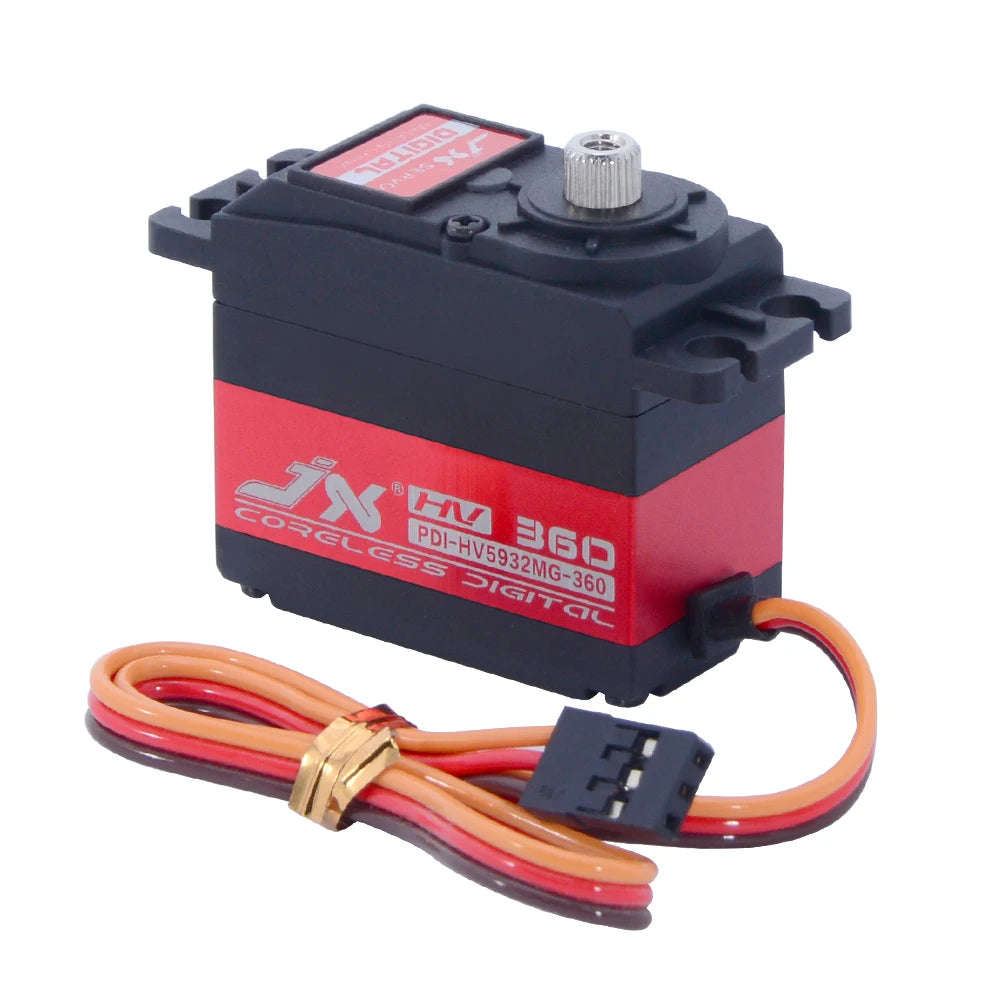

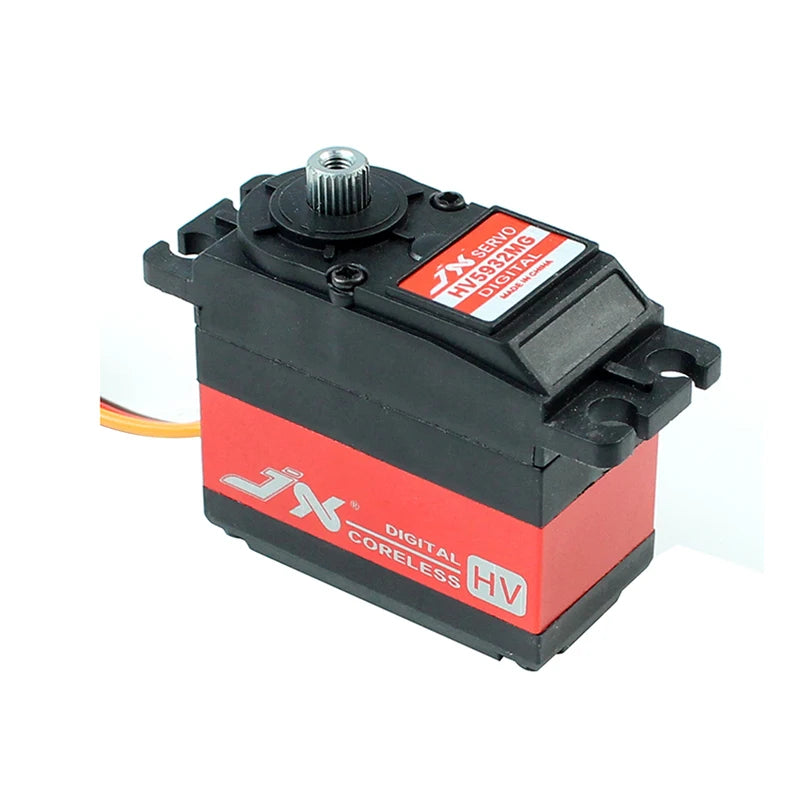

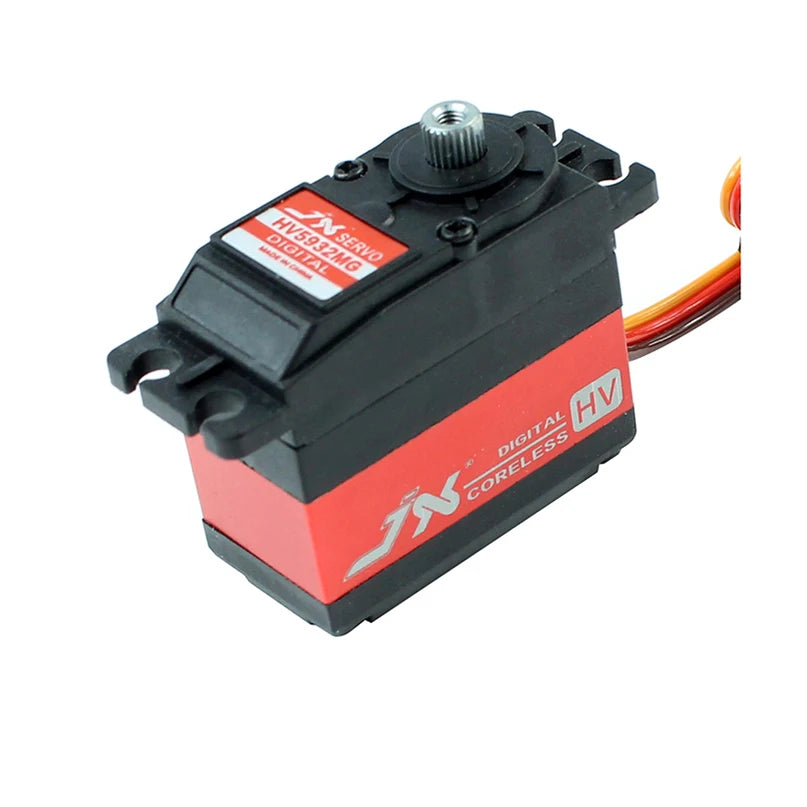

JX Servo PDI-HV5932MG 32KG Large Torque 120 180 360 degree High Voltage Digital Servo For RC Car Boat Robot

Features:

High-voltage digital hollow cup standard steering gear

Taiwan high precision gear

Double ball bearing

CNC aluminum inner shell

PDI-HV5932MG-360° continuous transfer detailed specifications:

Dead zone: 1μs

Maximum pulse width: 500-2500us, pulse width is stopped at 1500us (suitable for remote control, MCU control board)

Angle range: 360° continuous turn

Motor: Hollow cup

Speed (6.0V): 73 rpm

Speed (8.4V): 102 rpm

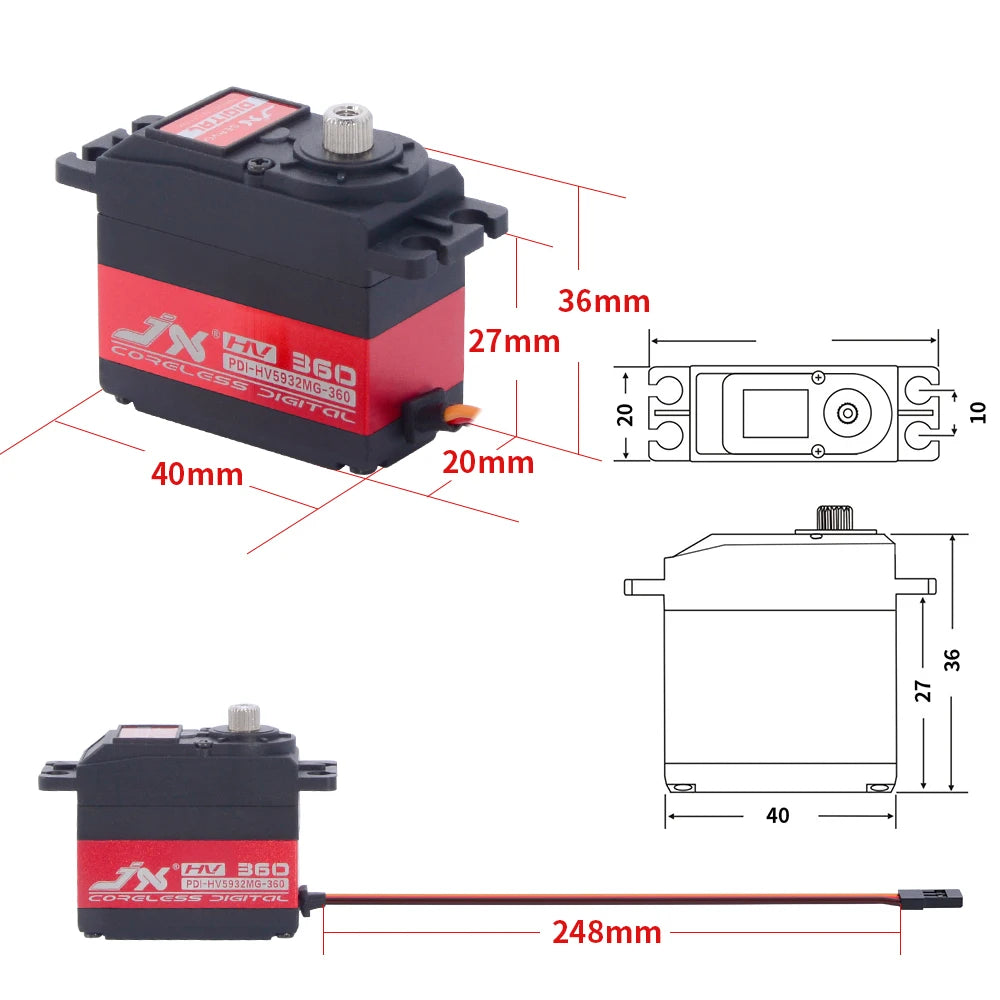

Size: 40.5X20.5X36mm

Weight: 59g

Cable: JR 265 mm (10.43in)

Bearing: 2BB

Output teeth: 25T (Futaba universal)

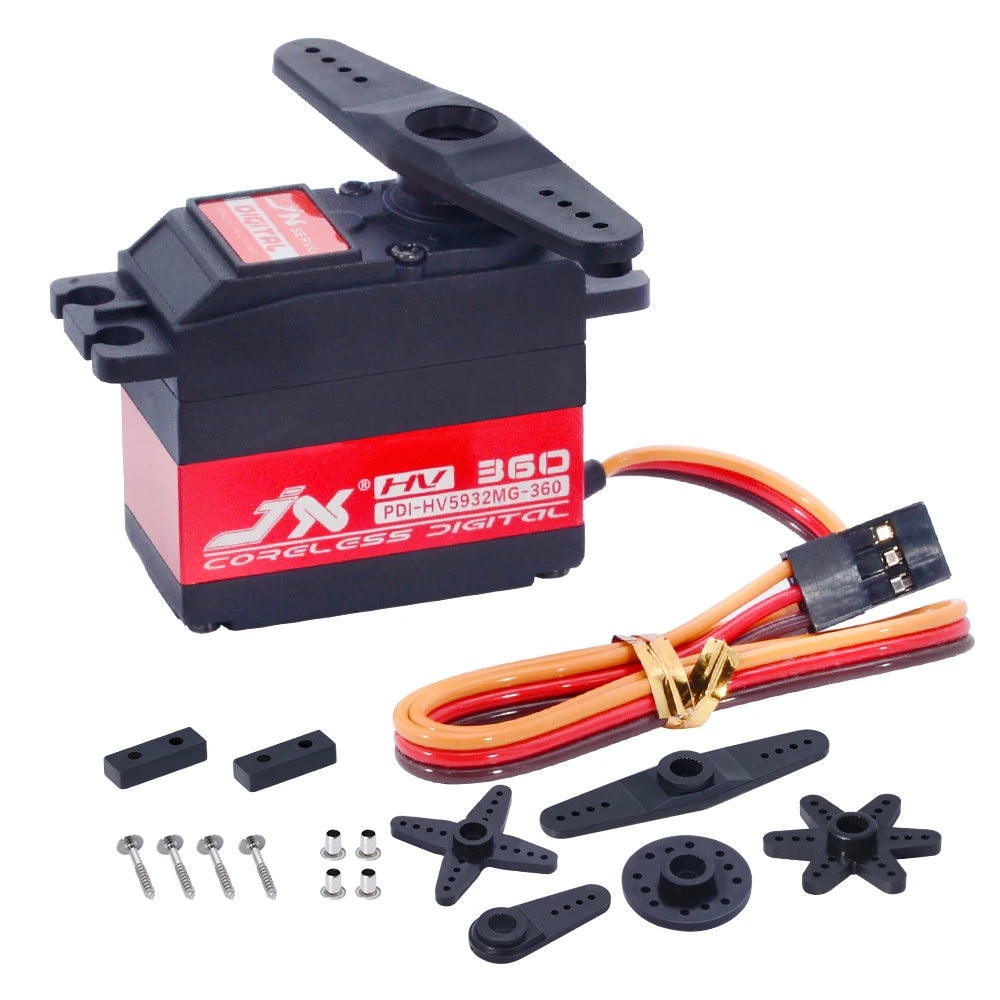

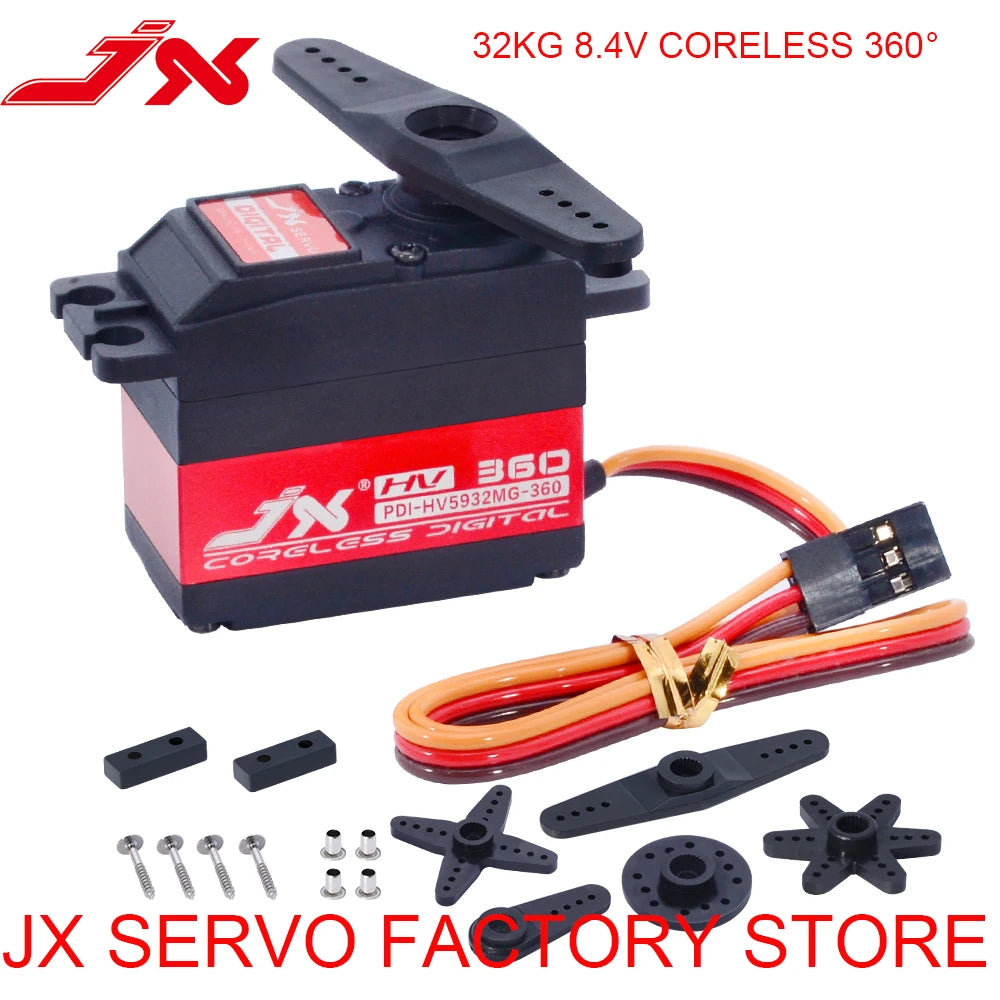

Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

PDI-HV5932MG-180°Detailed specifications:

Dead zone: 1μs

Maximum pulse width: 500-2500us (suitable for single-chip control board)

Angle range: actual angle 172 ± 2 °

Motor: Hollow cup

Speed (6.0V): 0.12sec/85°

Speed (8.4V): 0.1sec/85°

Torque (6.0V): 25.2 kg.cm

Torque (8.4V): 32.3kg.cm

Size: 40.5X20.5X36mm

Weight: 59g

Cable: JR 265 mm (10.43in)

Bearing: 2BB

Output teeth: 25T (Futaba universal)

Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

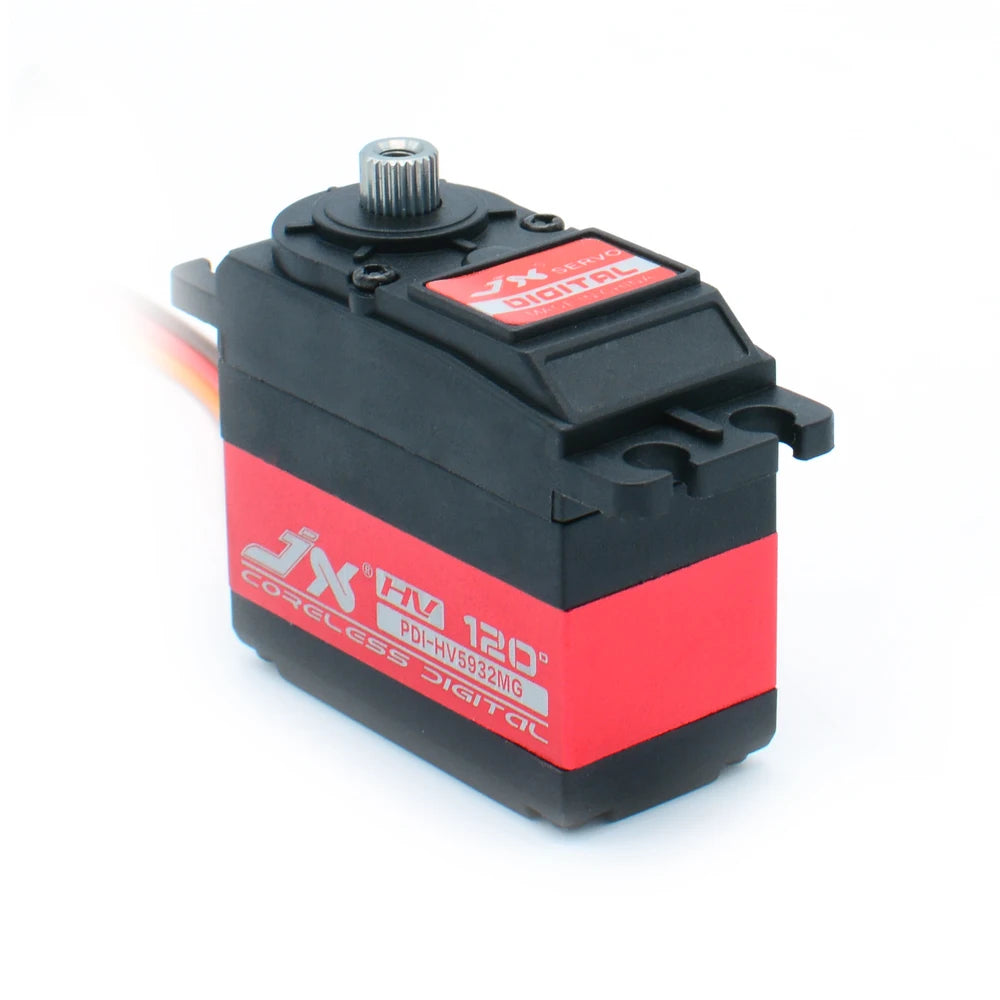

PDI-HV5932MG-120° Detailed specifications:

Dead zone: 1μs

Maximum pulse width: 900-2100us (suitable for remote control)

Maximum angle: 120°

Motor: Hollow cup

Speed (6.0V): 0.12sec/60°

Speed (8.4V): 0.1sec/60°

Torque (6.0V): 25.2 kg.cm

Torque (8.4V): 32.3kg.cm

Size: 40.5X20.5X36mm

Weight: 59g

Cable: JR 265 mm (10.43in)

Bearing: 2BB

Output teeth: 25T (Futaba universal)

Package Included:

1 x Servo
1 x Bag of Accessories
