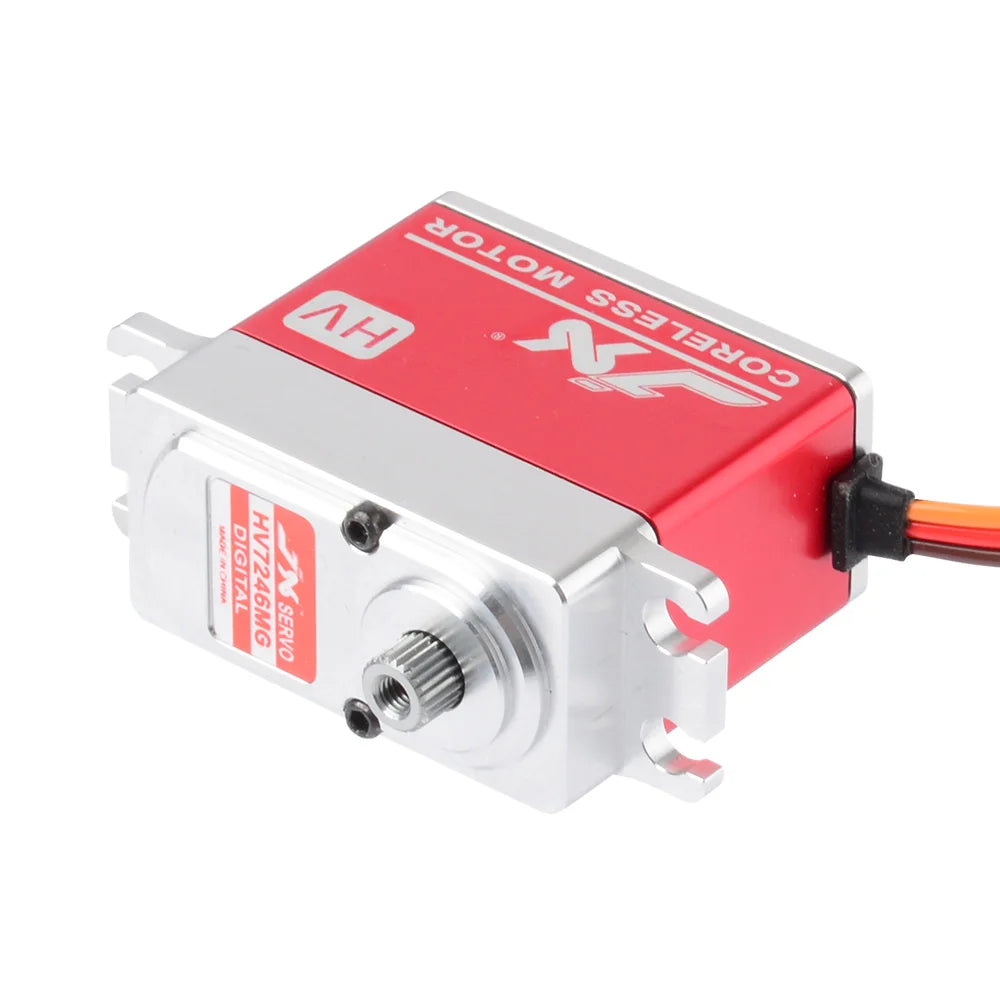

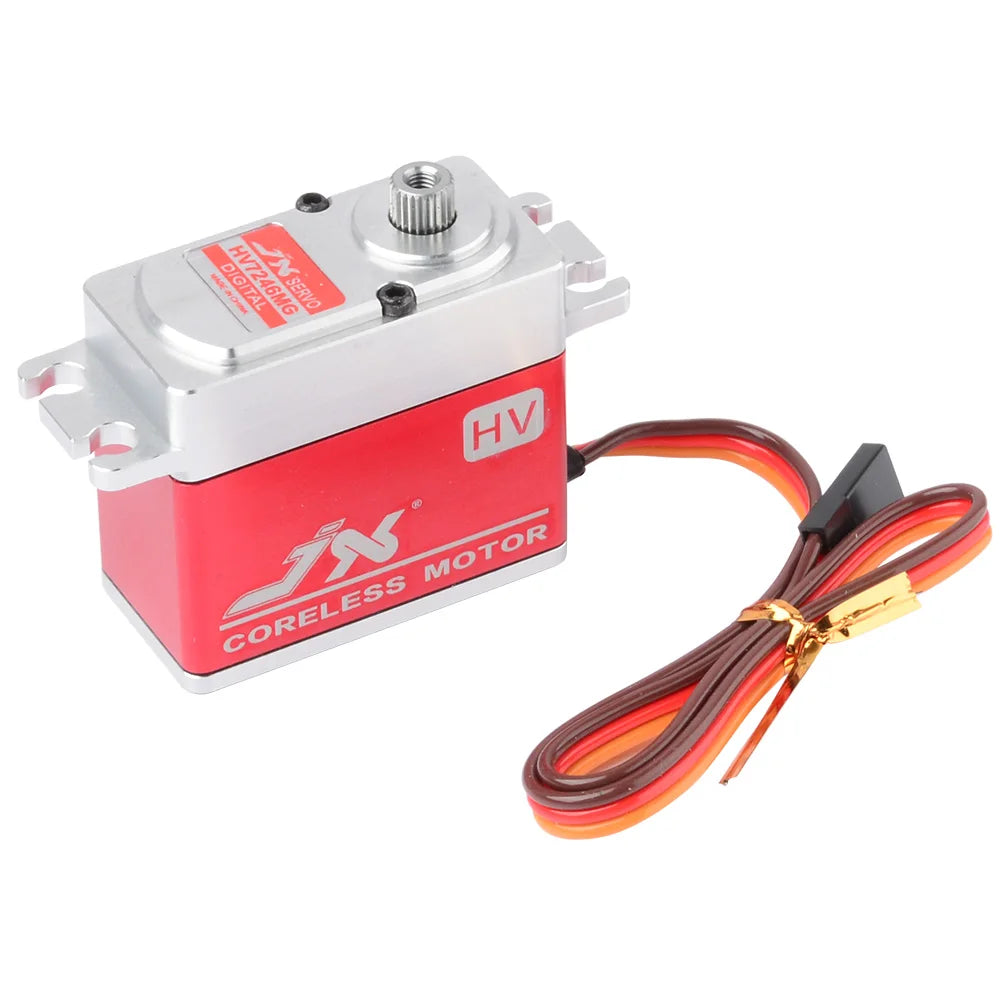

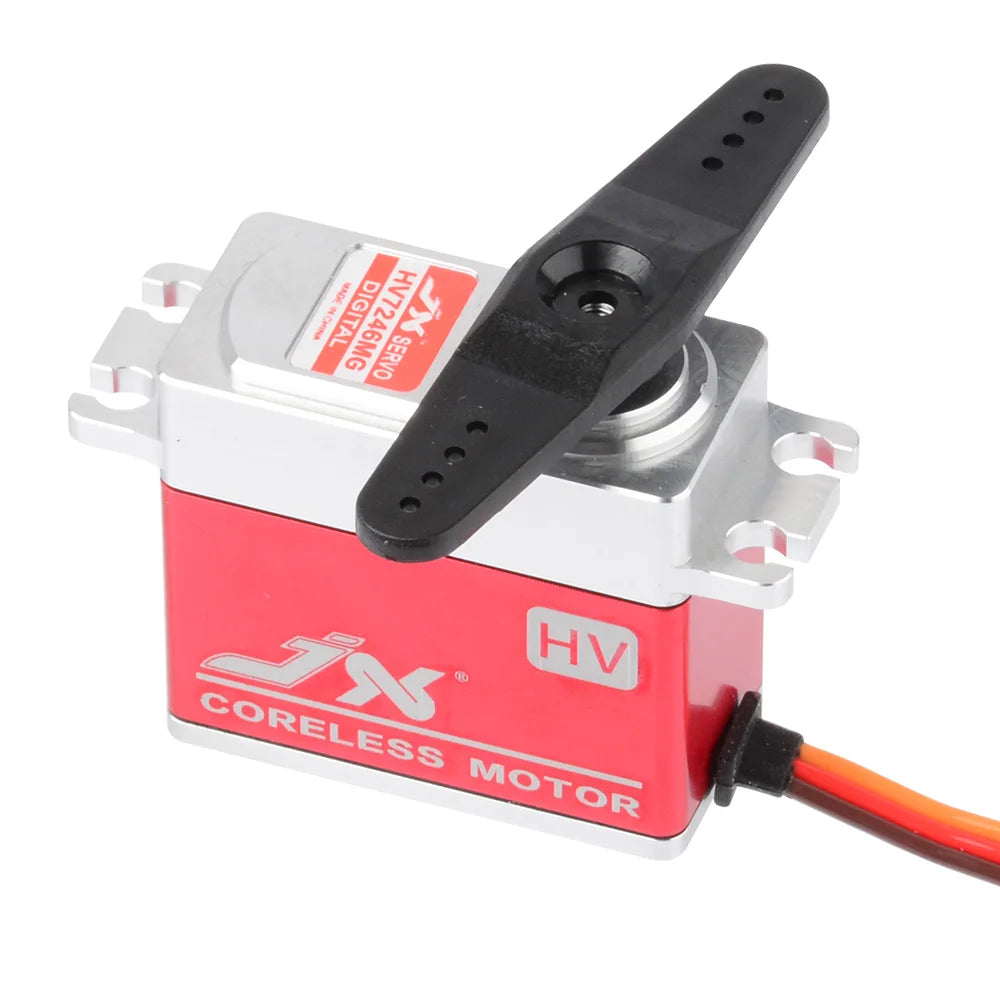

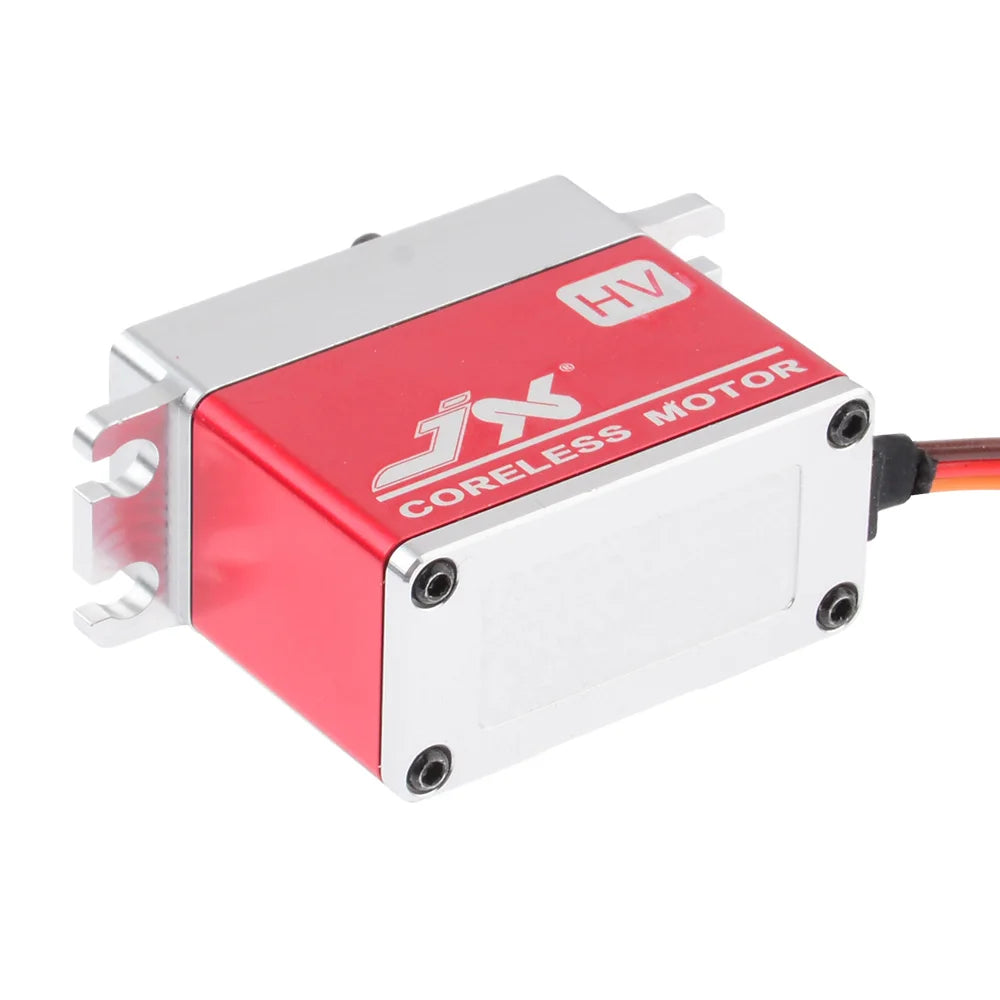

JX Servo PDI-HV7246MG - 8.4V 46KG Metal Gear High Voltage Digital Coreless Servo for RC Car frame Airplane Helicopter

JX Servo PDI-HV7246MG - 8.4V 46KG Metal Gear High Voltage Digital Coreless Servo for RC Car frame Airplane Helicopter

JX

Regular price $56.29 USD
Regular price $73.18 USD Sale price $56.29 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

109 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Servo

Remote Control Peripherals/Devices: Servos

Tool Supplies: Assembled class

Model Number: PDI-HV7246MG

Four-wheel Drive Attributes: Assemblage

Wheelbase: Screws

JX servoPDI-HV7246MG 46KG Metal Gear High Voltage Digital Coreless Servo for RC Car frame 550-700 Airplane Helicopter


JX PDI-HV7246MG 46KG metal gear high voltage digital coreless standard servo is suitable for RC car and 550-700 airplane. Full CNC aluminium shell structure make it more durable. Besides, its high quality dual ball bearing, large torque and Taiwan-made aluminium gears will perfect for your RC models.

Features:
Waterproof
Dual ball bearings
Large stall torgue of 46.8Kg.cm
Full CNC aluminium shell structure
High performance digital high voltage coreless standard servo
High-precision Taiwan-made aluminium gears with hard anodizing
Suitable for RC car and 550-700 airplane

Specifications:
Brand: JX
Model: PDI-HV7246MG
Name: 46KG Metal Gear High Voltage Digital Coreless Standard Servo
Pulse width: 1000-2000μs=90°
Pulse width: 500-2500μs=180°
Dead band: 1μs
Working frequency: 1520μs / 330Hz
Motor: Brushless Motor
Operating speed (6.0V): 0.13sec/60°
Operating speed (8.4V): 0.11sec/60°
Stall torque (6.0V): 38.6kg.cm
Stall torque (8.4V): 46.8kg.cm
Dimensions: 40.5 * 36 * 20.5mm
Weight: 72g (2.48oz)
Connector Wire Length: about 265mm
Bearing: 2BB

Package information:
Package size: 9.7 * 6.7 * 3.3cm / 3.8 * 2.6 * 1.3in
Package weight: 119g / 4.2oz

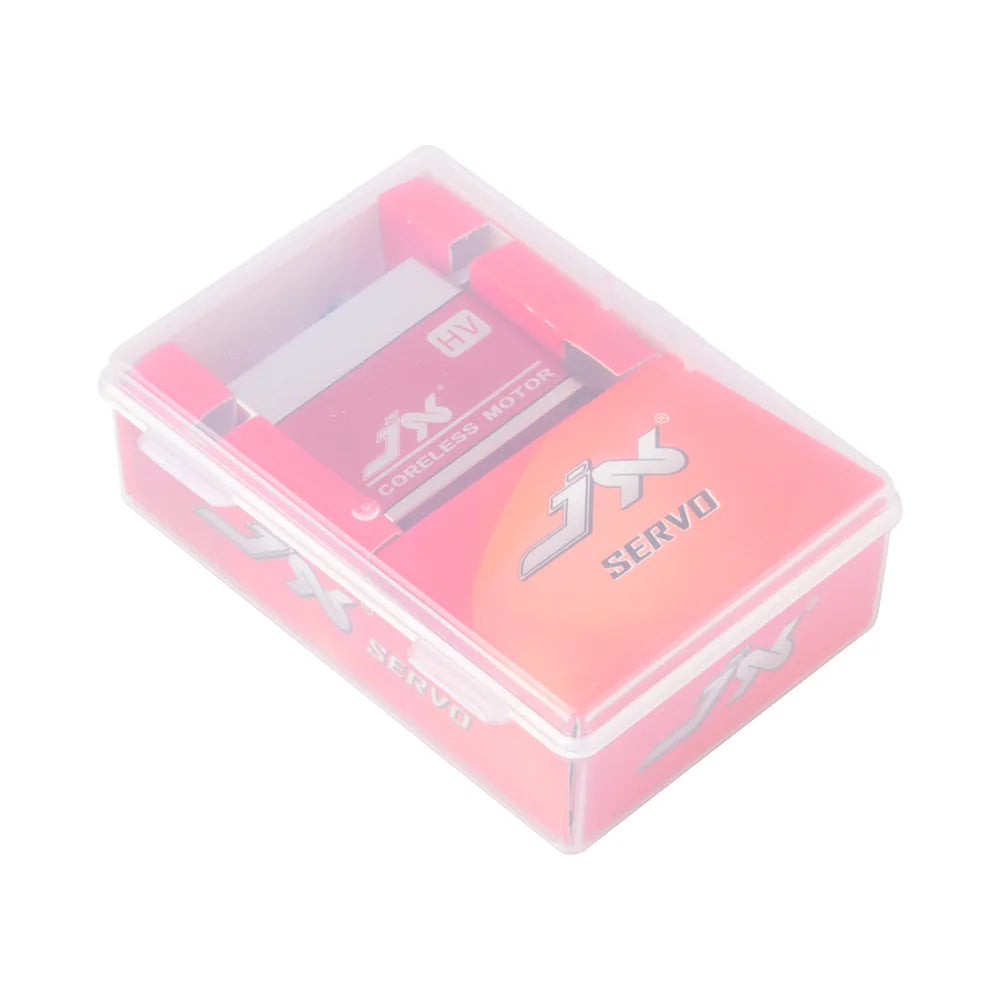

Brand gift box package

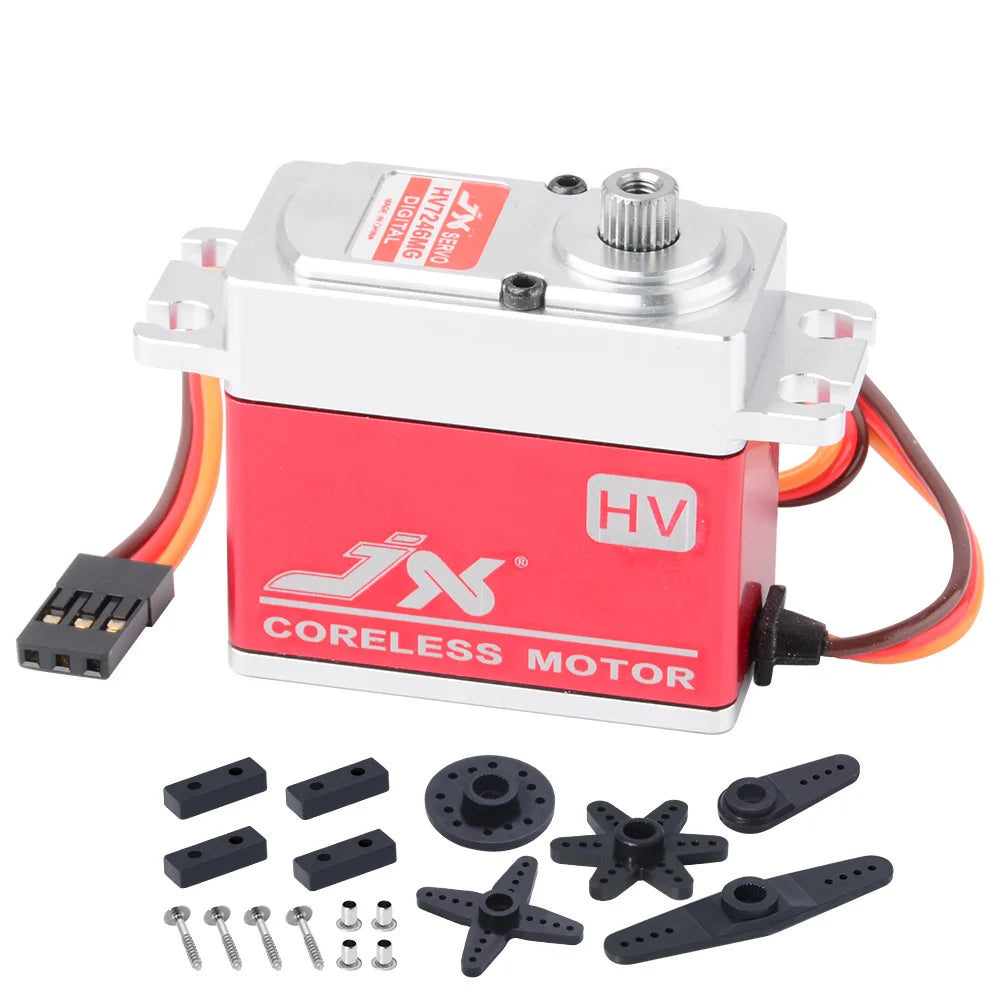

Package list:
1 * JX PDI-HV7246MG 46KG Metal Gear High Voltage Digital Coreless Standard Servo
1 * Spare Parts Set

JX Servo, high quality dual ball bearing, large torque and Taiwan-made aluminium gears will perfect forJX Servo, high quality dual ball bearing, large torque and Taiwan-made aluminium gears will perfect forJX Servo, high quality dual ball bearing, large torque and Taiwan-made aluminium gears will perfect for


JX Servo, high quality dual ball bearing, large torque and Taiwan-made aluminium gears will perfect forJX Servo, high quality dual ball bearing, large torque and Taiwan-made aluminium gears will perfect forJX Servo, PDI-HV7246MG 46KG metal gear high voltage digital coreless standardJX Servo, 'SBC 60 Stell Torque (6.OV) 38.6 K@cm

'SBC 60 Stell Torque (6.OV) 38.6 K@cmi Stall Torque (8.4V) 46.8k9 cr Dimensions, 40.5X20.5X 36mm Welght 72 9 C€ERoHS ' "

JX Servo, high quality dual ball bearing, large torque and Taiwan-made aluminium gears will perfect for
