KINGKONG/LDARC TINY GT7/GT8 2019 V2 SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Technical parameters: Value 4
Size: 75*75*40mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
Recommend Age: 12+y
RC Parts & Accs: Receivers
Quantity: 1 pcs
Origin: Mainland China
Model Number: KINGKONG/LDARC TINY GT7
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Helicopters
Certification: EAC
Certification: CE
Brand Name: KINGMODEL
KINGKONG/LDARC TINY GT7 2019 V2 2S FPV Racing Drone Betaflight F3 10A Blheli_S 800TVL Cam 5.8G 25mW VTX 2S
Specification: Brand name: LDARC Item name: TINY GT7 2019 V2 FPV Racing Drone Frame wheelbase: 75mm Motor: GT1102-12800KV Propeller: 1513 Flight Controll+ESC: Betaflight SPRACINGF3+4in1 ESC 10A BLHeliS(C-H-50) Receiver: RX2A PRO(Flysky), DSM2(Spektrum), D16(Frsky Non-EU) Camera: OV231(800TVL 150 degreee NTSC) VTX: Q25 OSD (25mW 32CH Smart OSD V2) Input Voltage: Only 2S Battery: 7.4V 380mAh 50C Weight: 44g(no receiver and battery) Package Included: PNP Version 1 x TINY GT7 2019 V2 75mm FPV Racing Drone 1 x 7.4V 380mAh 50C 1 x XH2.54 & JST transfer cable 4 x CW 1513 Propeller 4 x CCW 1513 Propeller 1 x Screw set 1 x User Manual 1 x Stiker BNF Version 1 x TINY GT7 2019 V2 75mm FPV Racing Drone 1 x Receiver (optional) 1 x 7.4V 380mAh 50C 1 x XH2.54 & JST transfer cable 4 x CW 1513 Propeller 4 x CCW 1513 Propeller 1 x Screw set 1 x User Manual 1 x Stiker
LDARC TINY GT8 2019 V2 2S FPV Racing Drone Betaflight F3 10A Blheli_S 800TVL Cam 5.8G 25mW VTX 2S
Specification: Brand name: LDARC Item name: TINY GT8 2019 V2 FPV Racing Drone Frame wheelbase: 87.6mm Motor: GT1103-10000KV Propeller: 48mm-4blade(1.5mm hub) Flight Controll+ESC: Betaflight SPRACINGF3+4in1 ESC 10A BLHeliS(C-H-50) Receiver: RX2A PRO(Flysky), DSM2(Spektrum), D16(Frsky Non-EU) Camera: OV231(800TVL 150 degreee NTSC) VTX: Q25 OSD (25mW 32CH Smart OSD V2) Input Voltage: Only 2S Battery: 7.4V 380mAh 50C Weight: 48.4g(no receiver and battery) Package Included: PNP Version 1 x TINY GT8 2019 V2 FPV Racing Drone 1 x 7.4V 380mAh 50C 1 x XH2.54 & JST transfer cable 4 x CW 48mm-4blade(1.5mm hub) 4 x CCW 48mm-4blade(1.5mm hub) 1 x Screw set 1 x User Manual 1 x Stiker BNF Version 1 x TINY GT8 2019 V2 FPV Racing Drone 1 x Receiver (optional) 1 x 7.4V 380mAh 50C 1 x XH2.54 & JST transfer cable 4 x CW 48mm-4blade(1.5mm hub) 4 x CCW 48mm-4blade(1.5mm hub) 1 x Screw set 1 x User Manual 1 x Stiker
2019 Tiny GT7 Tiny Gt8 Upgrade motor,good torque and life Upgrade VTX,OSD,Antenna Optimized camera angle is 209 TINY GT7(2019)
TINY GT8(2019) carries a 380mAh battery . it's not included in the package . the tiny gt7 is available in a range of colours .
GTII series motors have a 5 times-fold increase in life than the XTO8 series,greater torque, lower noise and better flight feel . stair shafts, NSK681 double bearings, double-sided arc magnets and 0.2mm silicon steel Chip reduce eddy current loss .

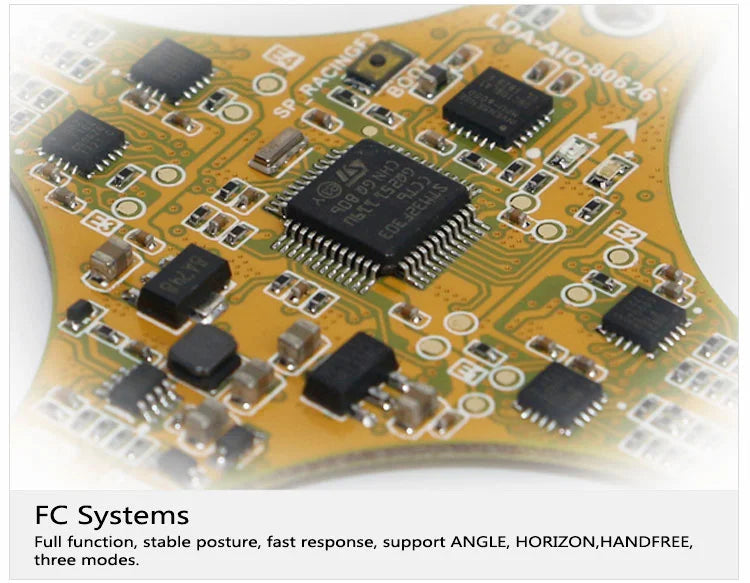

X7 FC Systems Full function, stable posture, fast response, support ANGLE; HORIZON,HANDFREE, three modes . Ao F00628 Co 33 Lazeuis 4
LDARC Frame for Traditional effective protection 15/2S frame of motors and props 360 Degree Physical protection Ipssia F.
Details 20 Camera angle 20" Frequency button #S1P S0 LDARC High quartity motor Battery storage location Aluminum screws LED Strip "LDARC" 7A4V 38 ScMaxlmur]
Smart OSD V2 5 23 5 5 33 0 @ A 2 1 A R AB C D G H 1 J K L M 40 N 0 P Q R S T U V WXY z 6 P L D A R € 68UUF 1 01.12 .
