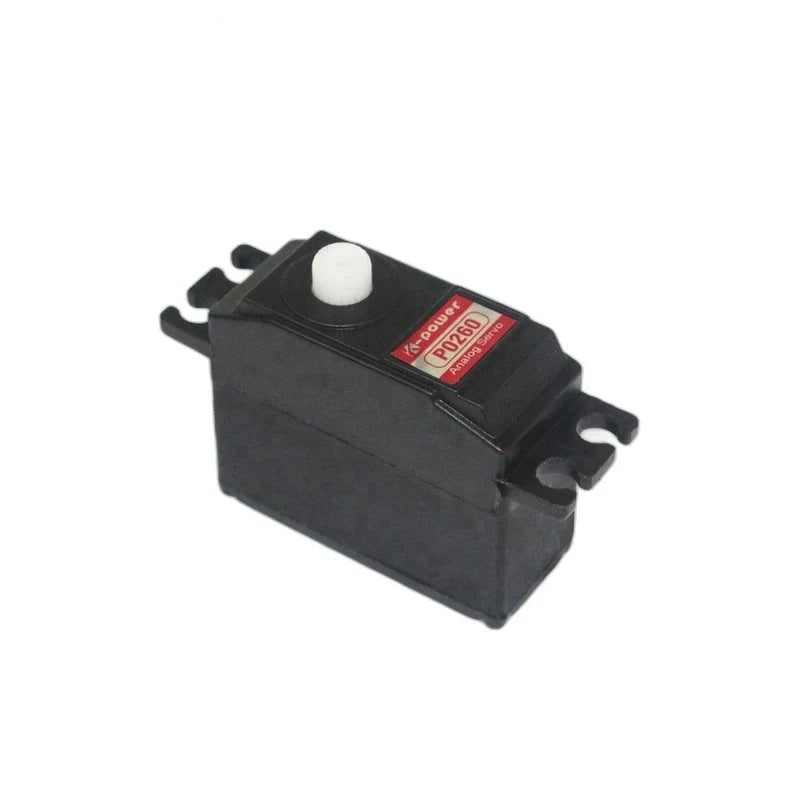

Kpower P0260 Digital Micro Servo, 4.8–8.4 V, POM Gears for RC Models and STEAM Robots

Kpower

$35.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Version P0260

Quantity

View full details

Overview

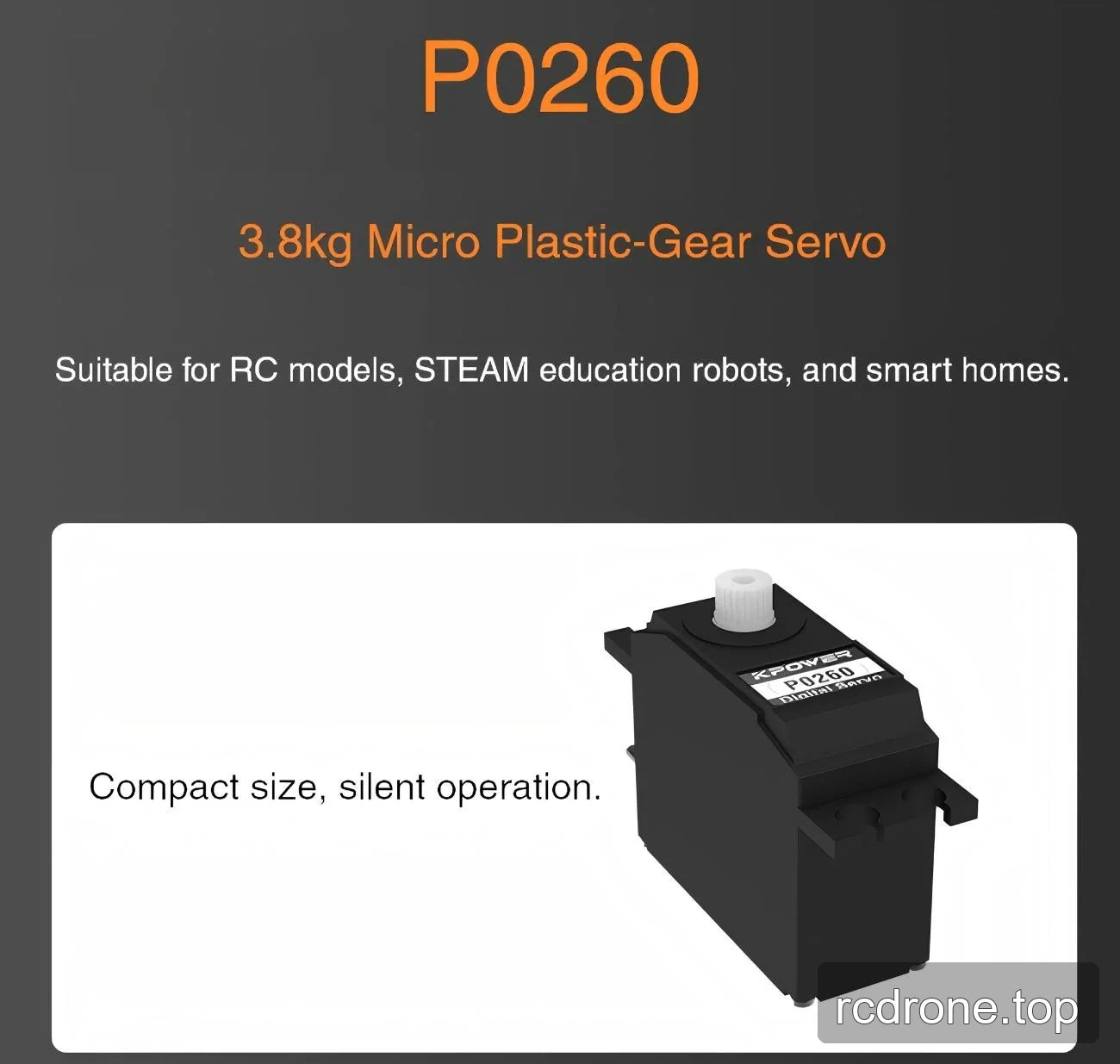

The Kpower P0260 is a digital micro servo for RC models, STEAM education robots and smart-home mechanisms. Its compact plastic case, POM gears and 26 g weight suit projects where actuator size matters. It operates at 4.8–8.4 V and has a specified 120° travel range, with customization indicated. A potentiometer provides position sensing, while the output uses a 25T, φ5.8 mm horn spline.

Features

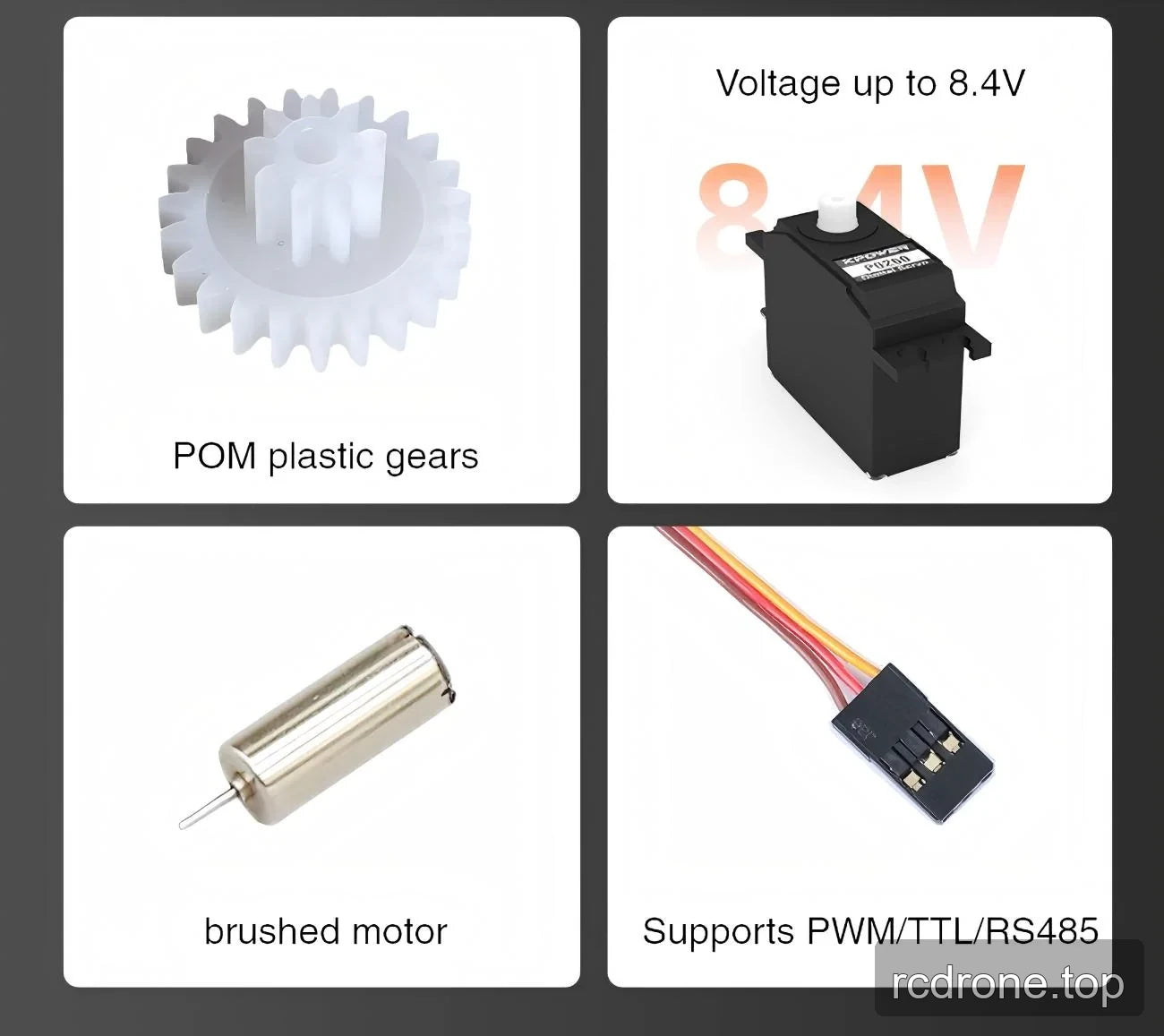

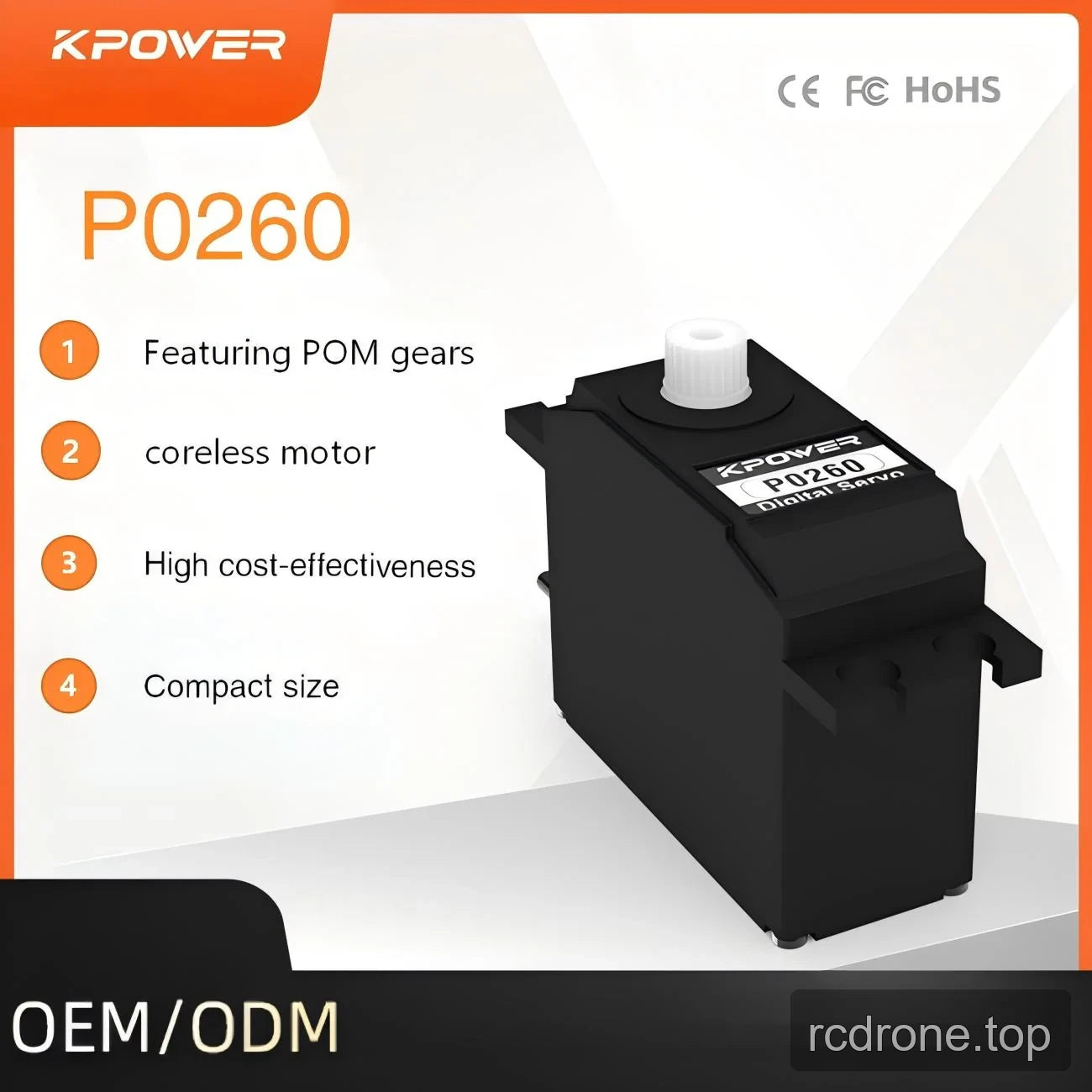

Compact micro-servo construction with a plastic case and POM plastic gears.
DC brushed motor with a coreless design.
Potentiometer position sensing and two ball bearings (2BB).
120° travel angle, with customization indicated.
PWM, TTL and RS-485 are listed control protocols.

Specifications

Parameter	P0260 specification
Servo type	Digital micro plastic-gear servo
Stall torque	3.8 kg; torque unit is incomplete as supplied
Rated torque	1 kg; torque unit is incomplete as supplied
No-load speed	0.11 s; angular travel and test voltage are not specified
Weight	26 g
Dimensions	35.8 × 15 × 29.5 mm
Travel angle range	120°; customizable
Operating voltage	4.8–8.4 V

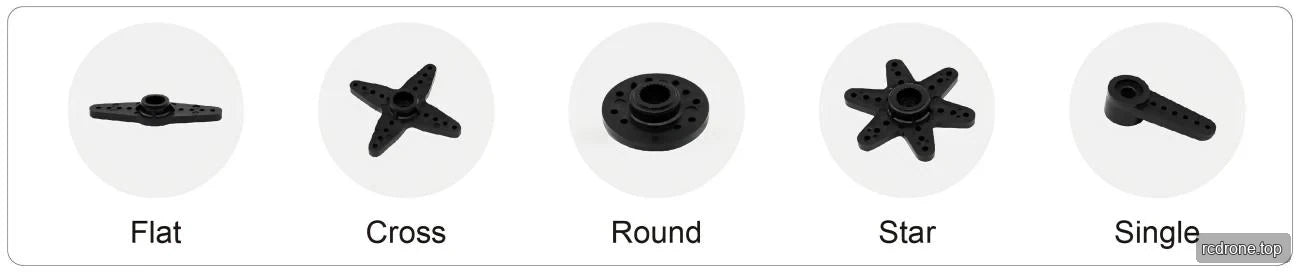

Horn gear spline	25T, φ5.8 mm
Gear material	POM plastic
Motor	DC brushed; coreless design
Listed control protocols	PWM, TTL, RS-485
No-load current	1000 mA
Position sensor	Potentiometer
Case material	Plastic
Ball bearings	2BB

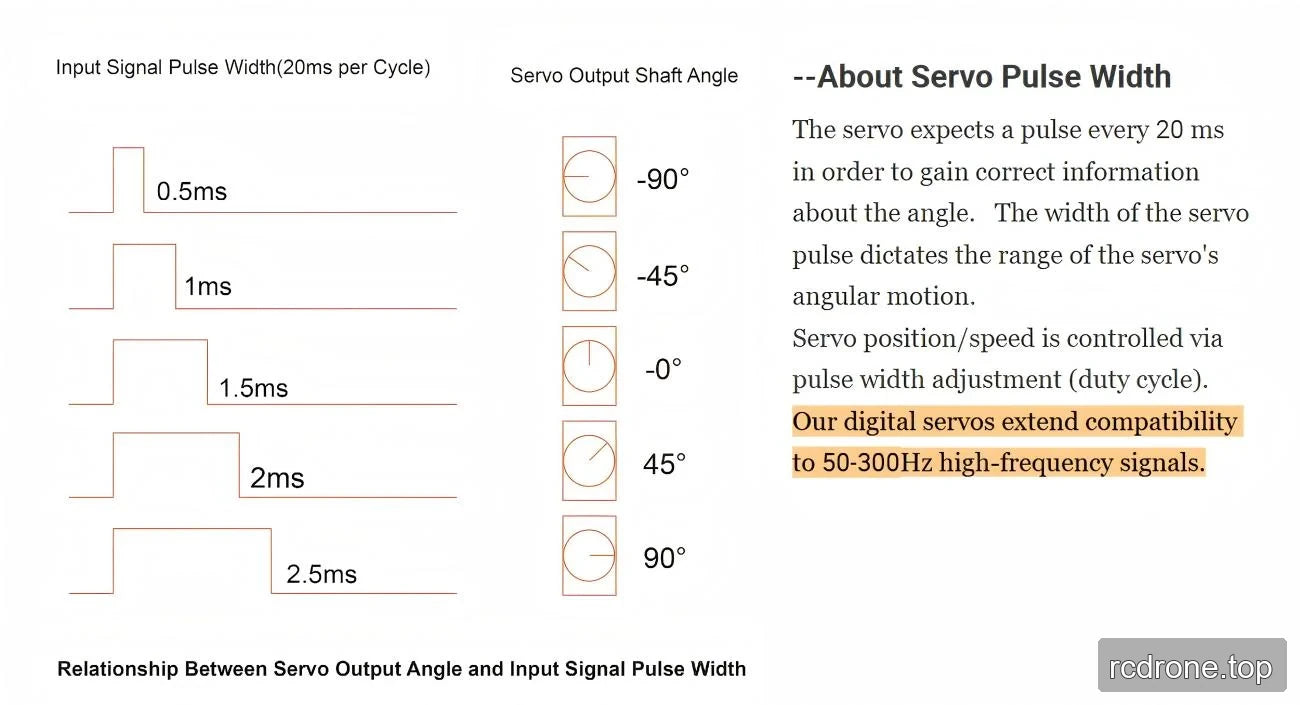

Working frequency	50–333 Hz
Operating temperature	−10 to 50 °C
IP rating	IP42

The supplied torque figures use kg without a lever-arm unit, so they must not be interpreted as kg·cm or converted to N·m. The no-load speed lacks an angular reference and cannot be interpreted as seconds per 60°.

Applications

RC model mechanisms: Position compact model linkages using the micro-servo body and 120° travel range.
STEAM education robots: Build small moving joints and demonstration mechanisms using potentiometer-based position sensing and a 26 g actuator.
Smart-home mechanisms: Add controlled angular movement to small mechanisms where the specified body dimensions and 4.8–8.4 V supply range fit the design.
