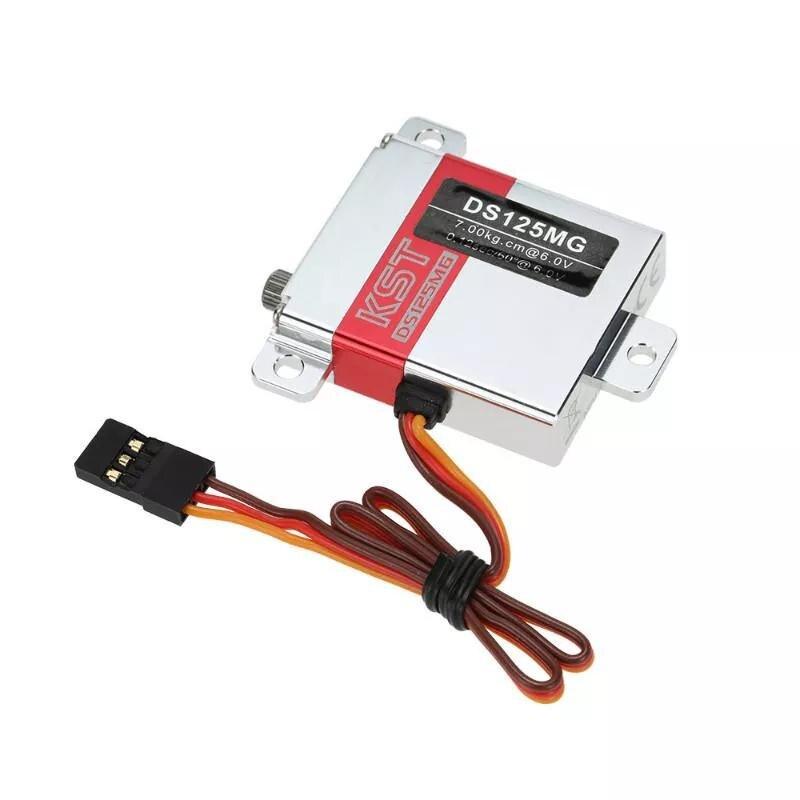

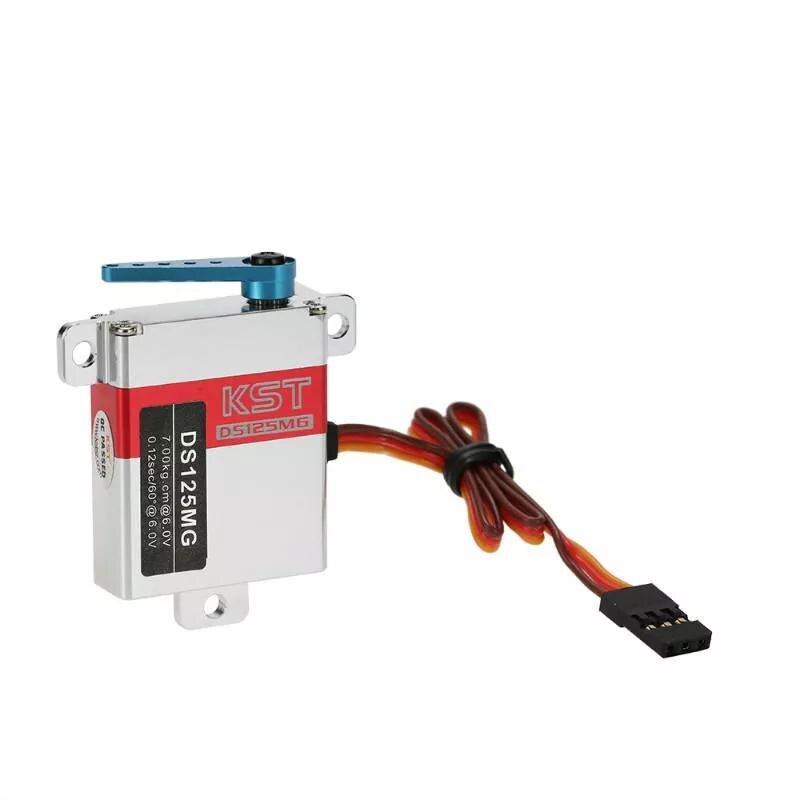

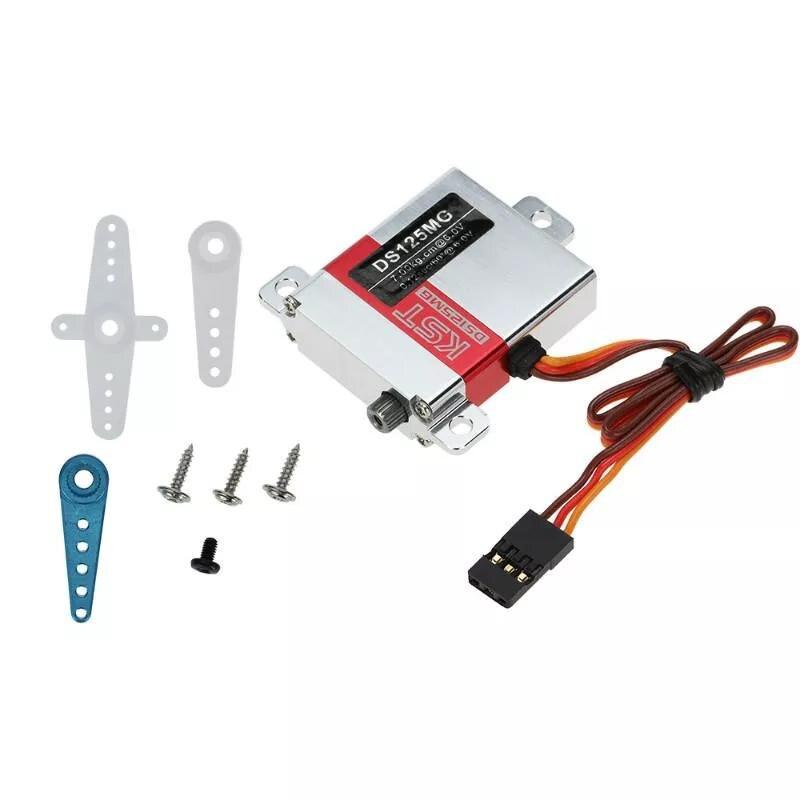

KST DS125MG 7KG 6V High Torque Metal Gear Digital Servo for Fixed-wing FPV Drone UAV Helicopter Airplane RC Models

KST DS125MG 7KG 6V High Torque Metal Gear Digital Servo for Fixed-wing FPV Drone UAV Helicopter Airplane RC Models

KST

Regular price $48.91 USD
Regular price $73.37 USD Sale price $48.91 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

197 orders in last 90 days

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

KST DS125MG Gear Digital Servo SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Gear

Tool Supplies: Assembly Category

Technical parameters: Value 2

Size: As show

Remote Control Peripherals/Devices: Servos

Recommend Age: 14+y,12+y

RC Parts & Accs: Servos

Origin: Mainland China

Model Number: KST DS125MG

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Cars

Brand Name: uuustore



KST DS125MG 10mm high torque Metal Gear 7KG Digital Wing Servo for RC Glider Servo Motor Robot UAV Hobby Education

KST Servos are renowned for Quality at realistic prices. From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you. Talk to our sales team today, OEM and ODM services are also available for custom installations.

Specifications

Operating Voltage: DS4.8V-6.0V

Size: 30*10*35.50mm
Torque: 7.00Kg.cm @ 6.0V 6.00Kg.cm @ 4.8V
Speed: 0.12sec/60deg @ 6.0V 0.15sec/60deg @ 4.8V
Weight: 28g
Working Frequency: 1520us/333Hz, 800us-2200us
Motor: Core motor
Ball Bearing: 2BB

RS232, i2C, RS485 or PWM Servo

Robotic and Industrial servo OEM & ODM services available. We are confident we can make any type of servo to suit any application. Our engineering team are up to the challenge and looking forward to building a servo to suit your needs.

We can build servos with features like these and more!
Torque ranging from 2kg*cm to 700kg*cm
Travel speeds from 0.03s to 0.5s
Travel angles: from 40deg to 360deg
Communication protocols such as TTL. RS232, i2C, RS485 or PWM
Servo positioning and current feedback
Gear materials from plastics to titanium
Voltage ranges are also customizable from 4.8v to 28v
Size, Shape and design can be customized to your needs
A variety or motor options such as brushed, coreless & brushless
We can offer Potentiometer or magnetic induction control

Potential Applications.
1. Electric lock (anti-heft door lock servo)
2. Luggage case lock servo
3. Washing machine safety mechanism servo
4. Water/gas valve control Servo
5. Smart lamp Switch Servo
6. Camera gimbal control servo
7. UAV heavy duty servo
8. Servo Release Servo Drop
9. Curtain Servo
10. Automatic Perfume and liquids Sprayer Servo
11. Smart bike gear change servo
12. Electric car mirror servo
13. Car seat adjustment servo
14. Car window winding servo
15. Medical equipment servo
16. safety lock servo
17. Robot servo
18. Wheel servo
19. Robot arm servo

KST DS125MG 7KG 6V High Torque Metal Gear Digital ServoKST DS125MG 7KG 6V High Torque Metal Gear Digital ServoKST DS125MG 7KG 6DS12SMG ookg. 12secig0"C cmtKST has a solution for you whether you need to win your next competition event .KST DS125MG 7KG 6V High Torque Metal Gear Digital Servo€ KST DIGIaLSERVo KsT DS125MG "Th

€ KST DIGIaLSERVo KsT DS125MG "Thin"E SERVO DAGTAL = 'METAL = GEAR WING WING DSIZ5MG GEAR'
