Overview
The Kunwei HPS92 is a six-axis force/torque sensor for measuring forces and moments in robotic systems. Its 92 mm diameter, 28.6 mm height and titanium-alloy body provide a low-profile format for integration. HPS92A, HPS92B and HPS92C offer different measurement ranges, with Fz ratings of 500, 1,000 and 2,000 N respectively. RS422 / Ethernet communication and sampling up to 30,000 Hz support force-data acquisition.
Features
- Measures three force components, Fx, Fy and Fz, and three moment components, Mx, My and Mz.
- Three versions provide different force and moment ranges; accuracy is 0.3% FS for HPS92A and HPS92B, and 0.5% FS for HPS92C.

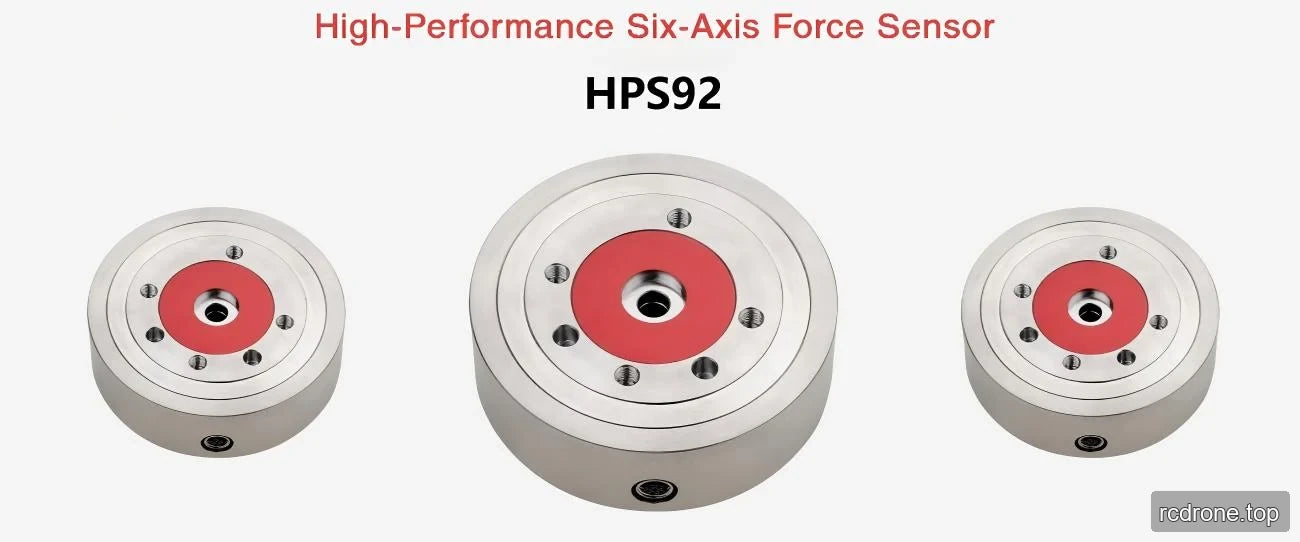

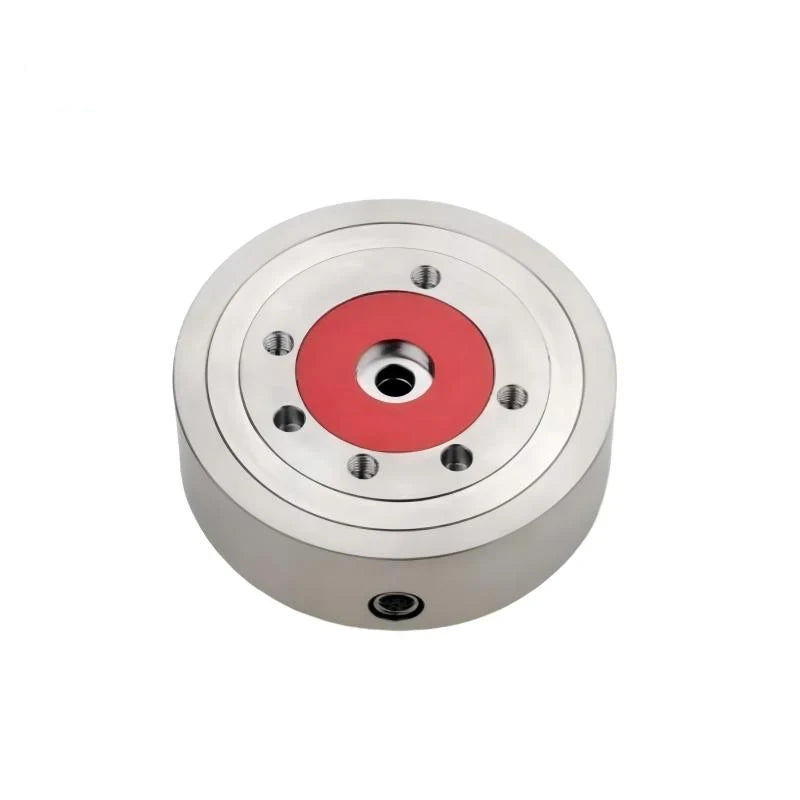

- Circular, low-profile body with a central opening, mounting holes and a recessed circular side connector.
- High-performance titanium-alloy construction, with a listed weight of 0.45 kg for each version.
- Resolution of 0.03% FS, repeatability of 0.1% FS and overload level of 500% FS.
Specifications
| Parameter | Unit | HPS92A | HPS92B | HPS92C |
|---|---|---|---|---|
| Range Fx, Fy | N | 180 | 350 | 700 |
| Range Fz | N | 500 | 1,000 | 2,000 |
| Range Mx, My | N·m | 15 | 30 | 60 |
| Range Mz | N·m | 15 | 30 | 60 |
| Diameter | mm | 92 | 92 | 92 |
| Height | mm | 28.6 | 28.6 | 28.6 |
| Material | — | High-performance titanium alloy | High-performance titanium alloy | High-performance titanium alloy |
| Overload level | % FS | 500 | 500 | 500 |
| Resolution | % FS | 0.03 | 0.03 | 0.03 |
| Repeatability | % FS | 0.1 | 0.1 | 0.1 |
| Accuracy* | % FS | 0.3 | 0.3 | 0.5 |
| Weight | kg | 0.45 | 0.45 | 0.45 |
| Listed protection levels | — | IP64, IP65 & IP68 | IP64, IP65 & IP68 | IP64, IP65 & IP68 |
| Working temperature | °C | -20 to 80 | -20 to 80 | -20 to 80 |
| Sampling frequency | Hz | Up to 30,000 | Up to 30,000 | Up to 30,000 |
| Supply voltage* | V DC | 24–60 | 24–60 | 24–60 |
| Communication interface | — | RS422 / Ethernet | ||
FS = full scale.
Applications
- Robotic-arm contact-force measurement: Measure forces and moments during controlled contact tasks, using all six measurement components to assess loading direction as well as magnitude.
- Robot load testing: Record force and moment data during development tests. The three versions provide different measurement ranges within the same listed 92 mm diameter and 28.6 mm height.
Documents and Downloads

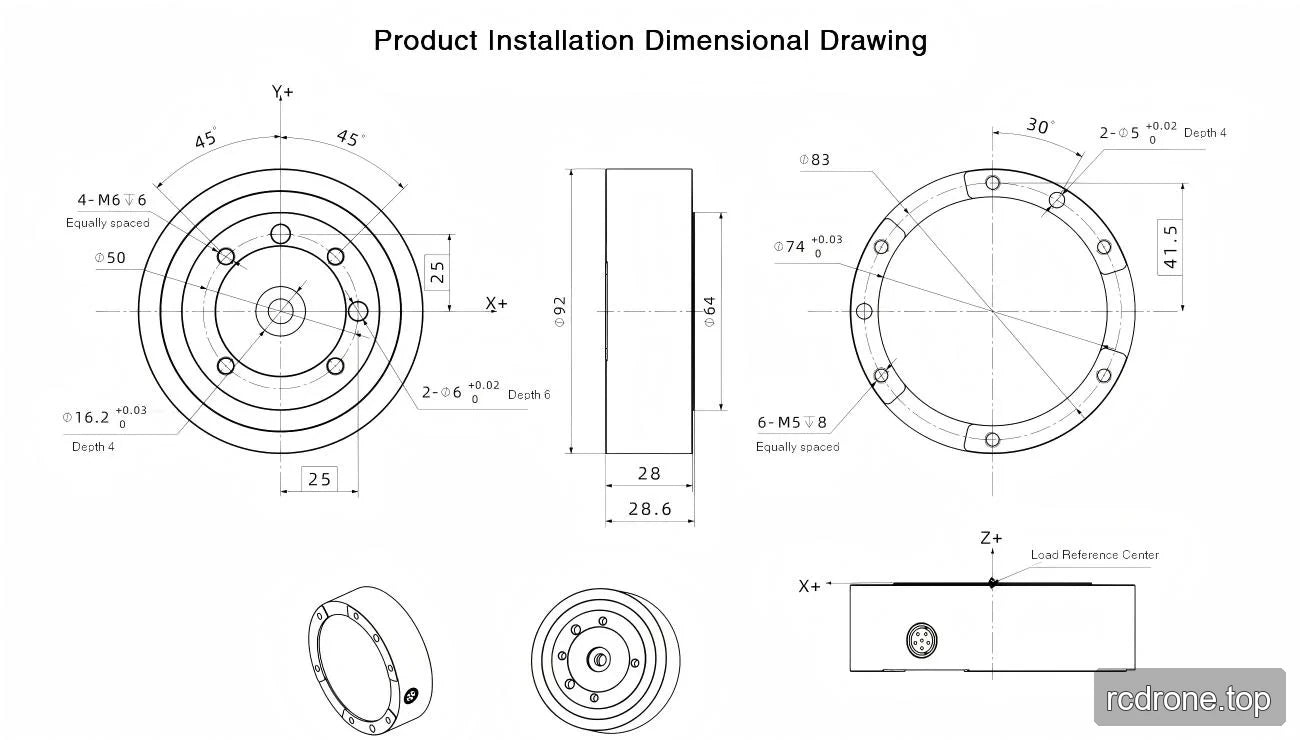

- KUNWEI HPS92 Drawing new Series — Drawing (PDF)
- KUNWEI KWR116 Drawing — Kwr 116 Drawing (PDF)
- Kunwei KWR63 Series RS485 — User Manual (PDF)
- KUNWEI 6 Axis Force Sensors Selection — Manual (PDF)
- KUNWEI KWR75 RS422 — User Manual (PDF)
FAQ
How do HPS92A, HPS92B and HPS92C differ?
HPS92A has Fx/Fy ranges of 180 N, an Fz range of 500 N and moment ranges of 15 N·m. HPS92B increases these to 350 N, 1,000 N and 30 N·m; HPS92C increases them to 700 N, 2,000 N and 60 N·m. Accuracy is 0.3% FS for A and B, and 0.5% FS for C. All three share the listed dimensions and weight.
What power supply and communication interfaces are specified?
All three versions specify a 24–60 V DC supply and RS422 / Ethernet communication, with a sampling frequency up to 30,000 Hz.
