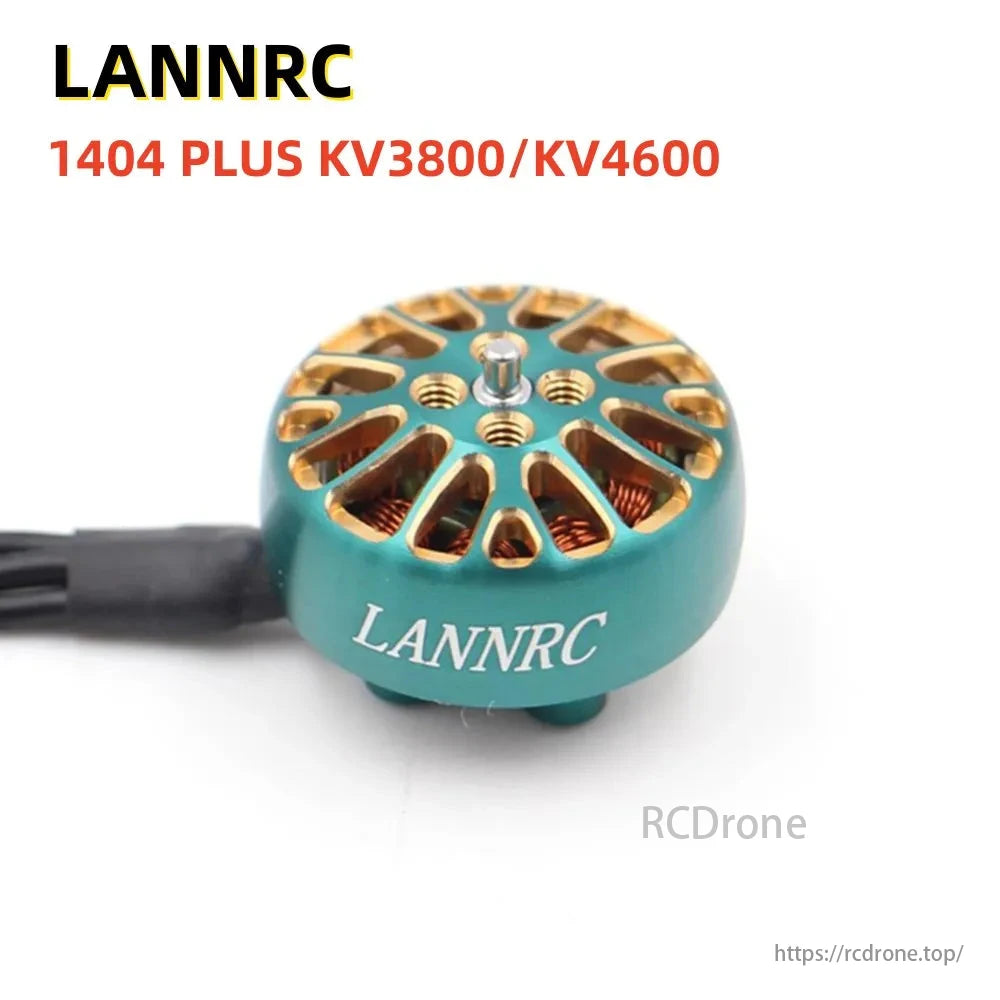

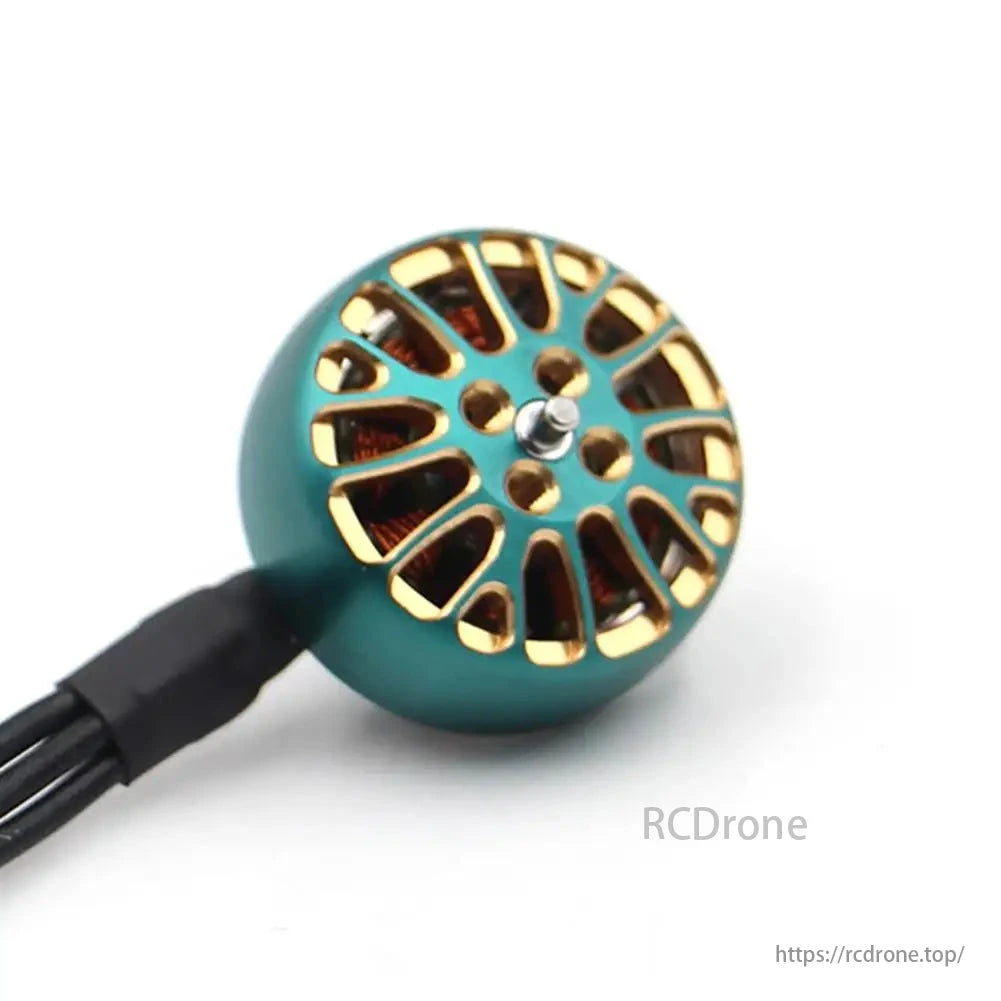

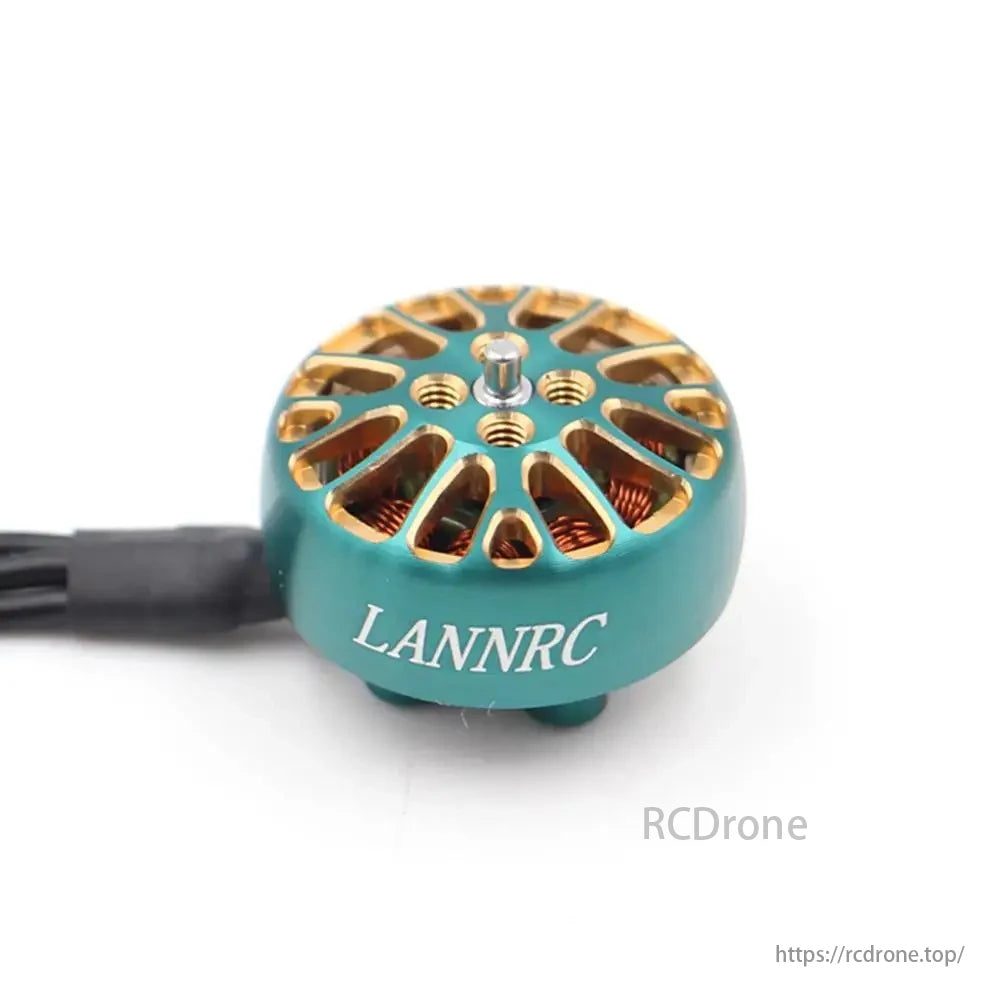

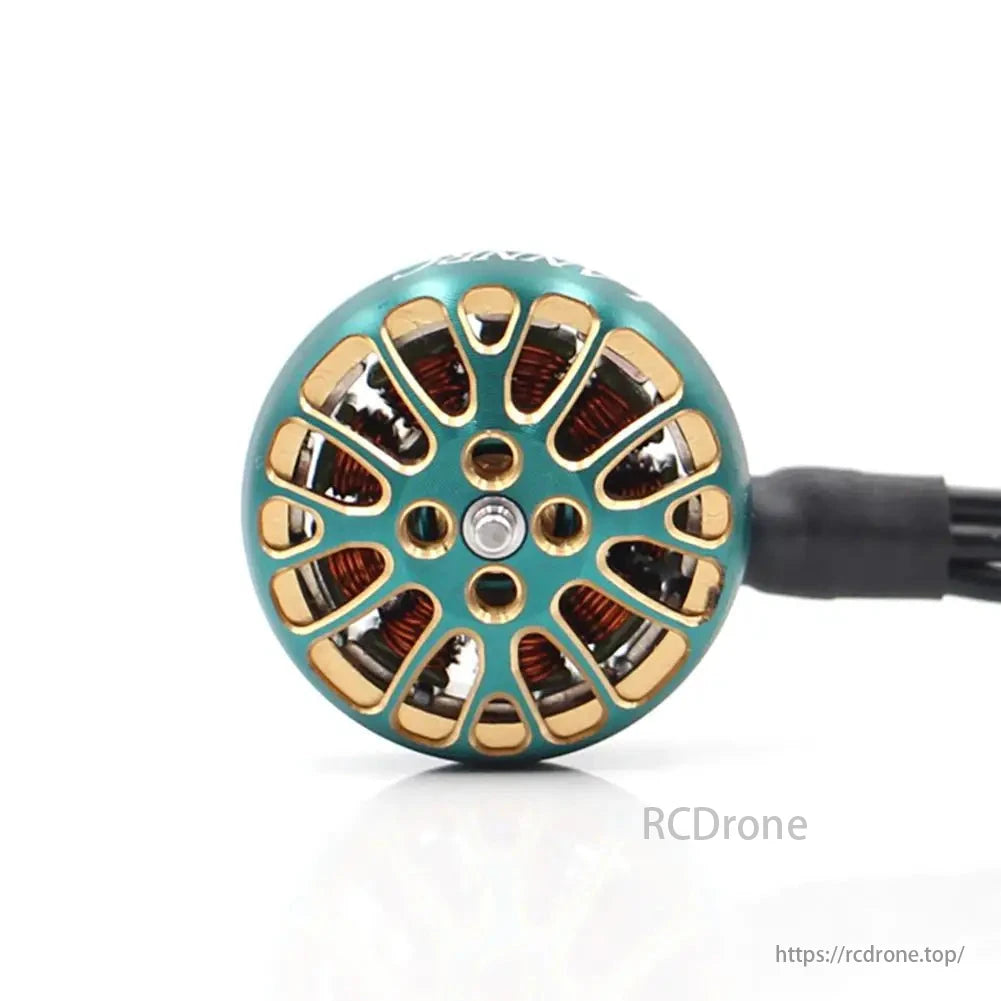

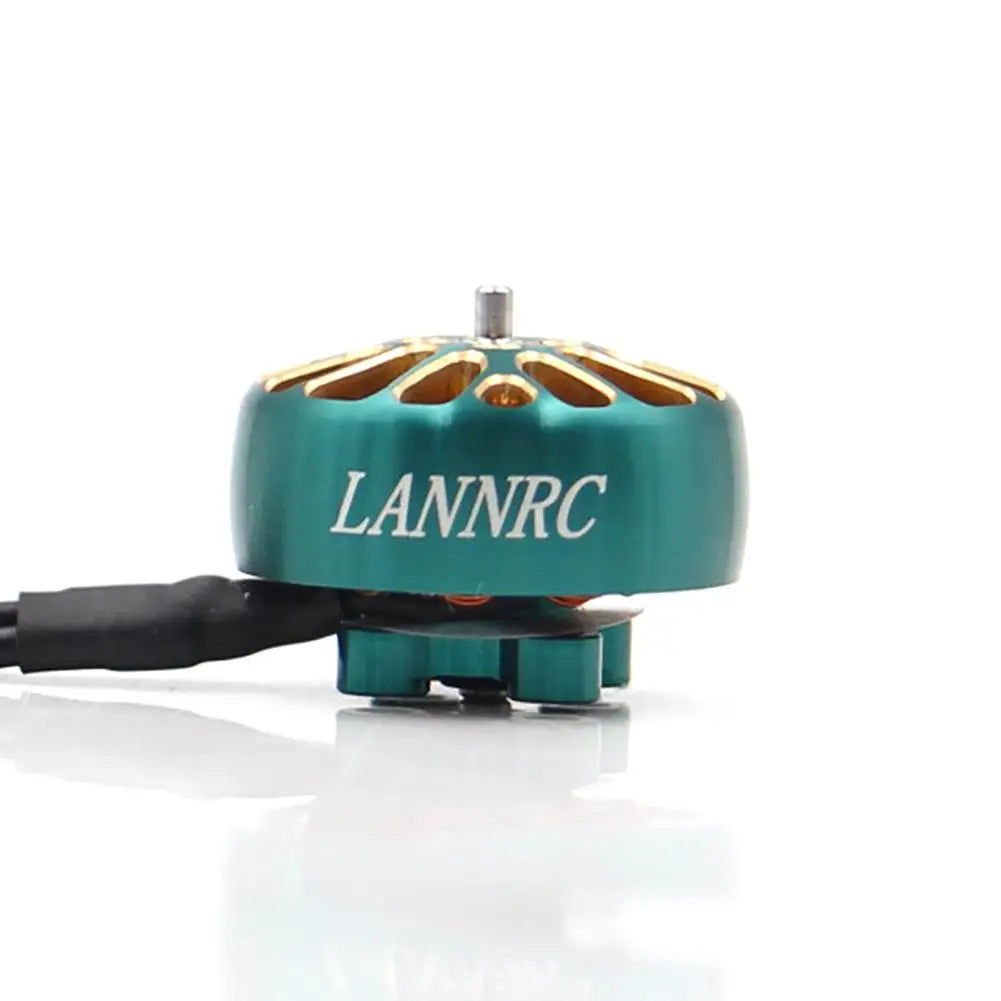

LANNRC 1404 Plus 3800KV / 4600KV 2-4S Brushless Motor for 2–4 Inch FPV Toothpick Drones

Overview

The LANNRC 1404 Plus Brushless Motor is engineered for micro FPV toothpick drones and quadcopters with 2–4 inch props. Available in 3800KV (2–4S) and 4600KV (3–4S) options, these motors offer responsive power delivery, smooth flight control, and high efficiency. Weighing just 10g, they are ideal for lightweight builds.

Key Features

• Available in 3800KV (2–4S) and 4600KV (3–4S)

• Designed for 2–4 inch toothpick FPV drones

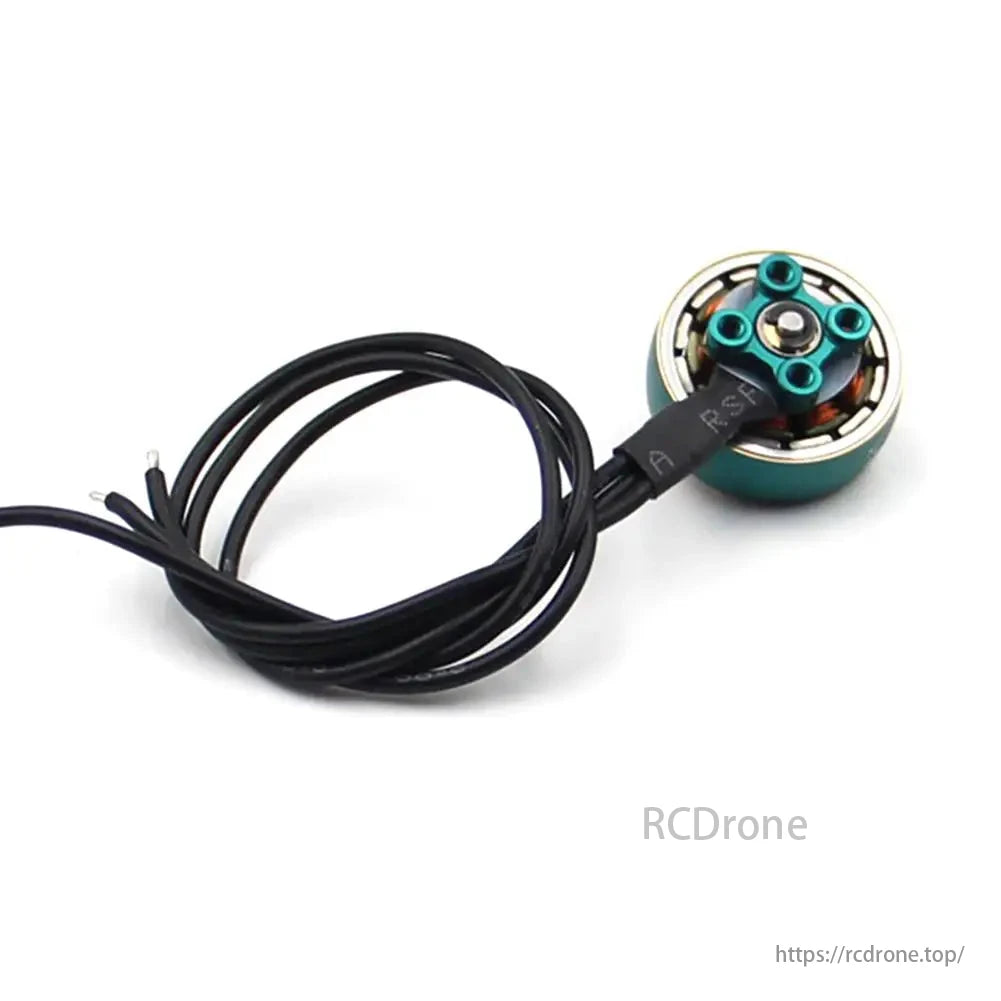

• 2mm shaft diameter, standard 22AWG 150mm cables

• Durable 9N12P stator configuration

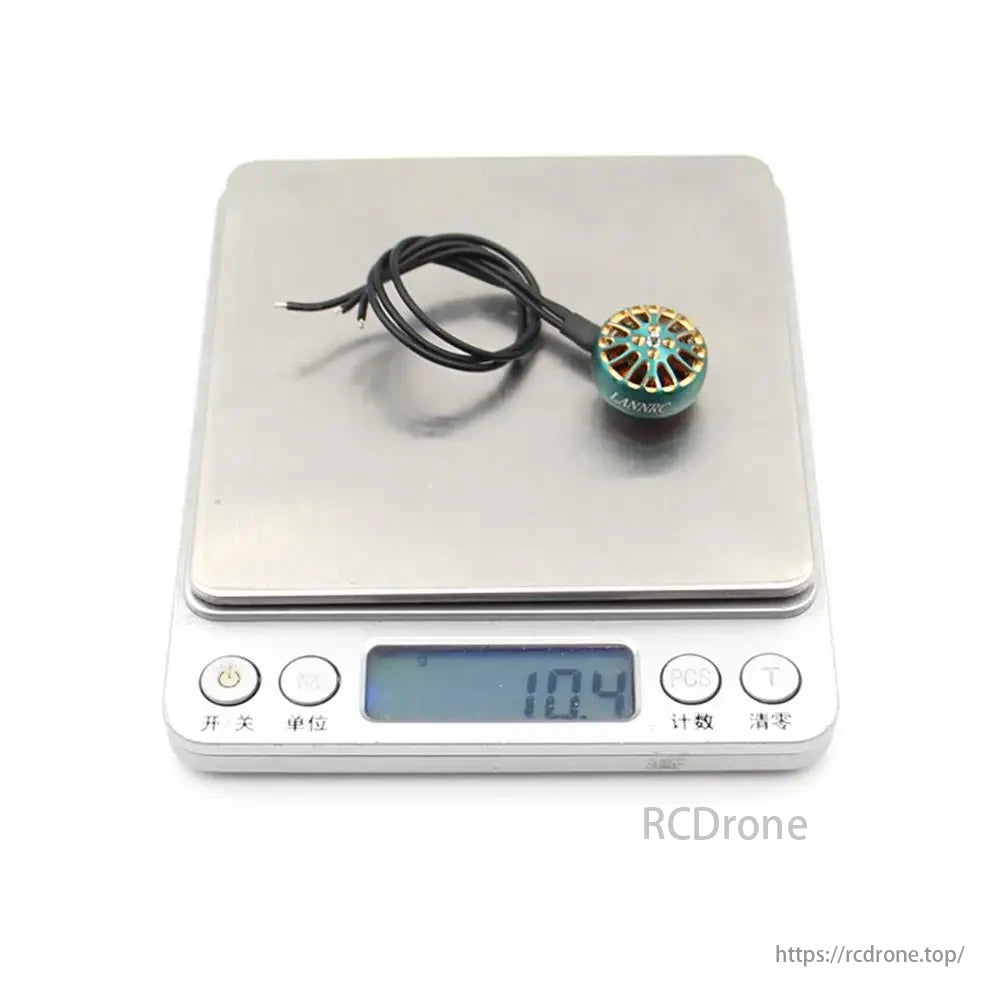

• Lightweight at 10.0g–10.3g for responsive control

• High power-to-weight ratio up to 287.8W max

Specifications

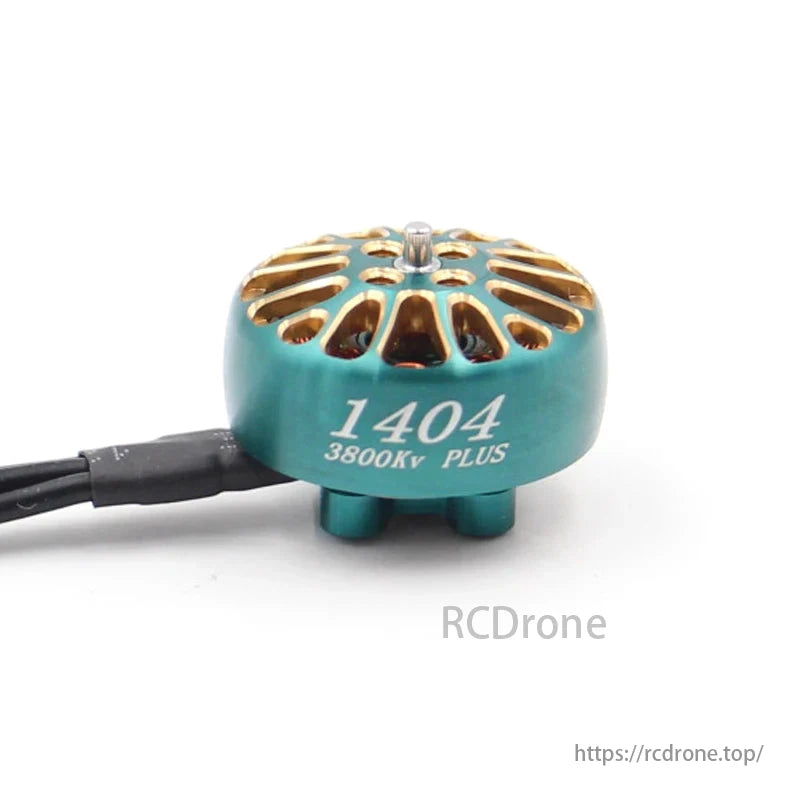

📌 1404 Plus 3800KV

• Stator: 14mm x 4mm (9N12P)

• Motor Dimensions: Φ19.3 × 14.8mm

• Shaft Diameter: 2.0mm

• Weight: 10.0g

• Voltage: 2–4S LiPo

• Max Power (60s): 240W

• Max Current: 15A

• Idle Current: ≤ 0.6A @10V

• Internal Resistance: 142mΩ

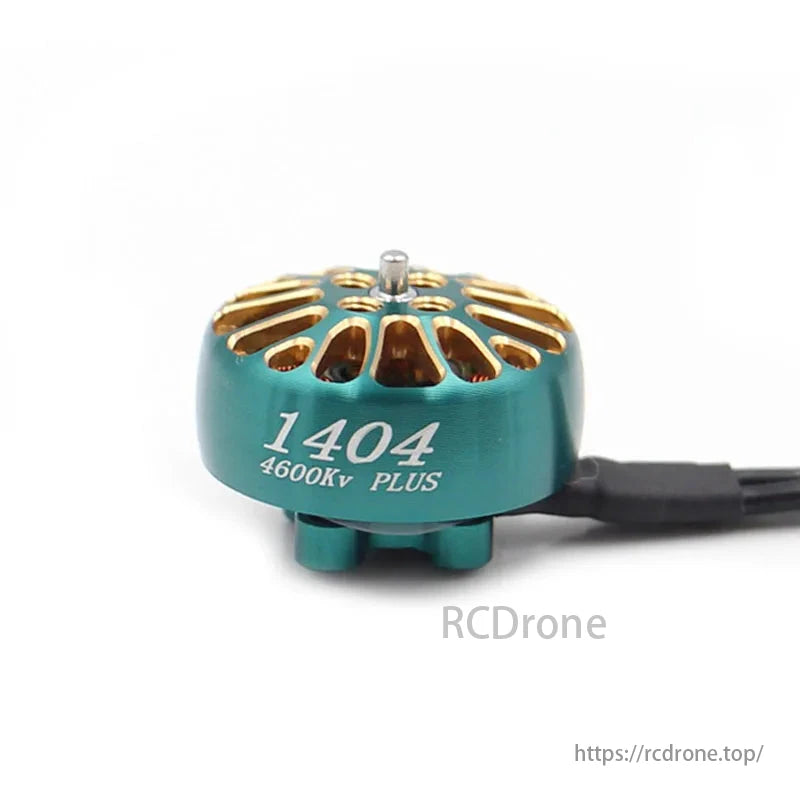

📌 1404 Plus 4600KV

• Stator: 14mm x 4mm (9N12P)

• Motor Dimensions: Φ19.3 × 14.8mm

• Shaft Diameter: 2.0mm

• Weight: 10.3g

• Voltage: 3–4S LiPo

• Max Power (60s): 287.8W

• Max Current: 17.99A

• Idle Current: ≤ 0.72A @10V

• Internal Resistance: 159mΩ

Package Options

• 1 × LANNRC 1404 3800KV Motor

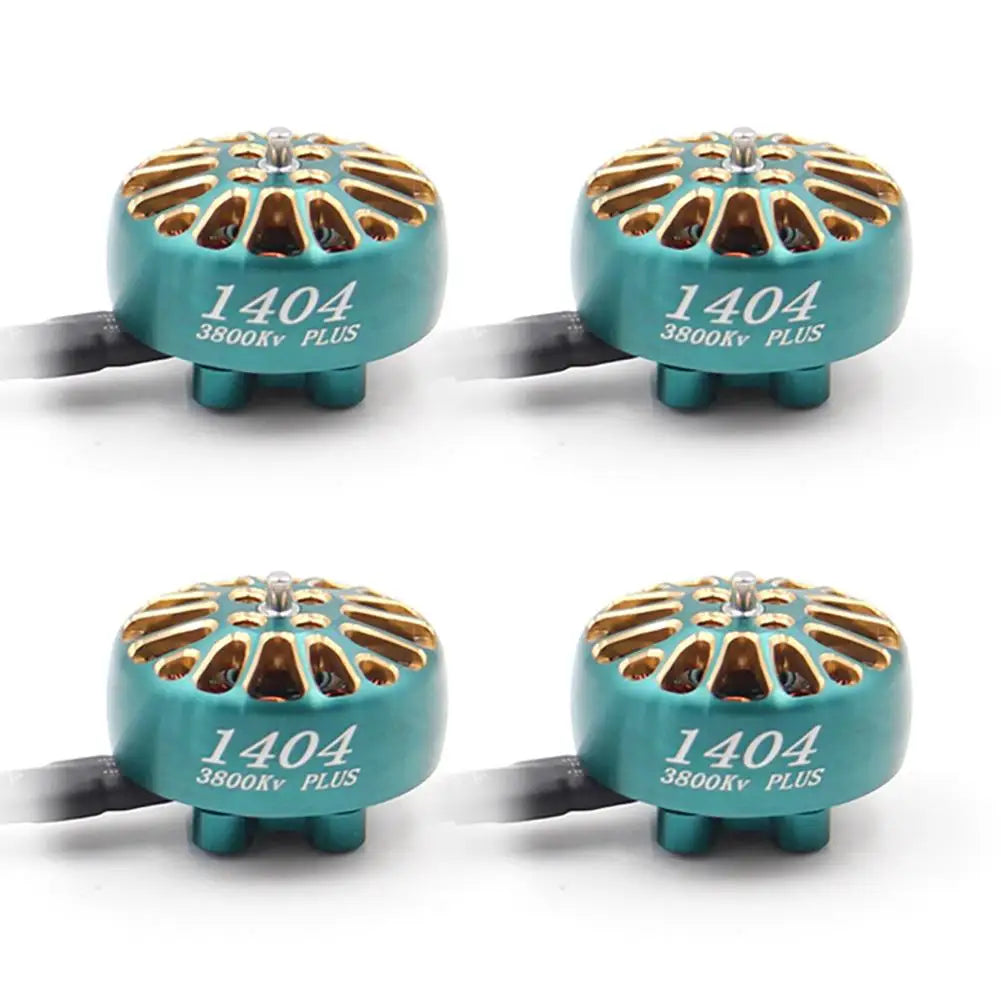

• 4 × LANNRC 1404 3800KV Motors

• 1 × LANNRC 1404 4600KV Motor

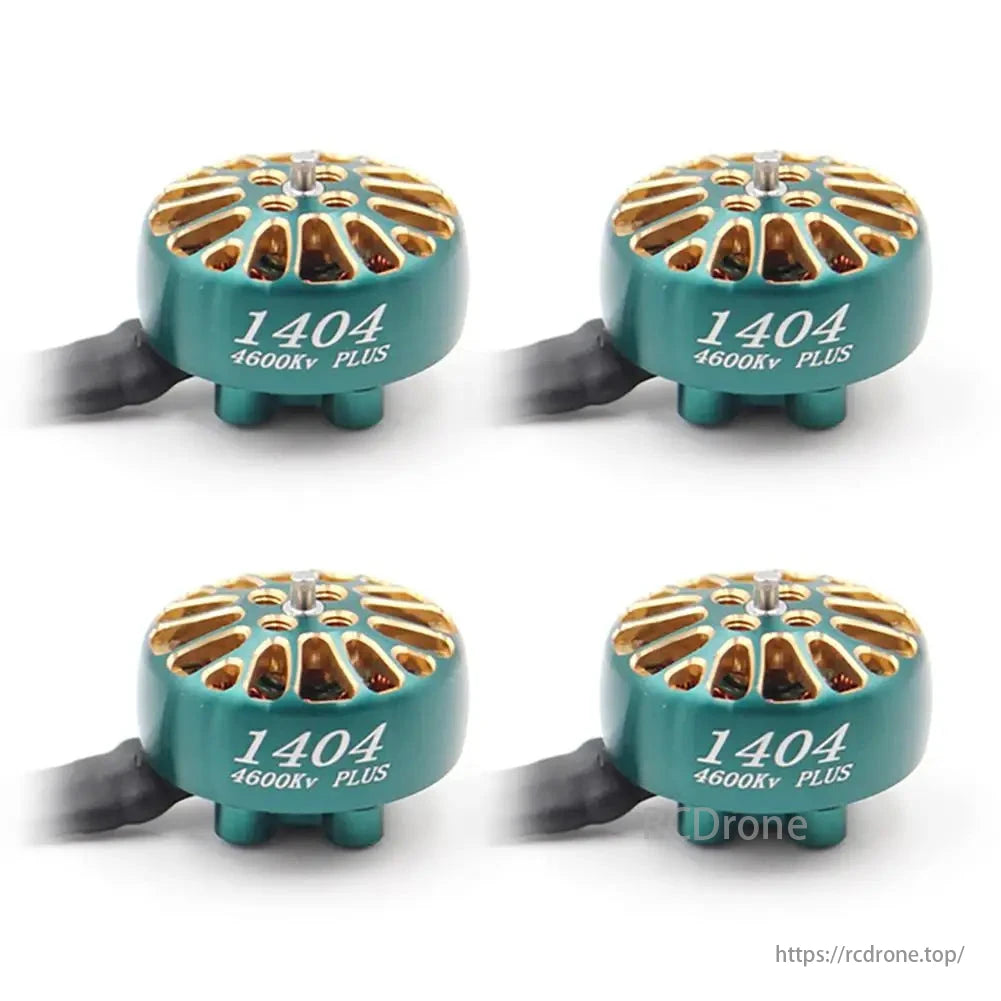

• 4 × LANNRC 1404 4600KV Motors

Lannrc 1404-KV3800 brushless motor: KV 3800, 9N12P configuration, 14mm stator diameter, 10g weight. Max continuous power 240W, max current 15A. Detailed specs and performance data included.

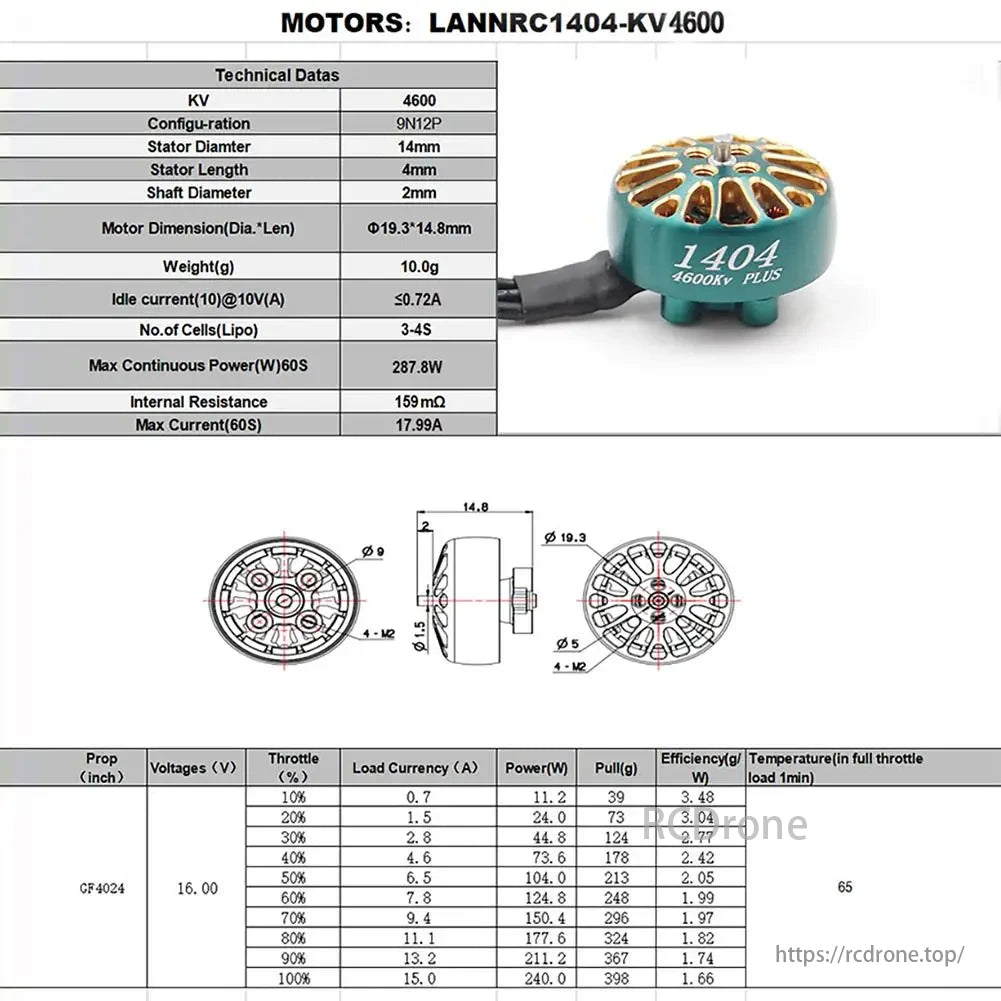

Lannrc 1404-KV4600 brushless motor: 14mm diameter, 4mm length, 10g weight. Max power 287.8W, max current 17.99A. Ideal for RC applications with efficient performance metrics.
