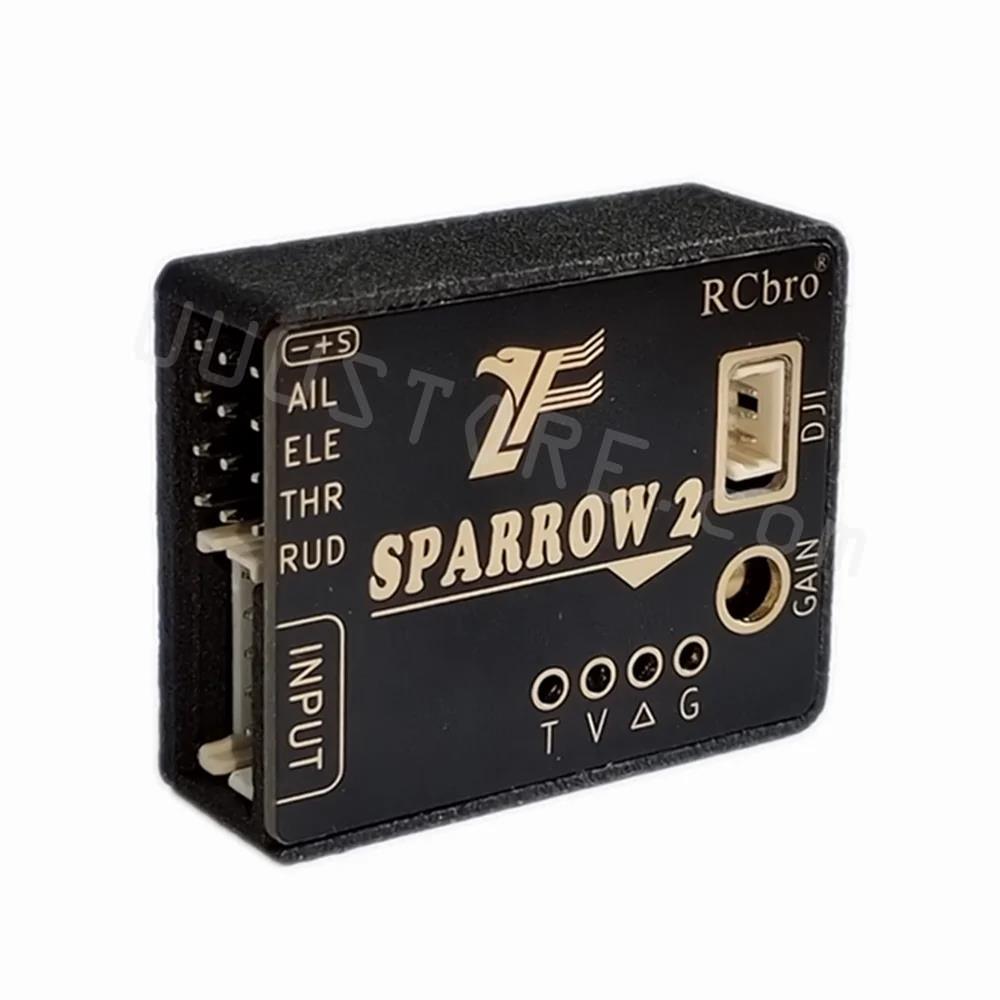

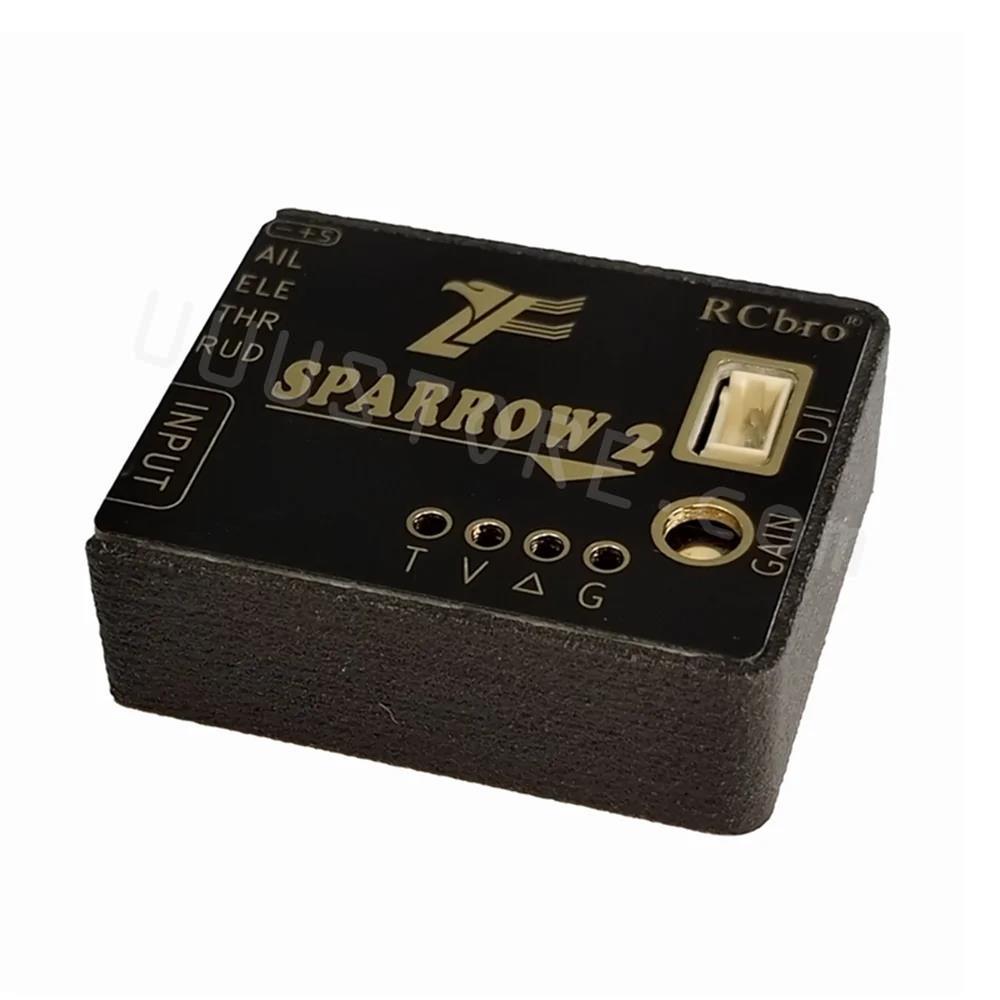

Lefei V2 Sparrow 6-Axis Return Home Stabilization with GPS Module Gyroscope Flight Controller for Air Unit FPV RC Airplanes Part

Lefei Sparrow V2 6-Axis Return Home Stabilization FC Flight Controller with GPS Module For Air Unit FPV RC Airplanes Fixed-wing

Description:

On the basis of the SPARROW FC, SPARROW 2 has updated the operation mode to simplify the user's use and enhance the operation experience. At the same time, it adds support for a variety of receiver signals, including PWM，PPM, SBUS, and supports D]I-OSD. For

specific functions and usage, refer to the detailed description below.

Specification:
Brand Name: Lefei
Item Name: V2 Sparrow

Receiver Type: PWM/PPM/SBUS

Others accessories: FC,GPD,Screwdriver,Wire(2),Double-sided tape

FC

Size: 32x27x11mm

Weight: 9.5g

Voltage: 5V

GPS

Size: 22x20x7mm

Weight: 6g

Voltage: 5V

Sparrow V2 Flight Controller Manual, Click here

RCbro" user: "before using the FC, you must fully understand the safety details" the equipment and any electronic products on the aircraft cannot be completely reliable . the necessary inspections must be carefully performed before the flight:

RCbro" SPARROW User Manual PARAMRTER Size 32+27+llmm Weight 9.5g Voltage Size 22+20+7mm GPS Weight Voltage Receiver Type PWM/PPMISBUS Accessories FC GPS Screwdriver Wire(2), Double-sided tape Others Protocol DJI-OSD INSTALLATION & WIRING FC Installation Direction 3a5

if you use PWM receiver it is recommended t0 select the Swvilch a5 mode channel, otherwise will not swilch . the display includes: Latitude/Latitude, Height, GroundSpeed, ClimbRate Distance, (including single battery voltage)

green lights flashing at the same time indicate that the RC signal is nol recognized . green light and V (lashing indicate that RC is recognized) when power on, the sensor takes 10 seconds to initialize, please keep the FC stationary .

RCbro" user manual How to use the RC to set direction of the servo? Must be compleled before unlocking tne RC: Step Check the leedback direction_ EE)Piixt Feedback direction IFs T-Tall VE V-Tail Zmx deta RRNL EEIMEE #utranpWAIJ NO Slabilizalion i7 YAW charnel:

"RCbro" user manual FailSafe Type Setting method PWM Set the mode channel oulput in the RC t0 ensure that the flight PPM mode is RTH after the plane is turned olf.

RCbro" SPARROW user manual: RTH mode; push the throltle t0 the MAX shake the plane Or give the plane an initial speed . the throttle in the return home mode is controlled semi-automatically .

SPARROW Z has updated the operation mode to simplify the user's use . it adds support for a variety of receiver signals, including PWM, PPM, SBUS, and supports DJI-OSD .
