BETAFPV LiteRadio Transmitter Nano Gimbal Replacement (Potentiometer/Hall) for LiteRadio 3 / 2 SE

Overview

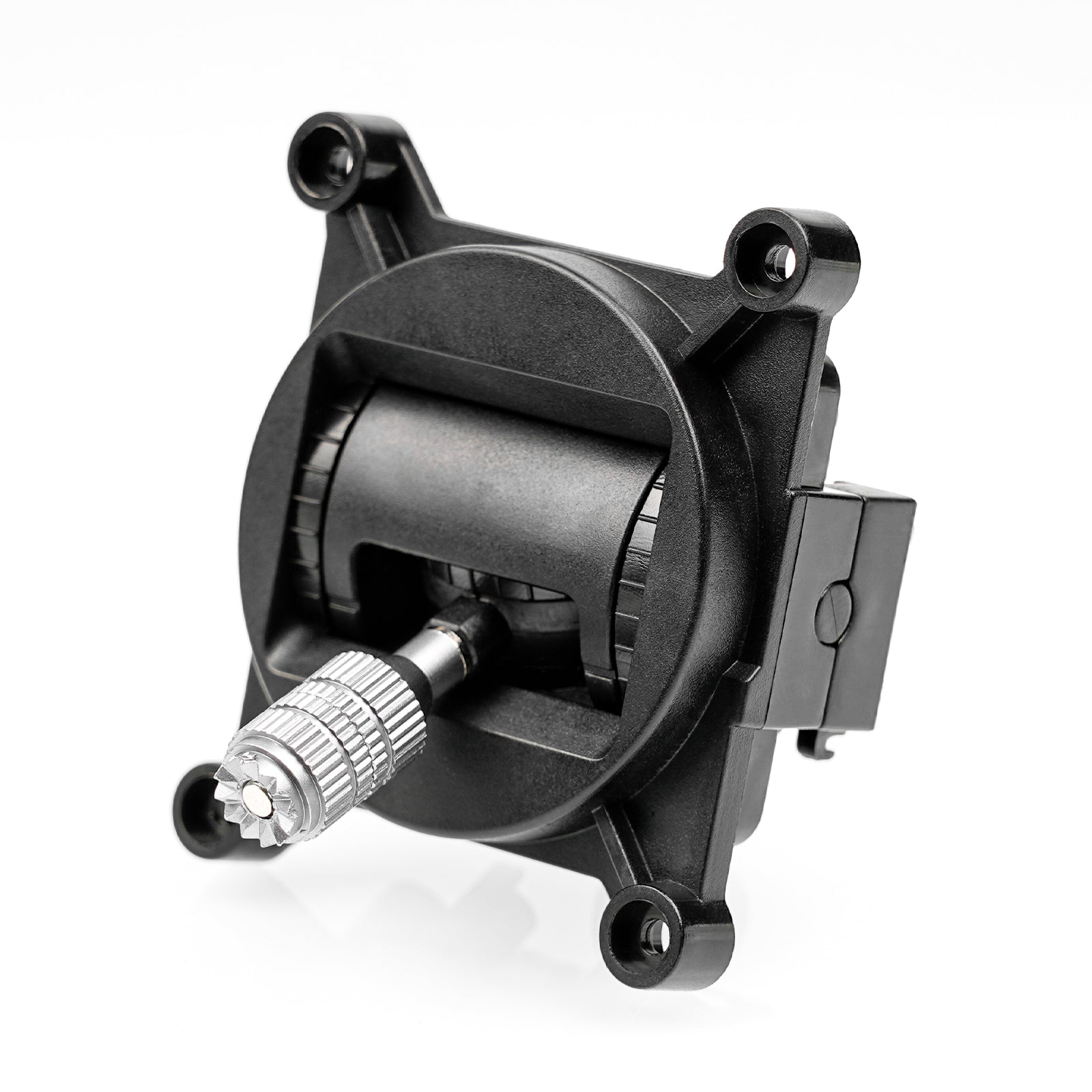

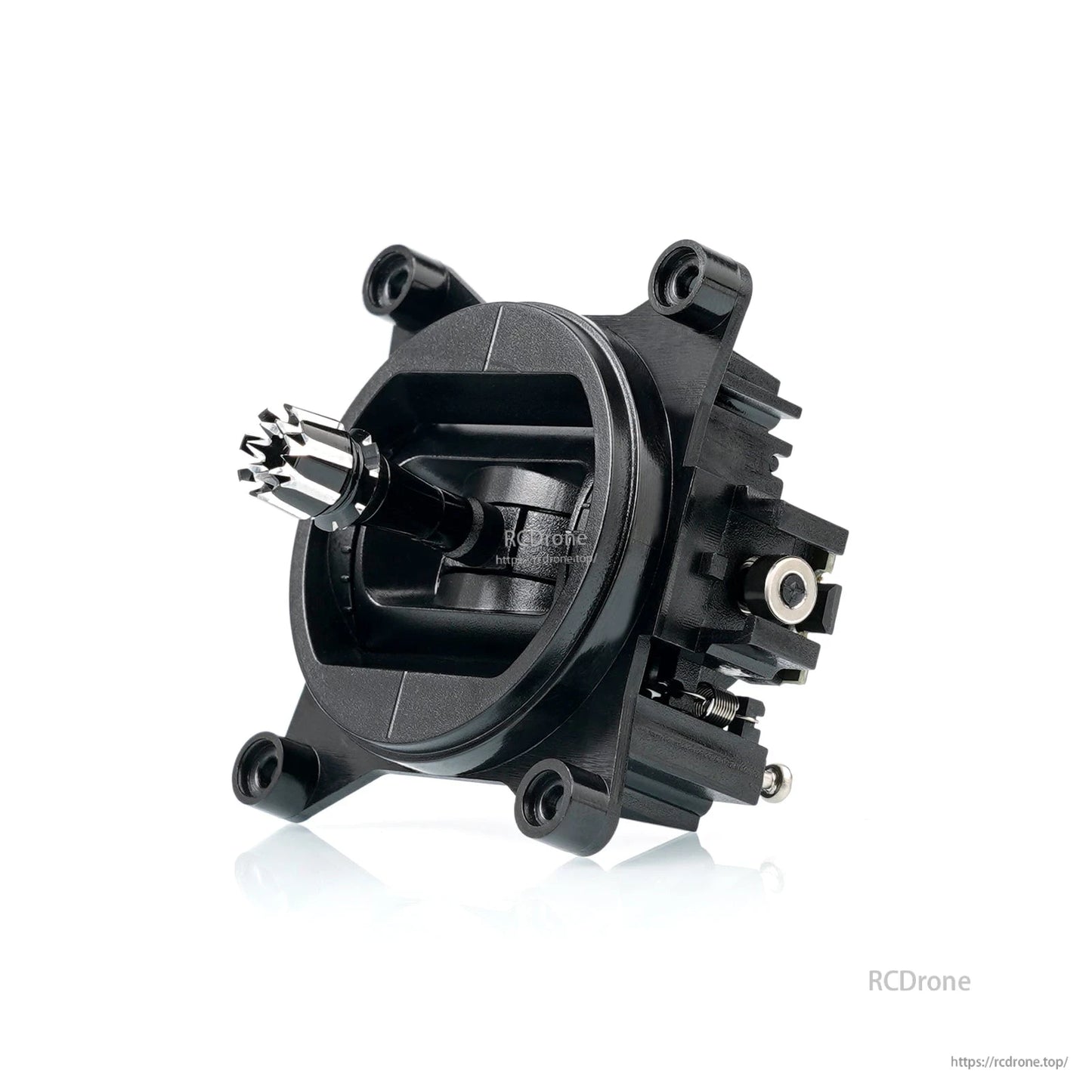

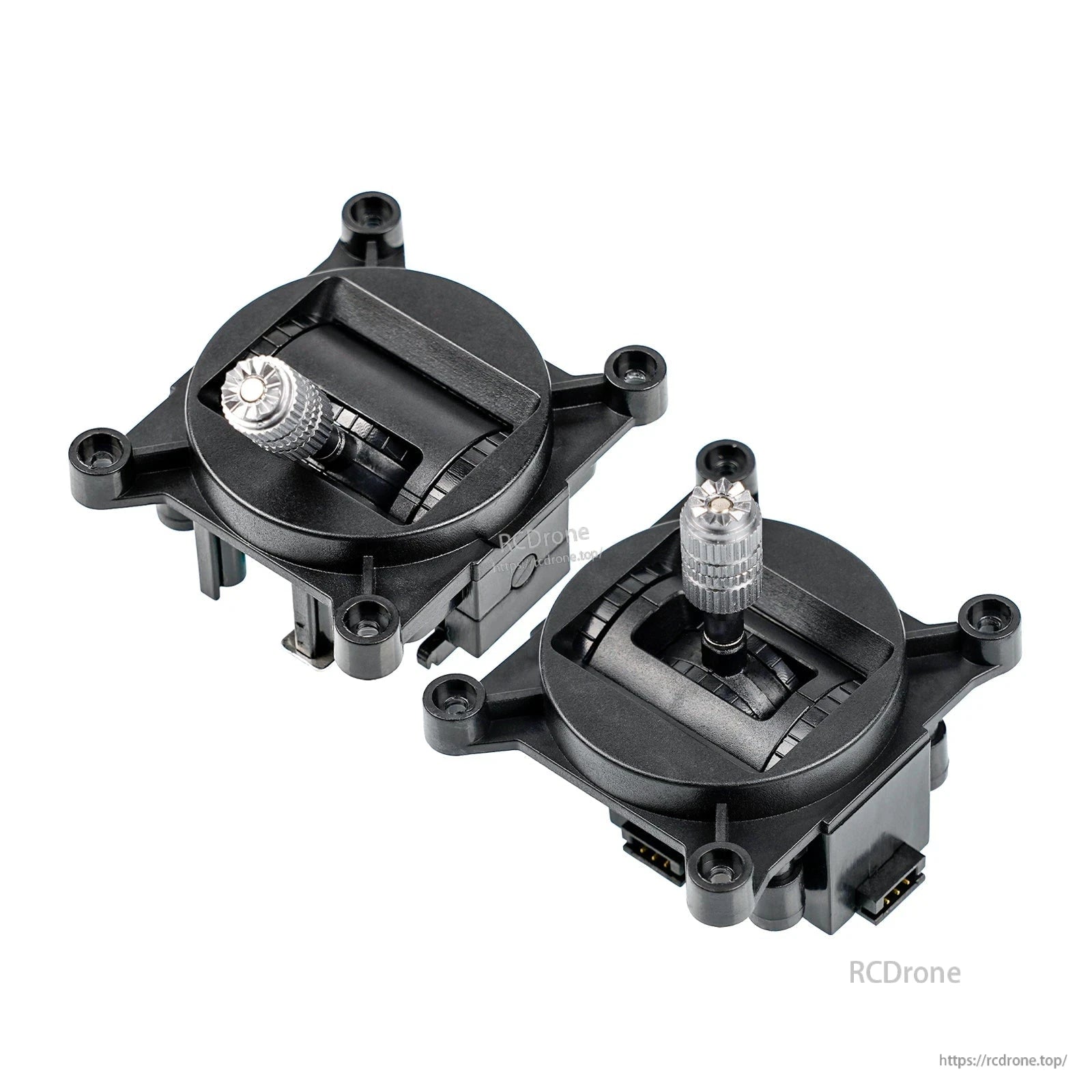

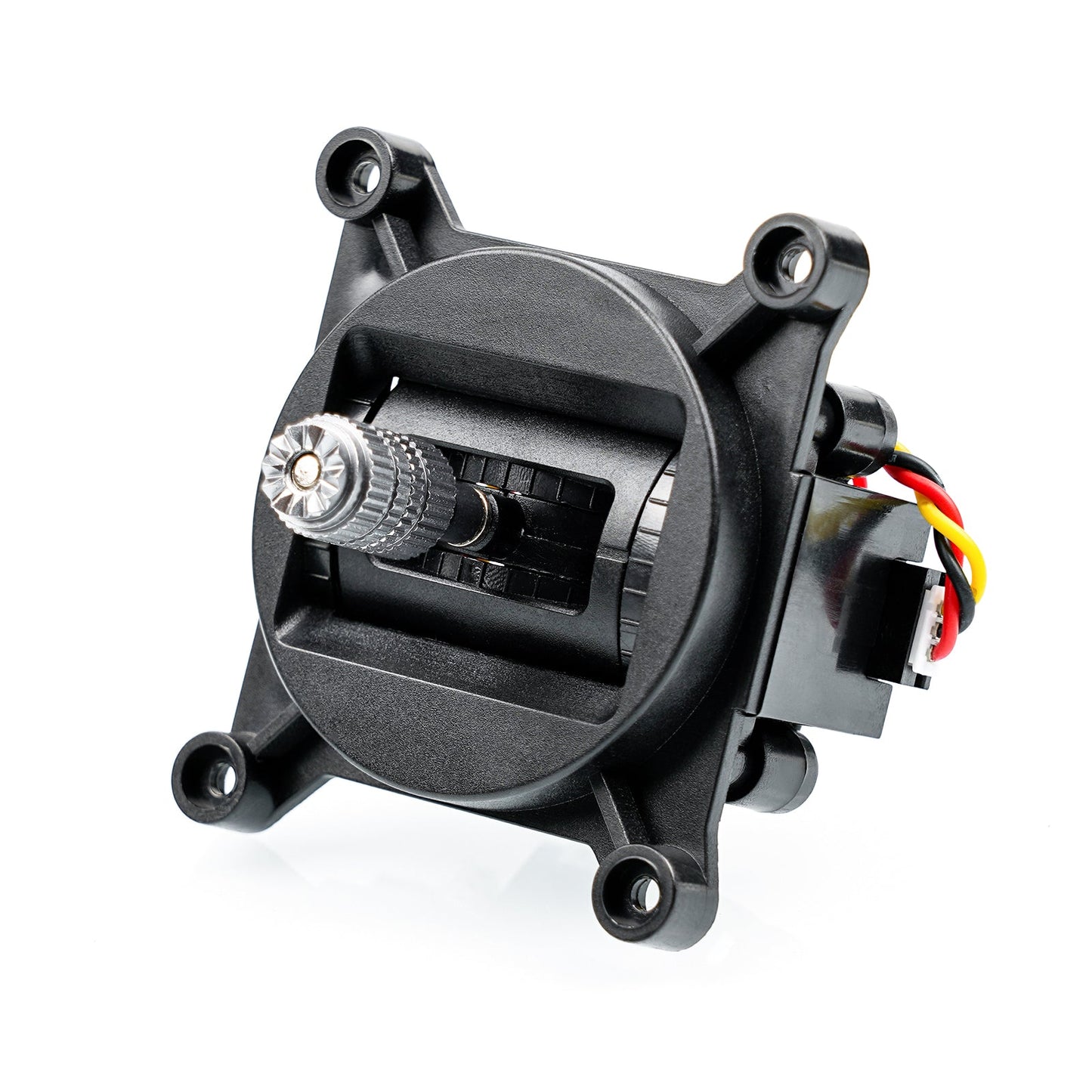

BETAFPV LiteRadio Transmitter Nano Gimbal is an original replacement joystick gimbal for LiteRadio 3 and LiteRadio 2 SE. The gimbal includes wires for easier replacement and is available in two sensor versions: Potentiometer or Hall.

Key Features

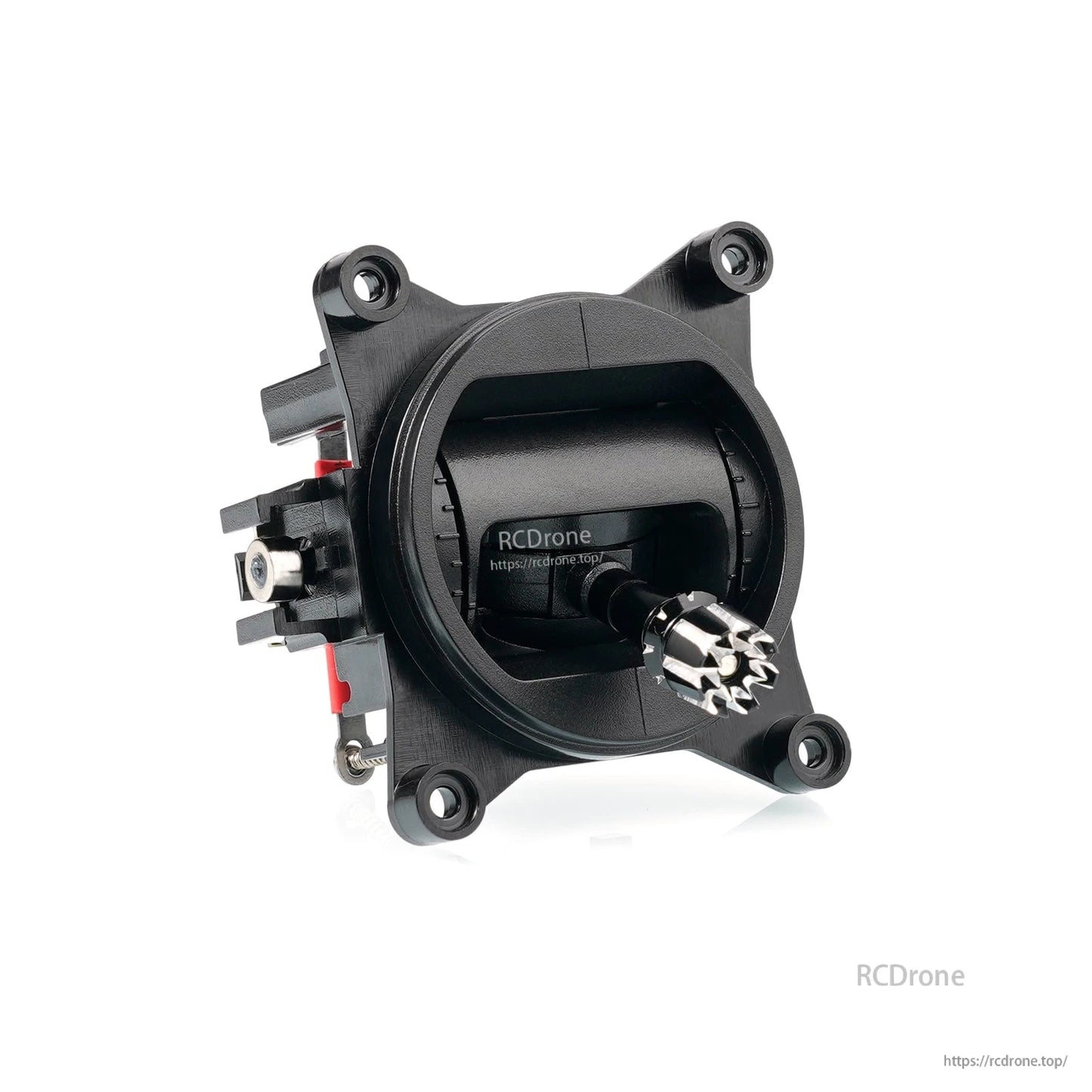

• High-quality plastic and metal construction
• Detachable, anti-slip, height-adjustable ergonomic stick ends
• Potentiometer gimbal longevity: up to 120k rotations; designed for accurate positioning and fast response sensitivity

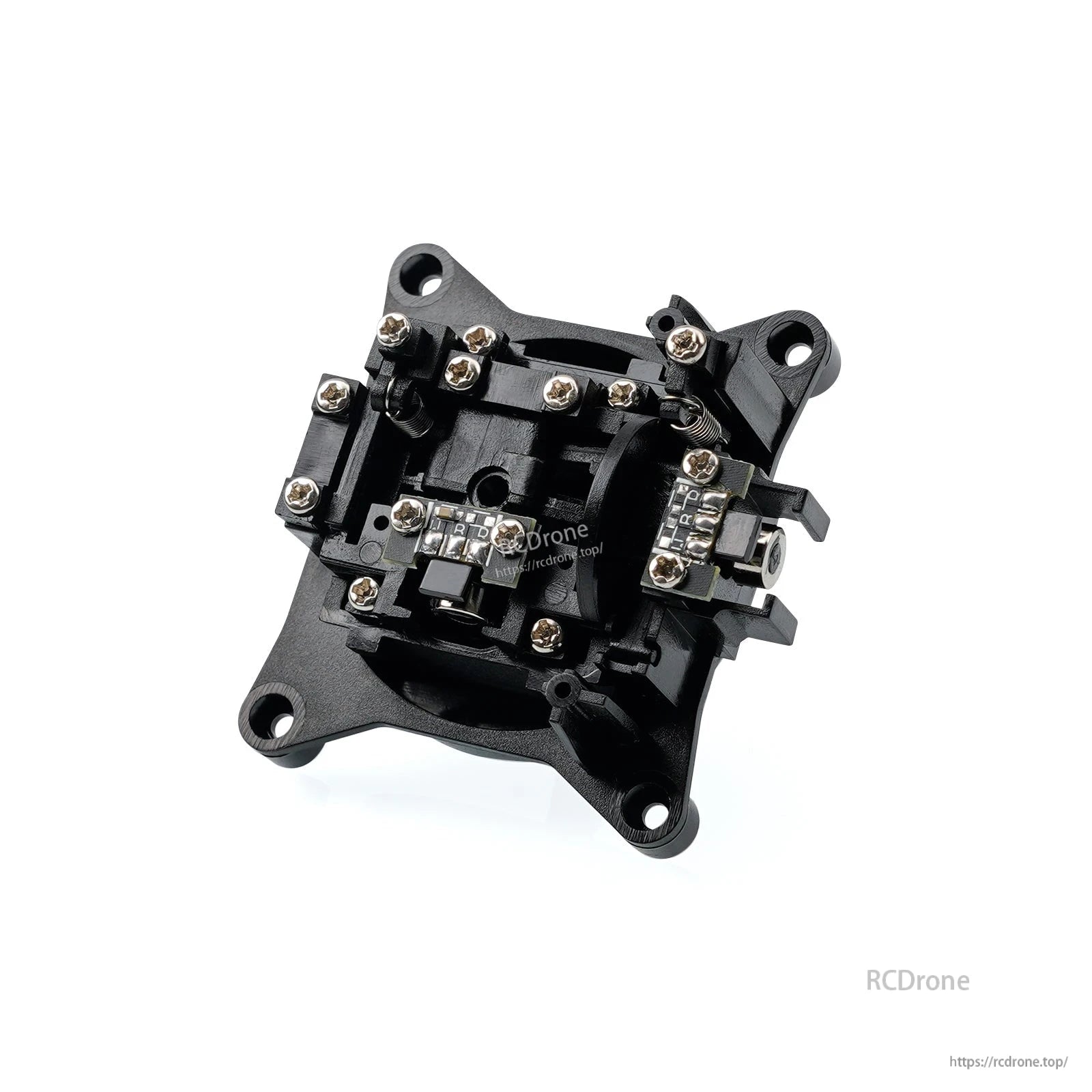

• Hall gimbal: Hall Effect contactless sensing for accurate control inputs and precise centering; four precision bearings; adjustable spring tension
• Throttle/Yaw stick is used for acceleration and does not return to center automatically; Pitch/Roll stick controls direction and returns to center

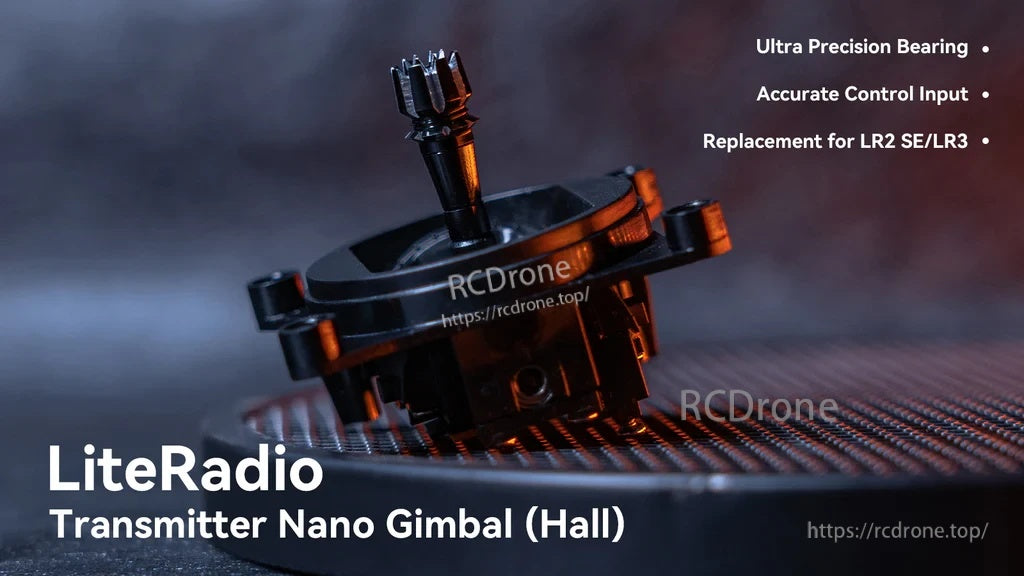

• Image text highlights: “Long Longevity/Easy to Replace”, “Ultra Precision Bearing”, “Accurate Control Input”, “Replacement for LR2 SE/LR3”

Specifications

Compatibility Notes

• Upgrade LiteRadio 3 / 2 SE to the latest version before replacing the gimbal.
• LiteRadio 2 SE without the BETAFPV configurator supported sticker (old version LiteRadio 2 SE) and LiteRadio 2 cannot upgrade to the newest firmware, are not compatible with the Hall gimbal, and only support the potentiometer gimbal.
• For old-version LiteRadio 2 SE (and LiteRadio 2), parts of the battery bay may need to be cut depending on throttle gimbal installation position. New-version LiteRadio 2 SE can replace the gimbal normally.

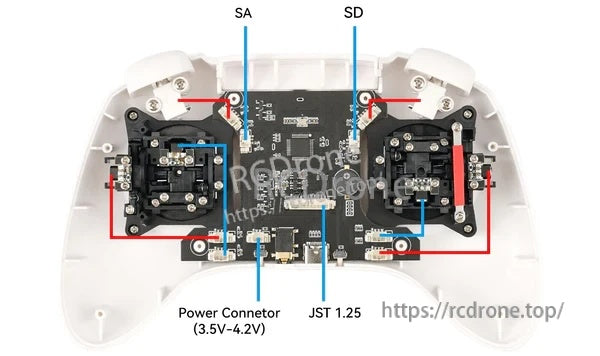

Wiring / Adjustment Labels (from diagrams)

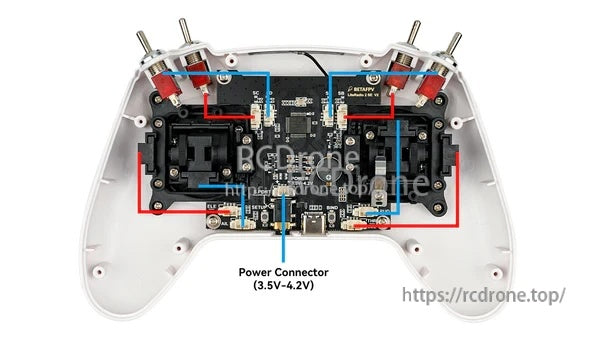

• Power Connector (3.5V-4.2V)
• SA, SD
• JST 1.25

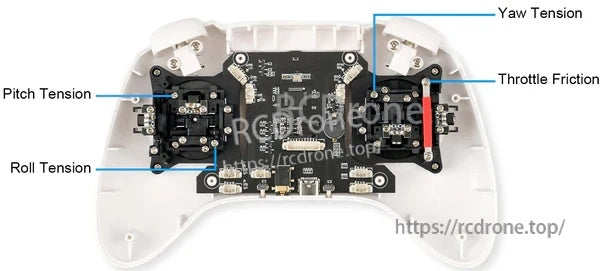

• Hall gimbal adjustment labels: Pitch Tension, Roll Tension, Yaw Tension, Throttle Friction

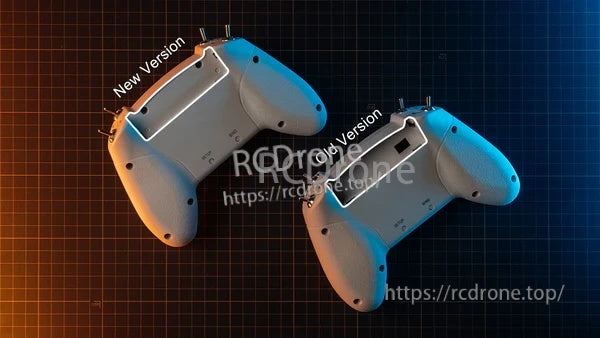

• “New Version” and “Old Version” transmitter variants are shown for reference

Resources

• Firmware (Hall gimbal): https://github.com/BETAFPV/LiteRadio_PLUS/releases
• BETAFPV Configurator: https://github.com/BETAFPV/BETAFPV_Configurator/releases
• How to replace the gimbals: https://support.betafpv.com/hc/en-us/articles/900005704103-How-to-replace-the-gimbals-of-Literadio-2-SE

Note: Make a joystick calibration after replacing the gimbal.

What’s Included

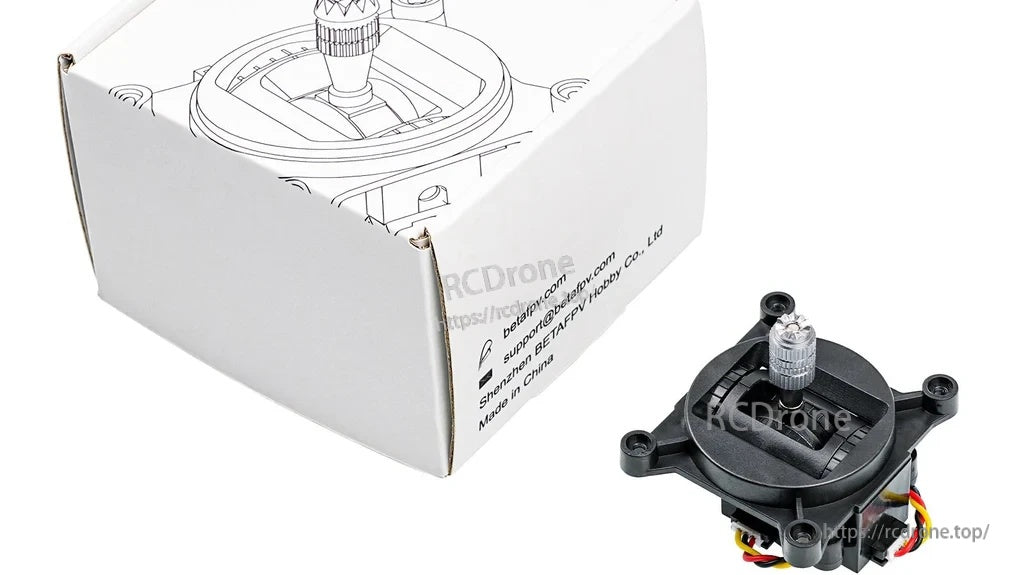

• 1 x LiteRadio Transmitter Nano Gimbal (Throttle/Yaw Stick or Pitch/Roll Stick)

For compatibility questions or installation support, contact https://rcdrone.top/ or email support@rcdrone.top.

Details

Restore smooth, responsive stick control on LiteRadio 3 and LiteRadio 2 SE with the potentiometer nano gimbal replacement.

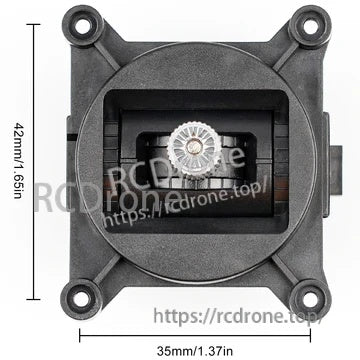

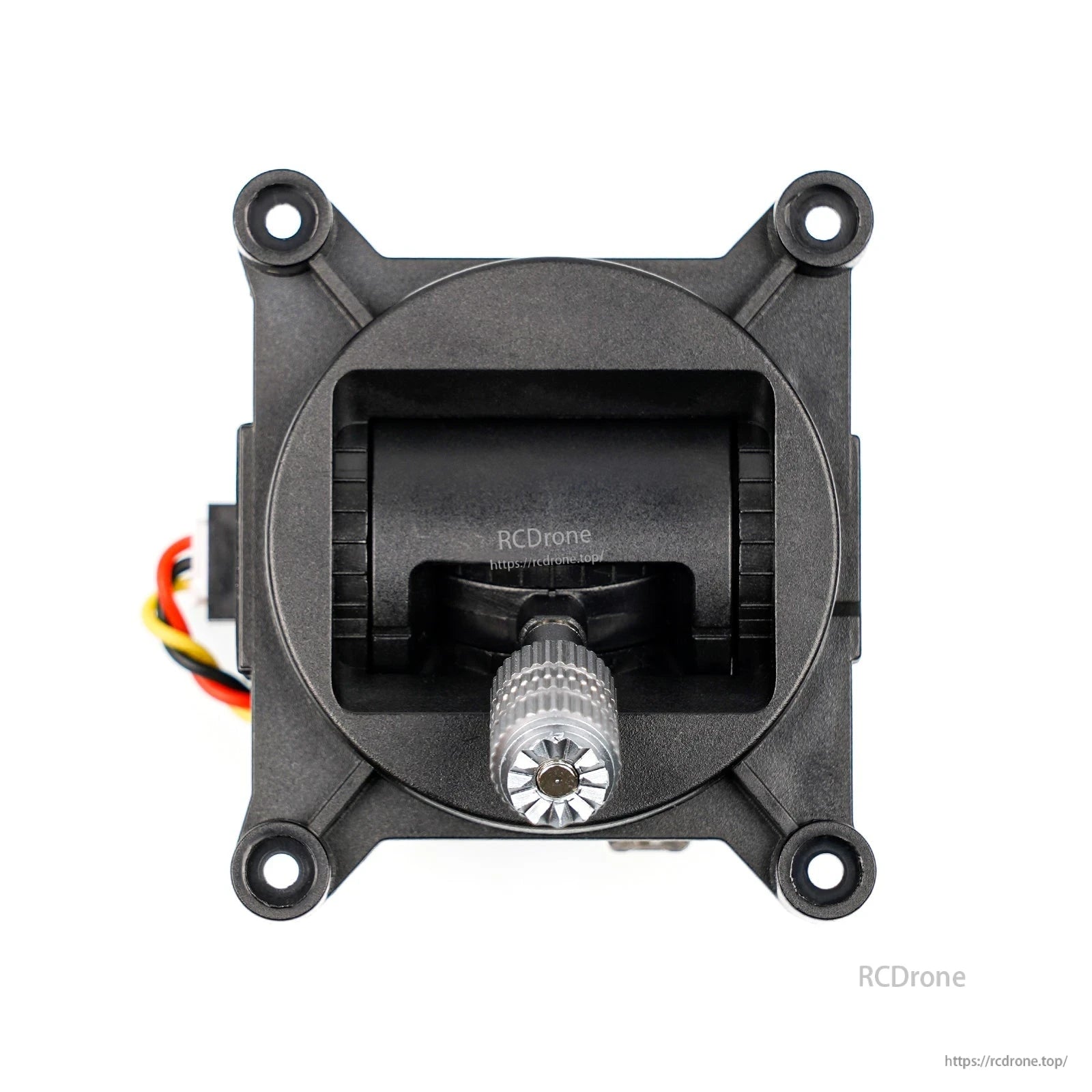

Compact 35×42 mm footprint fits the LiteRadio transmitter gimbal bay for straightforward replacement.

Choose the Hall sensor version for contactless sensing and precise centering on supported LiteRadio firmware.

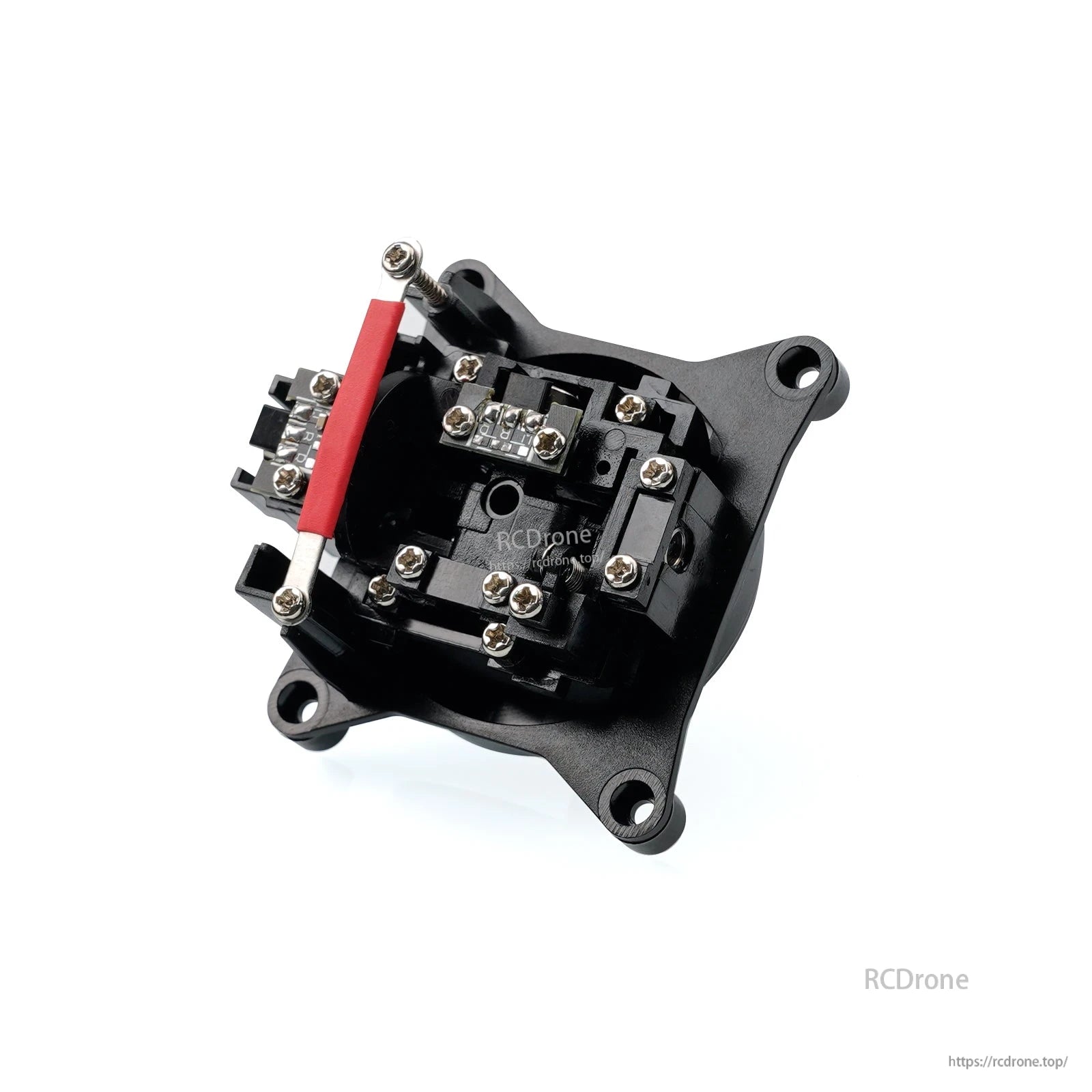

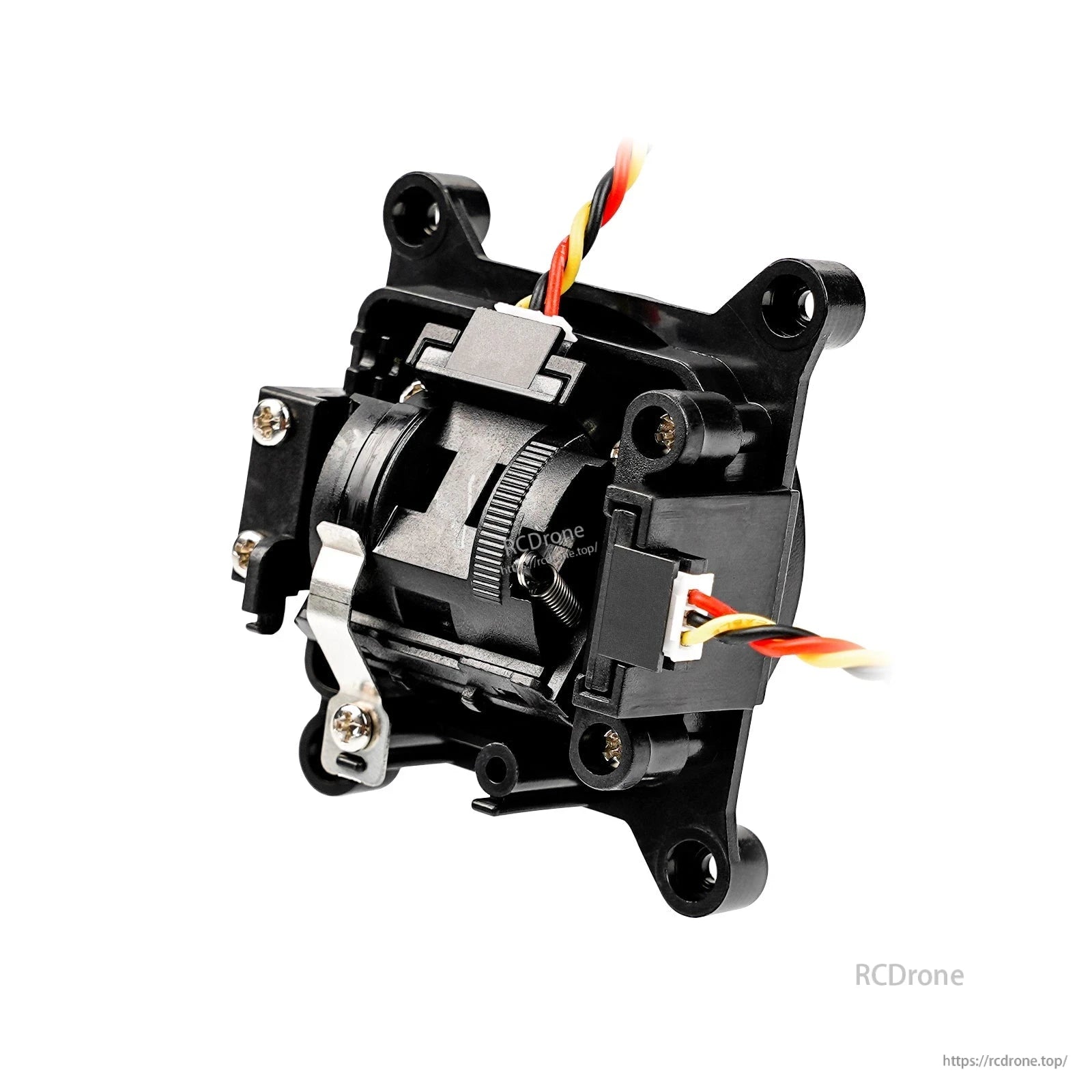

Included leads simplify routing to the main board and power connector during installation.

Dial in stick feel with accessible tension and friction adjustments for pitch, roll, yaw, and throttle.
