SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Origin: Mainland China

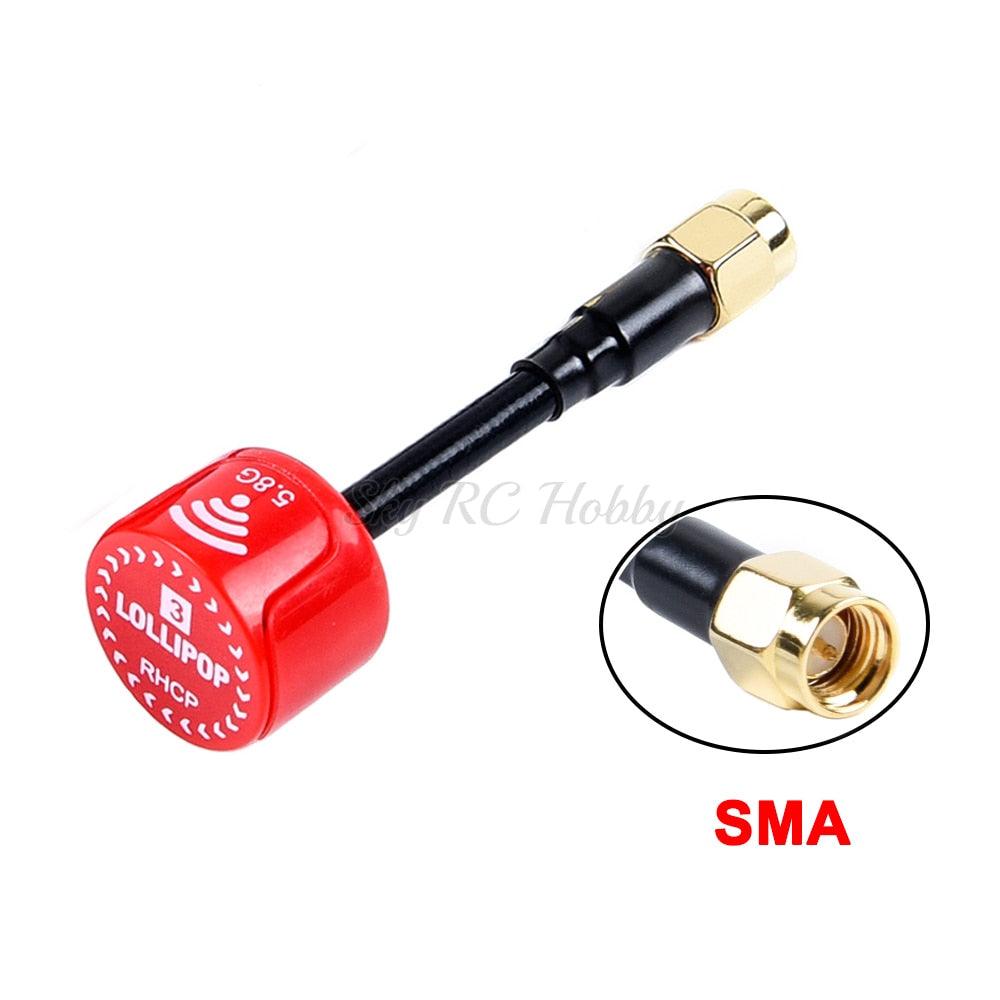

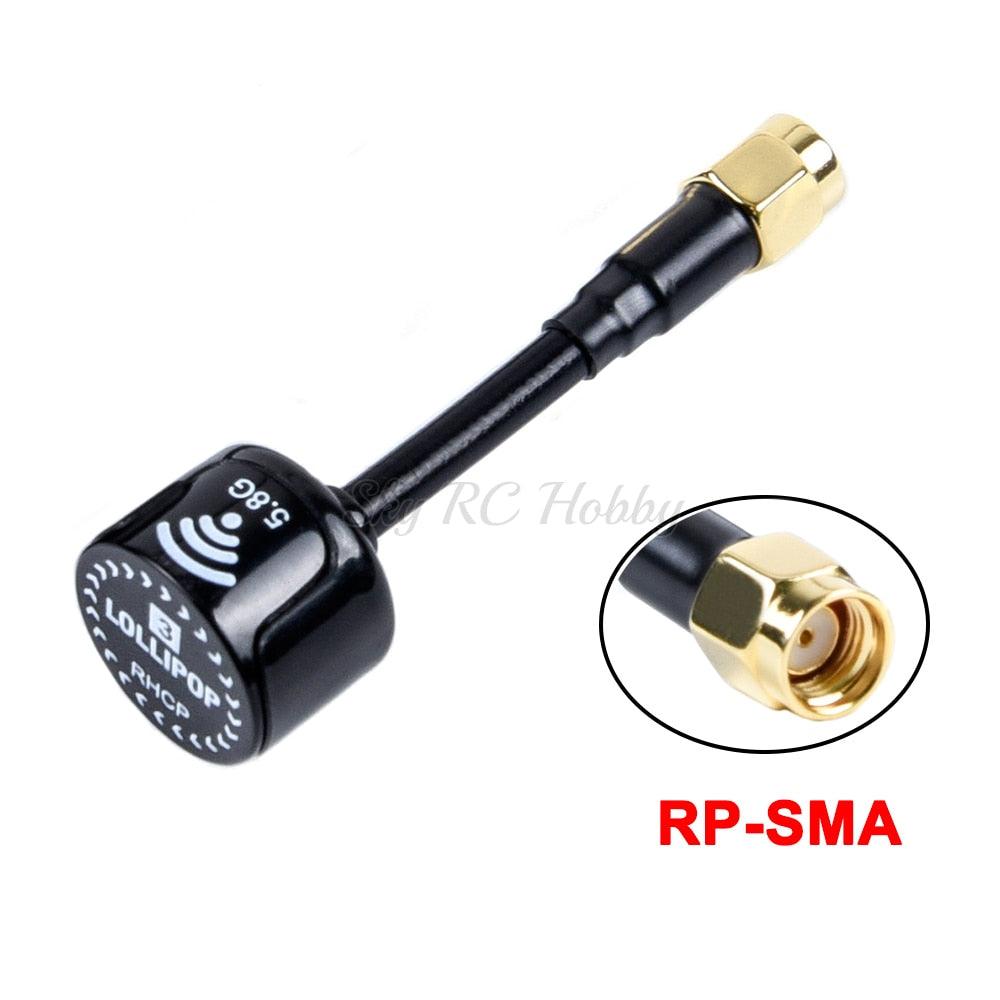

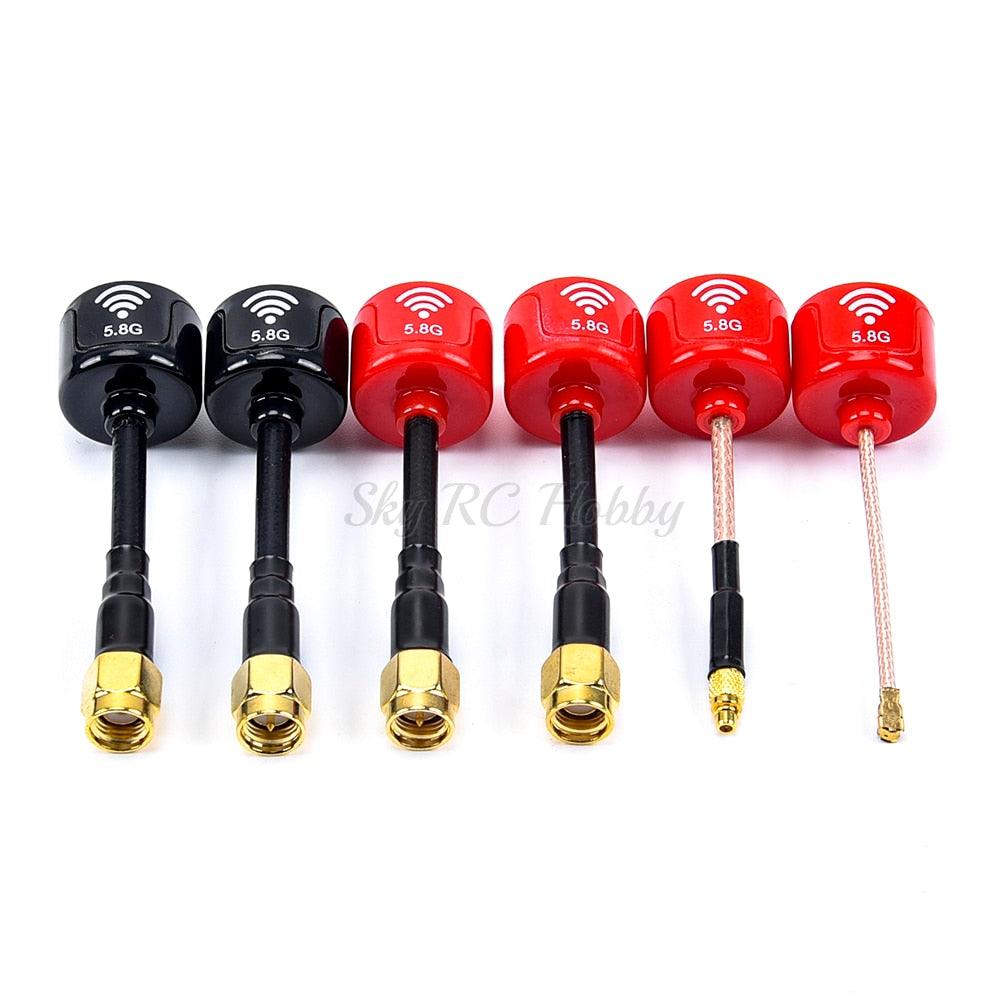

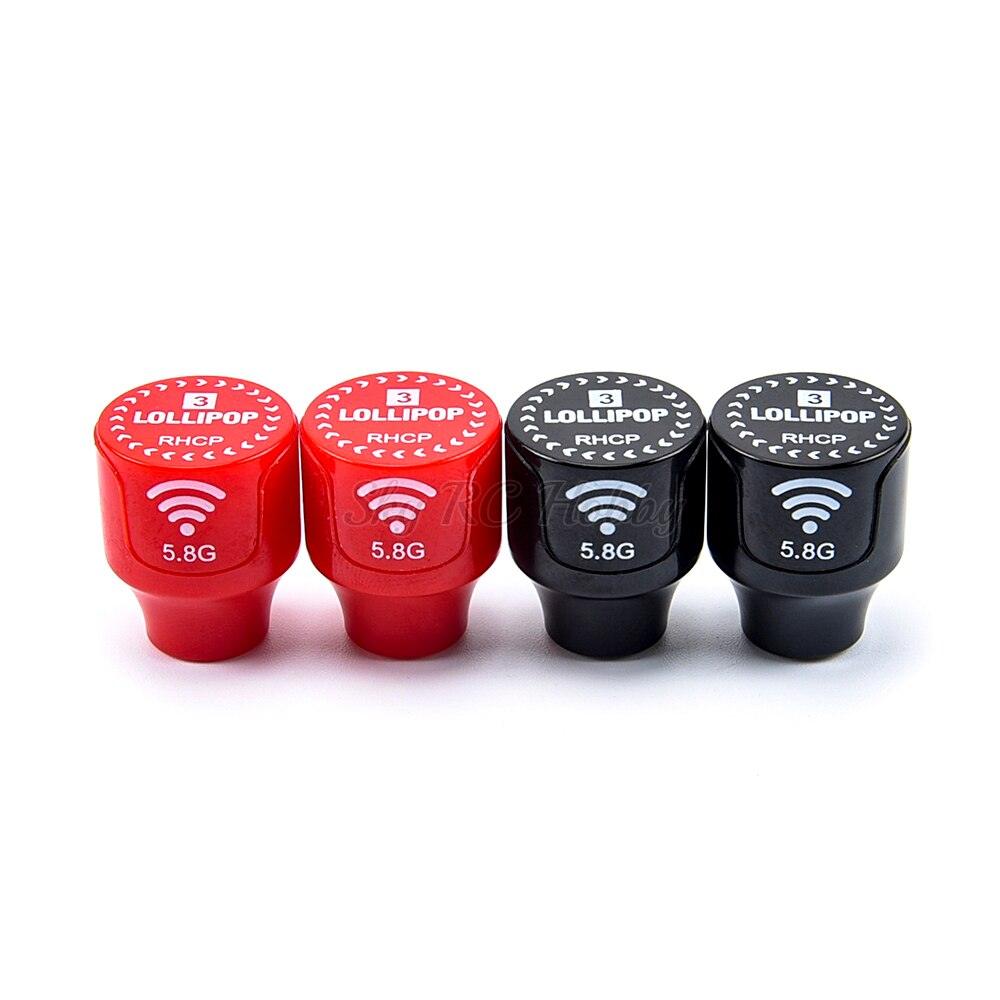

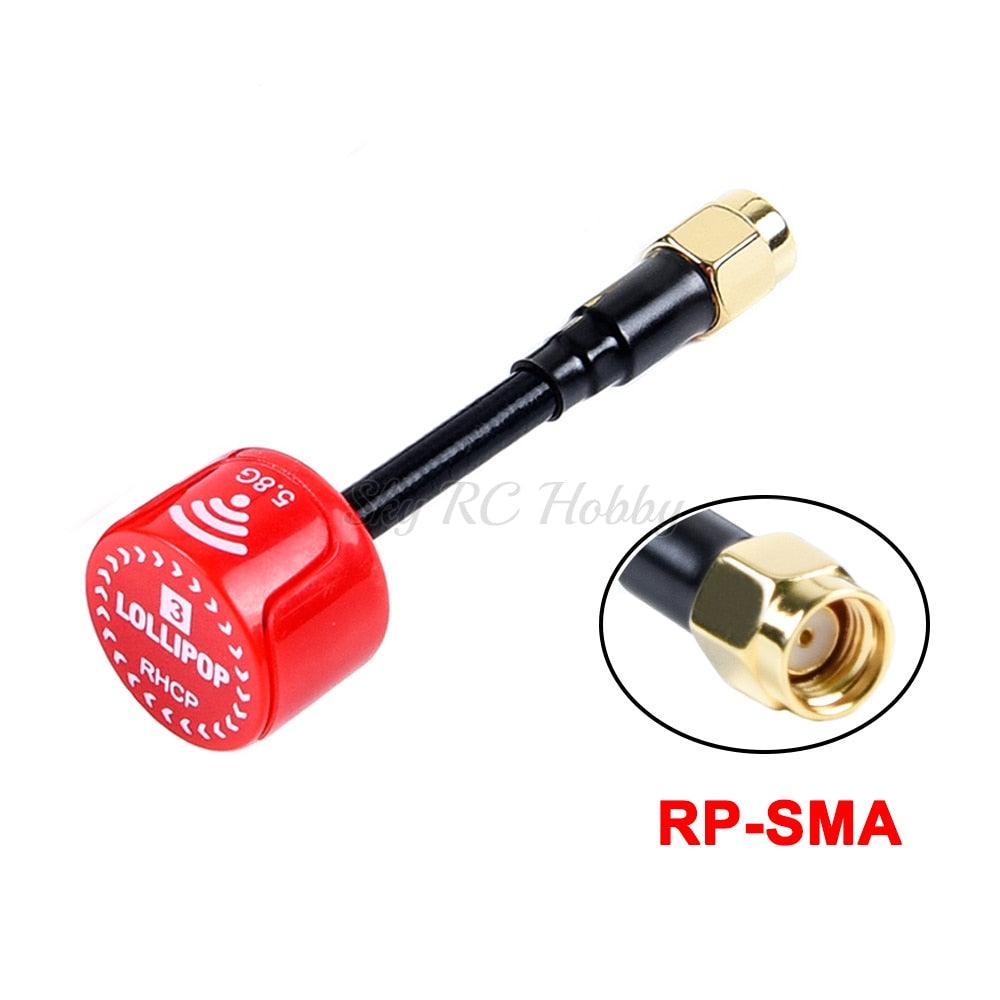

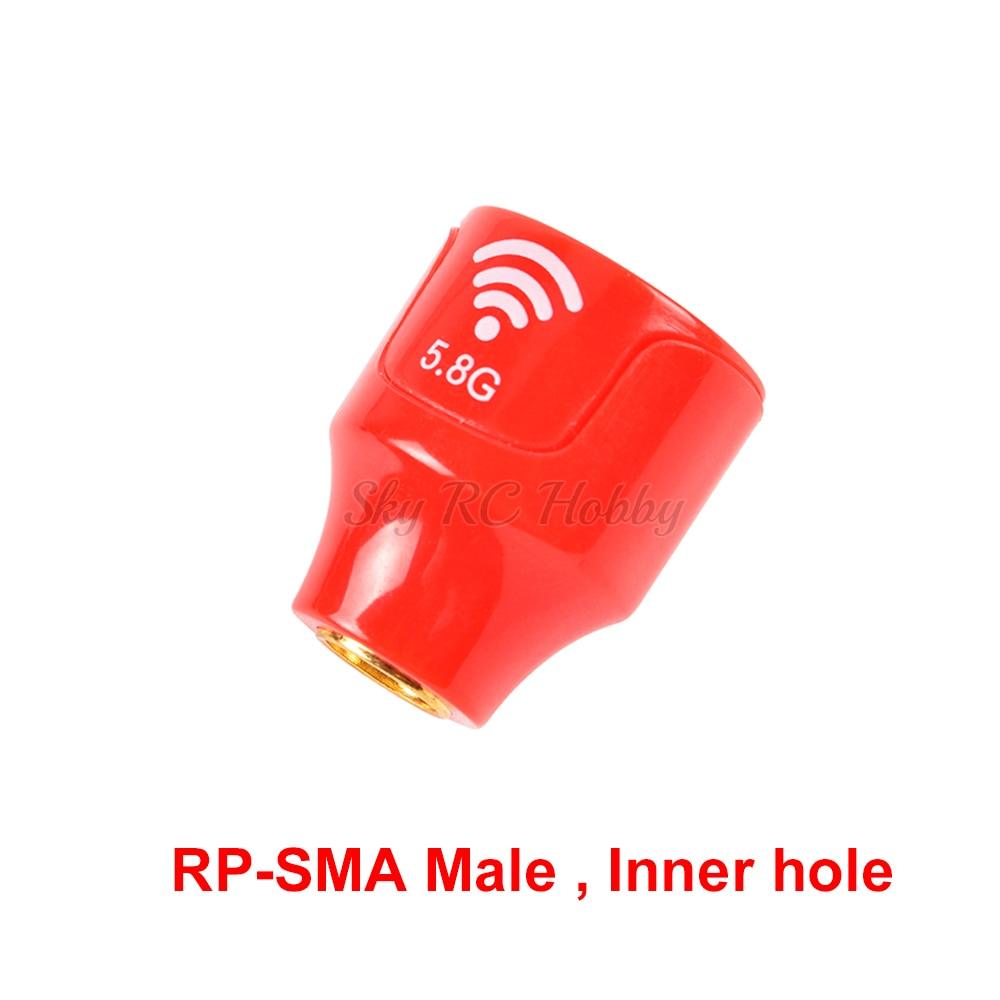

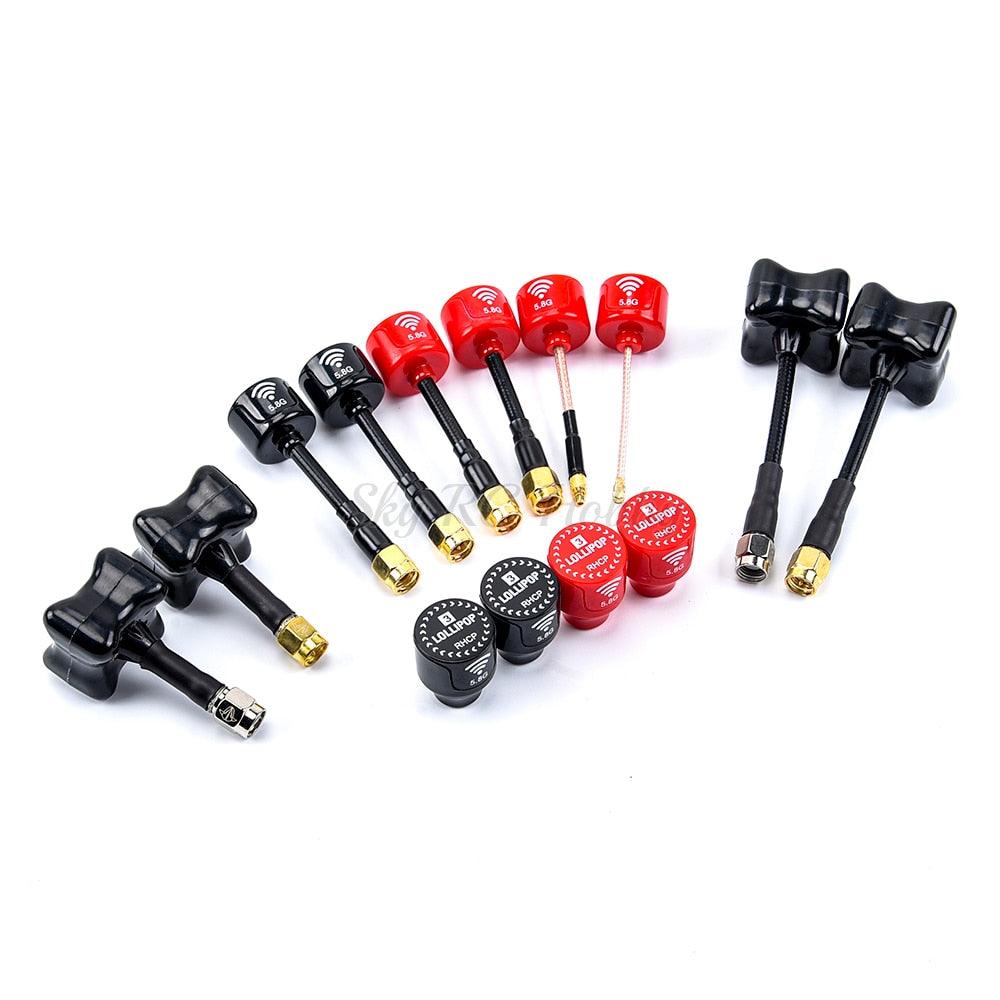

Model Number: Lollipop3 / BlackSheep / Stubby FPV Mini Antenna

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: Readytosky

Package Included: Send it as your choice

Brand:Readytosky

Weight: SMA/RP-SMA:7.6g / UFL:2.9g / straight MMCX: 3.7g

Interface: SMA / RPSMA / UFL / straightMMCX

Length:

SMA, RPSMA:61mm

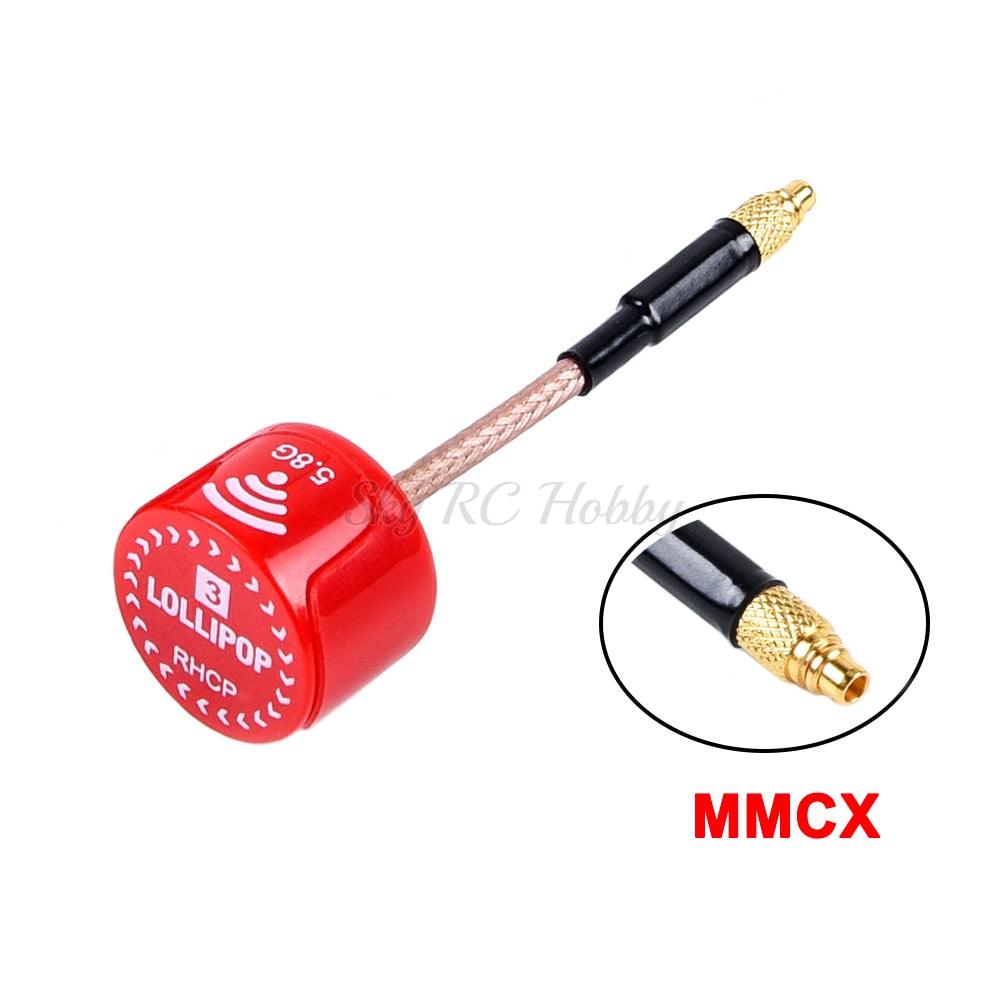

MMCX :60mm

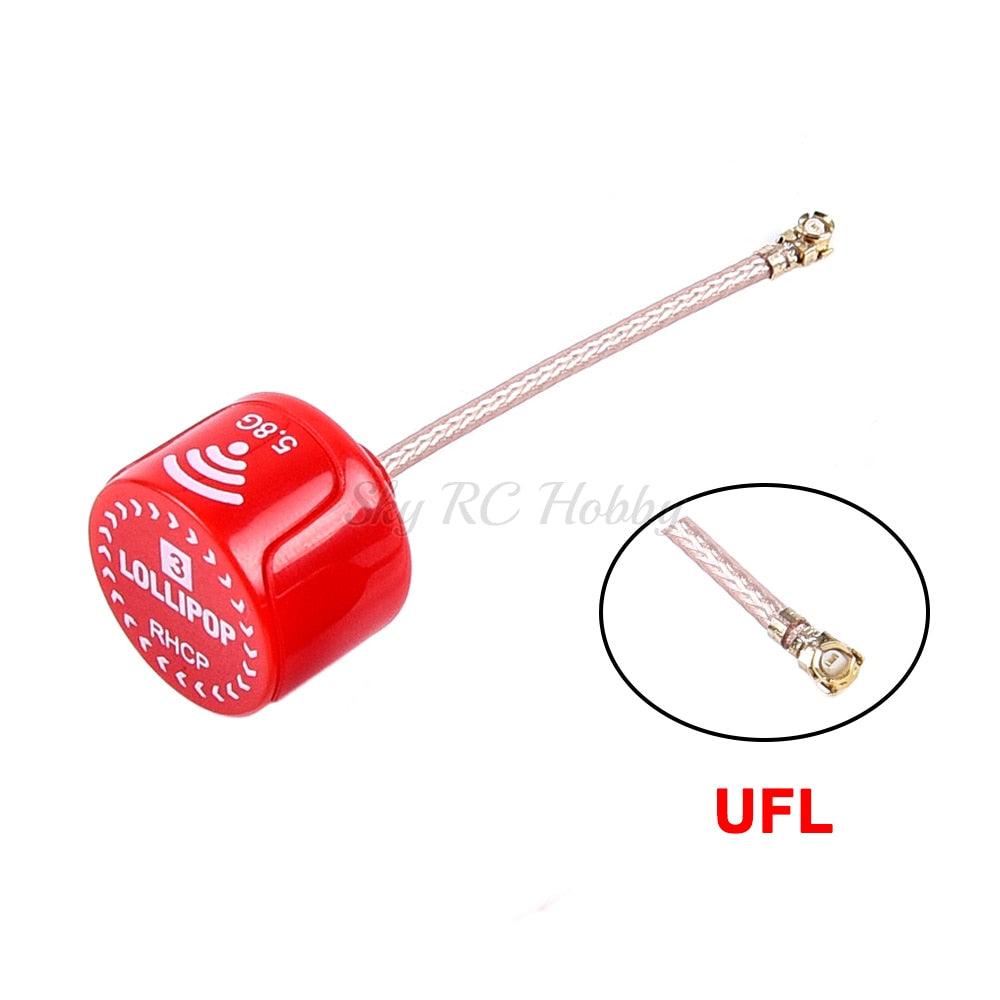

UFL :60mm

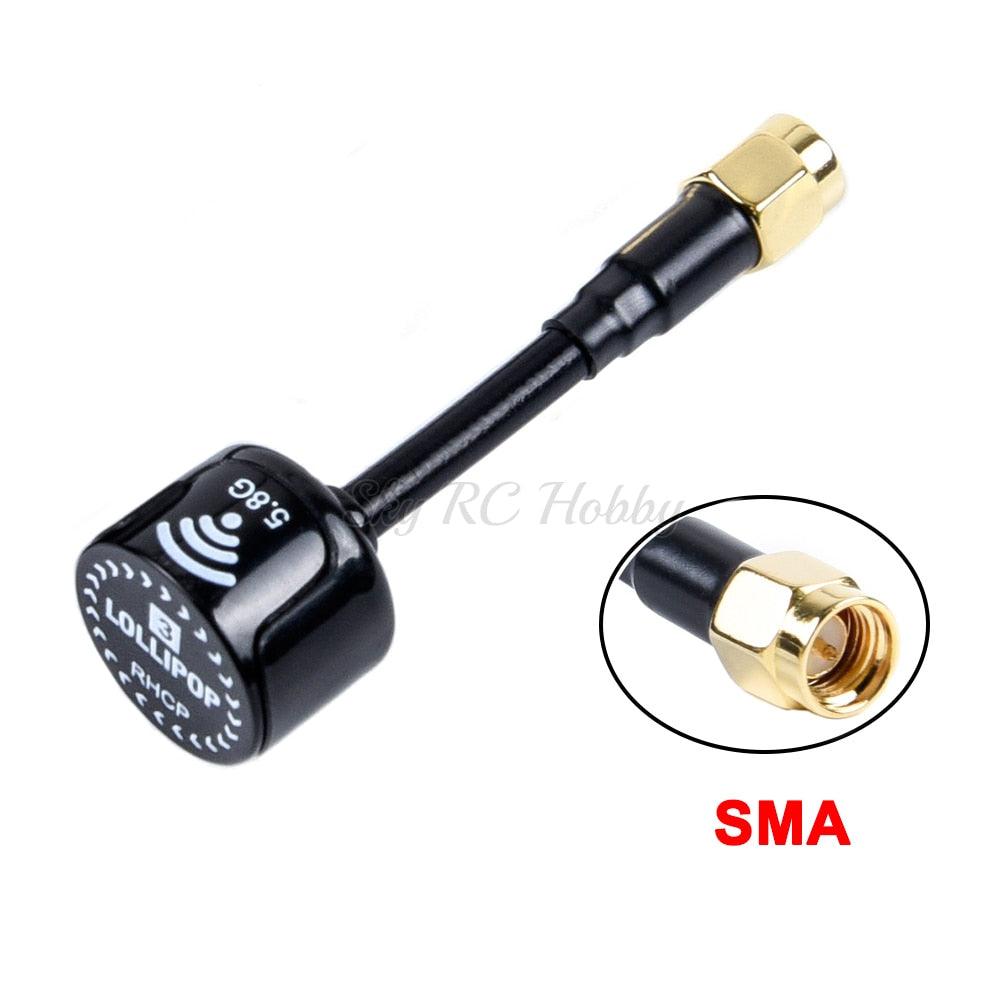

This antenna has the following specifications: SMA/I (RP-SMA) connector, with an antenna length of 61mm for UFL connections. The MMCX connector measures 59mm in length. The antenna operates at a center frequency of 5.8 GHz, with a gain of 2.3 dBi and a bandwidth of 500 MHz (covering the 5.5-6.0 GHz band). Its VSWR matching is excellent at 1.2 (at the center frequency).

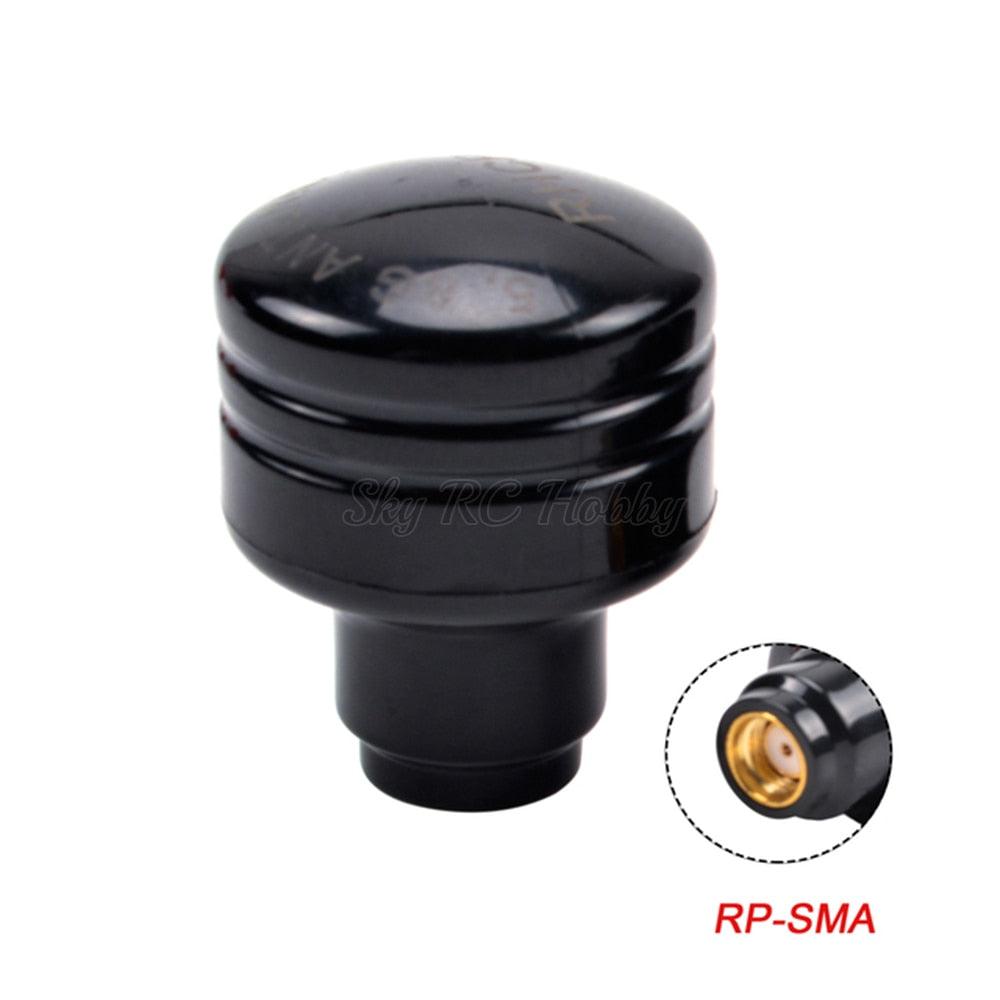

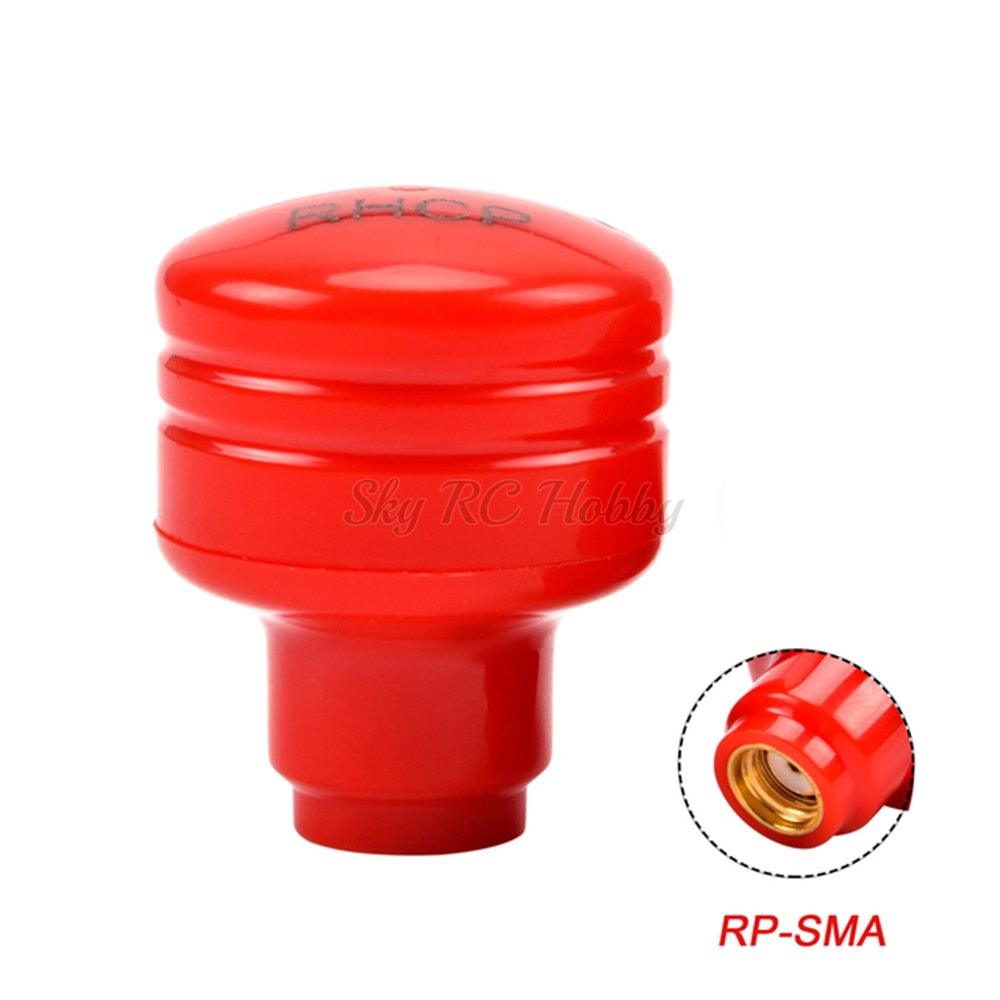

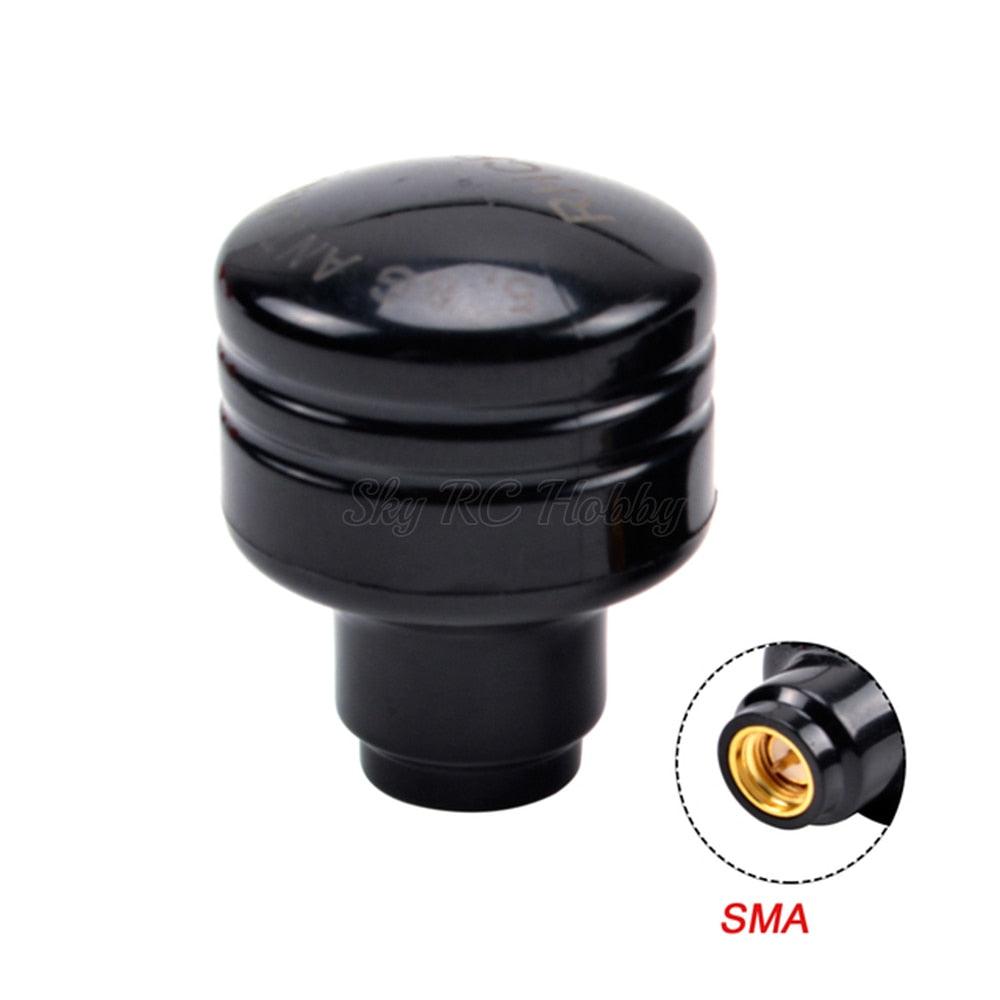

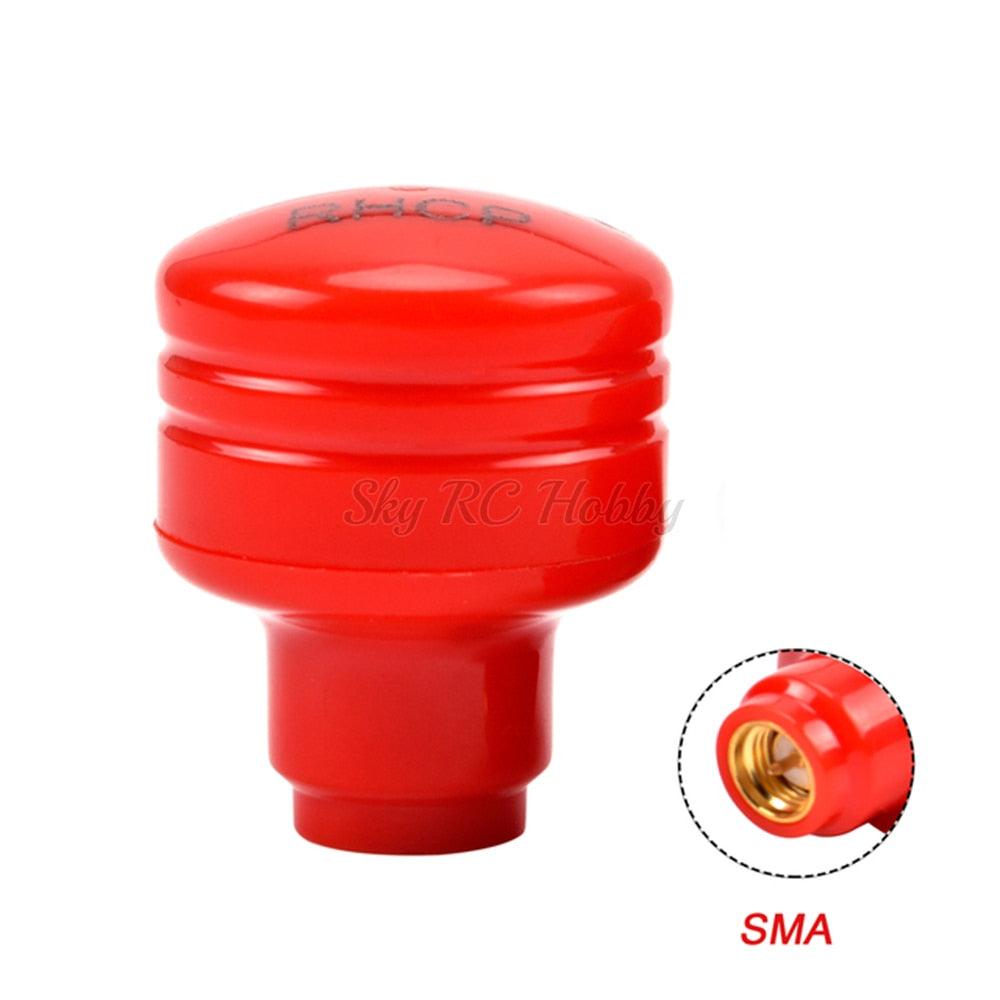

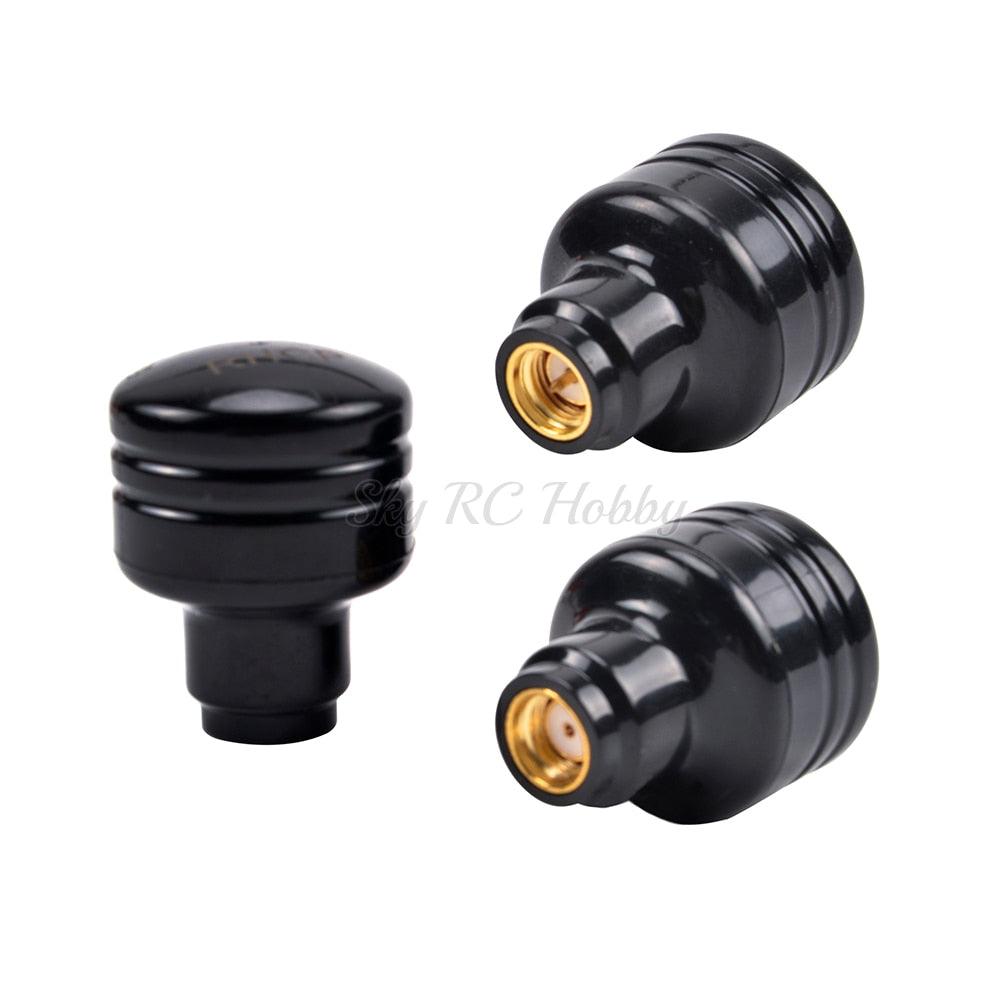

Super Mini Stubby 5.8G 5dBi Antenna

Frequency:5000-6000MHz

Gain:5dBi

Axial Ratio:0.74

Weight:6.8g

Height:Φ21*28mm

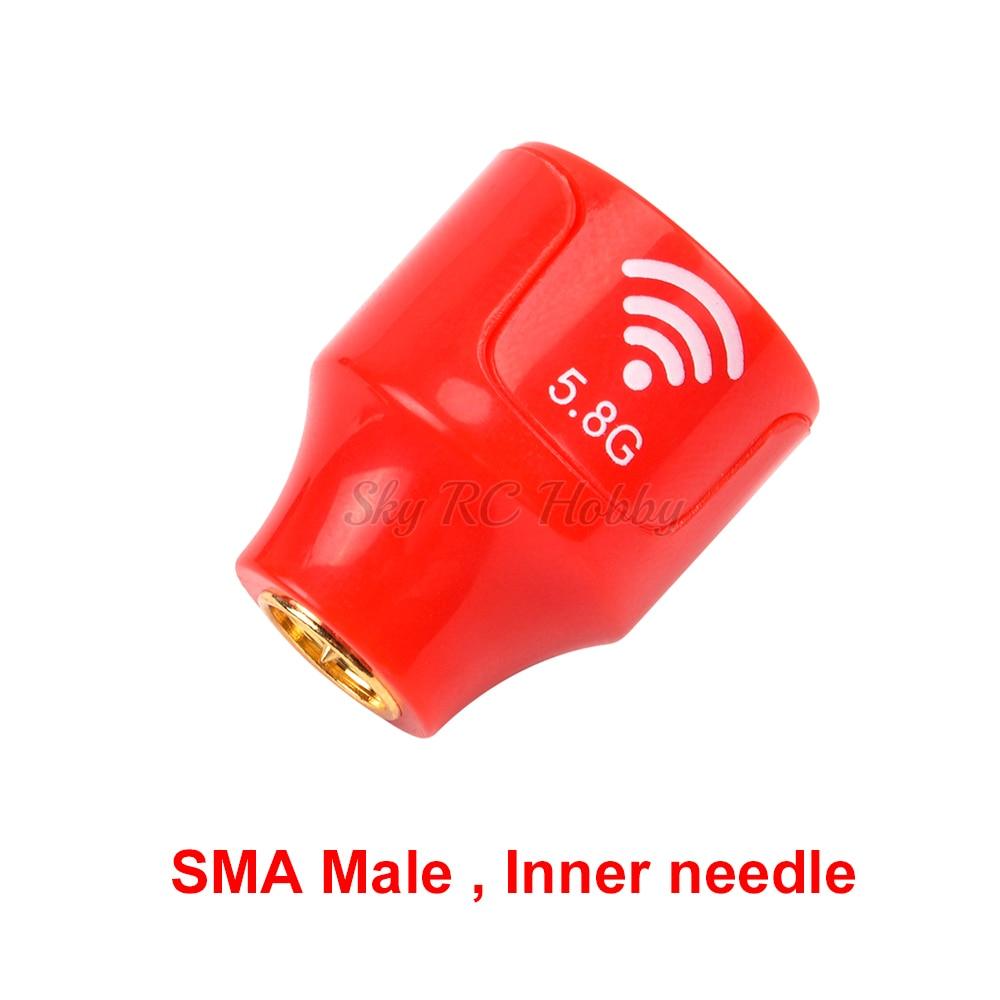

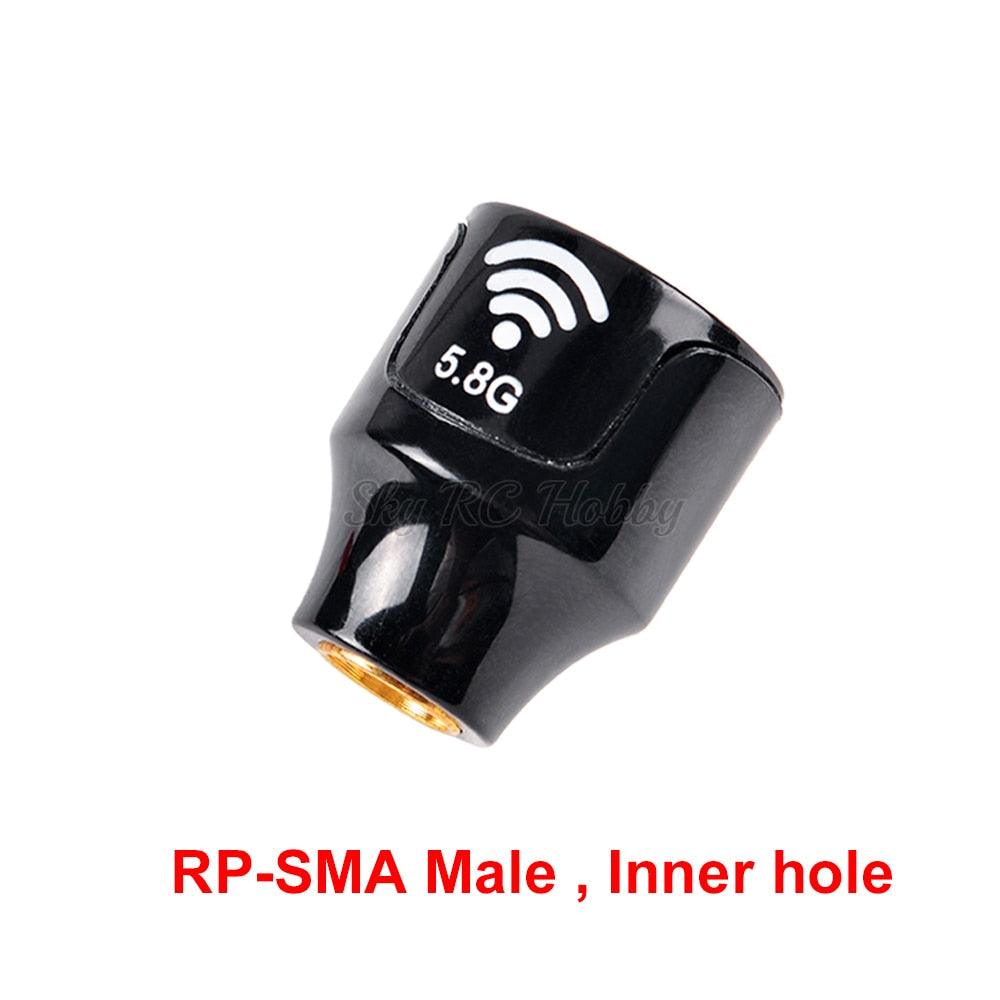

Connector: RP-SMA(inner hole) or SMA (inner needle)

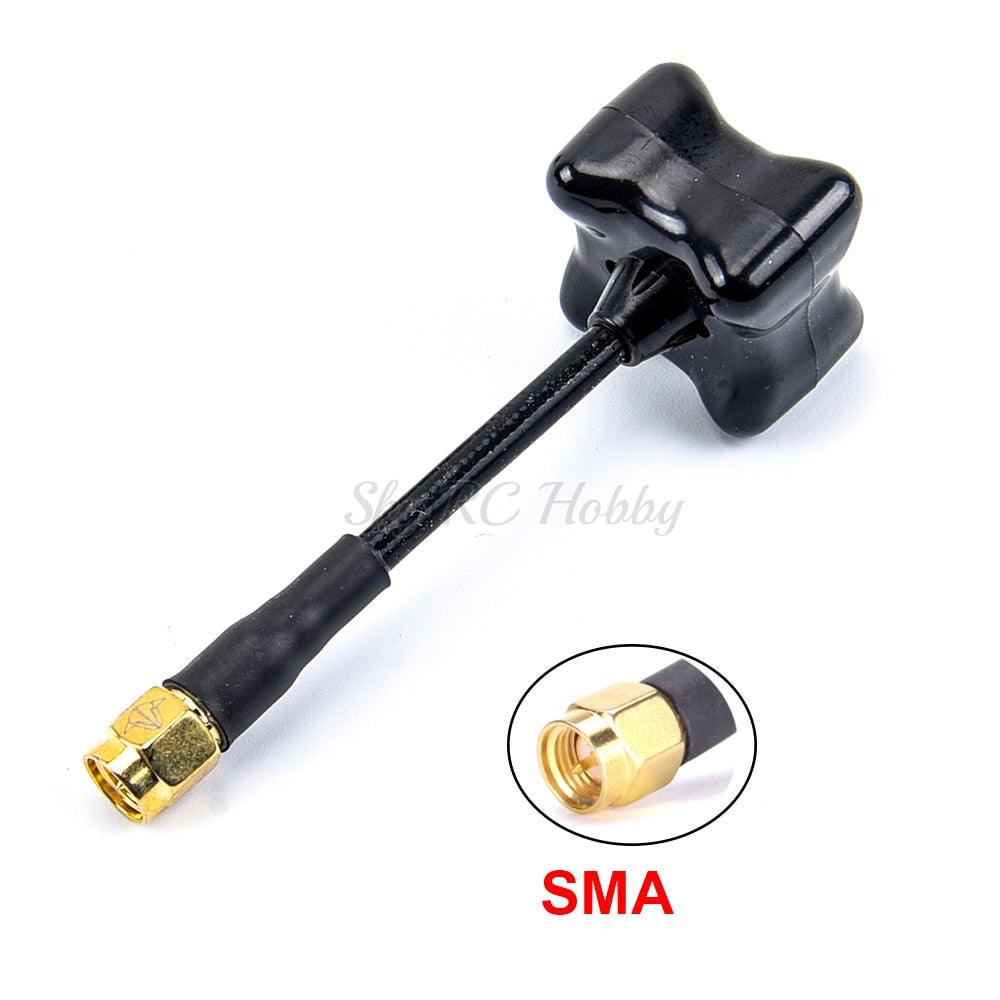

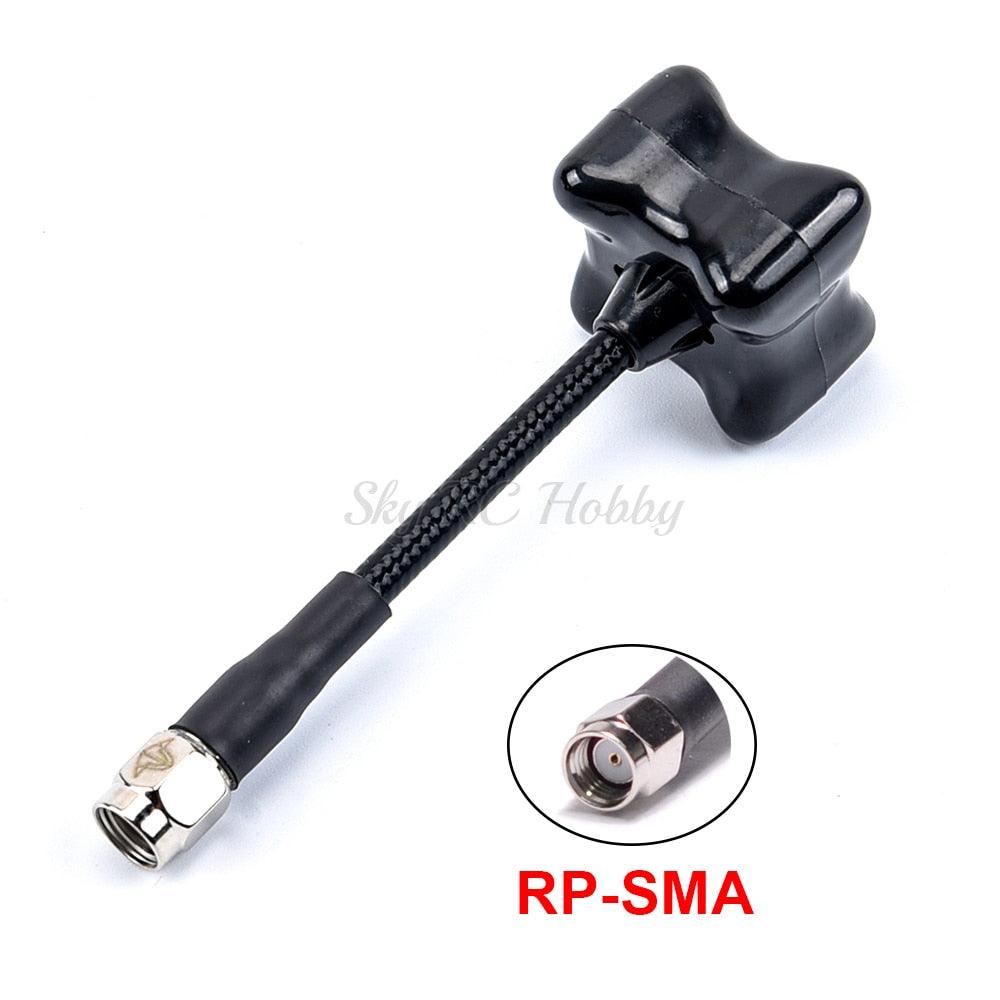

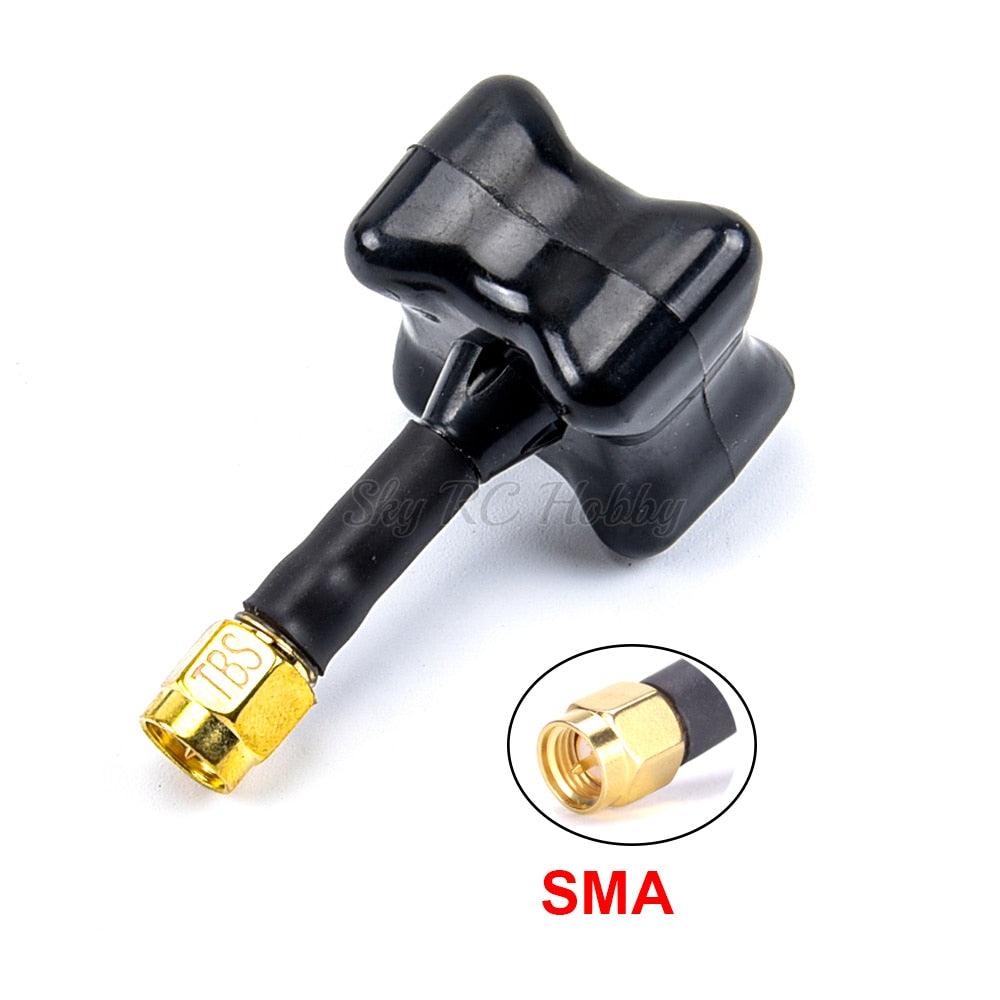

Black Sheep BlackSheep 5.8G antenna RP-SMA / SMA (Long / Short version)

While other antennas rely on copycat designs the TBS Triumph takes a giant leap in 5.8 GHz antenna technology. Video Aerial Systems LLC (IBcrazy) and Team-BlackSheep have come together to re-invent how the modern 5.8 circular polarized antenna should look and perform.

In our quest for the cleanest video signal and best range possible, we have ventured way beyond the traditional bent lobes of Cloverleaf designs and invested significant time and effort in finding the best antenna designs known to man, and modifying them specifically for FPV use.

After extensive design and testing, we focused on making sure the Triumph was durable enough to take even the toughest of abuse. After many test flights and extensive feedback from our pilots, we decided to use a double-jacket heavy duty Semi-Rigid cable and tin-plated connectors. For protection we created a special foam-filled and ultrasonic welded enclosure to secure the antenna from inbound trees, or other objects :)

FEATURES:

Manufactured and tested to highest standards

Best in class range and signal quality

Extra compact and low weight

Ultrasonic welded and foam infused cover for ultimate crash-protection

Double-jacket semi-rigid cable for heavy impact resistance

TECHNICAL SPECIFICATIONS:

Frequency range: 5500-6000MHz

Gain: 1.26dbic

Axial Ratio: 0.74

Height:85mm, 3.3 in

Connector: RP-SMA (inner hole)

Connector: SMA (inner needle)

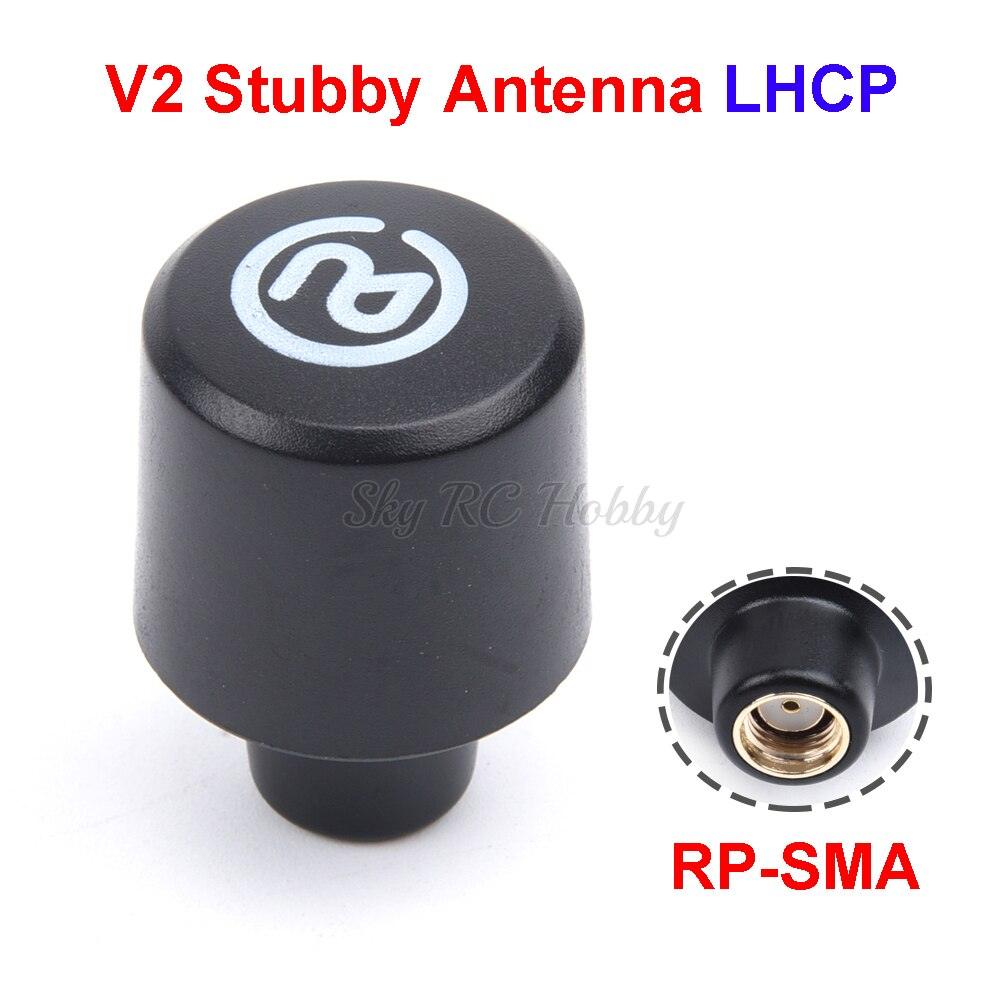

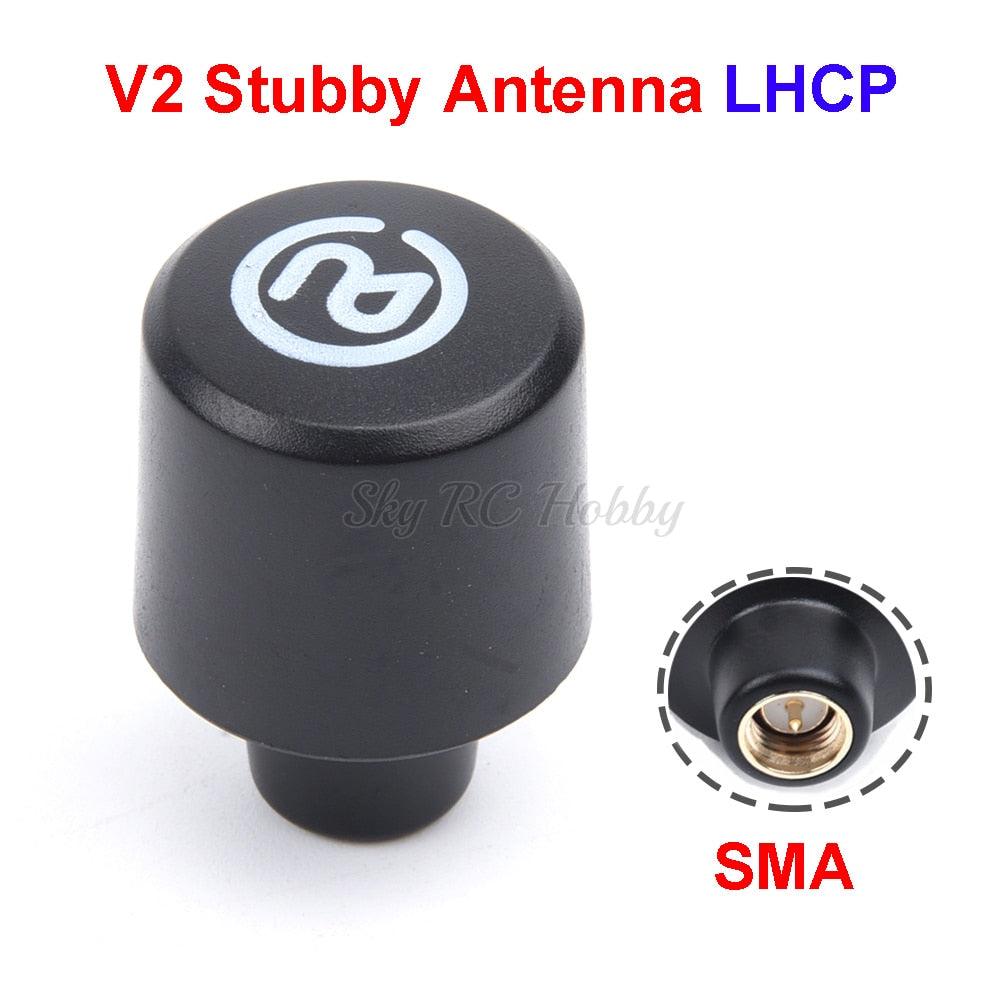

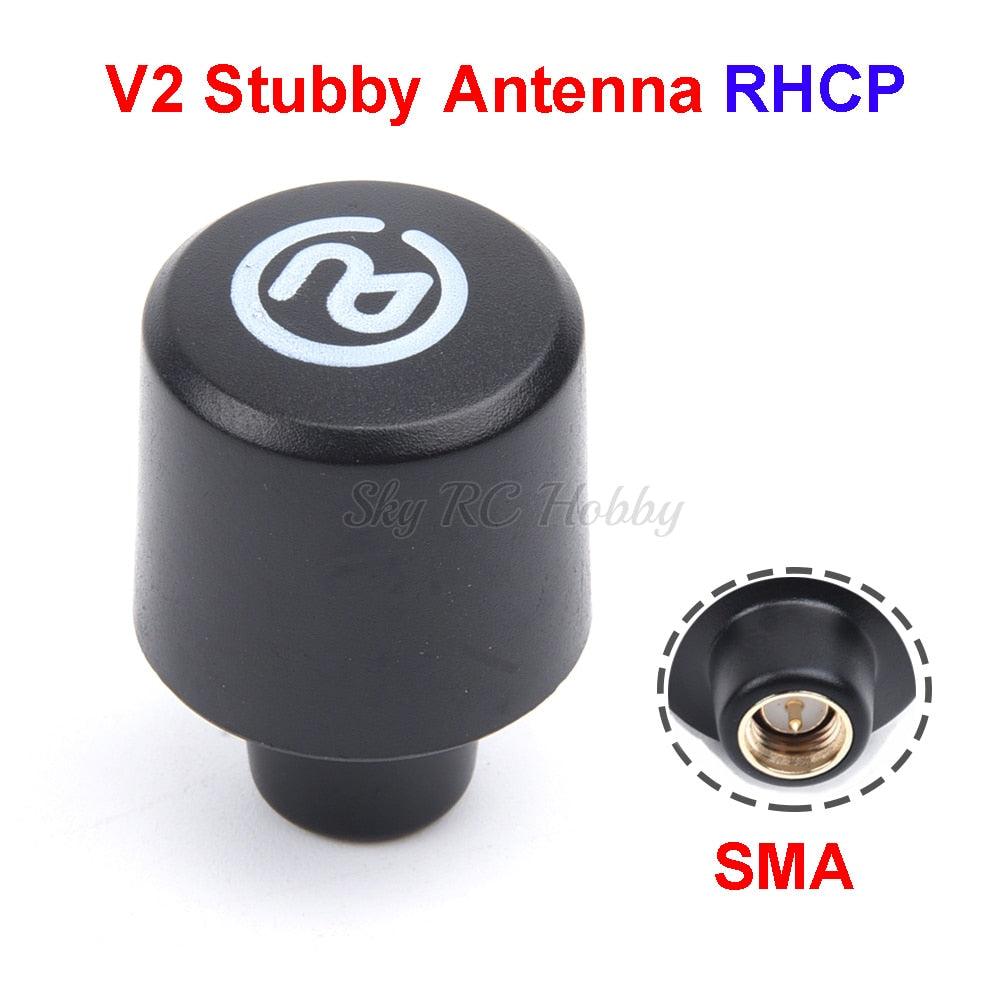

V2 Stubby 5dBi FPV Antenna

Frequency:5600-5900MHz

Gain:5dBi

VSWR: ≤1.5

Polarization：RHCP / LHCP

Axial Ratio:1.2

Weight:6.2g
