Overview

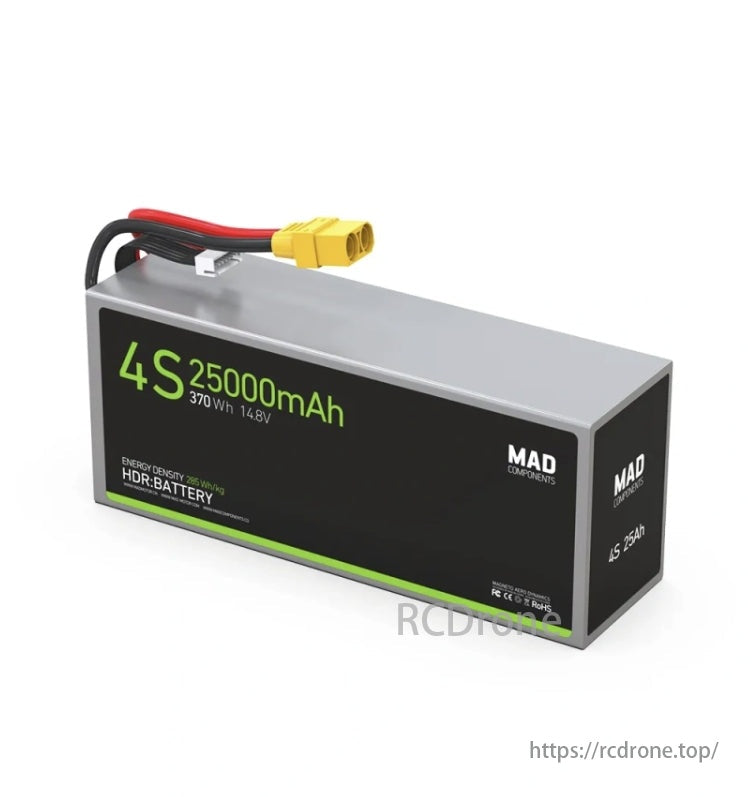

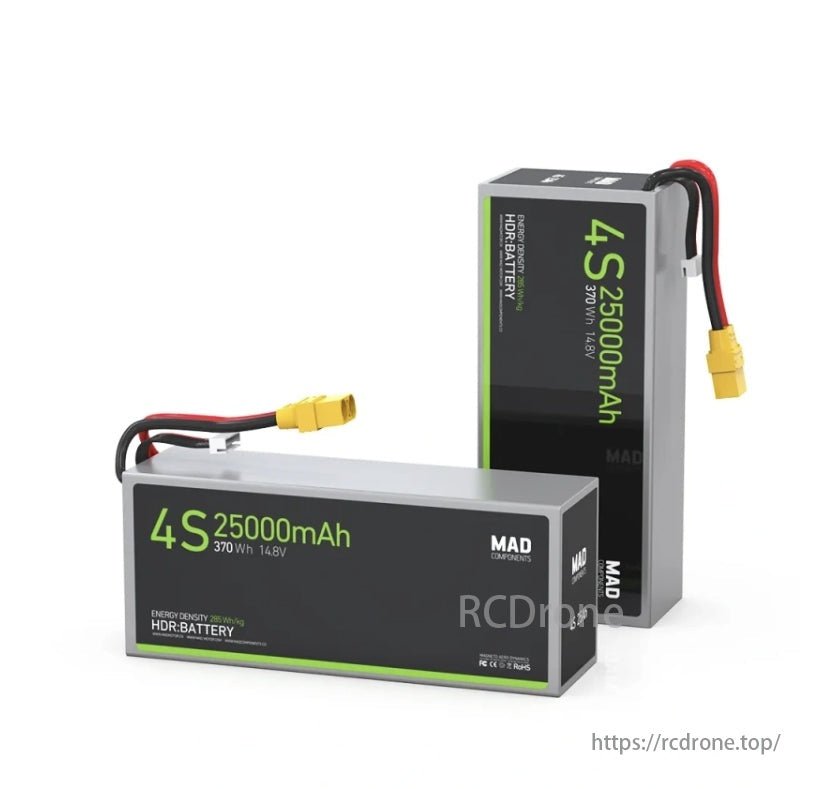

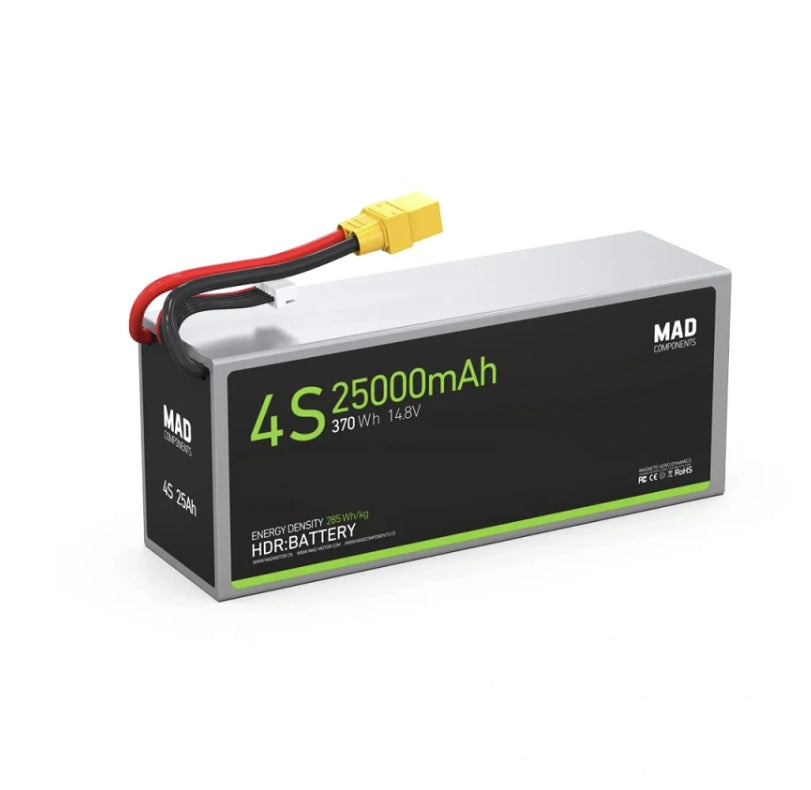

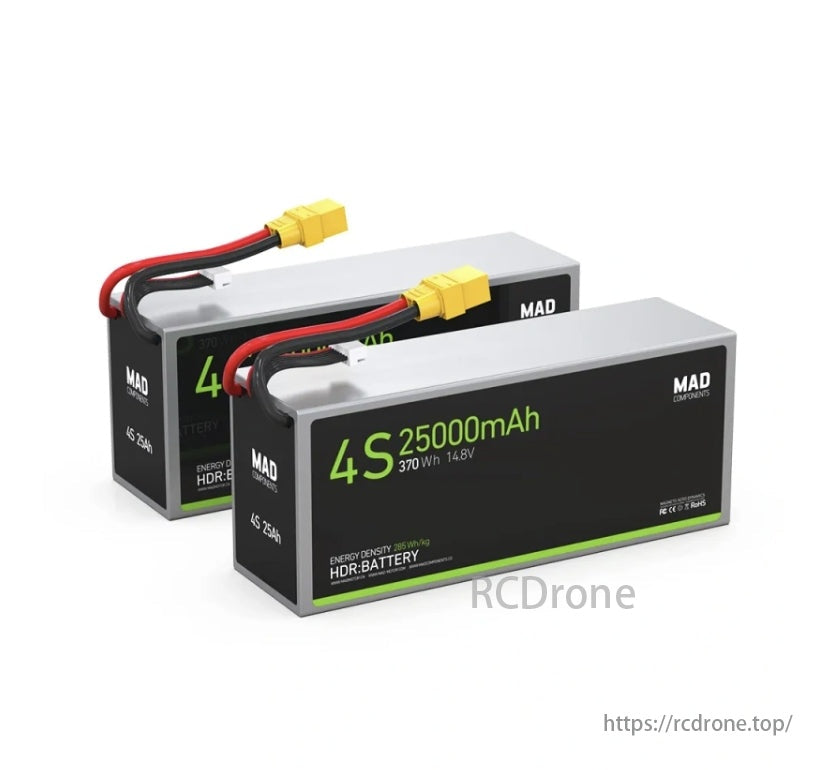

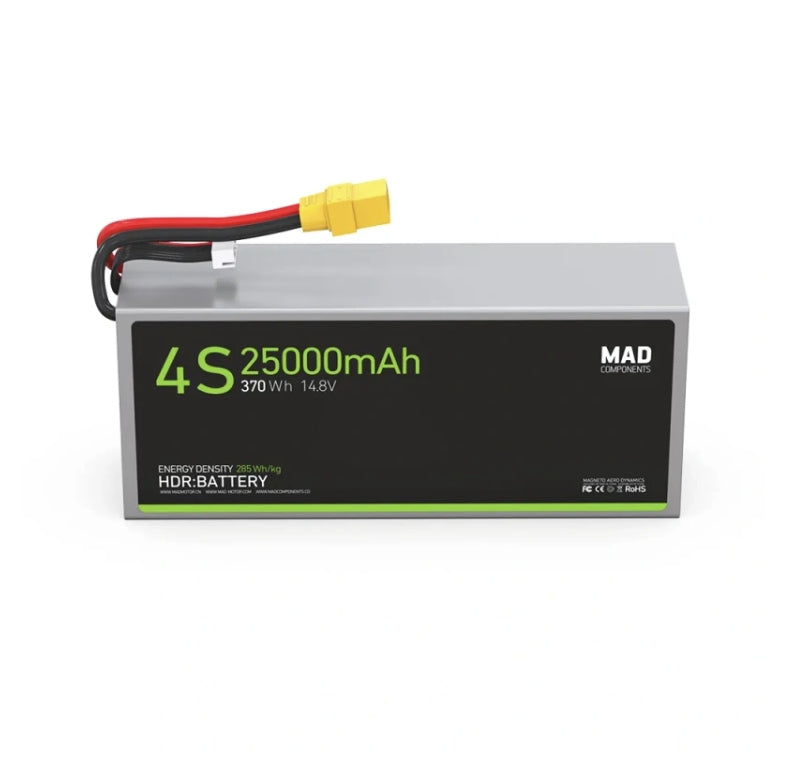

The MAD 4S 25Ah battery is a high-performance solid-state lithium-ion power source designed for drones requiring extended flight endurance and stable energy output. With a nominal voltage of 14.8V and an energy capacity of 370Wh, it offers a lightweight yet powerful solution for UAV applications. Its solid-state composition enhances safety, durability, and overall efficiency.
Specifications
Parameter | Value |
---|---|
Brand | MAD |
Nominal Voltage | 14.8V |
Full Charge Voltage | 17.2V |
Energy Storage | 370Wh |
Continuous Discharge Current | 75A |
Max Pulse Discharge | 125A |
Continuous Discharge Rate | 3C |
Peak Discharge Rate | 5C |
Maximum Endurance | 100 minutes |
Recommended Motor/ESC | 4008 Motors + 1654 Propeller |
Reference Model | X4 (Wheelbase 610mm) |
Reference Takeoff Weight | 2.6kg |
Weight | Approx. 1280g |
Energy Density | 290Wh/kg |
Dimensions | 190 × 72 × 45mm |
Applicable Model | X4 |
Cable & Plug Details
Cable | Plug | Cable Length |
---|---|---|
Balance Connector Type | 22AWG | 5P XH2.54 |
Discharge Connector Type | 10AWG | XT90-S |
Features
- Solid-state lithium-ion composition ensures increased safety and stability.
- 370Wh energy capacity supports extended flight durations.
- High discharge rates provide consistent power output.
- Optimized for X4 UAV models with a wheelbase of 610mm.
- Lightweight construction for minimal impact on drone performance.
- Designed for high-endurance aerial operations requiring reliability.
Applications
Ideal for professional drone use, including aerial mapping, inspection, and industrial UAV operations.
Safety & Handling
- Avoid overcharging and discharging beyond recommended limits.
- Use with a compatible smart charger.
- Store away from flammable materials and extreme temperatures.
