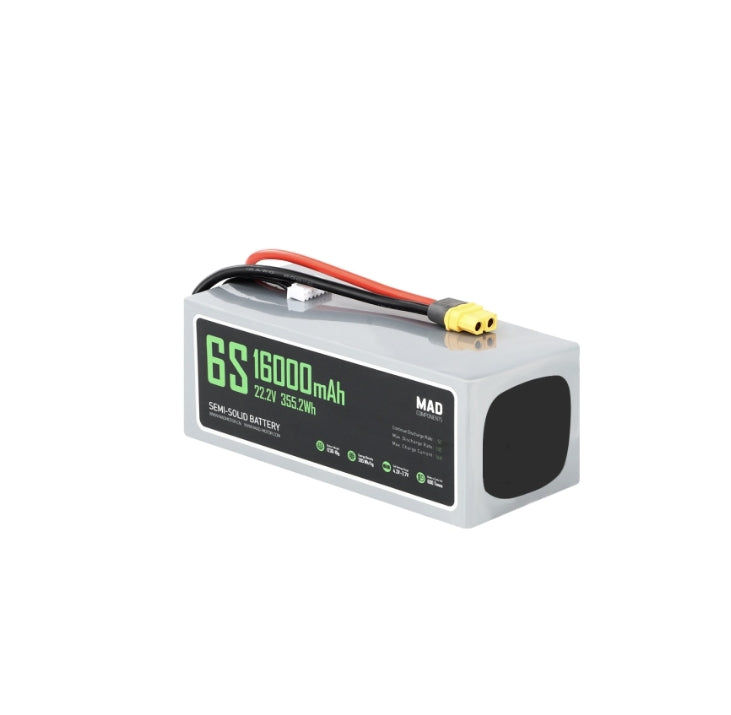

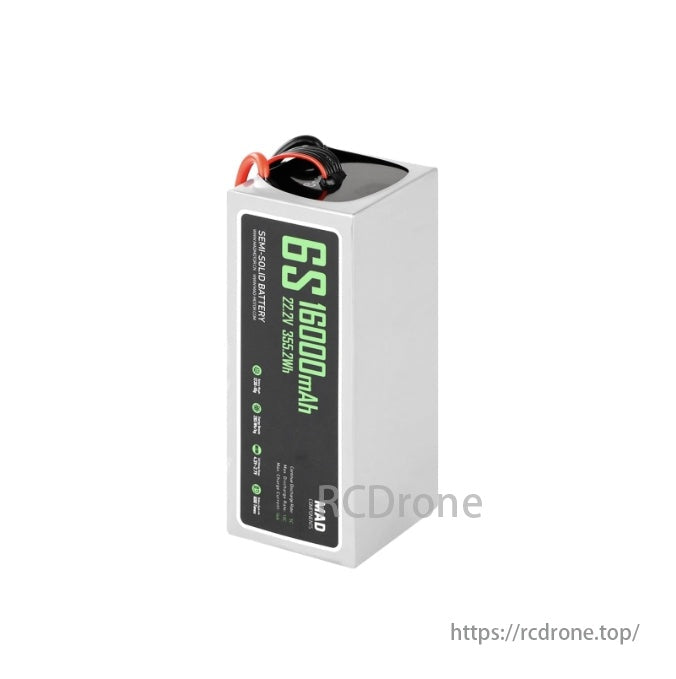

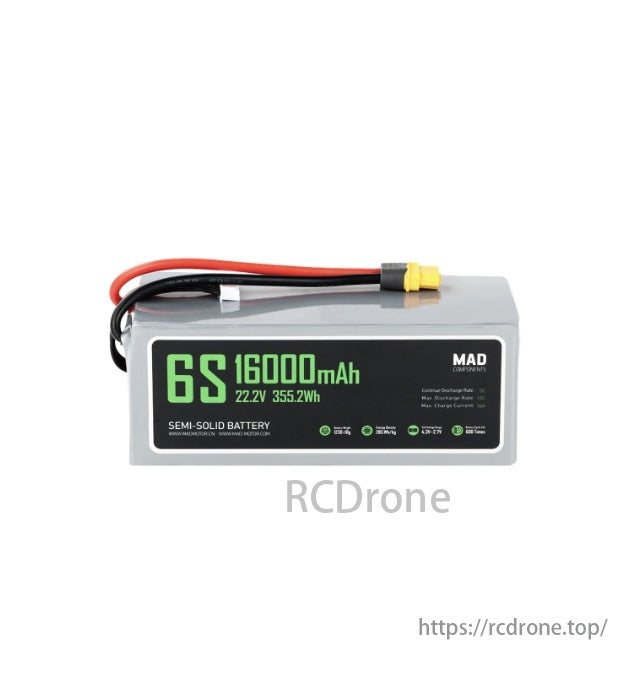

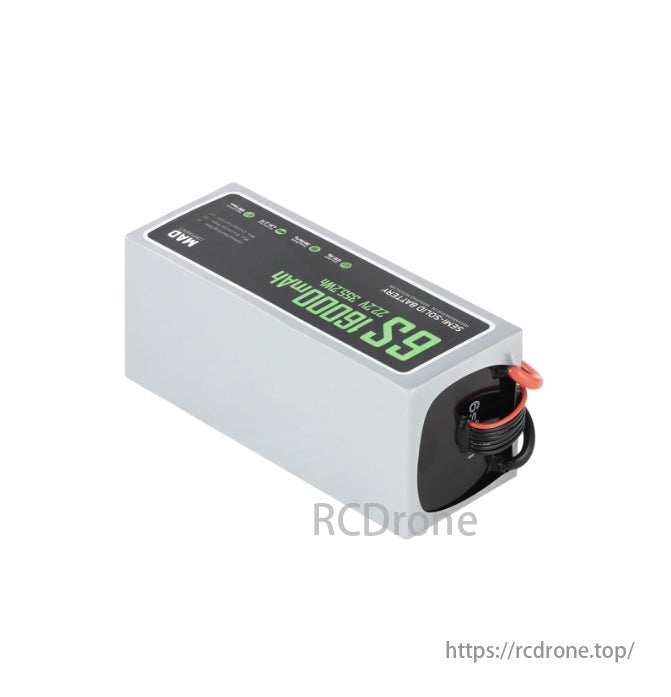

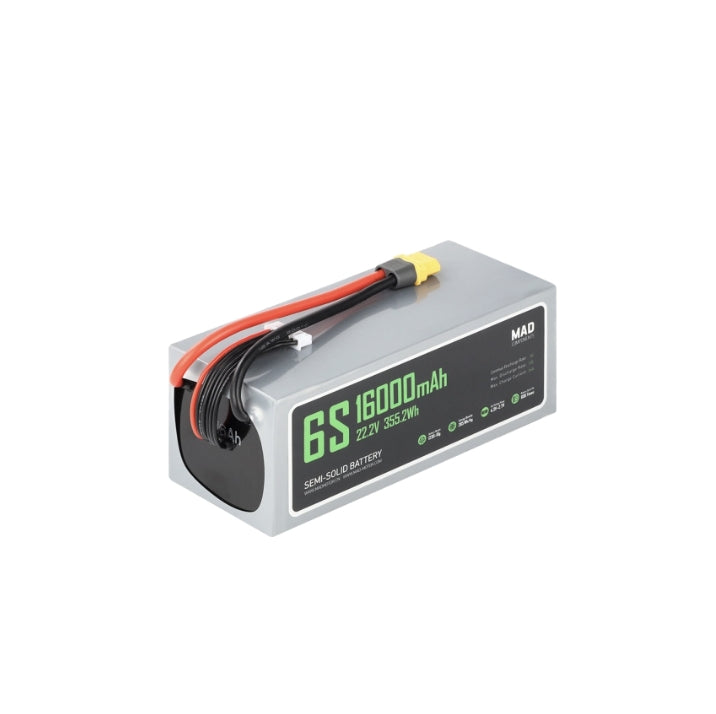

MAD 6S 16Ah Solid-State Lithium-ion Drone Battery

Overview

The MAD 6S 16Ah solid-state lithium-ion battery is designed for high-performance drones requiring extended flight times and reliable power output. With a capacity of 355.2Wh and a nominal voltage of 22.2V, it ensures consistent energy delivery for UAV applications such as aerial photography, industrial inspections, and agricultural operations. Built with advanced solid-state technology, this battery offers improved energy density, enhanced safety features, and superior discharge rates.

Specifications

Features

• Advanced cell technology improves energy efficiency, utilizing ionic conductor additives and a self-developed double lithium salt electrolyte for better performance across varying temperatures.
• Optimized material composition with high-nickel cathodes and silicon-based anodes enhances both energy density and battery lifespan.
• High discharge capability, with a continuous discharge rate of 80A and a peak discharge of 160A, supports power-intensive drone operations.
• Enhanced safety features, including flame retardant coatings, electrolyte flame resistance, and a semi-solid battery structure, reduce the risk of thermal runaway.
• Structural reinforcement, incorporating 0.5mm thick FR4 fiberglass panels, increases impact resistance by 87%.
• Bottom cushioning with 2mm EVA shock-absorbing foam minimizes the impact of sudden UAV maneuvers, ensuring battery longevity.
• Precise cable routing and a rigid pack design provide a clean, professional appearance with consistent form factor dimensions.

Applications

• UAV missions requiring longer endurance and stable power output.
• Agricultural drones for spraying and monitoring applications.
• Industrial UAVs used in surveying, inspections, and security.
• High-performance FPV drones needing reliable and consistent energy delivery.

Precautions

• Store away from flammable materials and avoid disassembling the battery.
• Charge only with a compatible smart charger, not exceeding a 2C charge rate.
• Prevent short circuits and overcharging to ensure safety.

Details

Drone battery, 6S 16Ah, powers flight. Semi-solid battery with 22.2V and 355.2Wh capacity. Features include a continuous discharge rate of 5C, max discharge rate of 10C, and max charge current of 16A.

Product specifications include a 6S16Ah battery, dimensions of 152x66x60mm, and weight of 1272g. It has a voltage range of 25.8V-16.2V, nominal voltage of 22.2V, and energy density of 285Wh/kg. Continuous discharge current is 80A, max discharge 160A, and charge current 16A. Operating temperature ranges from -40°C to 55°C.

CELL ADVANTAGE, MATERIAL DESIGN SAFETY. Material innovation includes adding ionic conductor additives for improved conductivity, lithium source additives for material effect, and using a double lithium salt electrolyte formula for enhanced electrochemical properties under various conditions.

Design optimization includes material ratio adjustment, optimal density, and custom auxiliary materials. Safety improvements involve surface flame retardant coating, electrolyte flame retardant additives, and a semi-solid system. These enhancements ensure cell safety, extend life, and improve energy density.

Increased protection with comprehensive lateral reinforcement. Four 0.5mm thick FR4 fiberglass panels enhance battery pack armor, boosting protection by 87%. Bottom strengthening uses 2mm EVA foam to cushion impact during rapid UAV acceleration.

Appearance optimization includes square leveling and a strengthened pack. The battery has a hard, flat design with precise size control. Cables are fixed in position for accurate placement and a smooth look. Specifications include 6S, 16000mAh, 22.2V, and 355.2Wh.

Attention: Battery storage and charging precautions. Keep away from flammable materials, avoid disassembly, dispose of damaged batteries properly. Charge with qualified smart chargers, monitor during charging, prevent overcharging. User responsible for damage due to improper use or artificial overcharge/overdischarge.
