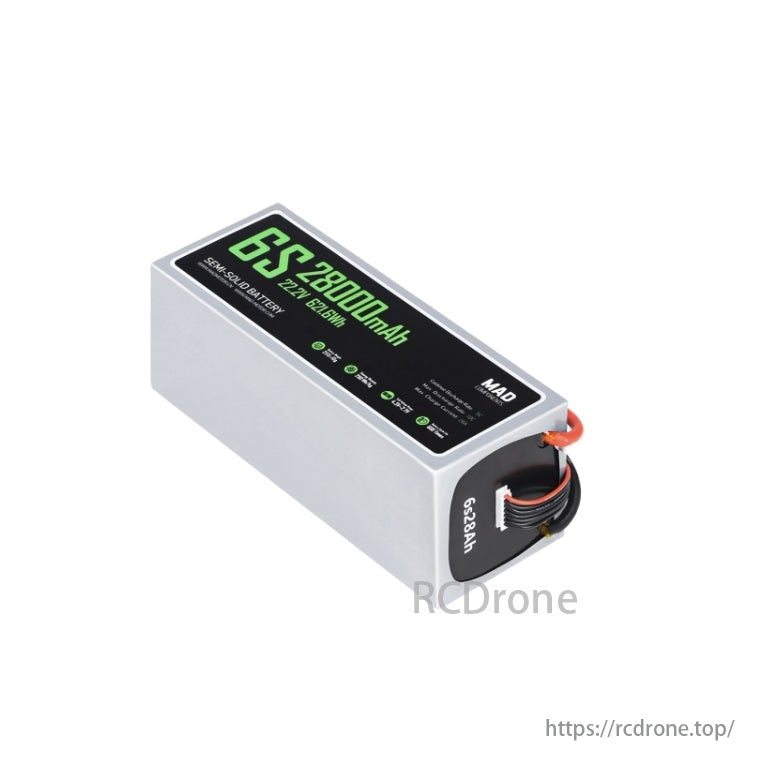

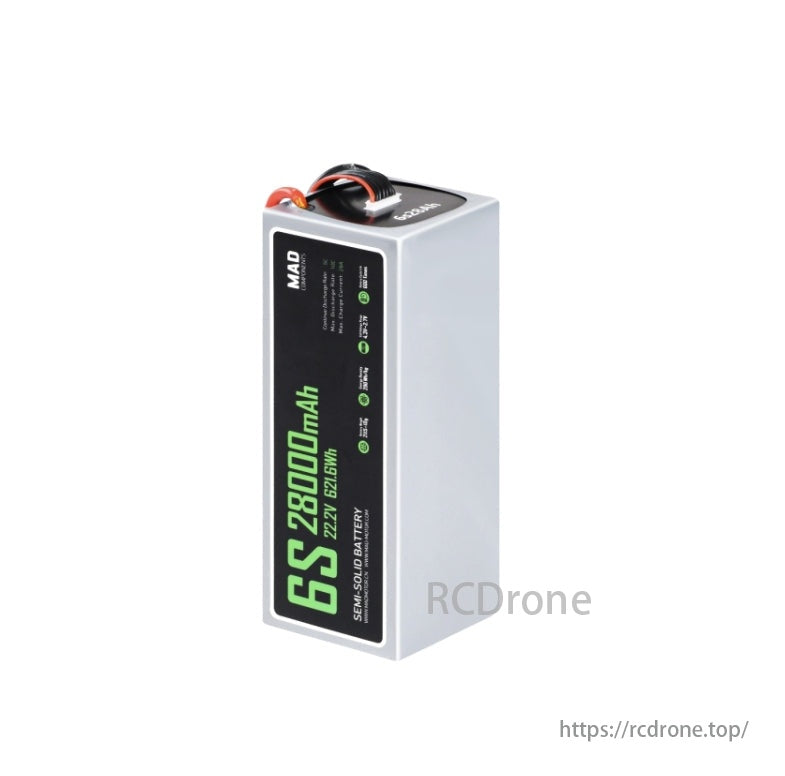

MAD 6S 28Ah Solid State Lithium-ion Drone Battery
MAD 6S 28Ah Solid State Lithium-ion Drone Battery
MAD
Couldn't load pickup availability
Overview
The MAD 6S 28Ah battery is a high-capacity power source designed for drones requiring extended flight time and stable high-current output. With a 621.6Wh energy capacity and optimized energy density, it delivers reliable performance for UAV applications such as industrial inspections, agricultural operations, and aerial mapping.
Specifications
| Parameter | Value |
|---|---|
| Battery Model | 6S 28Ah |
| Battery Dimensions (mm) | 190 × 75 × 72 |
| Battery Weight (g) | 2115 |
| Cell Energy Density (Wh/kg) | 305 |
| Battery Voltage Range (V) | 25.8 - 16.2 |
| Nominal Voltage (V) | 22.2 |
| Battery Energy (Wh) | 621.6 |
| Energy Density (Wh/kg) | 290 |
| Continuous Discharge Current (A) | 140 |
| Max. Discharge Current (A) | 280 |
| Max. Charge Current (A) | 28 |
| Cycle Life | 600 (1C) |
| Operating Temperature | -40°C to 55°C |
| Main Cable Model | 10AWG |
| Main Plug Model | XT90-S |
| Main Cable Length | 12 cm |
| Balance Cable Model | 22AWG |
| Balance Plug Model | XH2.54-7P |
| Balance Cable Length | 10 cm |
Features
- High discharge rate supports demanding UAV operations.
- Reinforced structure with improved impact resistance.
- Lightweight design for increased drone efficiency.
- Enhanced thermal stability and safety protections.
- Optimized cable layout for secure connections.
Applications
Ideal for UAVs in industrial, agricultural, and mapping tasks requiring sustained power output.
Precautions
Store in a cool, dry place. Charge with a certified charger and avoid exposure to excessive heat or physical damage.
Details
Drone battery 6S 28Ah powers flight. Semi-solid battery with 22.2V, 621.6Wh capacity. Continuous discharge rate: 5C; max discharge rate: 10C; max charge current: 28A. Battery cycle life: 600 times.
Product specifications include a 6s28Ah battery, dimensions 190*75*72mm, weight 2115g, and energy density 305Wh/kg. Voltage range is 25.8V-16.2V with a nominal voltage of 22.2V. Continuous discharge current is 140A, max discharge 280A, and max charge 28A. Cycle life is 600 (1C) with an operating temperature of -40°C to 55°C.
CELL ADVANTAGE, MATERIAL DESIGN SAFETY. Material innovation includes: adding ionic conductor additives for improved conductivity and performance; lithium source additives for material effect; using a double lithium salt electrolyte formula for temperature, circulation, and magnification properties.
Increased protection with comprehensive lateral reinforcement. Four 0.5mm thick FR4 fiberglass panels enhance battery pack armor, boosting protection by 87%. Bottom strengthening uses 2mm EVA foam to cushion impact during rapid UAV acceleration, ensuring durability and safety.

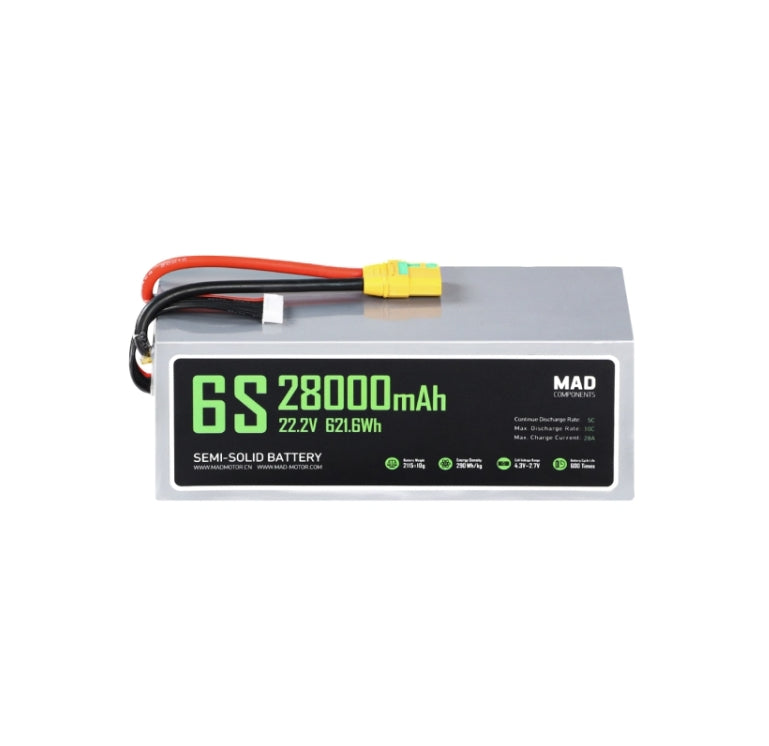

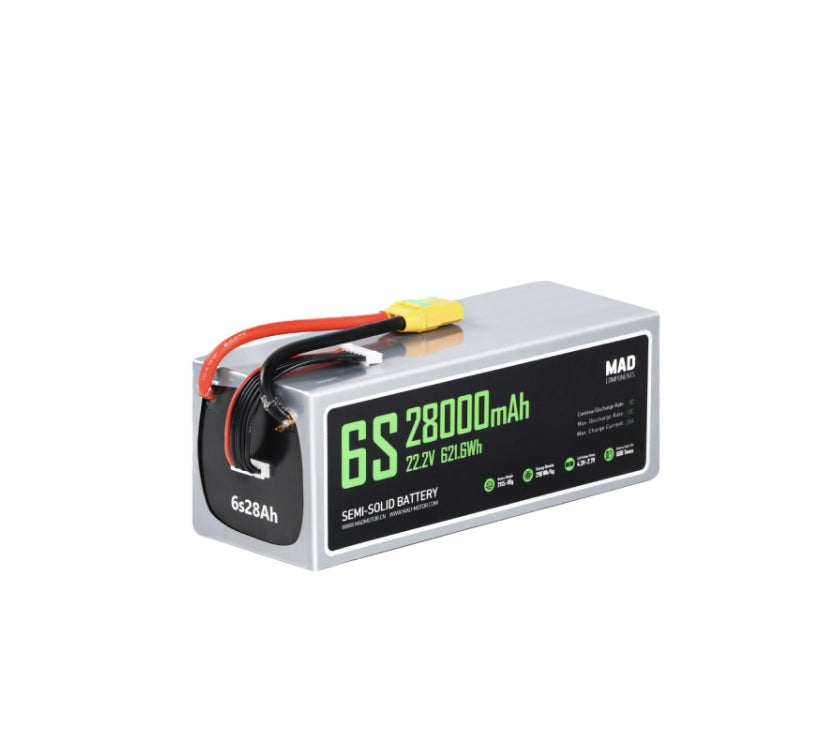

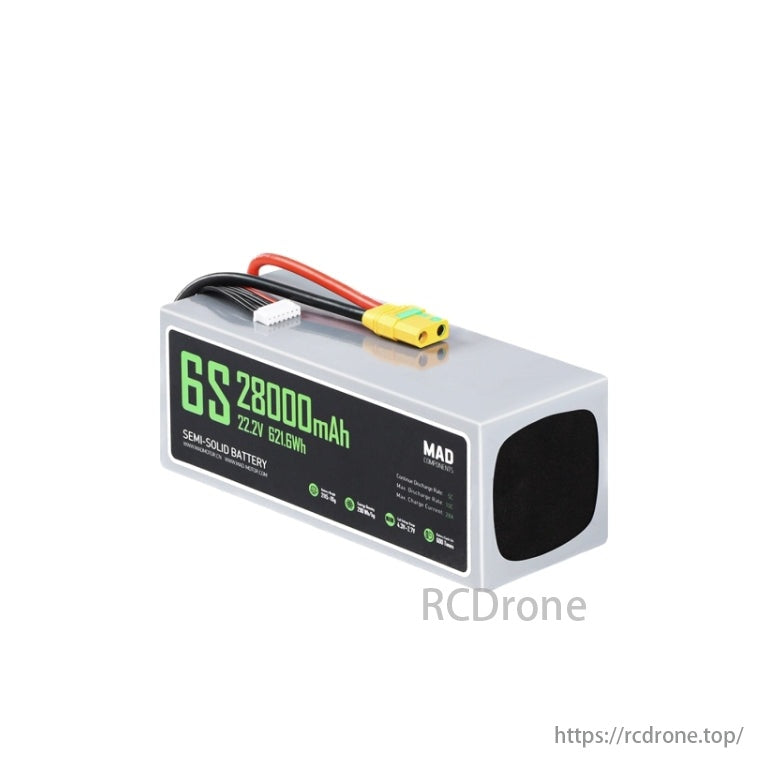

Appearance optimization includes square leveling and a strengthened pack. The battery has a hard, flat design with precise size control. Cables are fixed for accurate positioning and a smooth look. Specifications include 6S 28000mAh, 22.2V, and 621.6Wh capacity.
Design optimization includes material ratio adjustment, optimal density, and custom auxiliary materials. Safety improvements involve surface flame retardant coating, electrolyte flame retardant additives, and a semi-solid system. These enhancements aim to boost battery safety, life, and energy density while meeting customer needs.
Attention: Battery storage and charging precautions include avoiding flammable materials, not disassembling, using qualified chargers, and monitoring during charging. Overcharging or improper handling can cause explosions. Users bear costs for damage from misuse, overcharge, or overdischarge.
