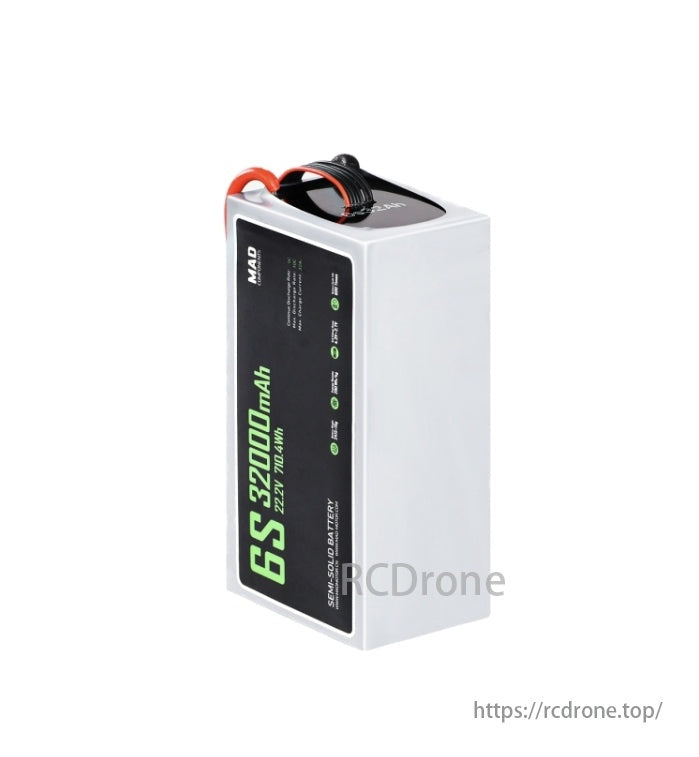

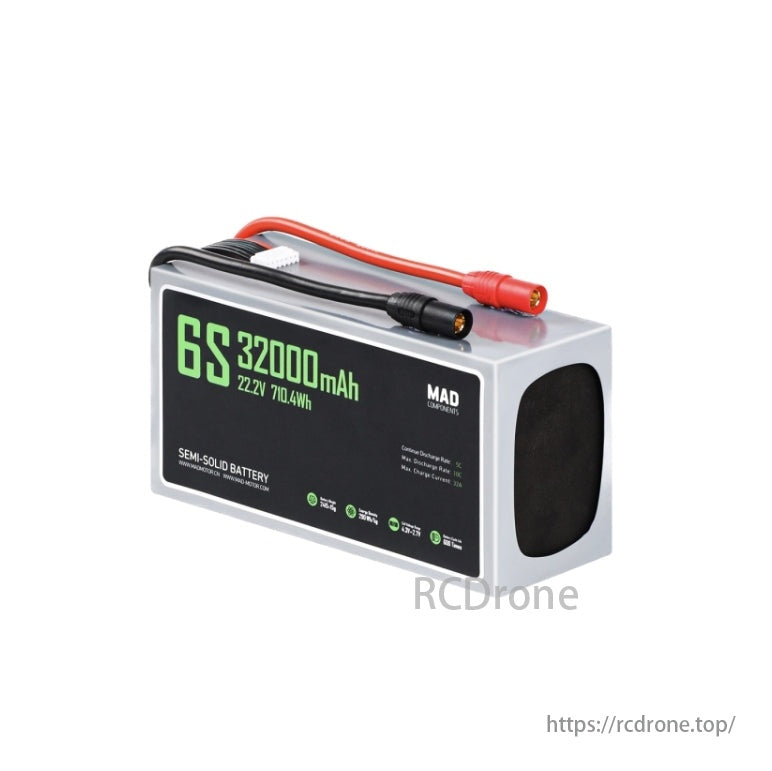

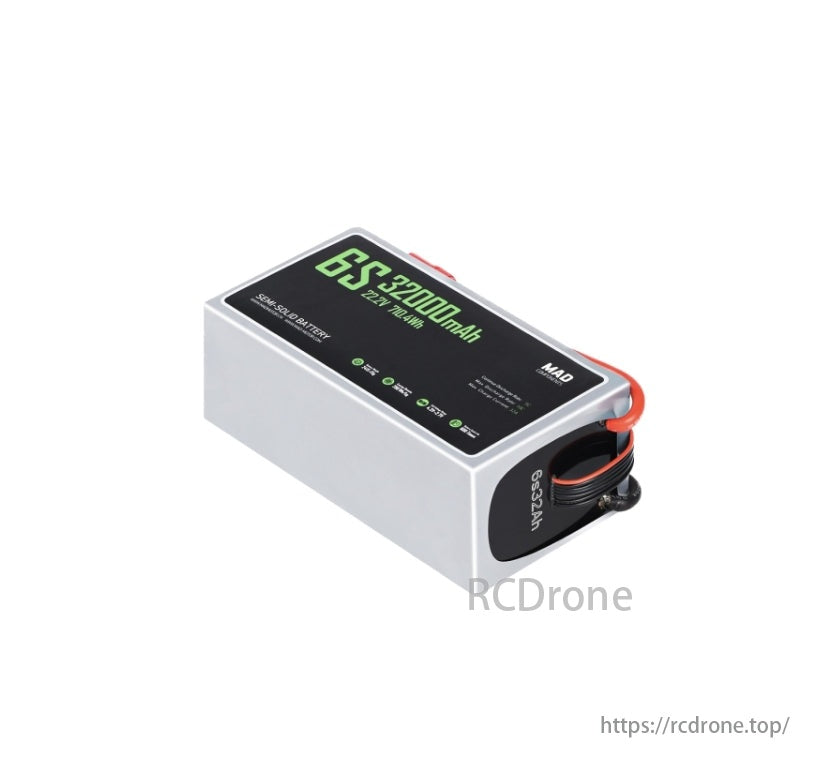

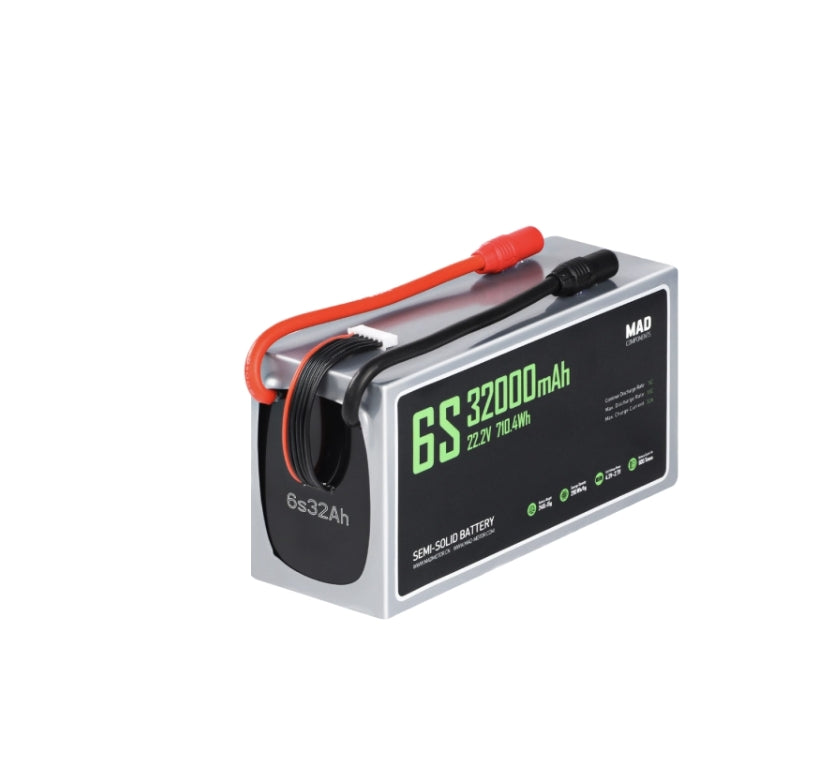

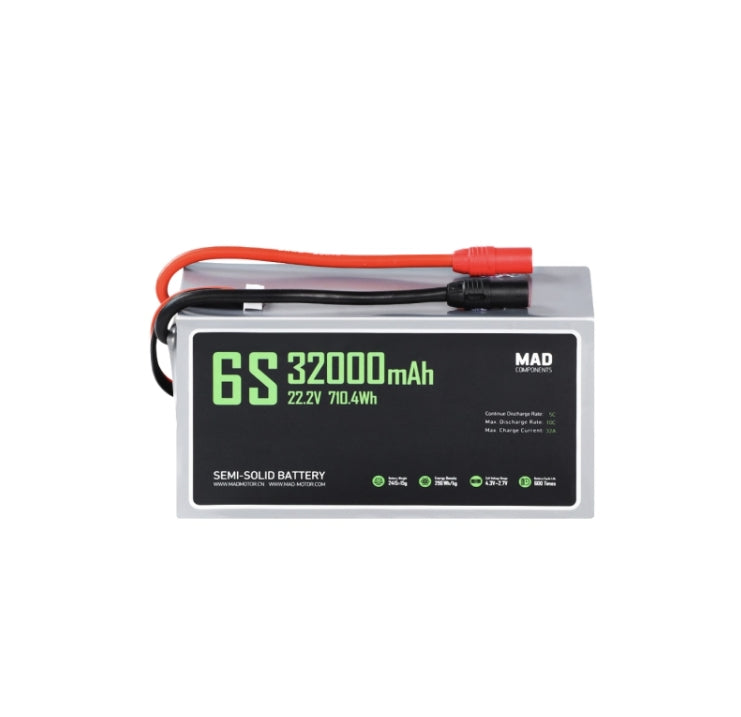

MAD 6S 32Ah Solid State Lithium-ion Drone Battery
MAD 6S 32Ah Solid State Lithium-ion Drone Battery
MAD
Couldn't load pickup availability
Overview
The MAD 6S 32Ah battery is a high-performance energy source designed for drones requiring maximum flight time and powerful discharge capability. With a 710.4Wh energy capacity and 160A continuous discharge current, it ensures stable power output for UAVs in industrial, commercial, and long-range applications. Its solid-state lithium-ion technology enhances safety, efficiency, and durability.
Specifications
| Parameter | Value |
|---|---|
| Battery Model | 6S 32Ah |
| Battery Dimensions (mm) | 180 × 95 × 70 |
| Battery Weight (g) | 2479 |
| Cell Energy Density (Wh/kg) | 305 |
| Battery Voltage Range (V) | 25.8 - 16.2 |
| Nominal Voltage (V) | 22.2 |
| Battery Energy (Wh) | 710.4 |
| Energy Density (Wh/kg) | 290 |
| Continuous Discharge Current (A) | 160 |
| Max. Discharge Current (A) | 320 |
| Max. Charge Current (A) | 32 |
| Cycle Life | 600 (1C) |
| Operating Temperature | -40°C to 55°C |
| Main Cable Model | 8AWG |
| Main Plug Model | AS150-F |
| Main Cable Length | 15 cm |
| Balance Cable Model | 22AWG |
| Balance Plug Model | XH2.54-7P |
| Balance Cable Length | 12 cm |
Features
- High 32Ah capacity for extended UAV flight endurance.
- 160A continuous and 320A peak discharge, supporting high-power operations.
- Reinforced design with impact-resistant materials for durability.
- Stable energy output with advanced solid-state lithium-ion cells.
- Secure AS150-F connector for reliable drone integration.
Applications
Suitable for UAVs in logistics, industrial surveillance, mapping, and agricultural applications.
Precautions
Store properly to prevent overheating, charge with compatible equipment, and avoid mechanical damage.
The MAD 6S 32Ah battery provides exceptional power efficiency, ensuring longer and more stable drone operations.
Details
Drone battery, 6S 32Ah, powers flight. Specifications include 32000mAh, 22.2V, 710.4Wh. Continuous discharge rate is 5C, max discharge rate 10C, and max charge current 32A. Semi-solid battery by MAD Components.
Product specifications include a 6s32Ah battery, dimensions 180*95*70mm, weight 2479g, energy density 305Wh/kg, voltage range 25.8V-16.2V, nominal voltage 22.2V, and 710.4Wh capacity. Continuous discharge current is 160A, max discharge 320A, charge 32A, cycle life 600 (1C), operating temperature -40°C to 55°C.
CELL ADVANTAGE, MATERIAL DESIGN SAFETY. Material innovation includes adding ionic conductor additives for improved conductivity, lithium source additives for material effect, and using a double lithium salt electrolyte formula for enhanced electrochemical properties under various conditions.
Design optimization includes material ratio adjustment, optimal density, and custom auxiliary materials. Safety improvements involve surface flame retardant coating, electrolyte flame retardant additives, and a semi-solid system. These enhancements aim to boost battery safety, life, and energy density while meeting customer needs.
Increased protection with comprehensive lateral reinforcement. Four 0.5mm thick FR4 fiberglass panels enhance battery pack armor, boosting protection by 87%. Bottom strengthening uses 2mm EVA foam to cushion impact during rapid UAV acceleration.
Appearance optimization includes square leveling and a strengthened pack. The battery has a hard, flat design with accurate size control. Cables are fixed in position for smooth appearance and precise control. Specifications include 6S, 32000mAh, 22.2V, and 710.4Wh capacity.
Attention: Battery storage and charging precautions include avoiding flammable materials, not disassembling, using qualified chargers, and monitoring during charging. Overcharging or incorrect connections can cause explosions. Non-free repair services cover damage from improper use or artificial overcharge/overdischarge.
