MAD 6S Solid State Lithium-ion Drone Battery Overview

The MAD 6S Solid State Lithium-ion Drone Battery offers high-performance, energy-dense power solutions designed specifically for drone applications. Available in capacities ranging from 10Ah to 35Ah, these batteries deliver stable voltage, high discharge rates, and extended cycle life, making them ideal for professional UAV applications. Below are the detailed specifications for each capacity variant:

Note: The connector can be replaced as needed, such as AS150-F, XT90, etc.; the default is AS150-F

Technical Specifications by Model

Model	Dimensions (mm)	Weight (g)	Battery Energy (Wh)	Continuous Discharge (A)	Max Discharge (A)	Max Charge (A)	Energy Density (Wh/kg)	Main Plug Model

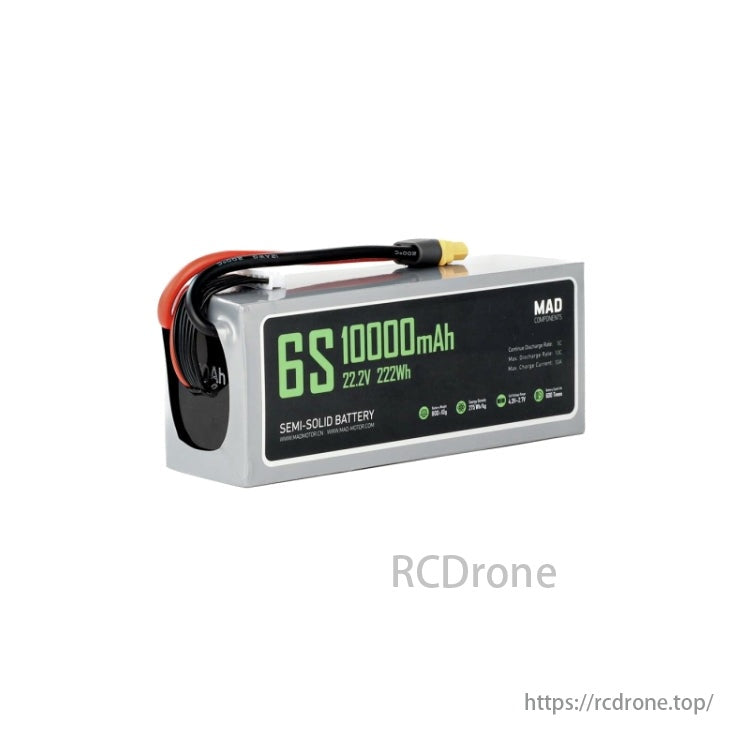

6S10Ah	152×60×45	841	222.0	50	100	10	275	XT60H-F
6S12Ah	152×60×52	960	266.4	60	120	12	275	XT60H-F

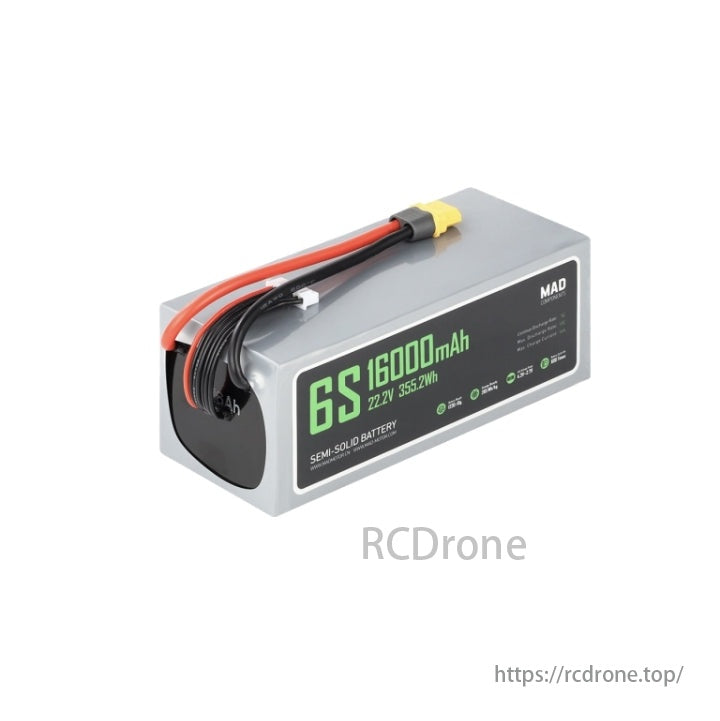

6S16Ah	152×66×60	1272	355.2	80	160	16	285	XT60H-F

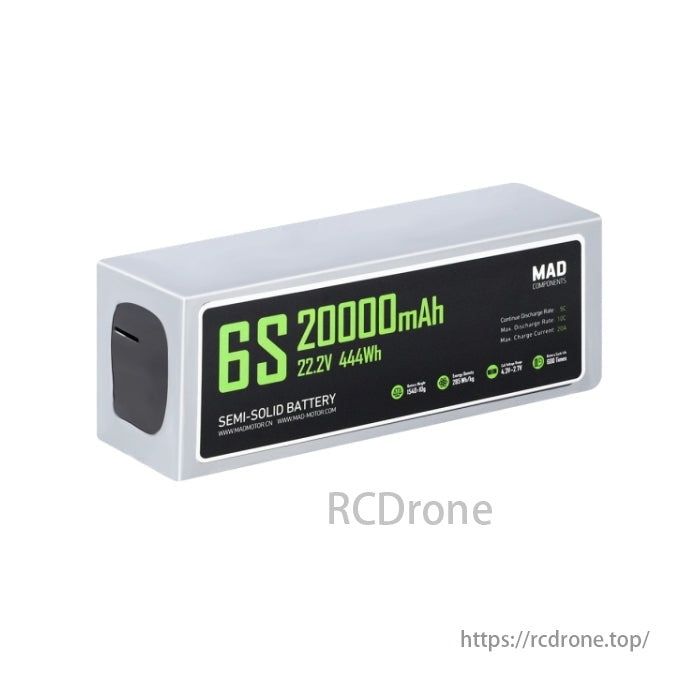

6S20Ah	190×72×54	1595	444.0	100	200	20	285	XT90-S
6S23Ah	190×72×62	1690	510.6	115	230	23	285	XT90-S

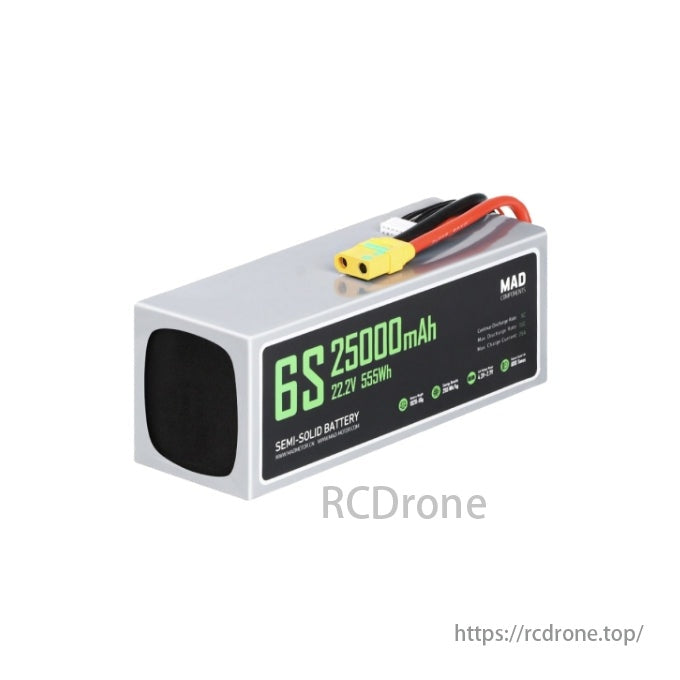

6S25Ah	190×72×68	1950	555.0	125	250	25	285	XT90-S

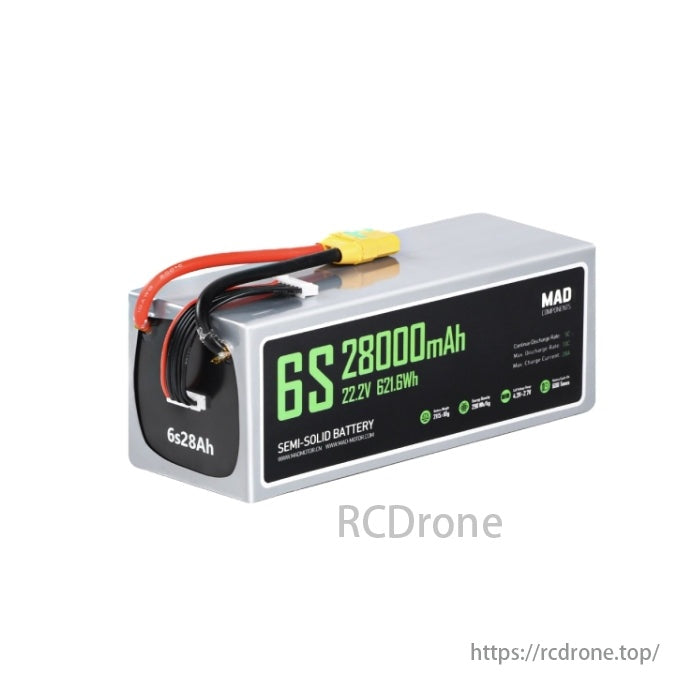

6S28Ah	190×75×72	2115	621.6	140	280	28	290	XT90-S
6S30Ah	180×95×65	2333	666.0	150	300	30	290	AS150-F

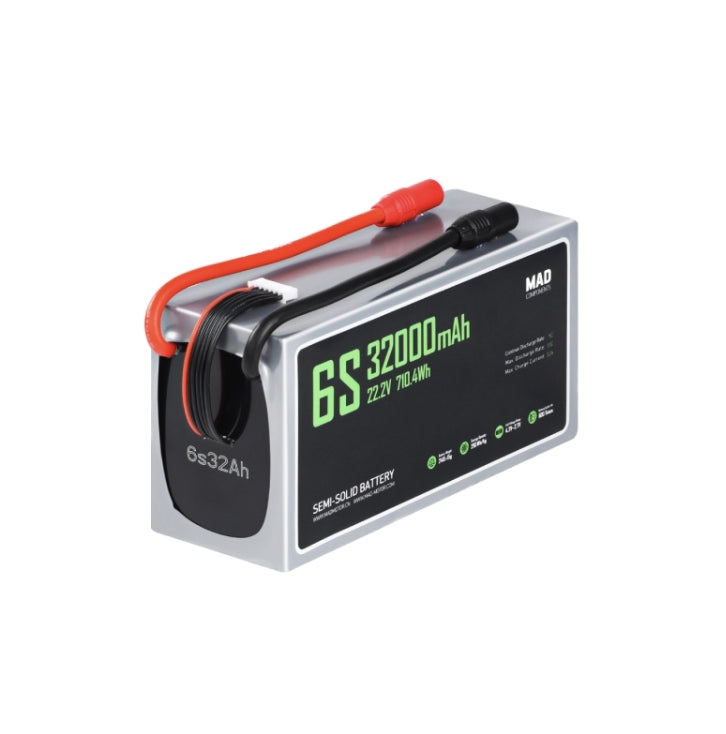

6S32Ah	180×95×70	2479	710.4	160	320	32	290	AS150-F

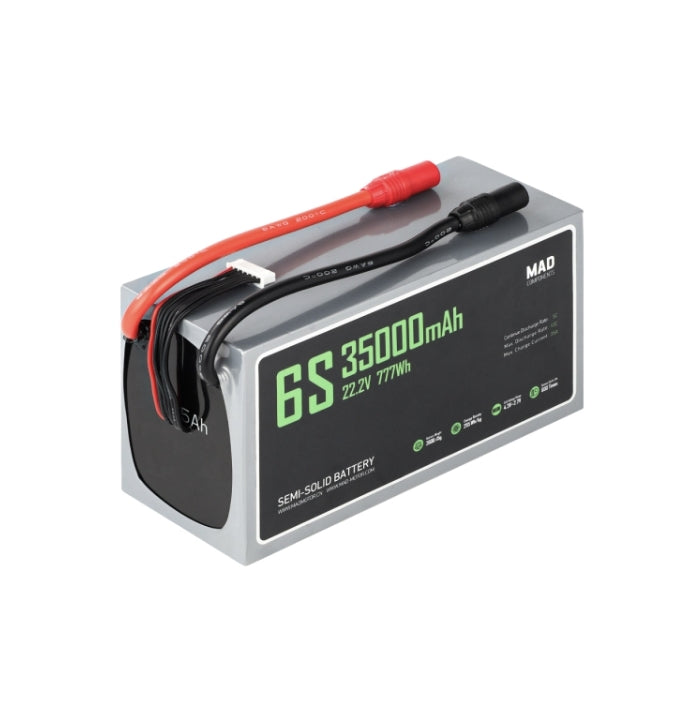

6S35Ah	180×95×75	2712	777.0	175	350	35	295	AS150-F

Key Features

High Energy Density: With densities reaching up to 305Wh/kg, these solid-state lithium-ion batteries provide superior efficiency.
Robust Discharge Capability: Continuous discharge rates from 50A to 175A, supporting high-powered drone applications.
Stable Voltage Output: A nominal voltage of 22.2V with an operational range of 25.8V to 16.2V, ensuring consistent performance across various conditions.
Durability & Longevity: Up to 600 charge cycles at 1C rate, offering a reliable long-term power solution.
Optimized for UAV Applications: Designed for professional drones, including aerial surveying, agricultural drones, heavy-lift UAVs, and industrial applications.
Temperature Resilience: Operating temperature from -40°C to 55°C, ensuring reliability in extreme environments.
Multiple Connection Options: Equipped with XT60H-F, XT90-S, and AS150-F connectors, compatible with a wide range of drone power systems.

Applications

Aerial Photography & Mapping – Provides stable power for high-endurance flights.
Agriculture & Spraying Drones – High discharge rates support precision spraying systems.
Industrial Inspections – Long-lasting power for infrastructure monitoring and surveying.
Delivery & Cargo UAVs – High energy capacity ensures extended flight times.
FPV Racing & High-Performance UAVs – Supports high-drain applications with fast discharge capabilities.

Details

MAD 6S Drone Battery, Innovative cell design enhances safety and performance through ionic conductors, lithium additives, and a dual lithium salt electrolyte for superior electrochemical properties.

CELL ADVANTAGE, MATERIAL DESIGN SAFETY. Material innovation includes: adding ionic conductor additives for improved conductivity and performance; lithium source additives for material effect; using a double lithium salt electrolyte formula for various electrochemical properties.

MAD 6S Drone Battery, Design optimization enhances battery performance and longevity by adjusting material ratios, reducing volume expansion, and customizing auxiliary materials for higher energy density.

Design optimization focuses on three areas: material ratio adjustment for safety and energy density, optimal density to reduce volume expansion, and custom auxiliary materials to enhance battery cell energy density based on customer needs. These strategies improve battery performance and longevity.

MAD 6S Drone Battery, Safety improvements: flame retardant coating, electrolyte additives, and semi-solid system to enhance battery cell safety, reducing spontaneous combustion risk.

Safety improvement includes three major enhancements: surface flame retardant coating on the diaphragm, electrolyte flame retardant additives to reduce spontaneous combustion risk, and a semi-solid system for battery cell safety.

MAD 6S Drone Battery, Four 0.5mm FR4 fiberglass panels provide comprehensive lateral reinforcement, increasing battery pack protection by 87%.

Increased protection with comprehensive lateral reinforcement. Four 0.5mm thick FR4 fiberglass panels enhance battery pack armor, avoiding bumps and increasing protection by 87%.

MAD 6S Drone Battery, Bottom strengthening: 2mm EVA foam cushions battery impact during rapid UAV acceleration.

Bottom strengthening: 2mm EVA foam cushions battery impact during rapid UAV acceleration.

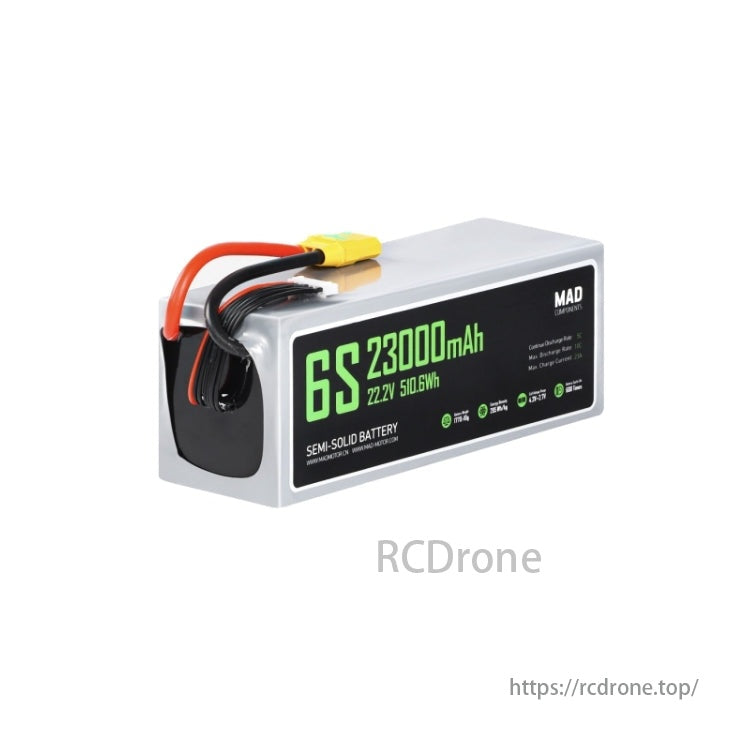

MAD 6S Drone Battery, Battery pack optimized for appearance, square and flat with precise sizing. Features 6S 23000mAh capacity.

Appearance optimization, square leveling, strengthened pack. Battery pack is hard, square, flat with accurate outline size control. 6S 23000mAh capacity displayed.

MAD 6S Drone Battery, Cables are fixed in set positions, including at the battery pack's top outlet, ensuring precise control and a smooth appearance.

Cables are routed in fixed positions. The cable outlet area at the top of the battery pack adopts a fixed position design, ensuring accurate control of the cable position and smooth appearance.

MAD 6S Drone Battery, Store batteries away from flammable materials, use qualified chargers, avoid overcharging/disassembling. Dispose of damaged batteries; repair services cover misuse.

Battery storage: Avoid flammable materials, don't disassemble. Dispose if broken. Battery charging: Use qualified chargers, avoid overcharging. Non-free repair services cover damage from improper use and artificial overcharge/overdischarge. Follow guidelines to ensure safety and functionality.
