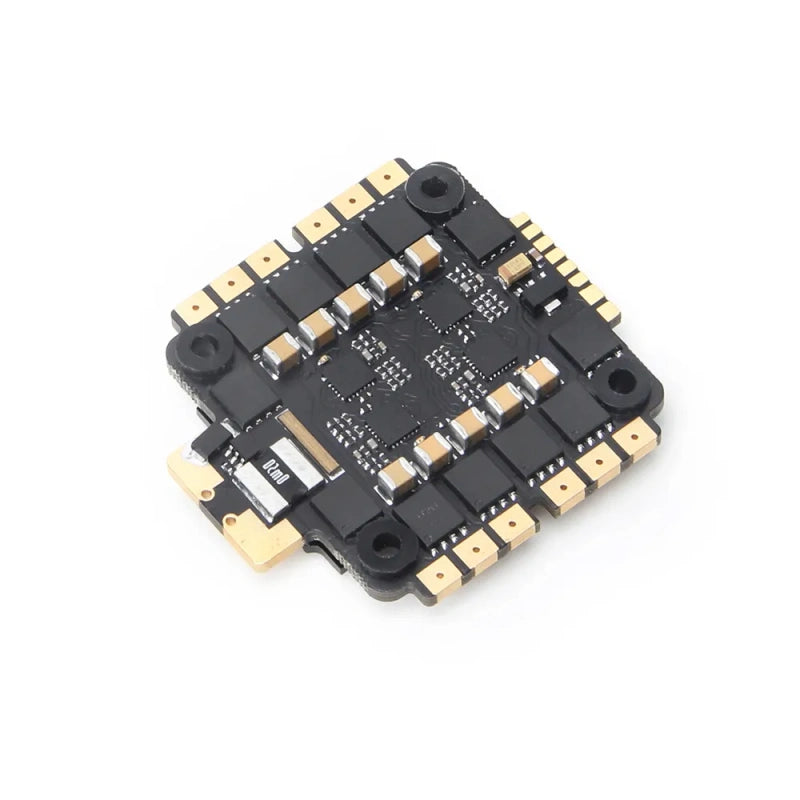

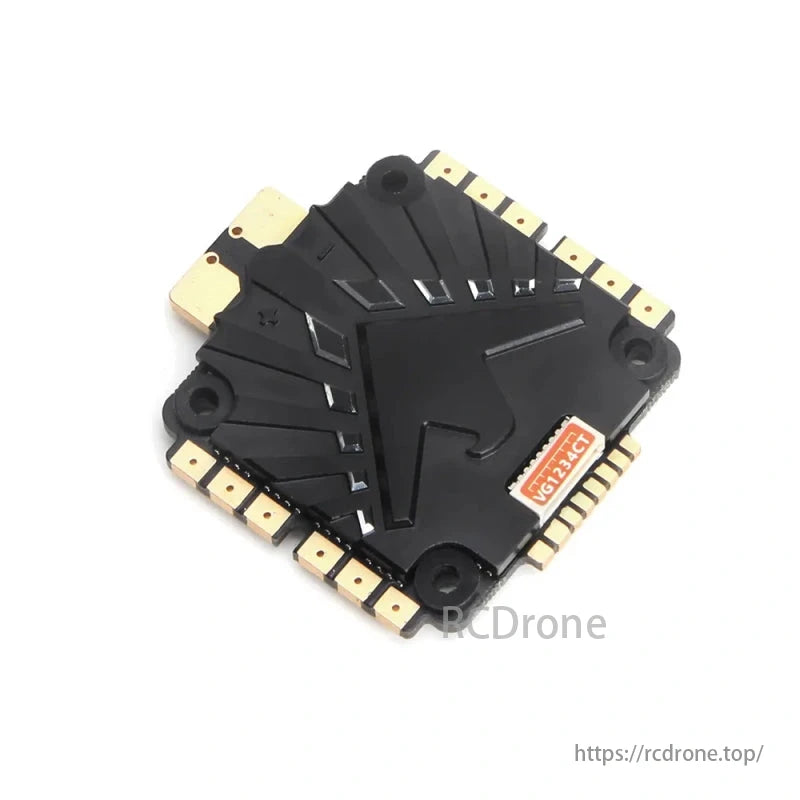

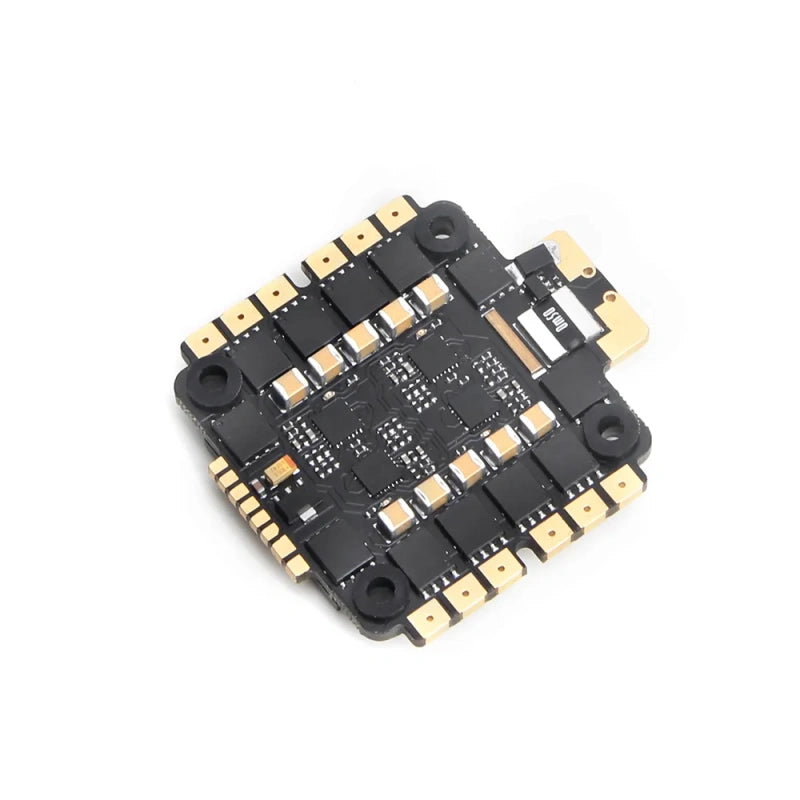

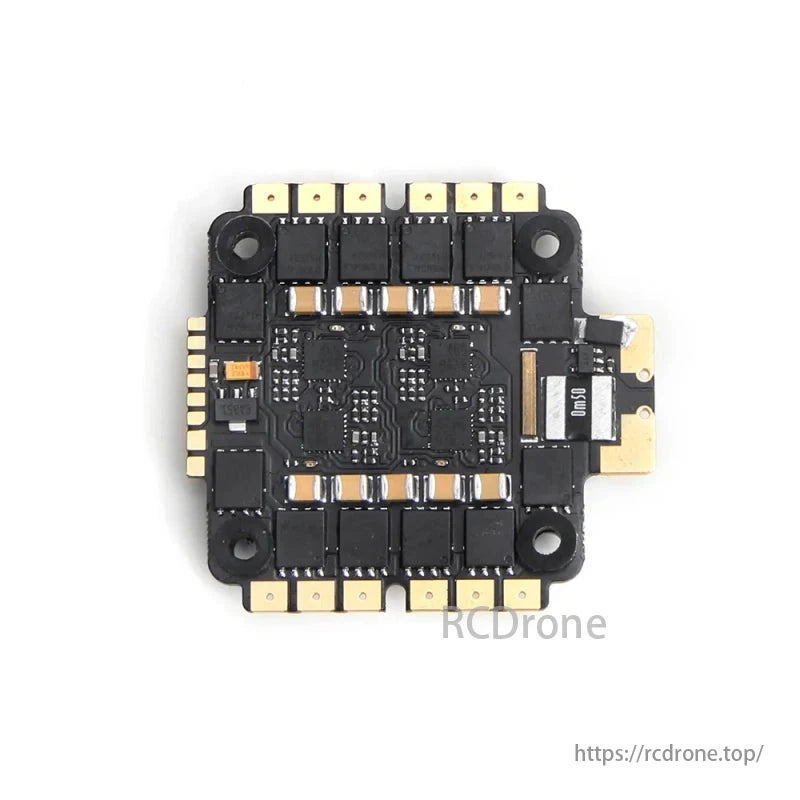

MAD BL-32 60A 6S 4IN1 64Mhz Drone ESC

Overview

The MAD BL-32 60A 4IN1 6S 64MHz ESC is a high-performance electronic speed controller designed for FPV drones, racing drones, and aerial applications. Featuring BLHeli_32 firmware, a 64MHz STM32F722RET6 processor, and DShot1200 support, this ESC delivers ultra-responsive control and efficiency. It supports 3-6S LiPo batteries, making it suitable for high-power setups.

Key Features

• Input Voltage: 3-6S LiPo
• Continuous Current: 60A per channel
• Burst Current: 70A (10 seconds)
• Processor: STM32F722RET6, 64MHz
• Integrated ICM-MPU6000 Accelerometers and Gyroscopes
• MicroUSB Socket for easy programming
• SBEC: 9V 3A output
• Supports DShot1200 (default), PWM, OneShot125, Multishot
• Compact Design: 43x46x7.5mm
• Mounting Hole: 30.5x30.5mm (M4)
• Weight: 20g

Compatibility

• Recommended Propeller Size: 7-8-9-10 inches
• Maximum Motor Size: 3115
• Ideal for FPV racing drones, freestyle drones, and long-range quads

Diagram & Wiring

The ESC features clearly labeled motor pads and signal connectors, ensuring easy installation. It supports telemetry output for real-time performance monitoring. The power input terminals are robustly designed for high-current applications.

Why Choose This ESC?

• High Processing Power: Equipped with a 64MHz processor, ensuring ultra-fast signal processing.
• Advanced Sensors: Integrated accelerometer and gyroscope for enhanced stability.
• Versatile Compatibility: Works with a wide range of motors and propeller sizes.
• Durable Build: High-quality MOSFETs ensure maximum efficiency and longevity.

MAD COMPONENTS BL-32 60A 4IN1 6S 64MHz ESC supports 2-6S LiPo, weighs 20g. Features STM32F722RET6 CPU, ICM-MPU6000 sensors, MicroUSB socket, 60A continuous current, 70A burst (10s), 9V/3A SBEC, DShot1200 support. Diagram shows motor connections and power input.
