MAD BSC3115 Drone Motor SPECIFICATIONS

Brand Name: MAD COMPONENTS

Is Electric: No battery

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

MAD BSC3115 Drone Motor: The preferred choice for beginners, this motor offers excellent design and outstanding performance. Suitable for long-range navigation applications on 9-11

Experience excellent value for your money with this top-quality motor, offering high performance and reliability as a long-range propulsion system. Available in three KV options: 490, 900, and 1050.

MAD Precision's power components deliver low-torque output with linear performance, faster response time, and increased power at low throttle levels. Ideal for 9-11 inch long-range FPV drones, this motor offers precise control and reliable flight capabilities.

Featuring an optimized shock-absorbing design, our motor reduces vibration and extends bearing life. Leveraging advanced technology, we've continuously improved our product to provide users with an exceptional experience.

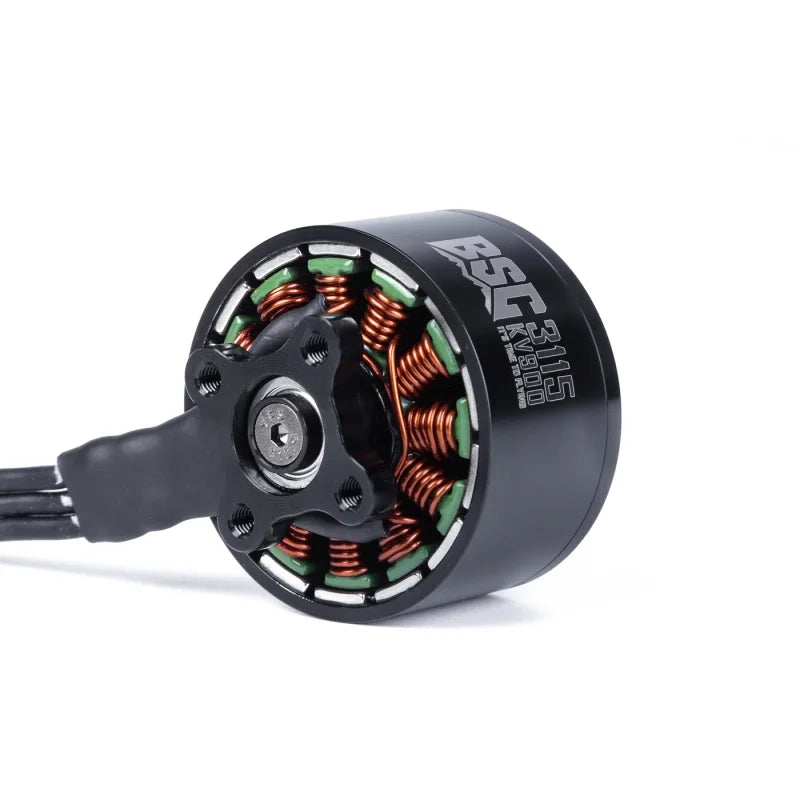

Featuring high slot fill rate, this motor efficiently saves power while delivering rapid and powerful responses. Built with military-grade, oxygen-free, single-crystal copper wire for exceptional stability under extreme conditions.

The N52H arc-shaped magnet design boosts remanence and coercivity, providing a powerful source of energy.

The MAD BSC3115 drone motor is manufactured to meet the highest quality standards, ensuring each motor delivers exceptional performance. The BSC series, also known as the Basic X-Class series, includes models like BSC315 and 635KV. Additionally, the product line features Pola Shadi and Tauf, with SCME XCR000 and Cinematic options available.

This MAD BSC3115 drone motor features specifications including a 900kV no-load current of 1.45A at 10v, with a maximum current of 63.8A, and weighs 113g. The internal resistance is 35.8mΩ, with a maximum thrust of 3.9kg and power output of 1532.9W.

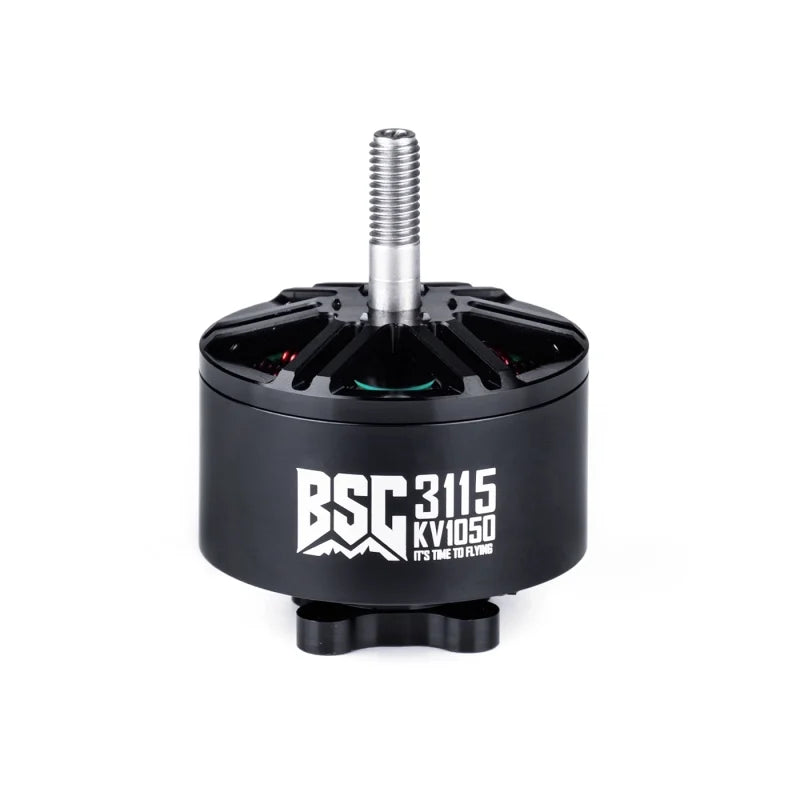

MAD BSC3115 Drone Motor features a 1050Kv brushless motor with specifications including: no-load current at 10V (1.92A), maximum current (76.7A), weight (113g), internal resistance (22.3mOhms), maximum thrust, and maximum power output of 1836.5W.

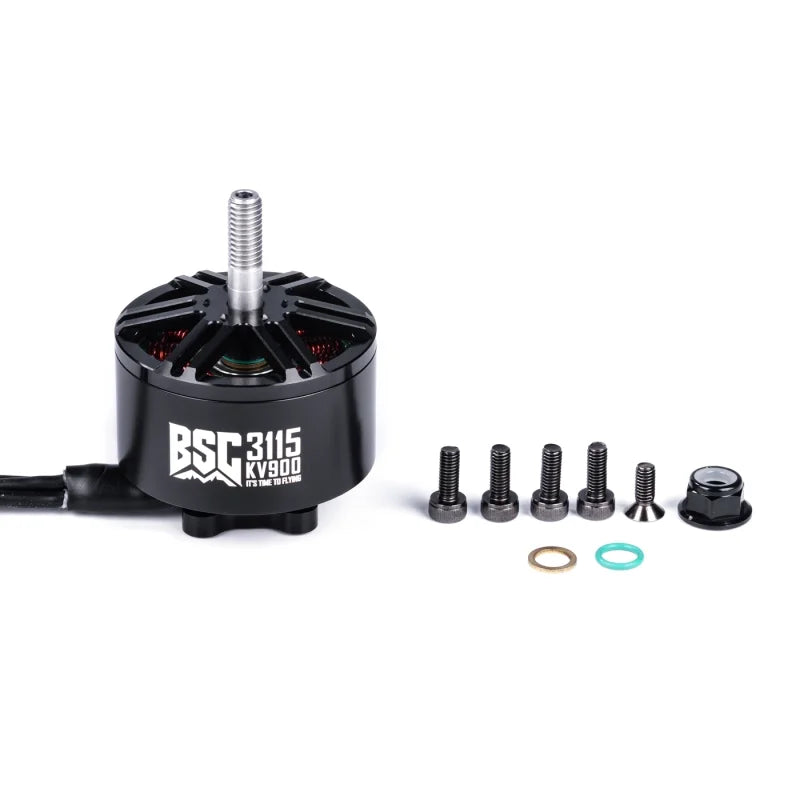

Pack includes: 1 x MS nut, 4 x BMM brass gasket, 1 x O-ring, and 6 x Cuphead countersunk screws. Also included are MAD stickers.
