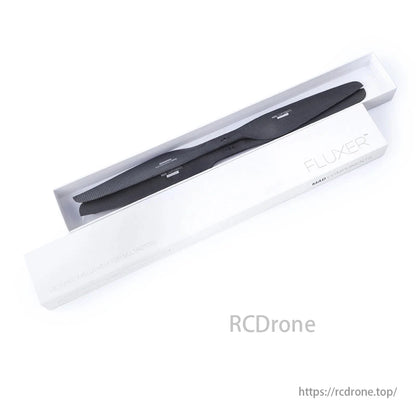

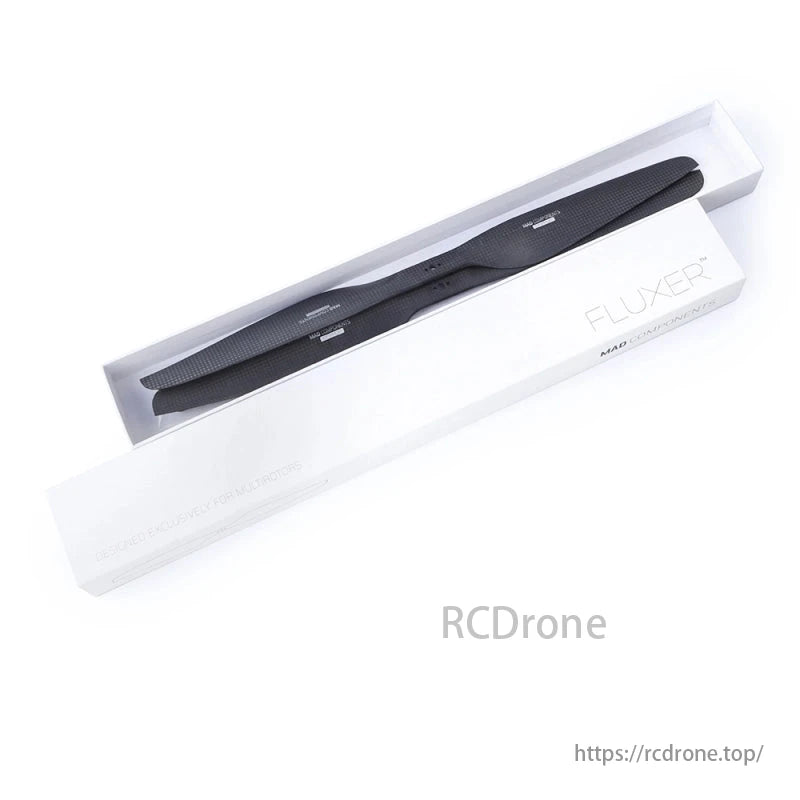

  • A black Fluxer component for multicopters, in a white box.

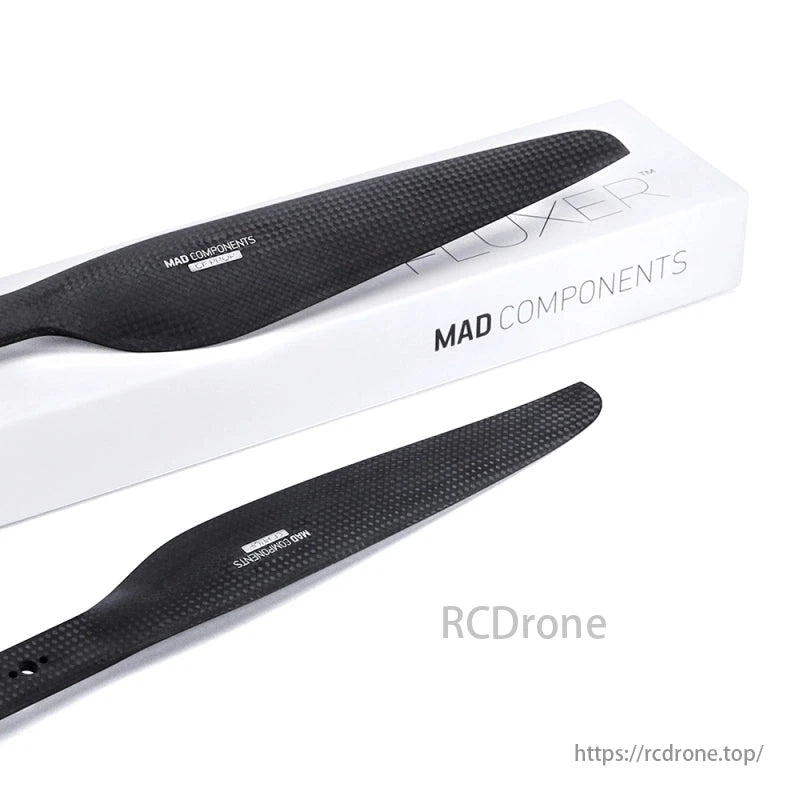

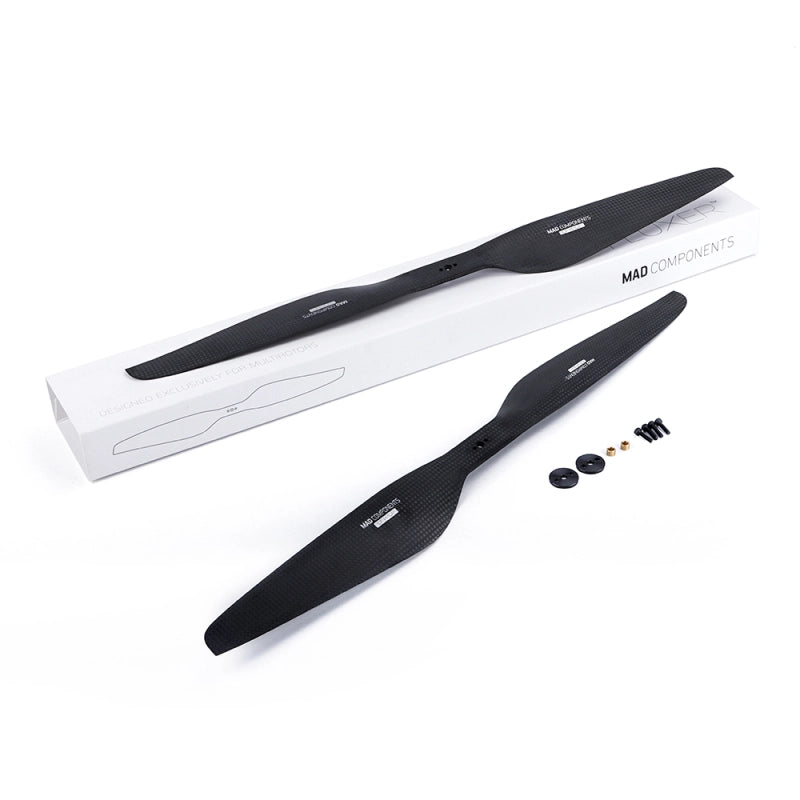

  • Black carbon fiber propellers by MAD COMPONENTS and FLUXER, in a white branded box.
  • MAD FLUXER Matt Pro 14x4.8 Inch Carbon Fiber Drone Propeller

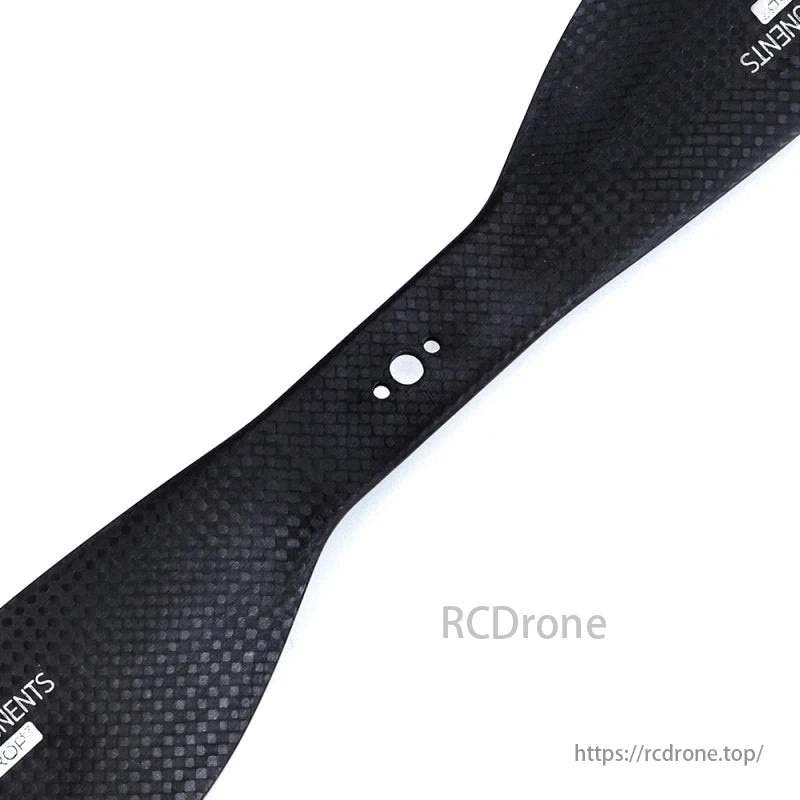

  • A black carbon fiber propeller blade with textured surface, two circular markings, and "COMPONENTS" text is shown.
1 6

MAD FLUXER Matt Pro 14x4.8 Inch Carbon Fiber Drone Propeller

MAD FLUXER Matt Pro 14x4.8 Inch Carbon Fiber Drone Propeller

MAD

$82.00 USD
$82.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Holes Position
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview


The MAD FLUXER Matt Pro 14x4.8 drone propeller is crafted from high-quality carbon fiber and resin, offering a lightweight (19.2g) yet strong structure. Measuring 355.6×121.9mm, it supports up to 5kg thrust and performs optimally at 4500–7500RPM. With a polished or matt surface finish and excellent thermal durability (-40°C to 65°C), this prop is built for high-performance drone applications.

Key Features

  • Durable Carbon Fiber + Resin construction with polished or matt finish

  • Wide Operating Range: Temperature -40°C~65°C; humidity <85%

  • Optimized Aerodynamics: Sectional airfoil design enhances efficiency

  • Compatible with AMPX 30A/40A ESCs & MAD 3506/3508 motors

  • Pre-balanced and Ready to Use

Technical Specifications

Parameter Value
Size 355.6 × 121.9 mm
Weight 19.2 g
Material High-quality carbon fiber + resin
Surface Polished / Matt
Working Temp -40°C to 65°C
Storage Temp -10°C to 50°C
Storage Humidity <85%
Optimum RPM 4500–7500 RPM
Single Thrust Limit 5 kg

Performance Test Data

RPM Thrust (gf) Torque (N·m) Power (W) Efficiency (gf/W)
2375 185 0.0 11.8 16.6
2737 256 0.1 18.8 14.3
3173 363 0.1 28.9 13.0
3444 438 0.1 38.1 11.9
3791 531 0.1 50.2 11.0
4127 620 0.1 62.8 10.2
4445 723 0.1 77.9 9.6
4748 827 0.2 95.2 9.0
5035 947 0.2 116.5 8.4
5349 1086 0.2 144.4 7.8
5630 1193 0.2 170.2 7.2
5899 1298 0.2 202.6 6.6
6101 1419 0.3 235.4 6.0
6276 1496 0.3 284.1 5.4
6454 1596 0.3 329.8 5.0

Recommended Configuration

Propeller ESC Motor Throttle Thrust (per motor)
FLUXER Matt Pro 14x4.8 AMPX 30A / 40A Pro MAD 3506 EEE KV400 (6S) 50–60% 500–700g
FLUXER Matt Pro 14x4.8 AMPX 30A / 40A Pro MAD 3508 IPE KV580 (4S) 50–60% 500–650g

Package Contents

Item Quantity
14x4.8 Propeller 2 pcs
Cover Plate 2 pcs
Ø6/Ø4 Adapter Ring 2 pcs
M3×10 Hex Socket Cap Screws 4 pcs



Detail

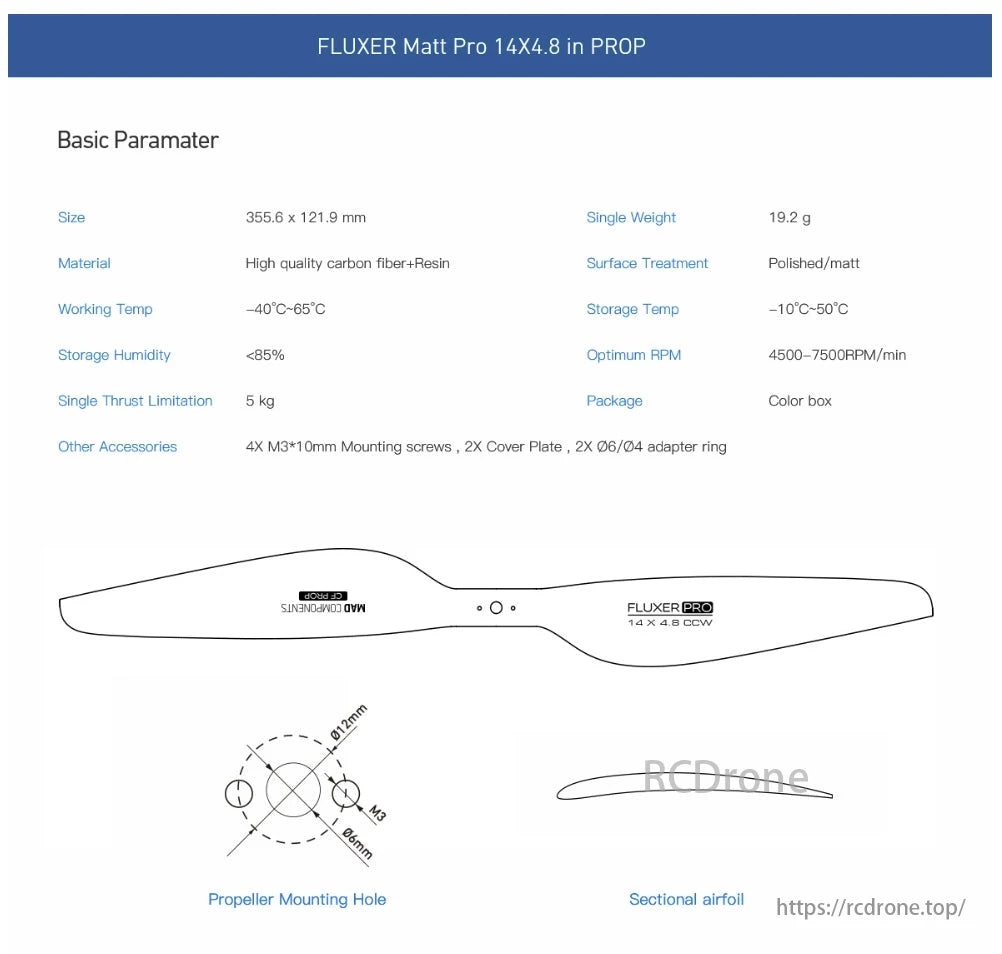

MAD Fluxer Propeller, The FLUXER Matt Pro 14X4.8 propeller is a high-quality carbon fiber and resin model, measuring 355.6 x 121.9 mm, weighing 19.2 g, with a thrust limit of 5 kg, optimal RPM range of 4500-7500, and includes accessories in a color box.

The FLUXER Matt Pro 14X4.8 in PROP is a high-quality carbon fiber and resin propeller with dimensions of 355.6 x 121.9 mm and a single weight of 19.2 g. It features polished/matt surface treatment, operates at temperatures between -40°C to 65°C, and stores safely between -10°C to 50°C with humidity below 85%. The optimum RPM range is 4500–7500 RPM/min, with a single thrust limitation of 5 kg. The package includes mounting screws, cover plates, adapter rings, and comes in a color box. The propeller mounting hole has a diameter of 12 mm with M3 threads and a shoulder diameter of 6 mm.

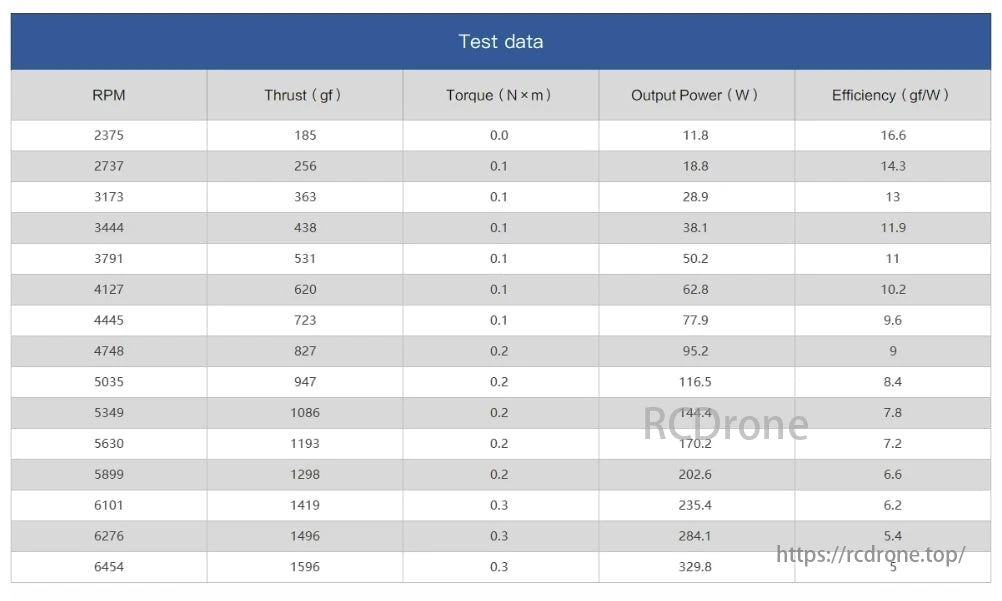

MAD Fluxer Propeller, Motor test data shows thrust, torque, power, and efficiency at various RPMs, with increasing thrust and power but decreasing efficiency as RPM rises.

The table provides test data for a motor, detailing its performance across various RPMs. It includes thrust in grams-force (gf), torque in Newton-meters (N·m), output power in watts (W), and efficiency in gf/W. As RPM increases, thrust and output power generally rise, while efficiency decreases. Torque remains relatively low until higher RPMs.

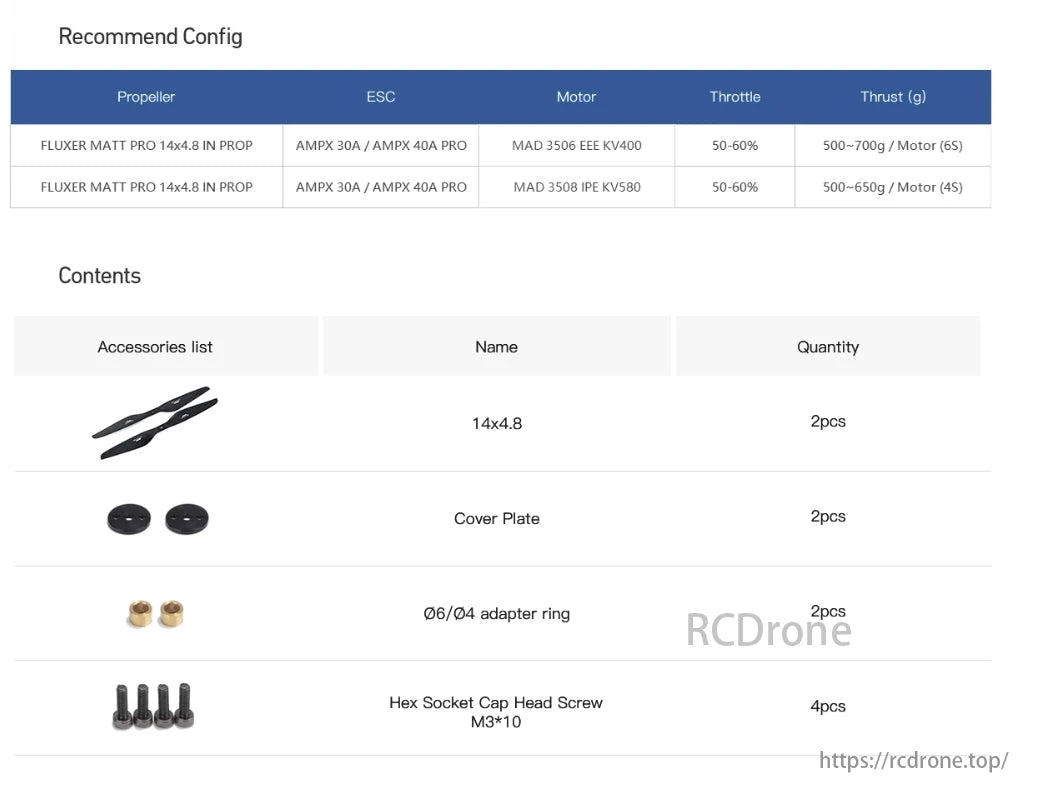

MAD Fluxer Propeller, Drone setup with FLUXER propellers, AMPX ESCs, MAD motors, 50-60% throttle, thrust 500-700g (6S) or 500-650g (4S), includes propellers, cover plates, adapter rings, and screws.

The product includes recommended configurations for a drone setup, featuring FLUXER MATT PRO 14x4.8 IN PROP propellers, AMPX 30A/40A PRO ESCs, MAD 3506 EEE KV400 or MAD 3508 IPE KV580 motors, and throttle settings of 50-60%. The thrust ranges from 500-700g for the 6S motor and 500-650g for the 4S motor. Accessories include 2pcs of 14x4.8 propellers, 2pcs of cover plates, 2pcs of Ø6/Ø4 adapter rings, and 4pcs of M3*10 hex socket cap head screws.
