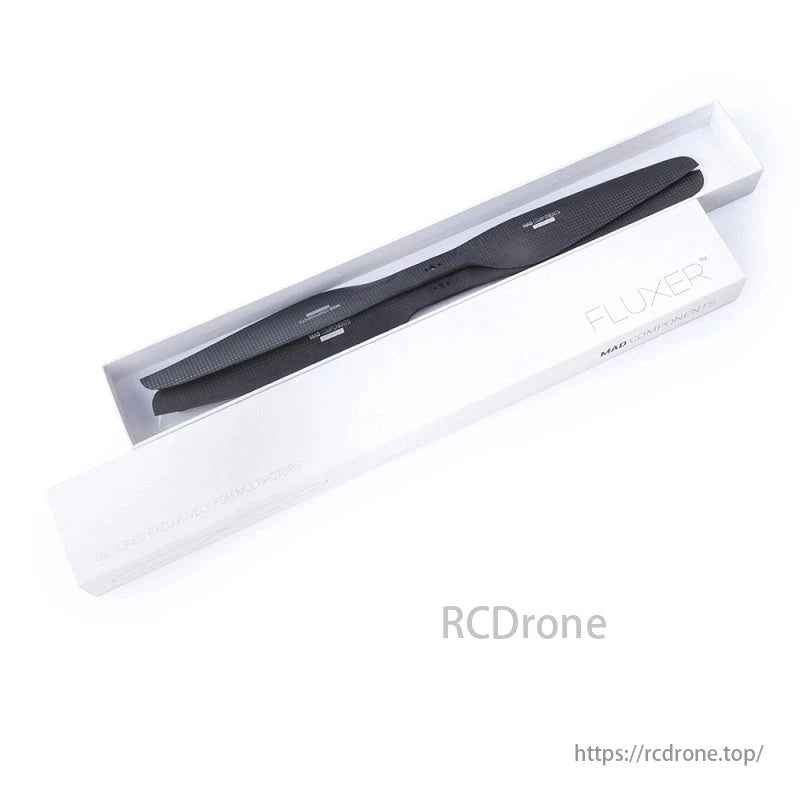

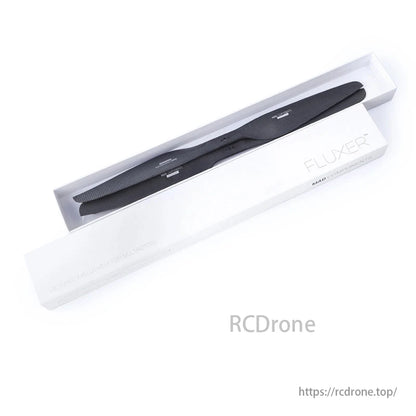

  • A white "FLUXER" box holds a black drone part, specifically designed for multicopters.

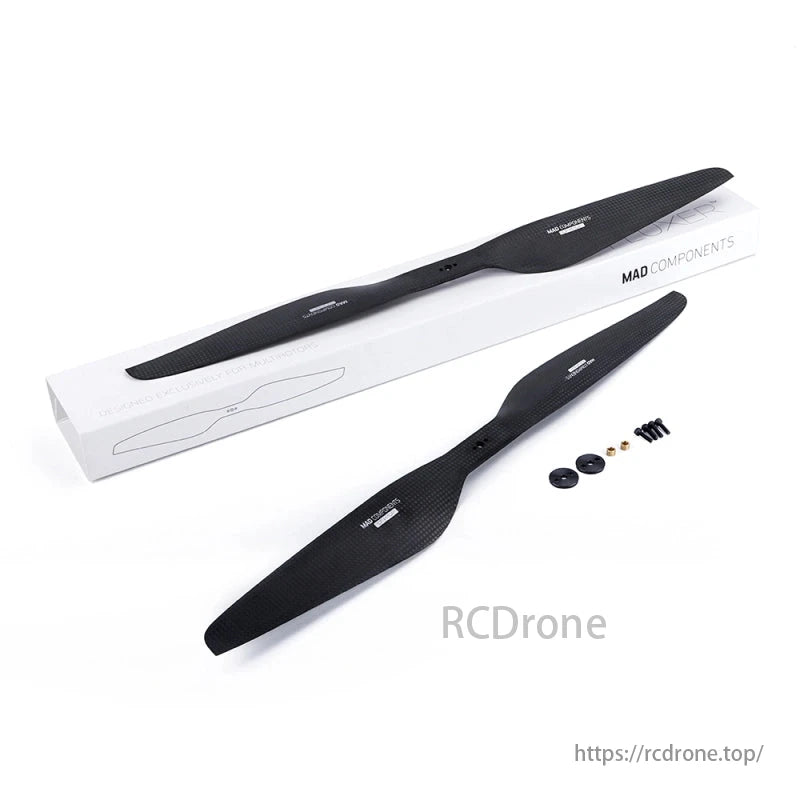

  • Two black carbon fiber propellers with mounting hardware, labeled "MAD COMPONENTS," are shown with their packaging.
1 4

MAD FLUXER Matt Pro 15x5.0 Inch Carbon Fiber Drone Propeller

MAD FLUXER Matt Pro 15x5.0 Inch Carbon Fiber Drone Propeller

MAD

$91.00 USD
$91.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Holes Position
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MAD FLUXER Matt Pro 15x5.0" quadcopter propeller features a 381×131.9mm profile and weighs just 26.5g. Constructed from uni- and bi-directional carbon fiber prepreg with a balsa wood core, it delivers outstanding rigidity and low inertia. With a matte carbon fiber finish, 6mm mounting hole, and a 3.1kg single thrust limit, it is optimized for responsive, low-RPM efficiency at 5100–7100RPM.

Key Features

  • Lightweight & Strong: Carbon fiber + balsa wood core for superior rigidity

  • Matte Finish Surface: Enhanced aerodynamics with woven carbon prepreg

  • 6mm Mounting Hole: Standard fit for most UAVs

  • Responsive Control: Excellent acceleration and torque feedback

  • Low RPM Efficiency: Delivers optimal thrust with minimal power loss

  • Includes One CW & One CCW Propeller

Technical Specifications

Parameter Value
Size 381 × 131.9 mm
Weight 26.5 g
Material Carbon fiber prepreg + balsa core
Surface Polished / Matt
Working Temp -40°C to 65°C
Storage Temp -10°C to 50°C
Storage Humidity <85%
Optimum RPM 5100–7100 RPM
Single Thrust Limit 3.1 kg

Performance Test Data

RPM Thrust (gf) Torque (N·m) Power (W) Efficiency (gf/W)
2320 230 0.1 12.9 17.87
2633 315 0.1 18.8 16.8
2927 393 0.1 25.1 15.64
3215 478 0.1 32.7 14.64
3575 601 0.1 44.5 13.49
3956 774 0.2 60.9 12.71
4222 910 0.2 76.0 11.97
4509 1037 0.2 88.8 11.68
4751 1149 0.2 102.5 11.21
5009 1276 0.2 120.6 10.58
5249 1399 0.3 136.8 10.22
5483 1508 0.3 155.0 9.73
5695 1647 0.3 174.7 9.43
5906 1778 0.3 194.8 9.13
6192 1942 0.4 223.7 8.68

Recommended Configuration

Propeller ESC Motor Throttle Thrust (per motor)
FLUXER Matt Pro 15x5.0 AMPX 30A / 40A Pro MAD 3515 IPE KV400 (6S) 50–60% 750–1000g
FLUXER Matt Pro 15x5.0 AMPX 30A / 40A Pro MAD 4006 EEE KV380 (6S) 50–60% 700–950g

Package Contents

Item Quantity
15x5.0 Propeller 2 pcs
Cover Plate 2 pcs
Ø6/Ø4 Adapter Ring 2 pcs
M3×10 Hex Socket Cap Screws 4 pcs



Details

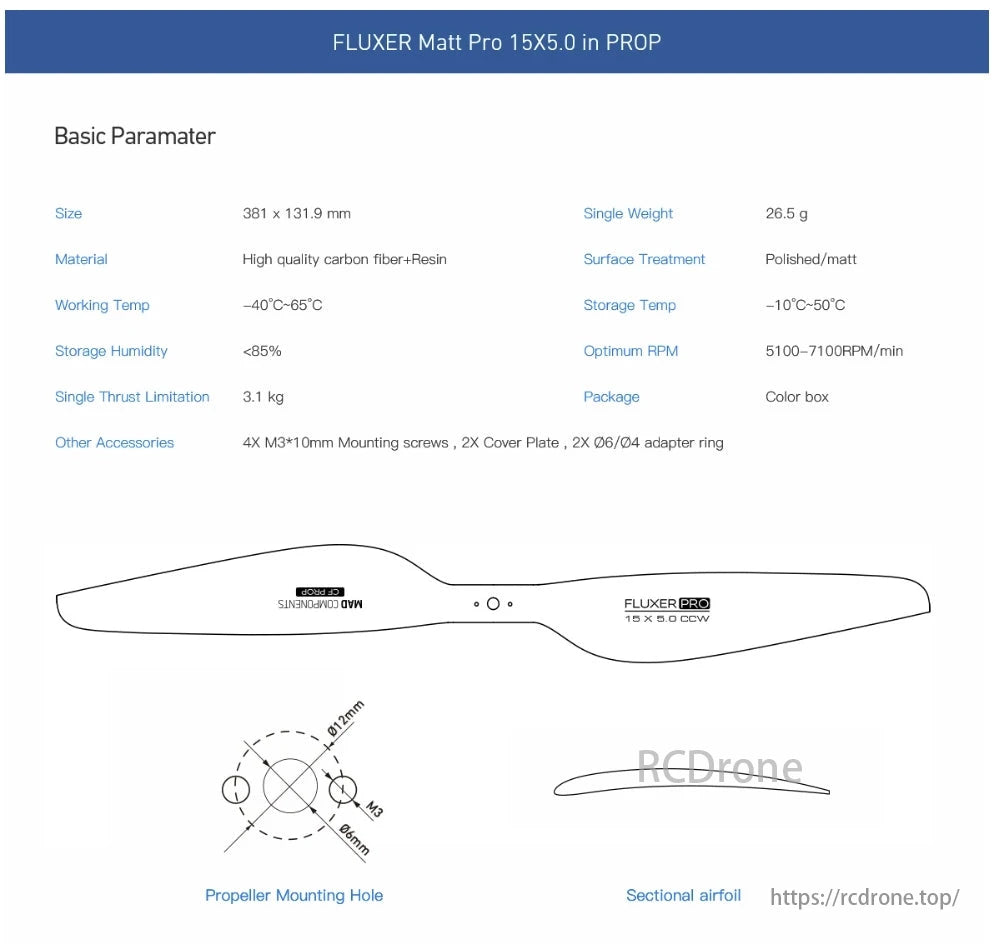

MAD Fluxer Drone Prop, FLUXER Matt Pro 15X5.0 propeller is a carbon fiber and resin PROP with specific dimensions, weight, temperature range, thrust limit, RPM, and includes mounting accessories.

FLUXER Matt Pro 15X5.0 in PROP, a high-quality carbon fiber and resin propeller. Key specifications include dimensions (381 x 131.9 mm), weight (26.5 g), working temperature range (-40°C to 65°C), thrust limitation (3.1 kg), and optimal RPM (5100–7100 RPM/min). The propeller features a polished/matt surface treatment and includes mounting screws, cover plates, and adapter rings. Diagrams show the mounting hole and sectional airfoil design.

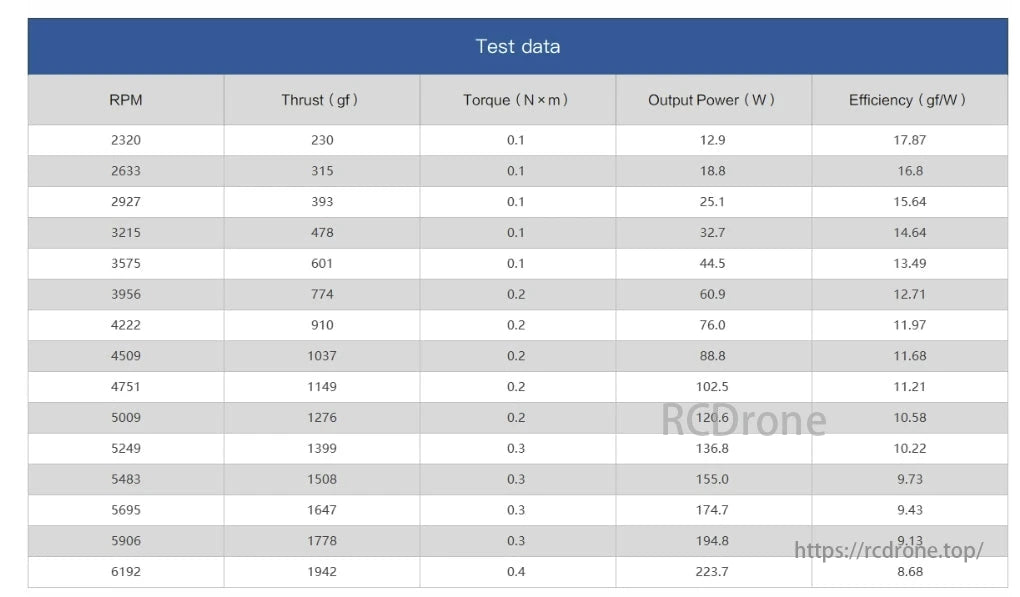

MAD Fluxer Drone Prop, Motor test data shows RPM, thrust, torque, power, and efficiency. Thrust and power increase with RPM, efficiency decreases, and torque stabilizes before rising at high RPM.

test data for a motor, showing RPM, thrust (gf), torque (N×m), output power (W), and efficiency (gf/W). As RPM increases, thrust and output power rise, while efficiency decreases. Torque remains relatively stable at 0.1 N×m until higher RPMs, where it increases to 0.2 or 0.3 N×m.

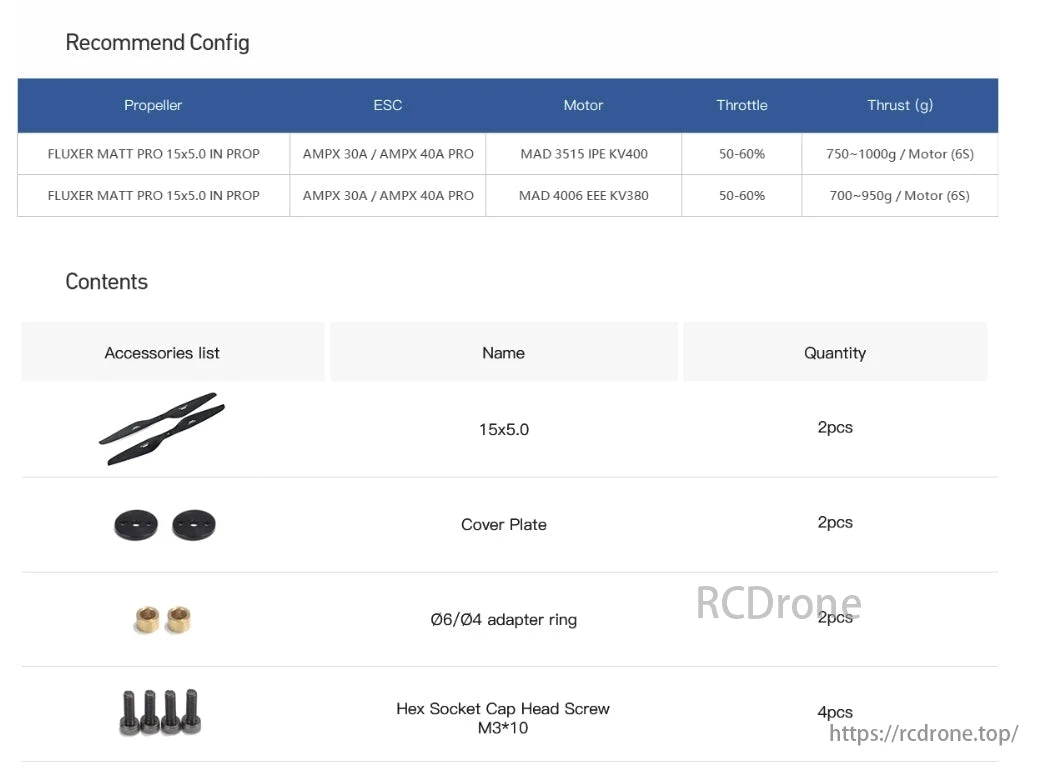

MAD Fluxer Drone Prop, The image outlines a drone setup with specific propellers, ESCs, motors, throttle range, thrust, and accessories like propellers, cover plates, adapter rings, and screws.

recommended configuration for a drone setup, listing propellers (FLUXER MATT PRO 15x5.0 IN PROP), ESCs (AMPX 30A / AMPX 40A PRO), motors (MAD 3515 IPE KV400 and MAD 4006 EEE KV380), throttle range (50-60%), and thrust (700~1000g per motor). It also includes an accessories list with 2pcs of 15x5.0 propellers, 2pcs of cover plates, 2pcs of Ø6/Ø4 adapter rings, and 4pcs of M3*10 hex socket cap head screws.
