MAD HAVOC 12x4.8 Inch Polymer Folding Drone Propeller
MAD HAVOC 12x4.8 Inch Polymer Folding Drone Propeller
MAD
Couldn't load pickup availability
Overview

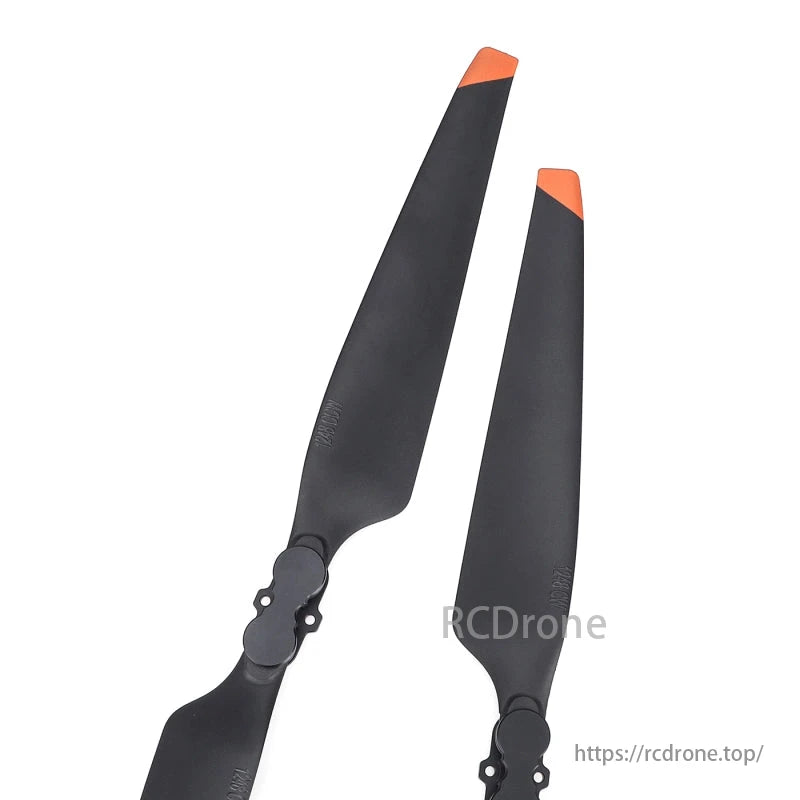

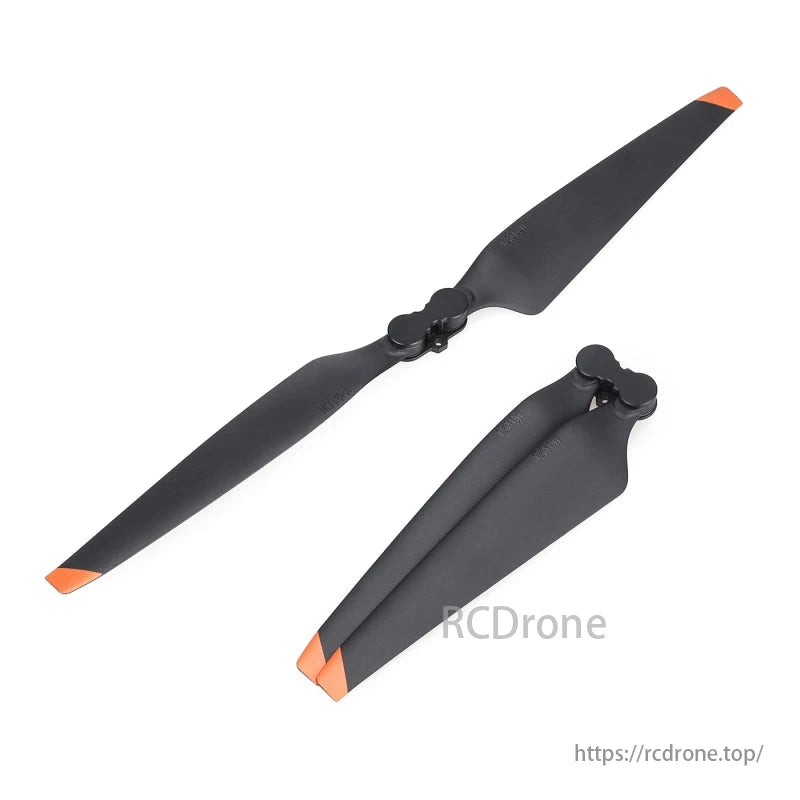

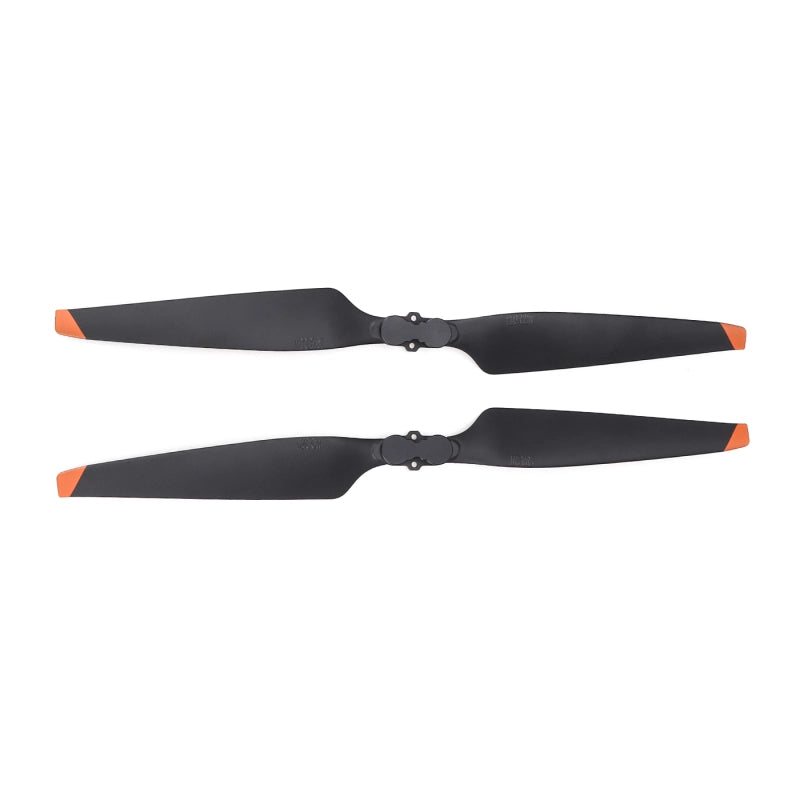

The MAD HAVOC 12x4.8 Inch folding propeller is crafted from composite carbon fiber and engineering plastic, offering a robust yet lightweight design optimized for endurance drone flights. Its upward wingtip design significantly reduces airflow interference, resulting in lower noise, less vibration, and higher efficiency. The structure is designed for folding, with an integrated propeller lock mechanism for safe and reliable operation. With optimized inertia response, this propeller ensures agile control and stability during missions like rescue, mapping, inspection, and aerial photography.
Basic Parameters
| Parameter | Value |
|---|---|
| Brand | MAD |
| Size | 304.8 × 121.9 mm (12x4.8 inch) |
| Single Weight | 19 g |
| Material | Composite carbon fiber and engineering plastic |

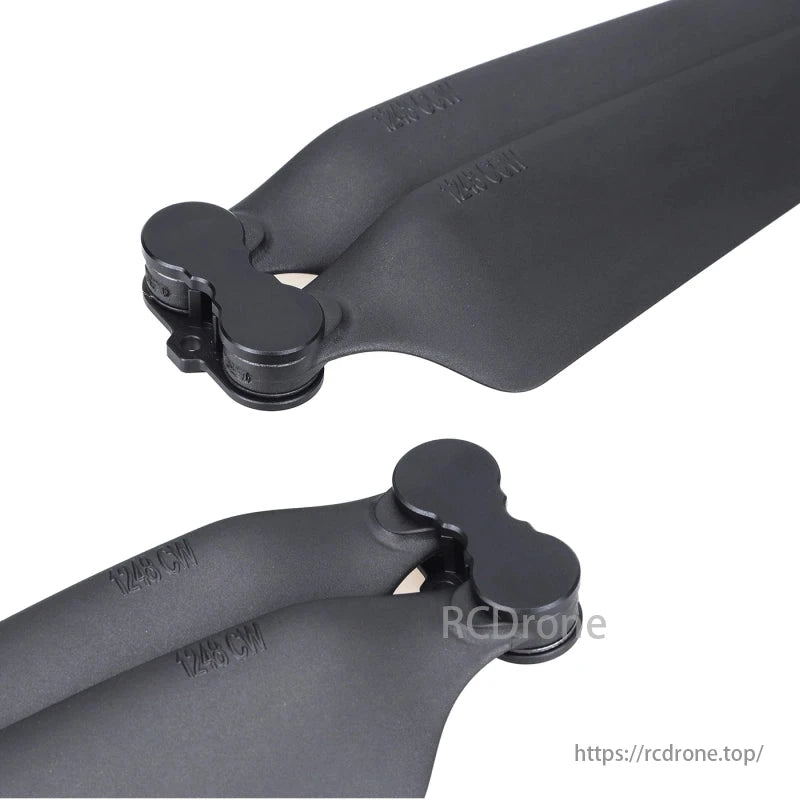

| Structure | Folding propeller |
| Working Temperature | –10℃ ~ 65℃ |
| Storage Humidity | <85% |
| Recommended Thrust/RPM | 400–600g / 3500–5000RPM |
| Single Thrust Limitation | 1.5 kg |

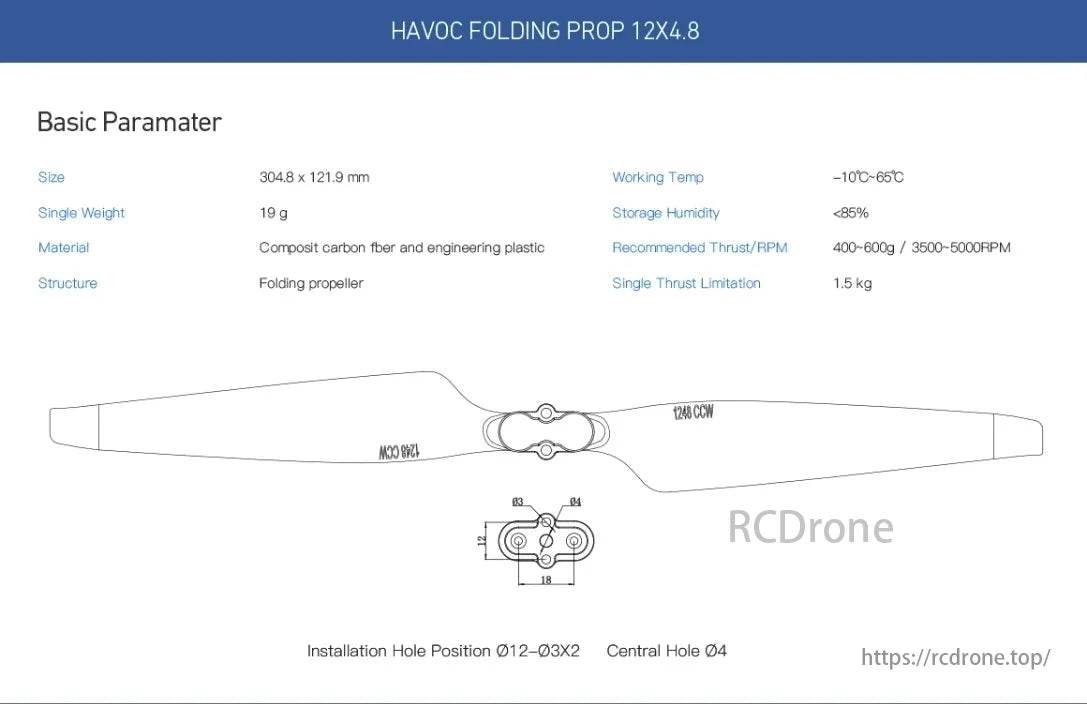

| Installation Hole Position | Ø12 – Ø3×2 |
| Central Hole | Ø4 |
Key Features
-
Silent & Efficient: Upward wingtip reduces drag and noise, enhances efficiency
-
High-Quality Material: Lightweight and strong carbon fiber composite
-
Optimized Aerodynamics: Enhanced moment of inertia for sensitive flight control
-
Folding Design: Compact, secure, and built for professional drone applications
-
Tested Performance: Thrust up to 986g at 6292 RPM with 104.8W output power

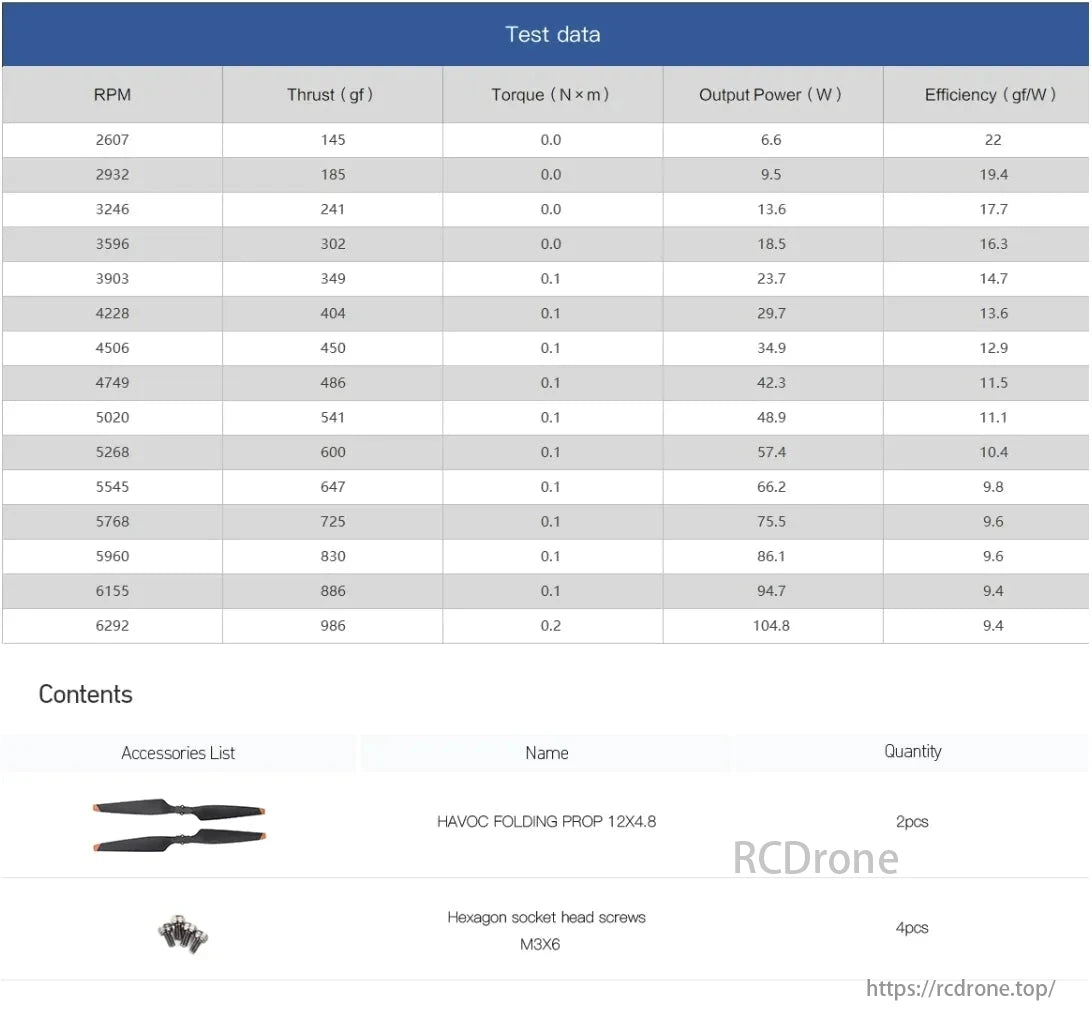

Test Data Summary (excerpt)
| RPM | Thrust (gf) | Power (W) | Efficiency (gf/W) |
|---|---|---|---|
| 4228 | 404 | 29.7 | 13.6 |
| 5020 | 541 | 48.9 | 11.1 |
| 6155 | 886 | 94.7 | 9.4 |
| 6292 | 986 | 104.8 | 9.4 |
What's Included
| Item | Quantity |
|---|---|

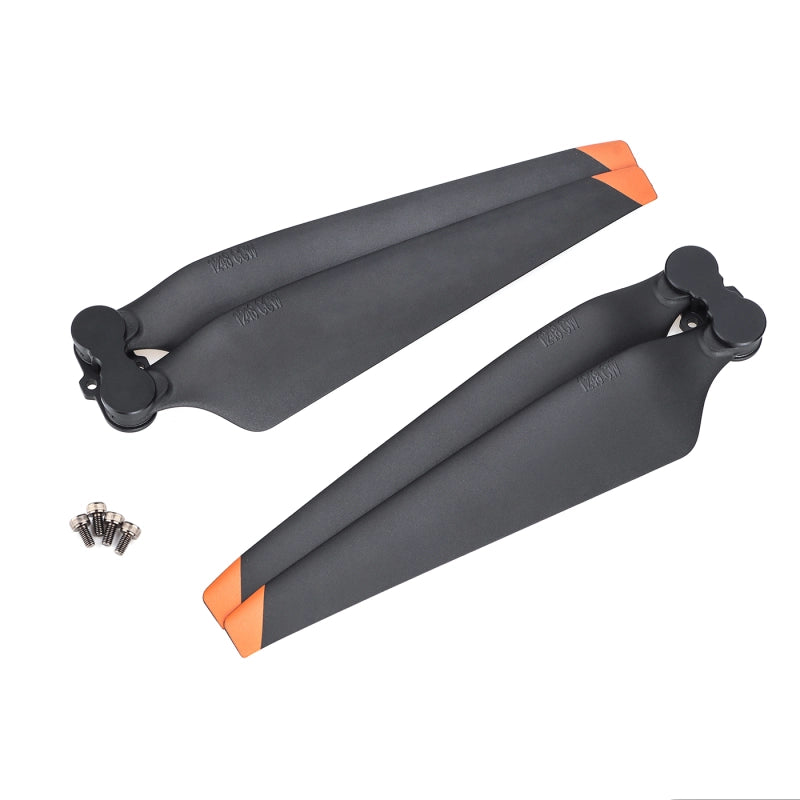

| HAVOC Folding Prop 12x4.8 | 2 pcs |
| Hexagon Socket Head Screws M3×6 | 4 pcs |
Details

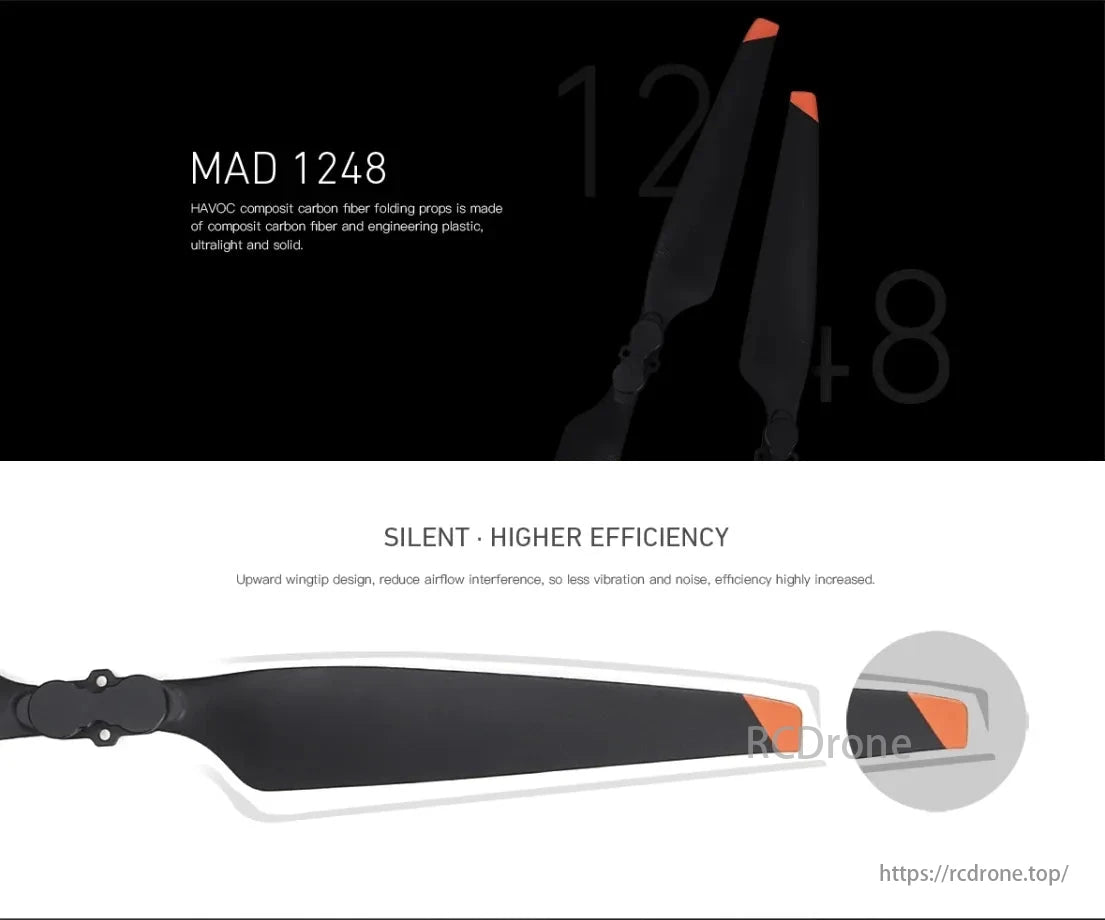

MAD 1248 HAVOC composite carbon fiber folding props are ultralight, solid, and silent with higher efficiency due to upward wingtip design reducing airflow interference.

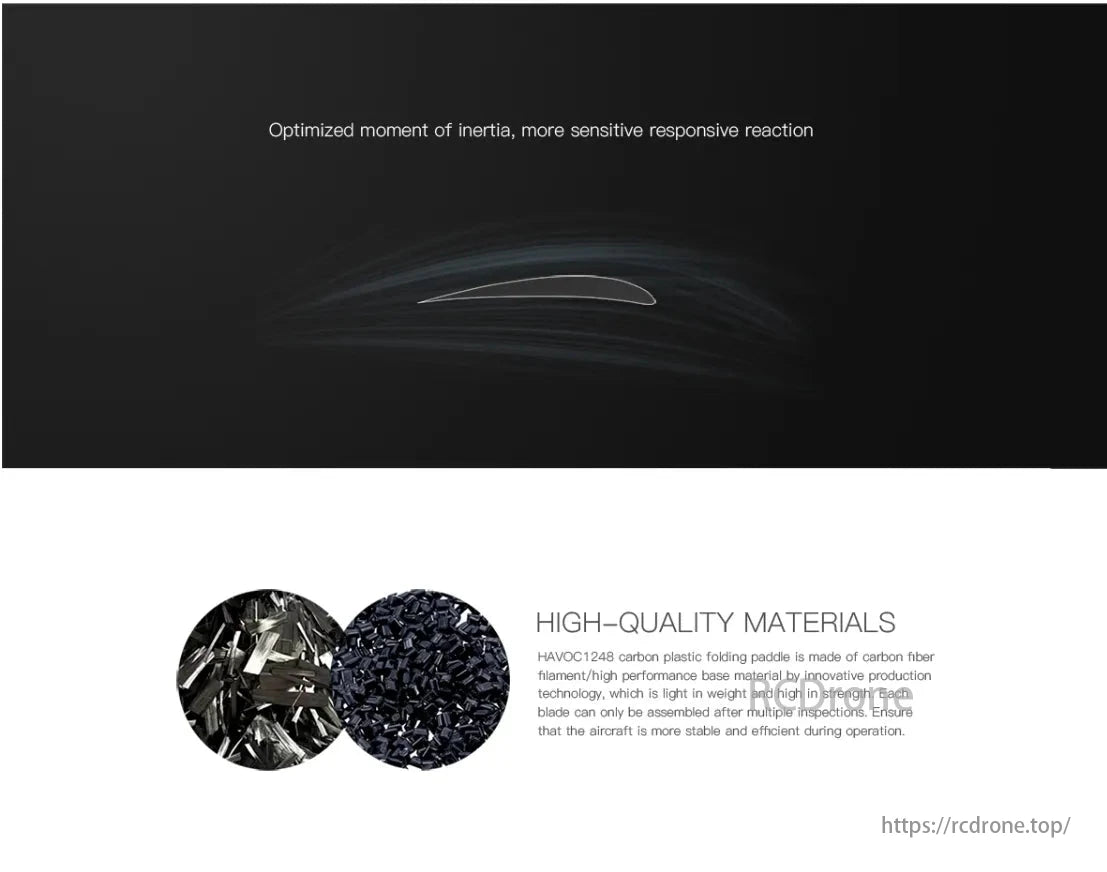

Optimized moment of inertia ensures sensitive responsive reactions. High-quality materials like carbon fiber and high-performance base material make the HAVOC1248 paddle lightweight, strong, stable, and efficient during operation.
Designed for endurance flight, matching 4.5kg quadcopter with 22Ah battery, hovering 55-60 mins. Great for rescue, mapping, inspection, photography. Propeller lock ensures safety.
HAVOC FOLDING PROP 12X4.8: Size 304.8 x 121.9 mm, weight 19 g, composite carbon fiber and engineering plastic. Working temp -10°C-65°C, storage humidity <85%. Recommended thrust/RPM 400~600g/3500~5000RPM, single thrust limit 1.5 kg.
Test data includes RPM, thrust, torque, output power, and efficiency. Efficiency decreases as RPM increases. Contents list: 2pcs HAVOC FOLDING PROP 12X4.8 and 4pcs M3X6 hexagon socket head screws. Data highlights motor performance metrics across various speeds.
