MAD HAVOC 17x6.2 Inch Polymer Folding Drone Propeller

Overview

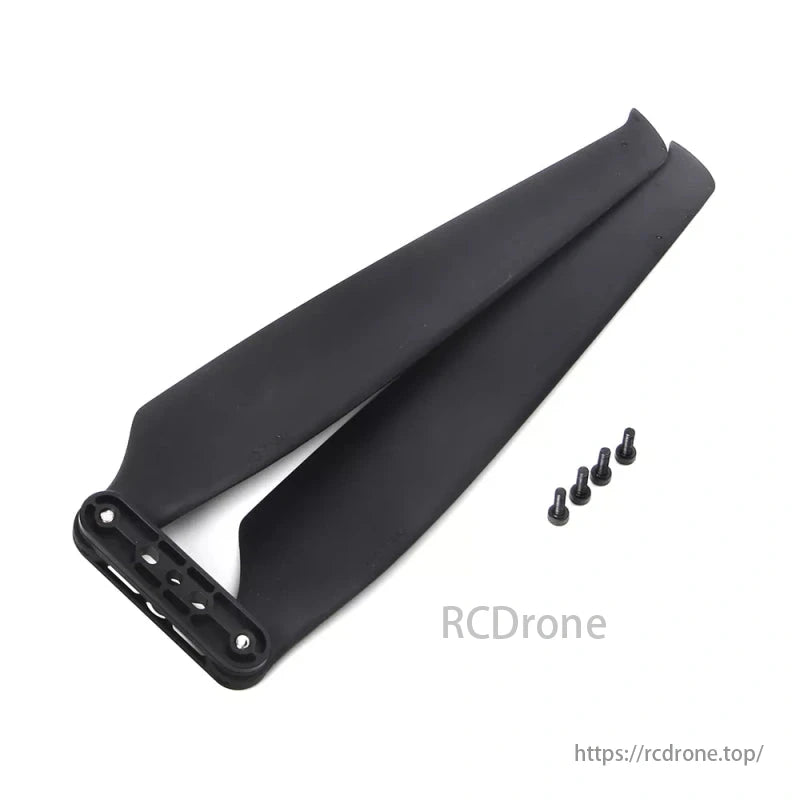

Ultralight 50g folding propeller made of composite carbon fiber and plastic, 437.2×157.48mm size, thrust up to 7kg.

Key Features

• High Efficiency & Power: Optimized 17×6.2 inch size offers excellent thrust performance (0.8–1.8kg per propeller).

• Silent Operation: Upward wingtip design minimizes airflow interference, reducing vibration and noise.

• Lightweight & Durable: Composite carbon fiber and engineering plastic ensures minimal weight with high structural strength.

• Superior Balance: Optimized moment of inertia for quicker responsiveness and dynamic stability.

• Secure Lock Mechanism: Folding design with propeller lock ensures safety and convenience during operation.

• Wide Compatibility: Installation hole Ø4mm, fits most industrial drone motors in the market.

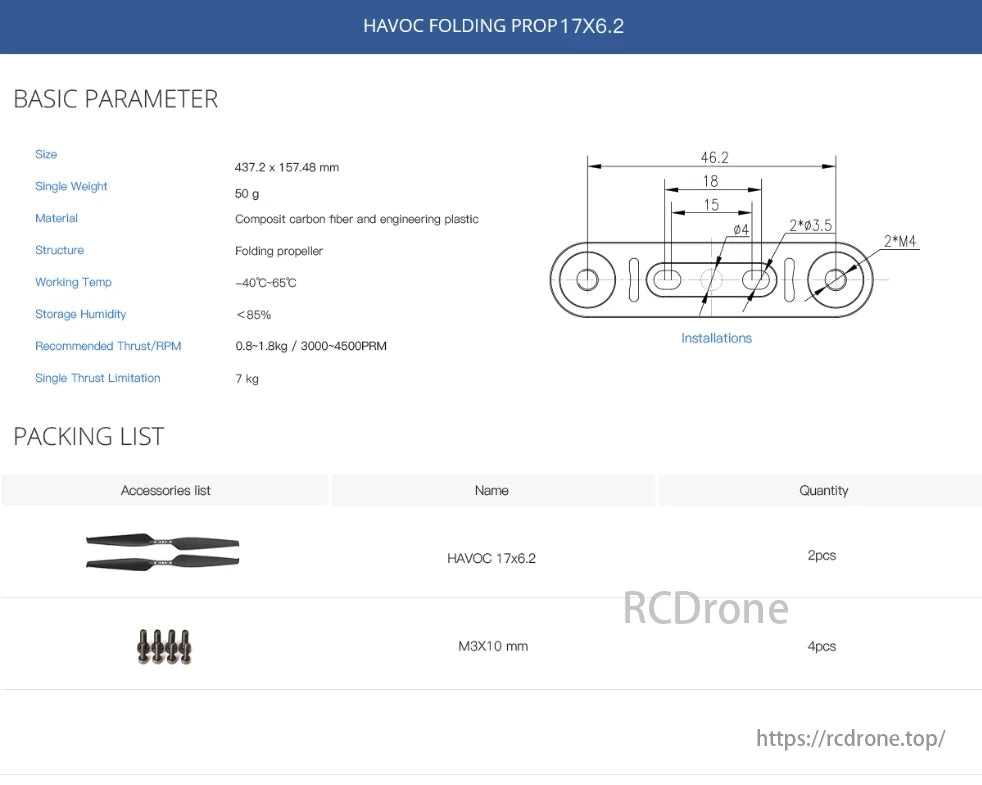

Basic Parameters

Packing List

Details

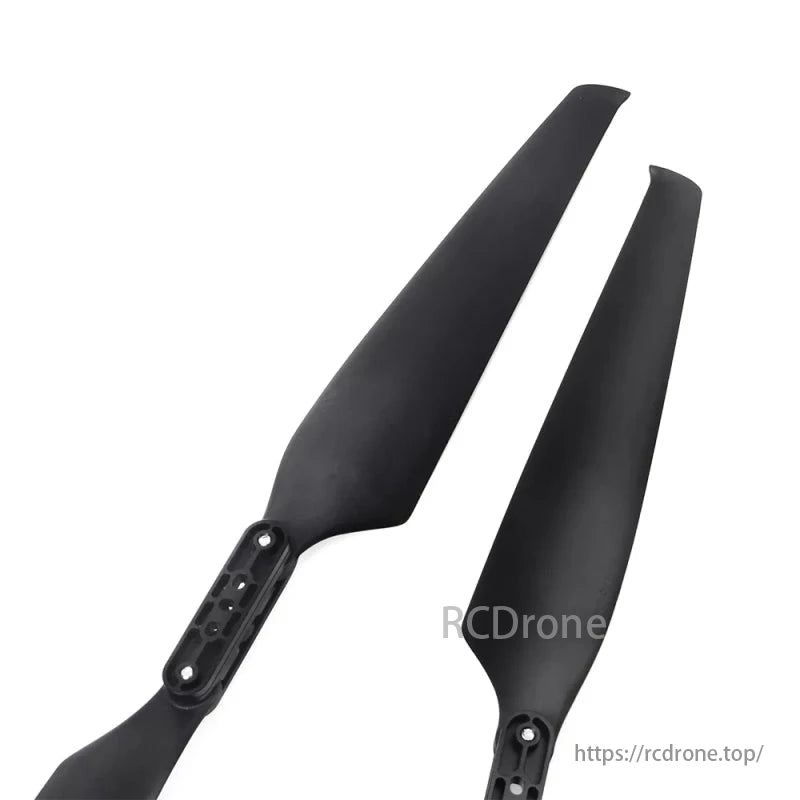

The HAVOC 17x6.2in drone folding prop is made of composite carbon fiber and engineering plastic, offering ultralight weight, solid construction, silent operation, and higher efficiency due to its upward wingtip design that reduces airflow interference.

Drone with optimized inertia for sensitive response, designed for endurance flight in rescue, mapping, and aerial photography.

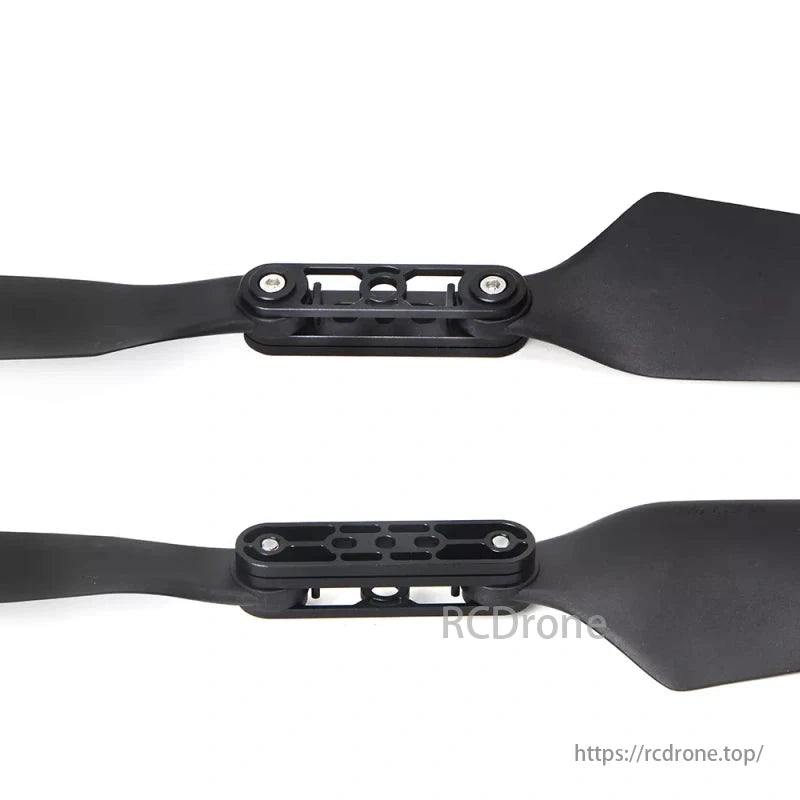

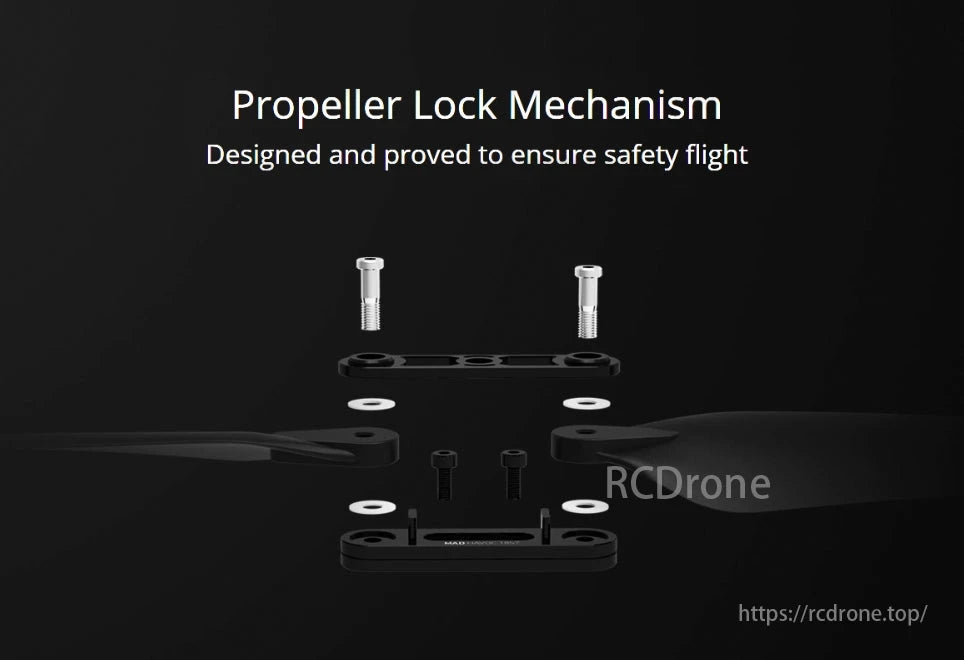

Propeller Lock Mechanism designed for safe flight with secure mounting and locking features.

The HAVOC FOLDING PROP 17X6.2 is a lightweight folding propeller designed for drones. It measures 437.2 x 157.48 mm, weighs 50 g, and is made of composite carbon fiber and engineering plastic. The propeller operates within a temperature range of -40°C to 65°C and requires humidity below 85%. Recommended thrust/RPM is 0.8-1.8 kg at 3000-4500 RPM, with a single thrust limitation of 7 kg. The package includes two propellers and four M3x10 mm screws.
