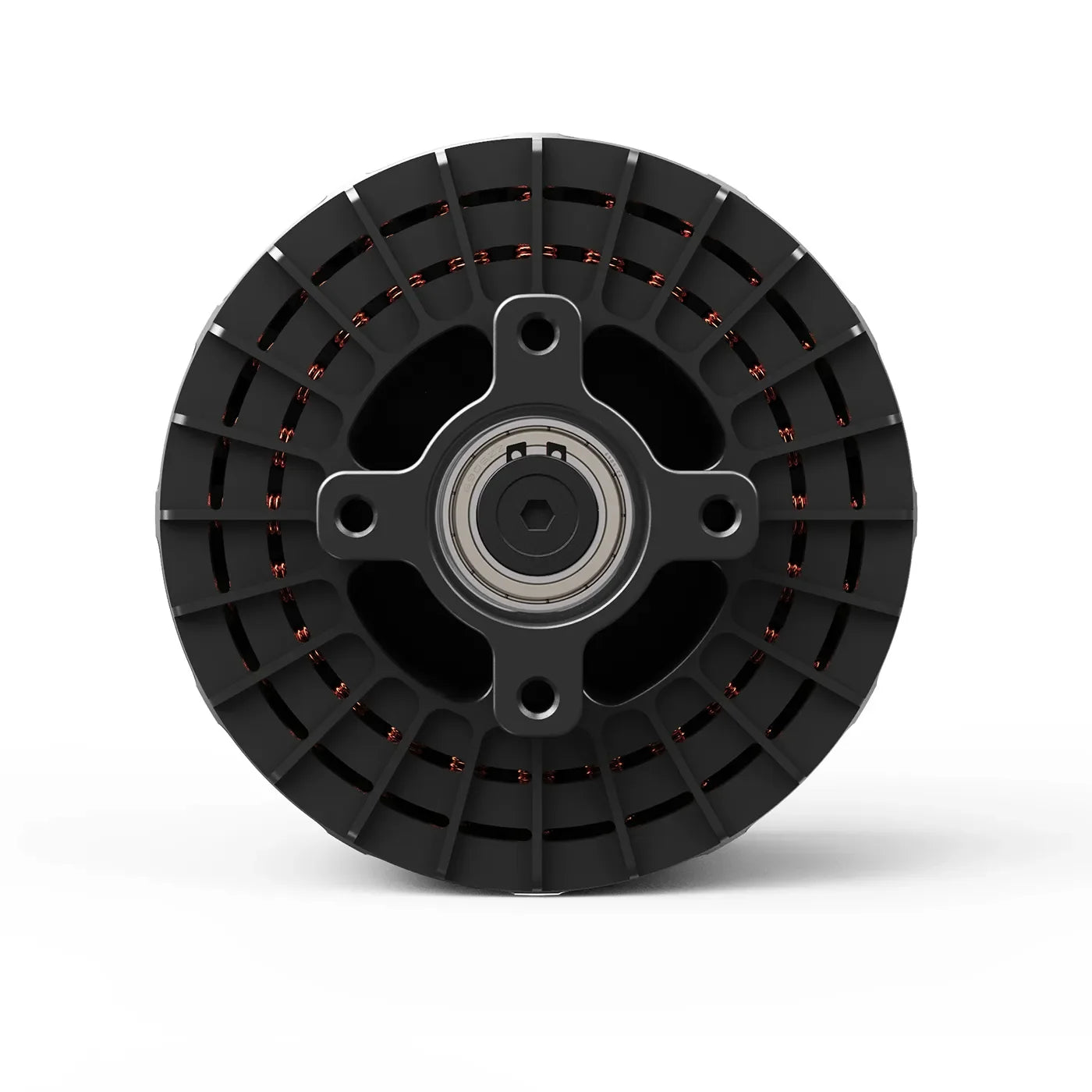

MAD X7229 VTOL Airplane Drone Motor - 12S 170KV 18.3kgf Brushless Motor Suitable for 120E-170E Aircraft,Corresponding to Gasoline Engine About 30-40CC

MAD X7229 VTOL Airplane Drone Motor - 12S 170KV 18.3kgf Brushless Motor Suitable for 120E-170E Aircraft,Corresponding to Gasoline Engine About 30-40CC

MAD

$285.15 USD
$342.19 USD $285.15 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

45 orders in last 90 days

Color
Ships From
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Brand Name: MAD COMPONENTS

Is Electric: No battery

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

Model Number: X7229



MAD X7229 VTOL Airplane Drone Motor Specifications

Motor Model MAD X7229 IPE V1.0 Number of pole pairs 11
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:81.1 × 71.5 mm Motor Balance 180°C
Degree of Protection IP35 Cable Length 150mm  (extended Enameled wires）
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4 / M8 Nut Motor Balance ≤10 mg
Shaft Diameter IN: 10 mm Motor Mounting Holes D:36 M4×4, D:90 M4×4
Bearing 6900ZZ *3 Disruptive test 500 V

MAD X7229 170KV Specifications

Specifications Details Specifications Details
RPM/V 170 KV Nominal Voltage 12S lipo battery
No Load Current 2.4A / 20V Internal resistance 16mΩ
Motor Weight 867 g Product Boxed Weight 1274 g
Maximum Current 100A Maximum Power 4720W
Maximum thrust 18.3 kg Maximum Torque 5.7 Nm
Recommended ESC MAD AMPX 80A (5-14S), AMPX 120A (5-14S) Recommended Propellers 21x10, 22x10, 24x10
UAV take-off weight 12S-24" 28kg--Quadcopter Single rotor take-off weight 6kg ~ 8kg
42kg--Hexacopter
56kg--Octocopter





MAD X7229 VTOL Airplane Drone Motor, professional-grade, 12S, 170KV brushless motor with 18.3kgf thrust.

Introducing the MAD X7229 VTOL Airplane Drone Motor, featuring a 12S, 170KV brushless motor suitable for 120E-170E aircraft. This professional-grade edition has a recommended maximum thrust of 18.3kgf and is optimized for energy efficiency with an impressive 89% max efficiency. Key specifications include: * Maximum current: 24x10 amps * Input power: up to 41

MAD X7229 VTOL Airplane Drone Motor, Specifications for MAD COMPONENTS X7229 VTOL Airplane Drone Motor: motor details, performance metrics, and recommendations.MAD X7229 VTOL Airplane Drone Motor Specifications: metal, 11 pole pairs, 170KV, 12S battery compatible.MAD X7229 VTOL Airplane Drone Motor, Mad Components VTOL Airplane Drone Motor Specifications: Metal, 14+, Vehicles & Remote Control Toys.
