Overview
OddityRC Mage-Pro Frame Kit is a ducted FPV frame kit designed around a 131mm wheelbase and 76mm propeller diameter. It supports multiple video transmitter ecosystems (including DJI O3 and Caddx Vista-class units) and features an integrated Type-C port and binding button layout on the frame.
Note: only the O3 version has the bottom aluminum part.
Key Features
- O3 custom heat sink design (O3 version)
- 7075 aluminum alloy bracket with TPU fixing parts
- CFD optimized duct design (stated to improve maximum motor efficiency by 18%)
- Encapsulated battery plug and Type-C port
For build guidance or pre-purchase questions about selecting the correct version and electronics fit, contact support@rcdrone.top.
Specifications
| Frame | Mage-Pro |
| External dimension | 186*186*33mm |
| Wheelbase | 131mm |
| Propeller diameter | 76mm |
| Main plate thickness | 3mm |
| Battery plug | XT60H-M |
| Displayed weight (as shown) | 125.7g |
Detailed Configuration (as listed)
| FC | OddityRC F722 40A AIO (MAX 50A) |
| VTX | DJI O3 / Caddx Vista Polar / Runcam Link Wasp / Walksnail Avatar / Rush Tank Mini |
| Receiver | PNP / ELRS 2.4G / ELRS 915M / TBS Nano RX |
| Motor | Spinnybois 2004-2650KV |
| Propeller | HQProp DT76MM |
| Recommended battery | 6S 850mAh - 1150mAh |
What’s Included
- Frame kit parts (version-dependent): DJI O3 Version or Analog/Vista Version
- Power Combo option: 1 set of frame kit + 4 corresponding motors
Details

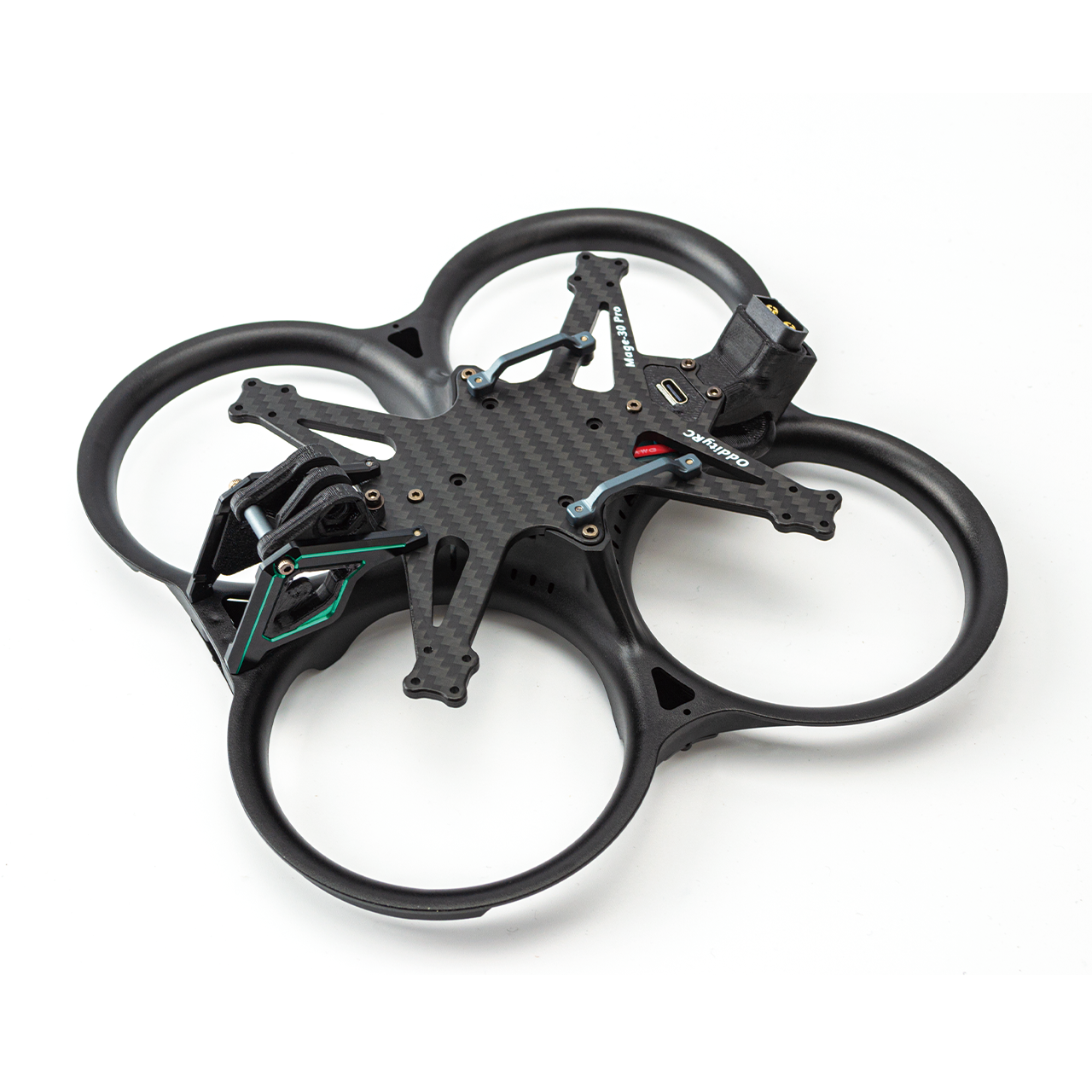

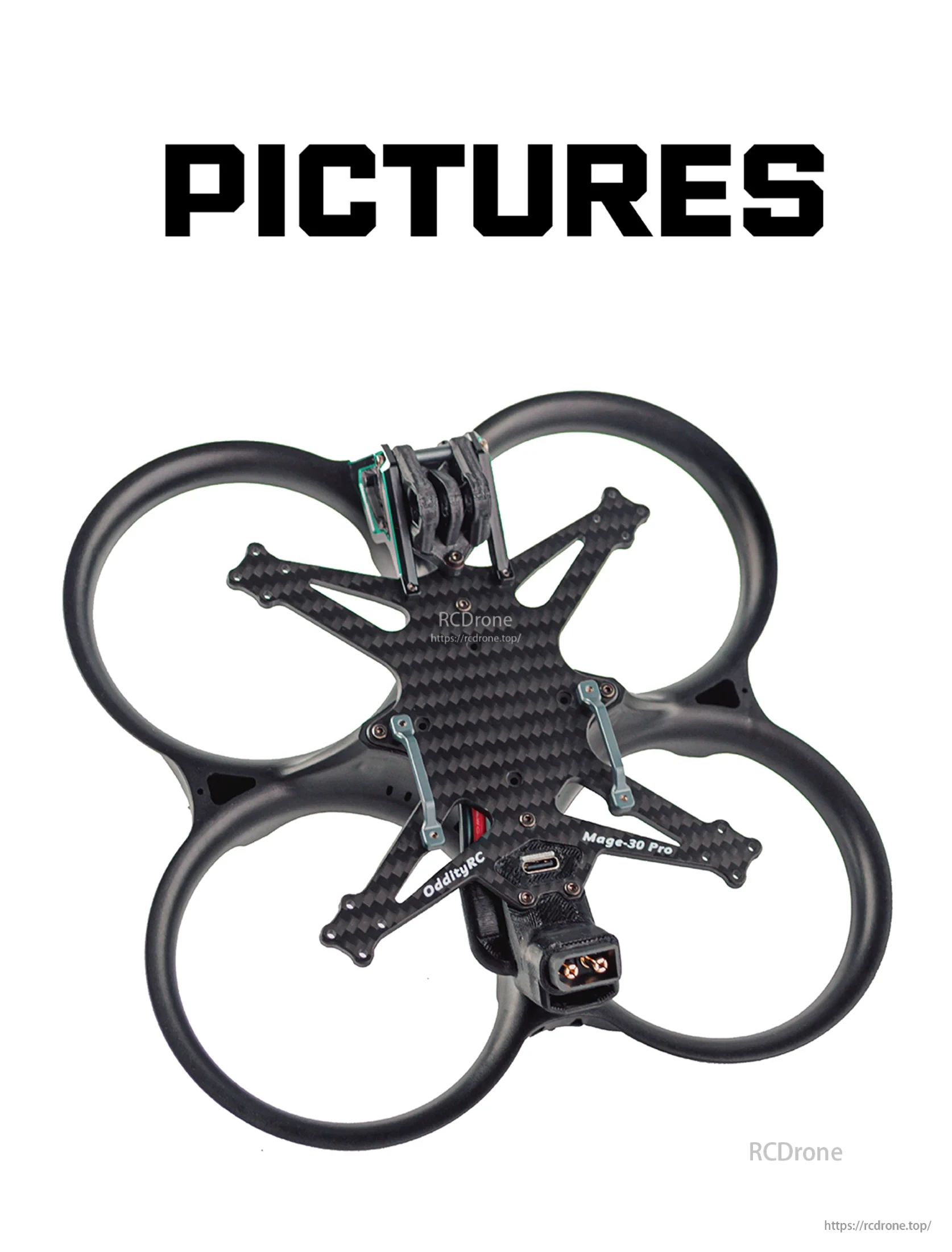

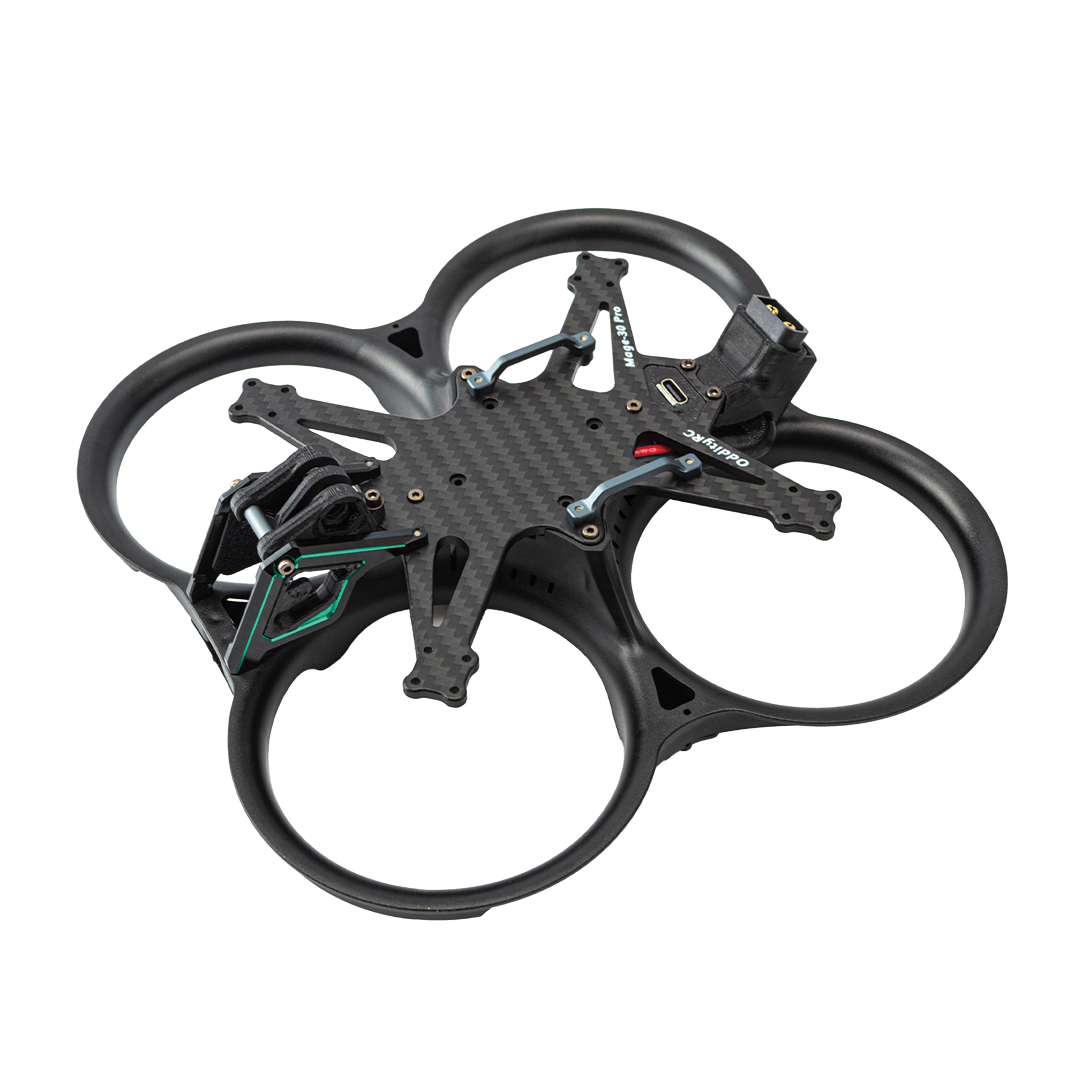

OddityRC Mage-Pro is a compact ducted FPV frame platform built around a 131mm wheelbase and 76mm props.

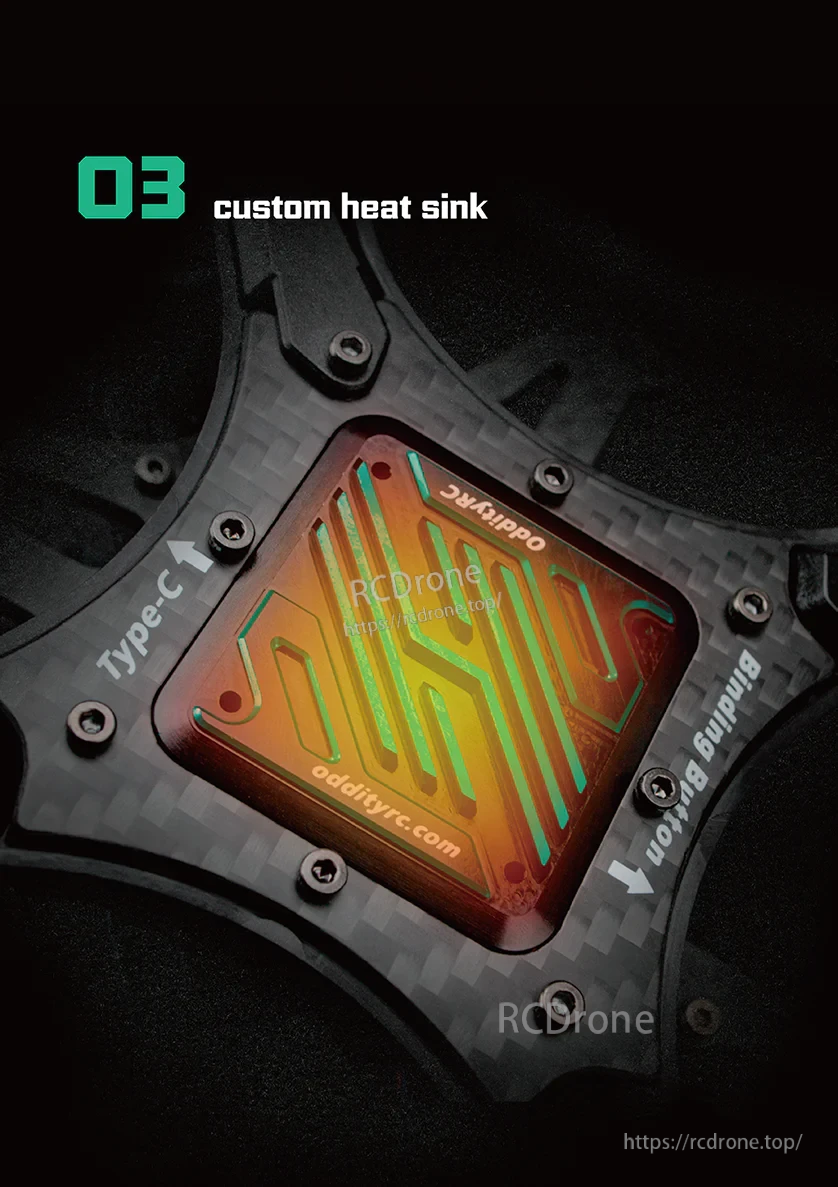

The DJI O3 version uses a dedicated heat sink layout and keeps the Type‑C access built into the frame.

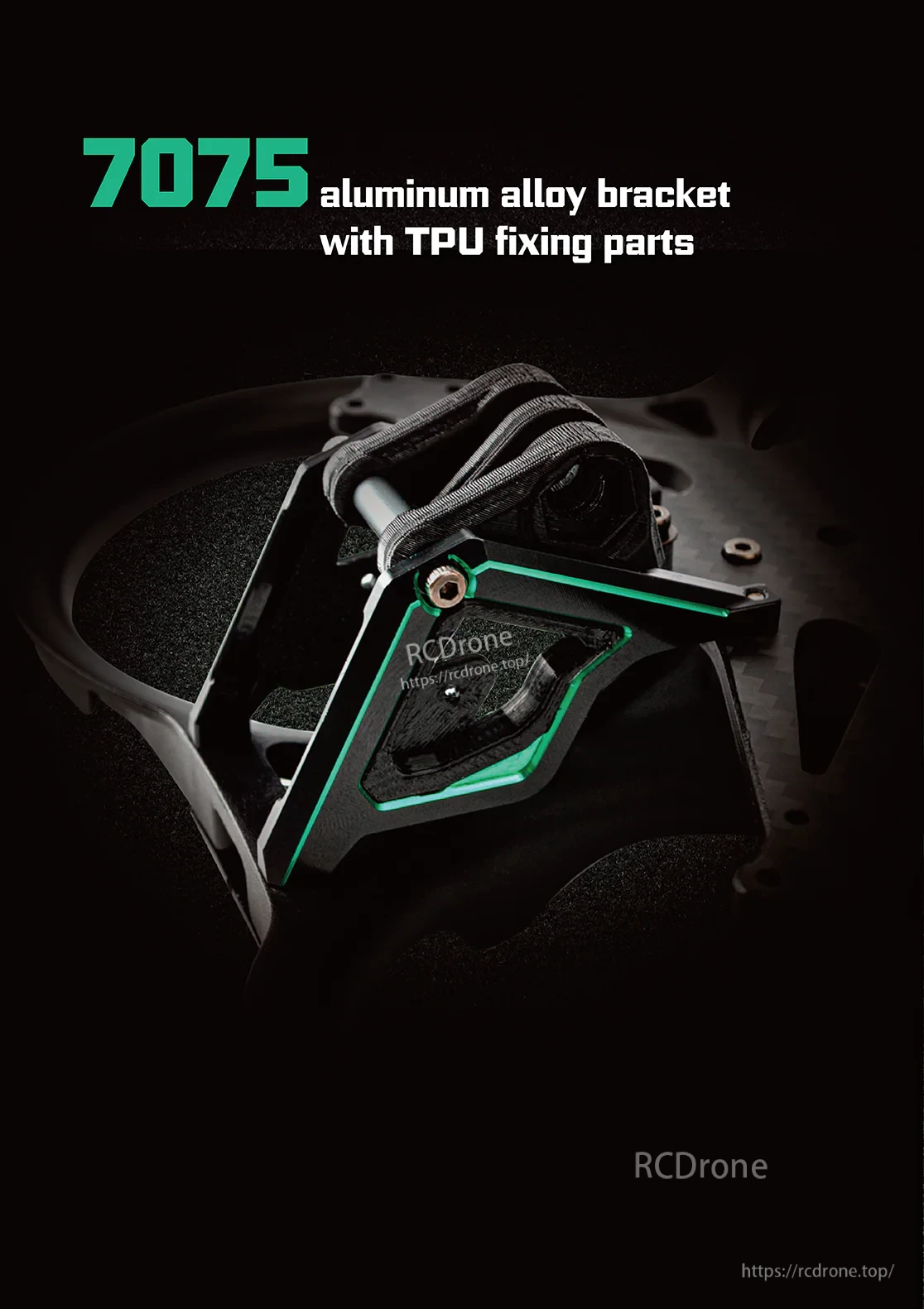

A 7075 aluminum bracket with TPU fixing parts helps keep the camera stack secure through impacts and vibration.

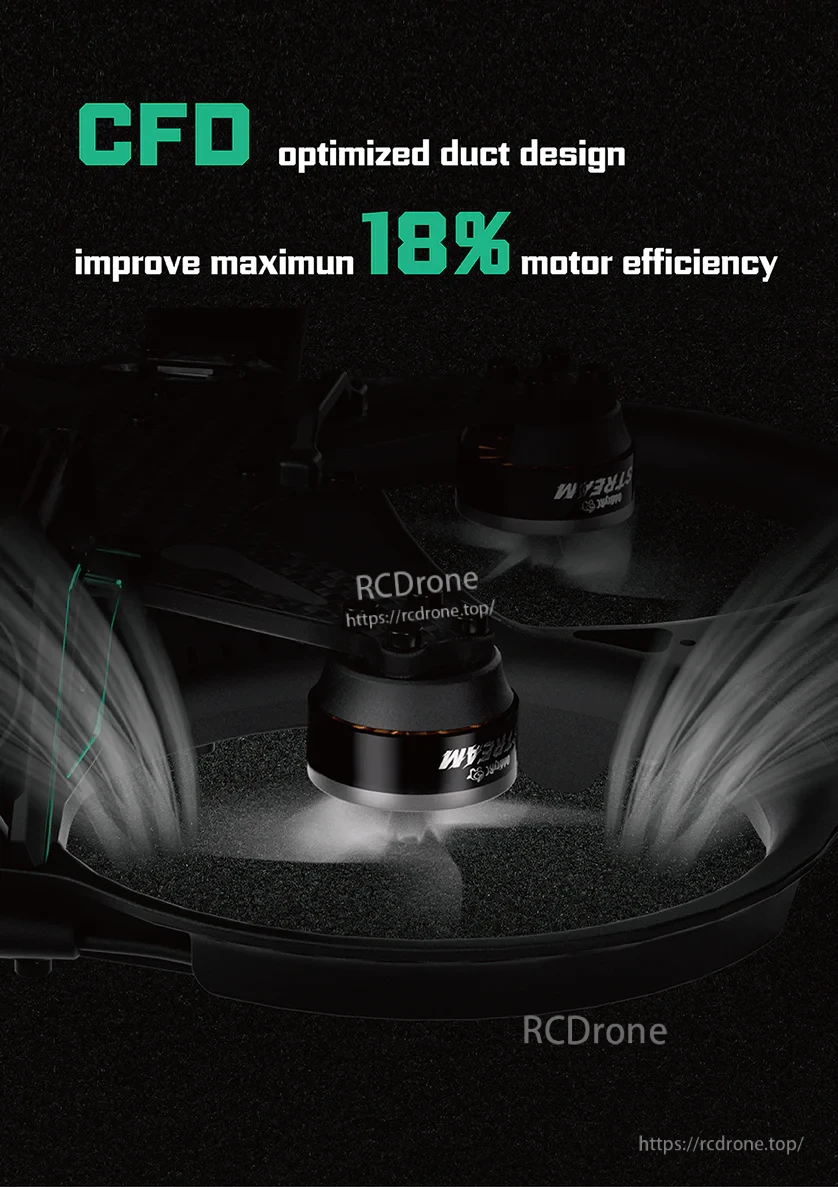

CFD-optimized ducts are designed to smooth airflow through the guards for more efficient motor loading.

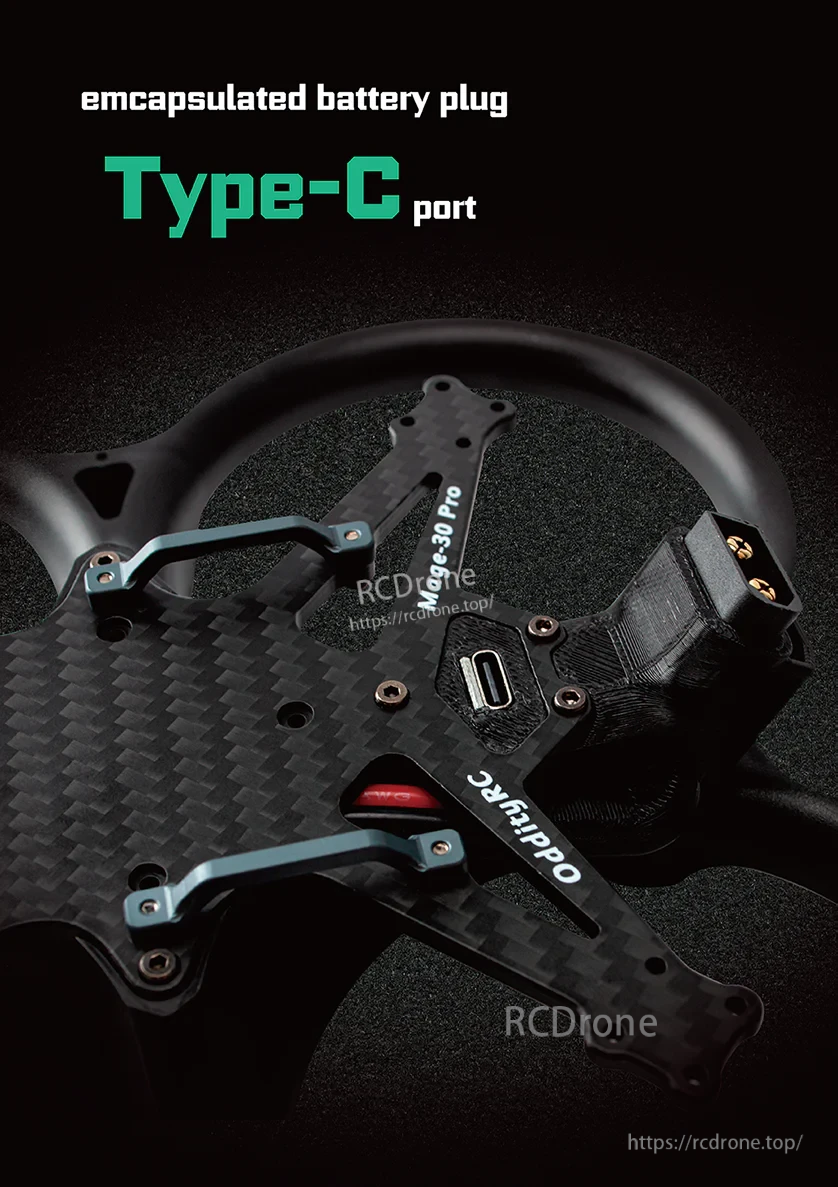

An encapsulated battery plug and integrated Type‑C port make plugging in and setup cleaner on tight builds.

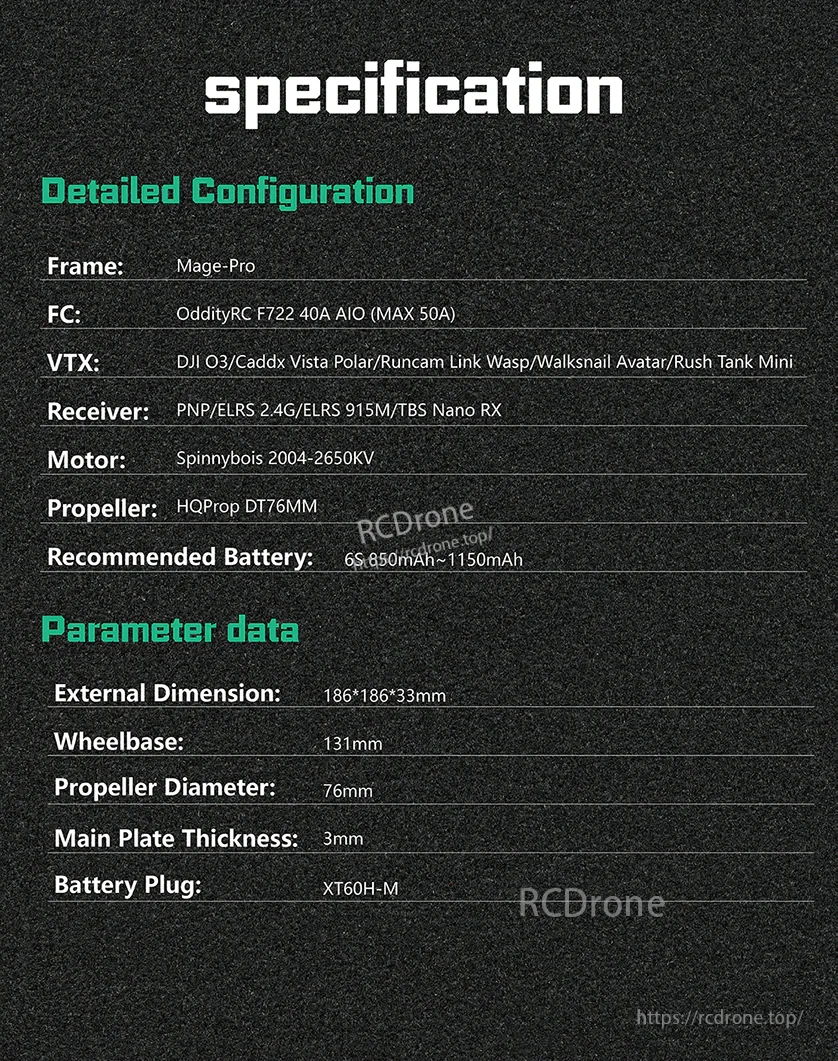

Quick reference specs and suggested electronics combinations for matching the right version to your build.

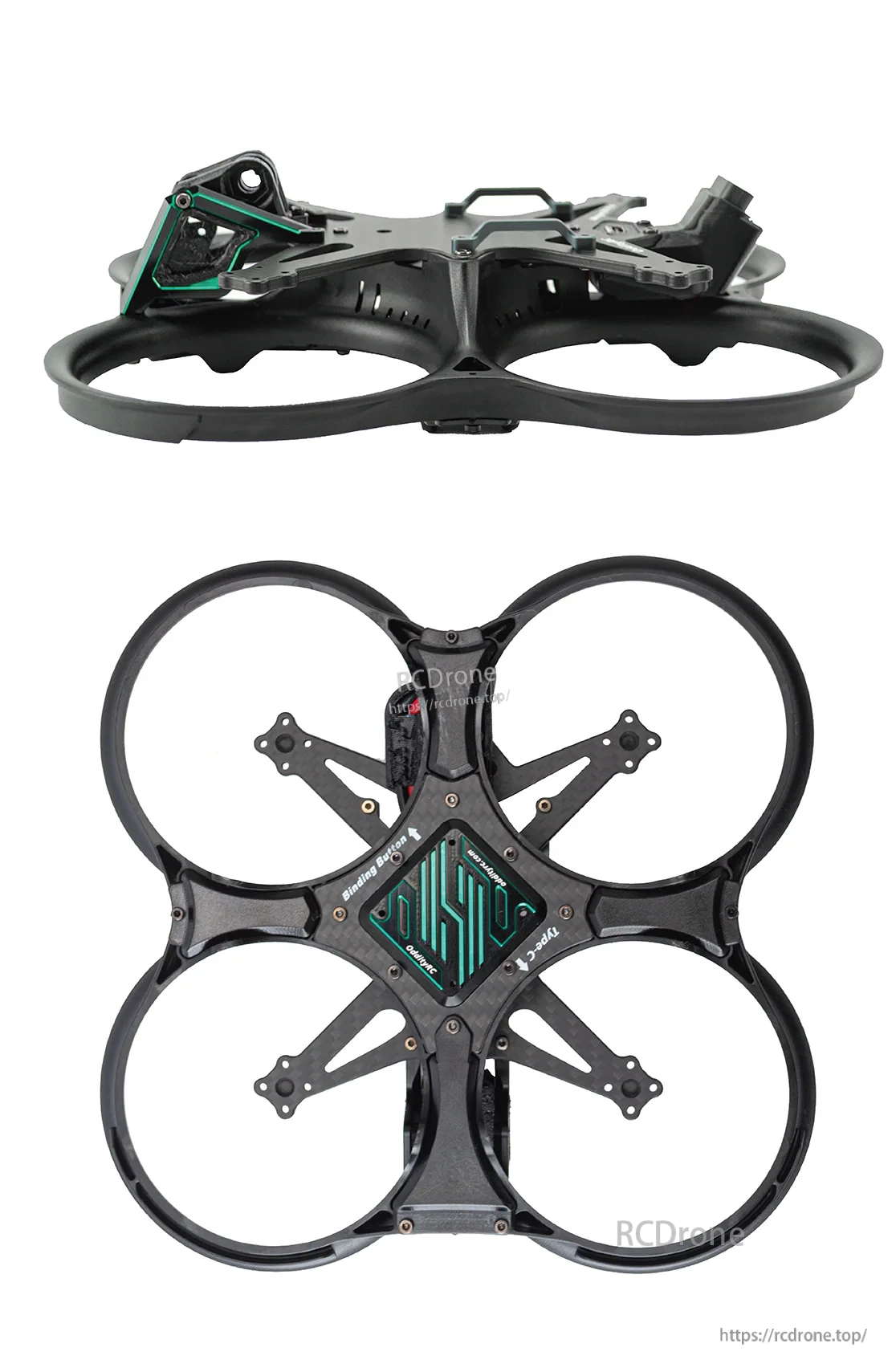

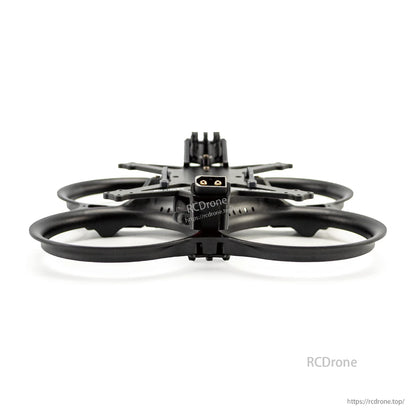

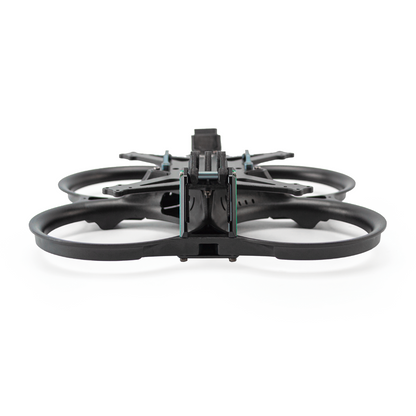

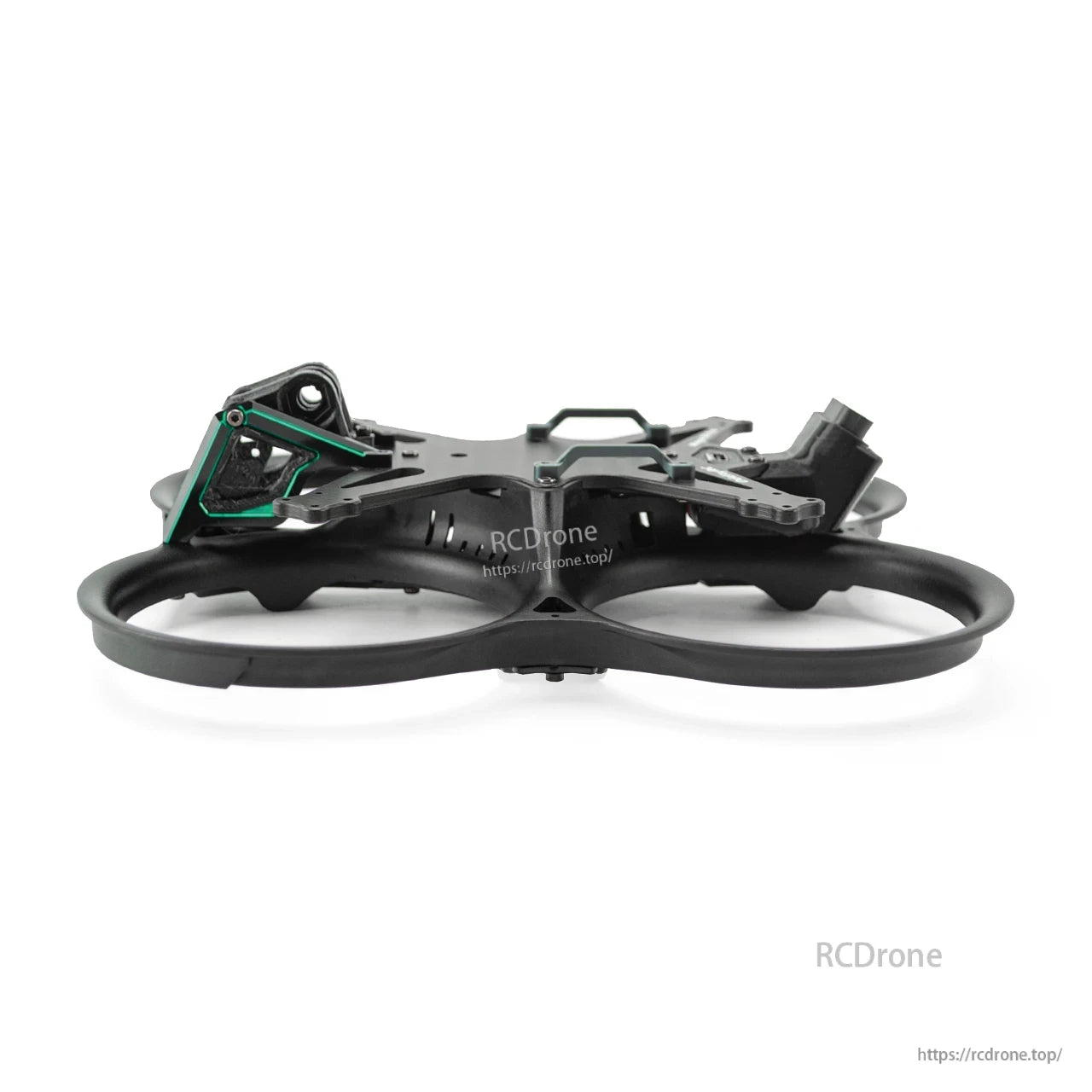

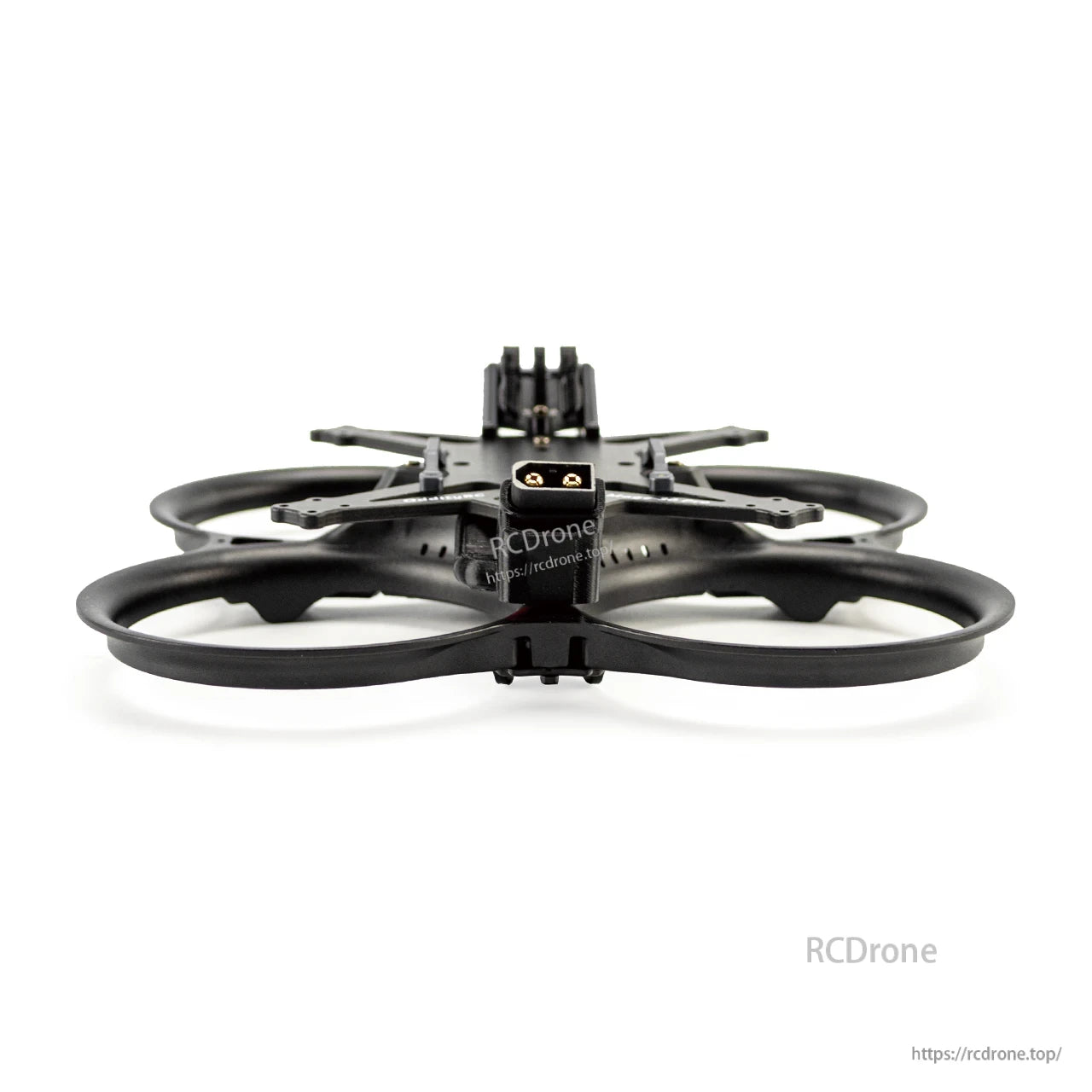

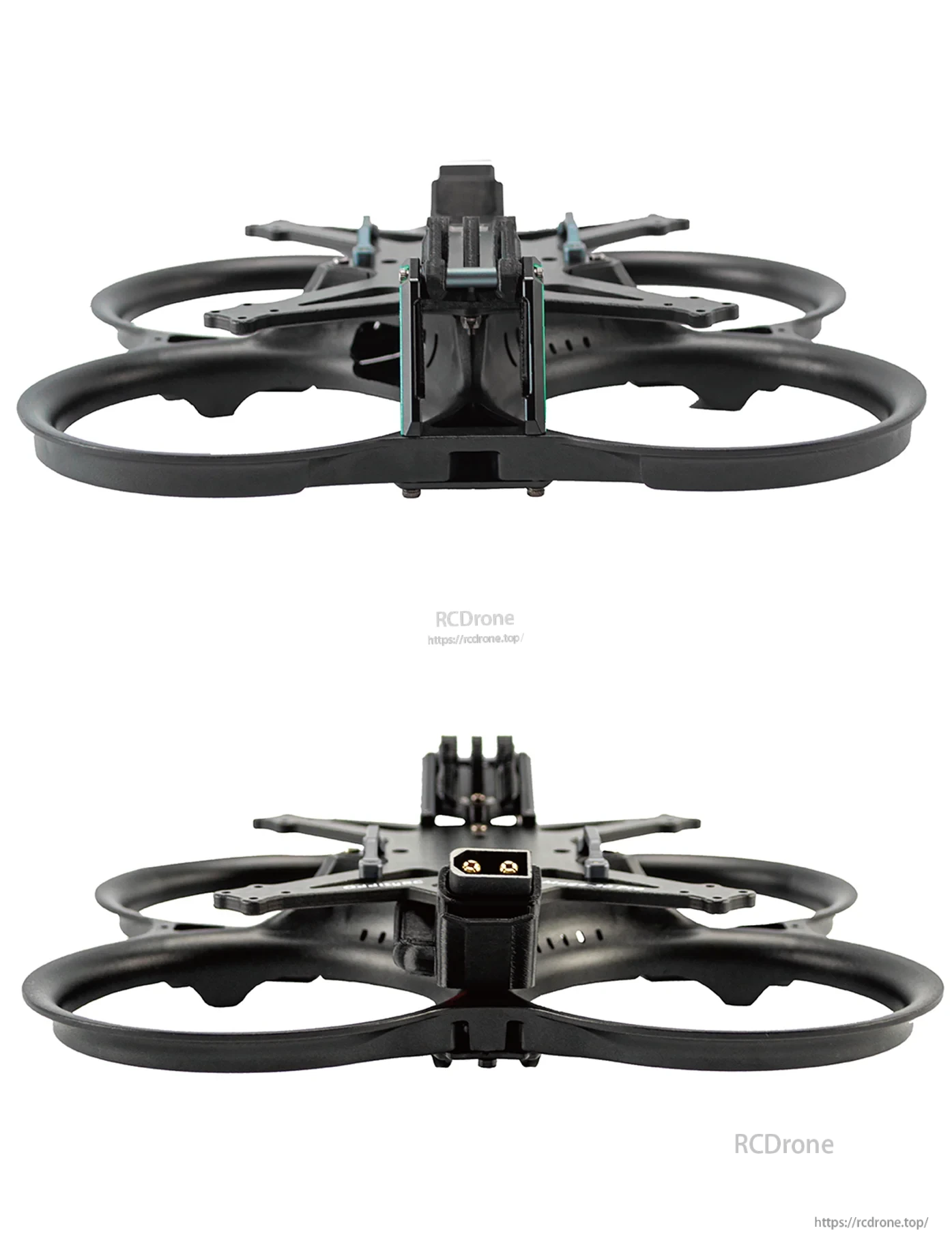

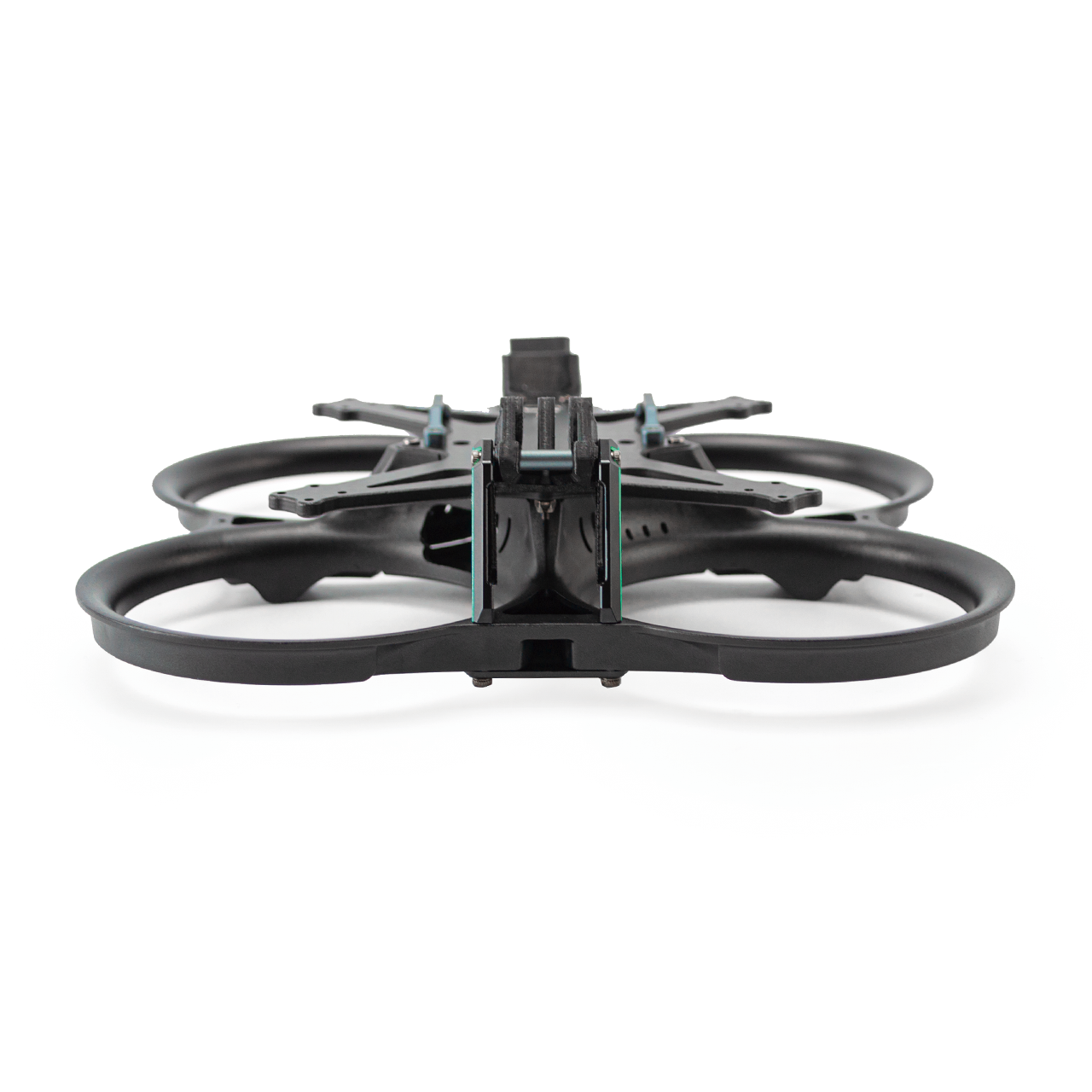

Front and rear profiles show the low stance and the protected rear section where wiring and connectors sit.

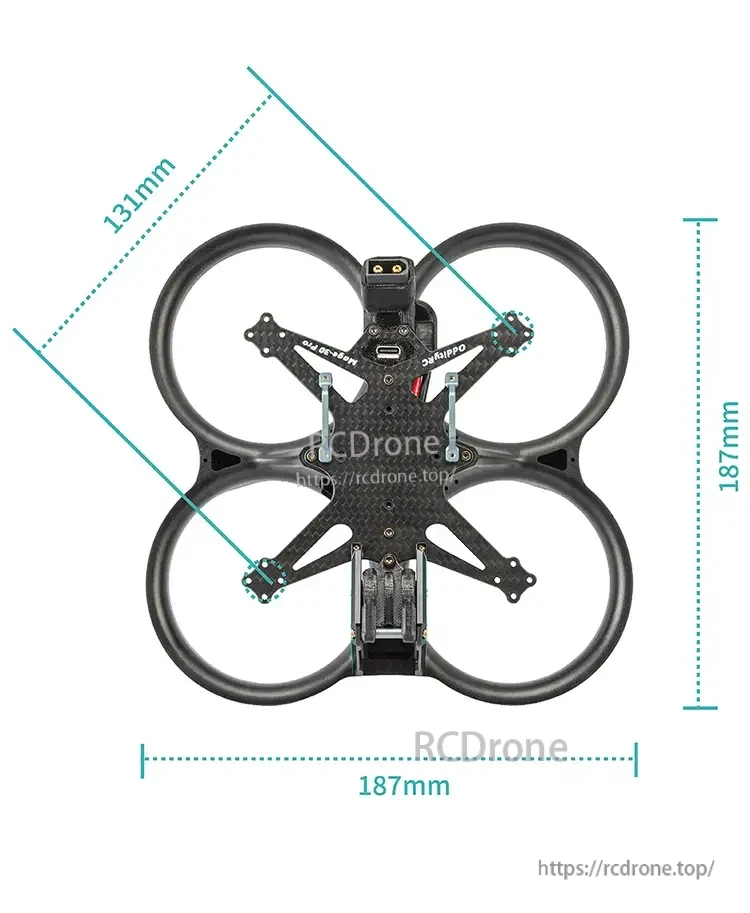

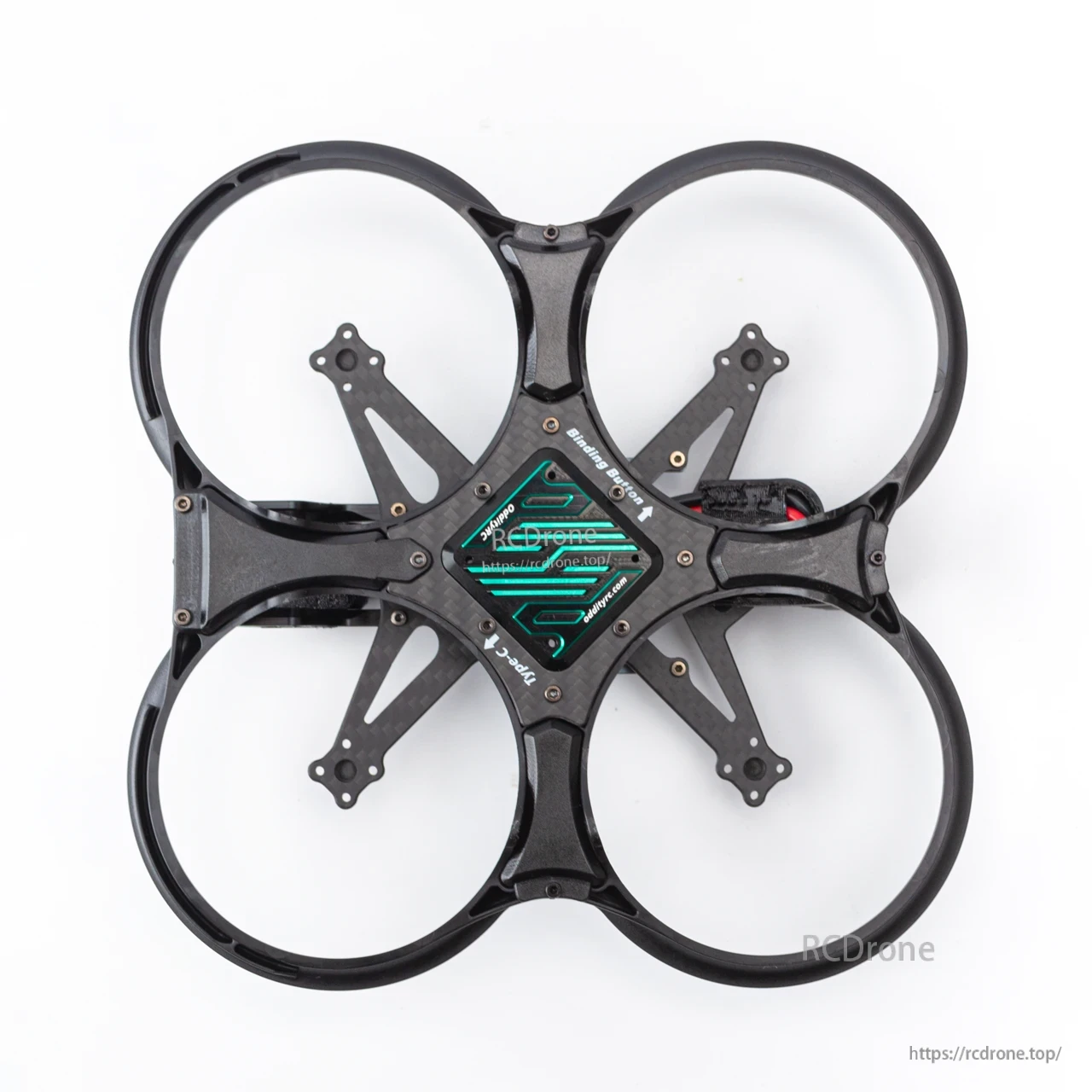

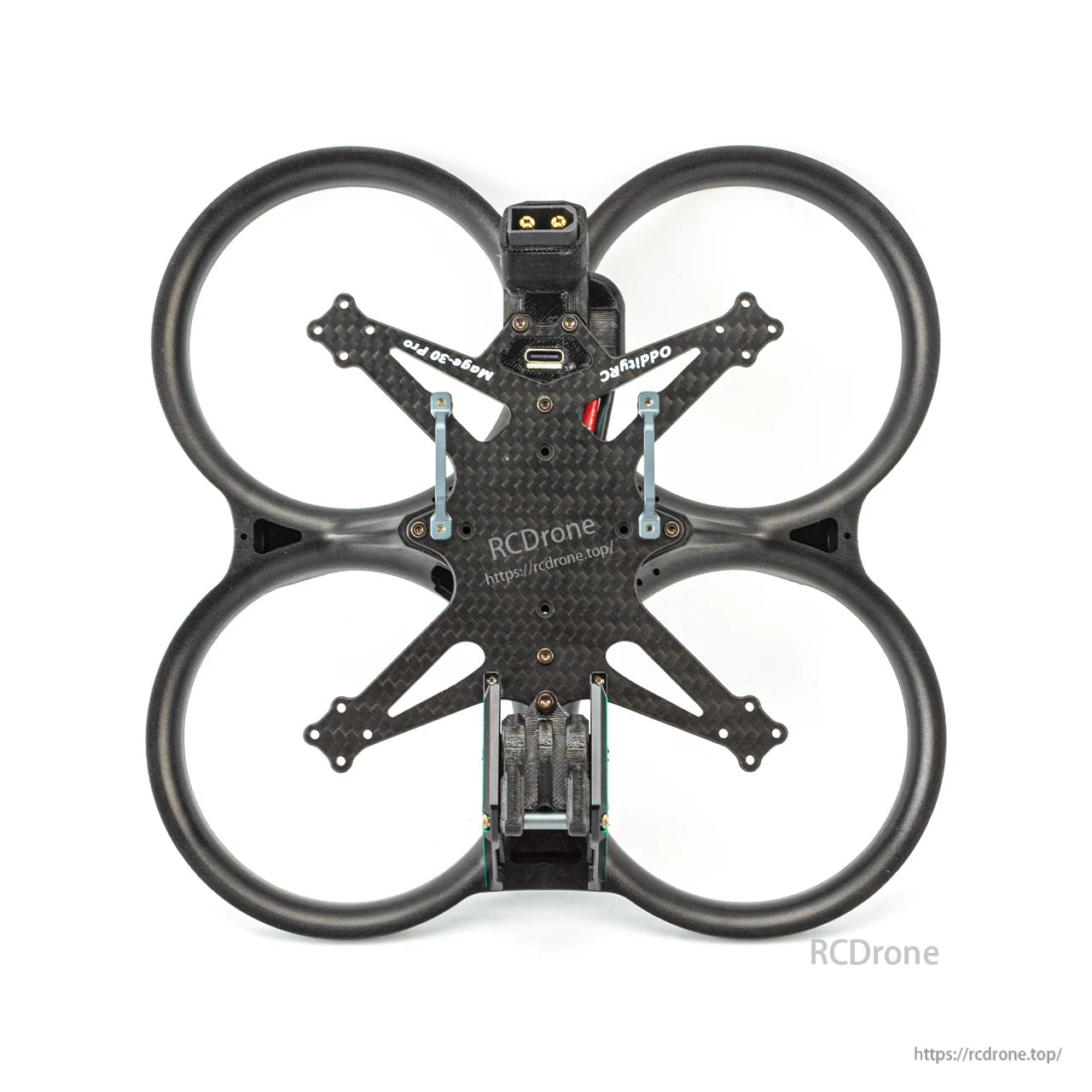

Overall footprint and wheelbase measurements help confirm fit for 76mm prop builds and component placement.

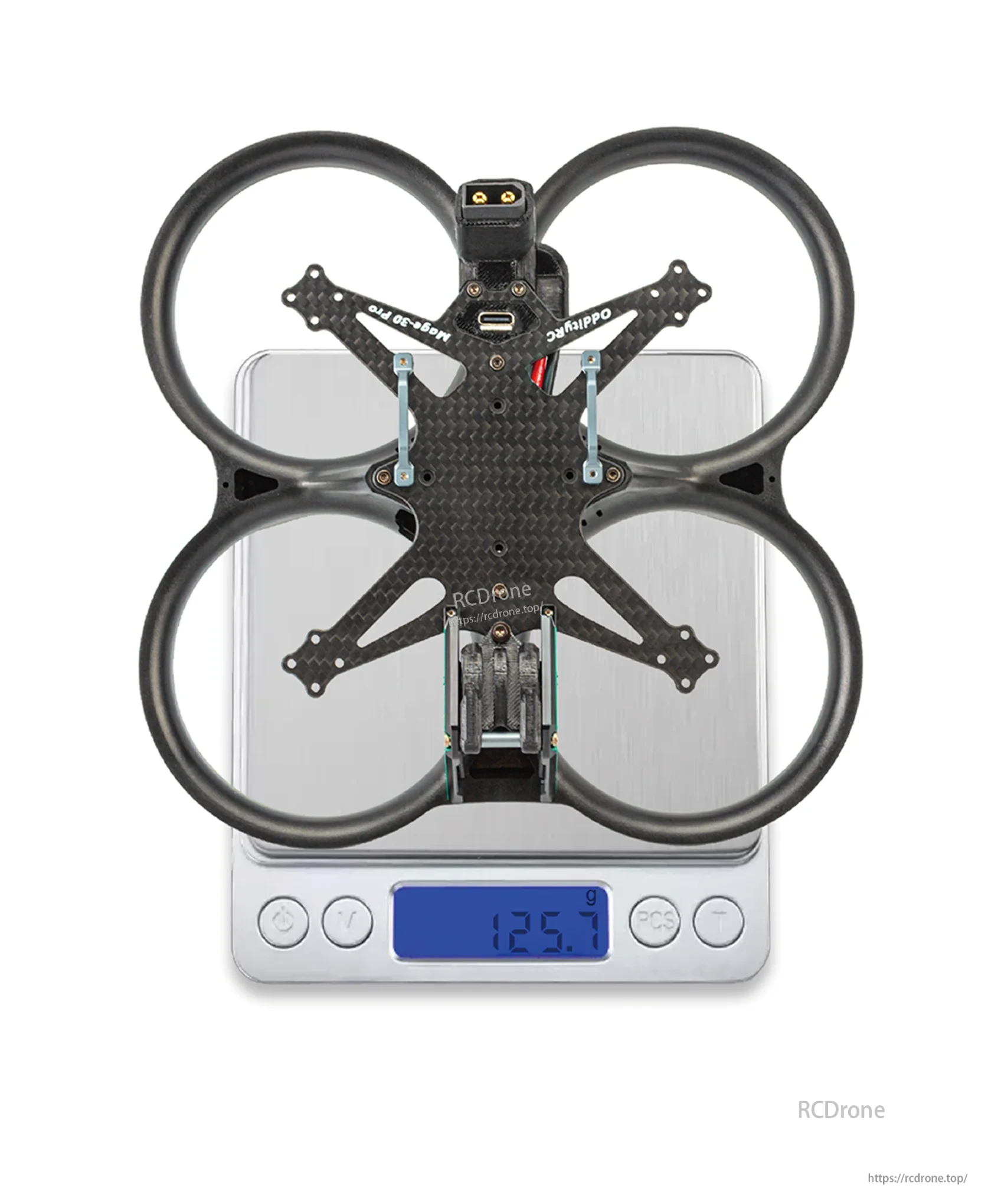

Displayed weight is 125.7g for the configured frame shown on the scale.

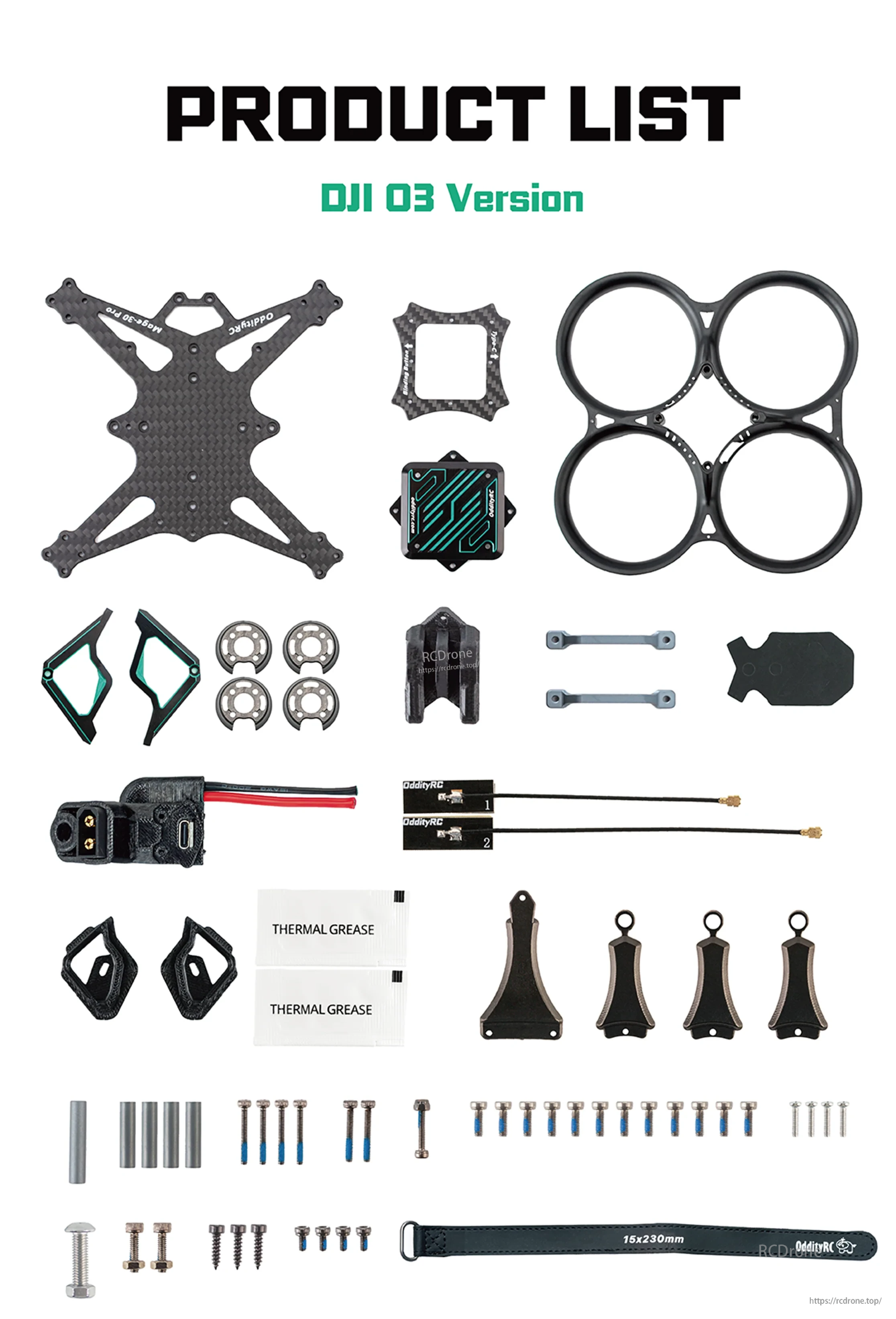

The DJI O3 kit includes the frame plates, ducts, mounting hardware, and the O3-specific accessory parts shown.

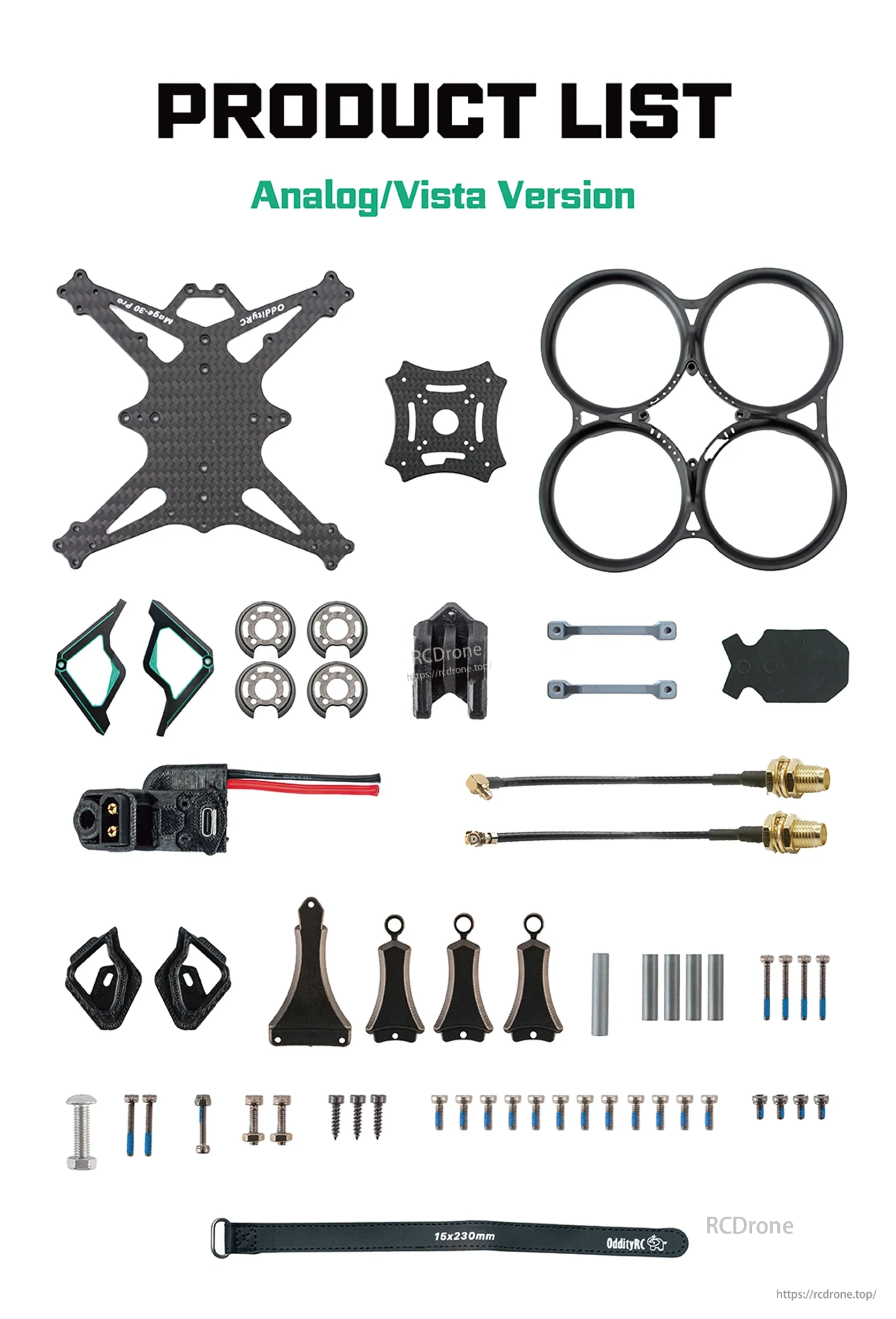

Analog/Vista kit contents differ to match those VTX ecosystems, with version-specific parts and cables included.
