MATEK Mateksys CRSF TO PWM CONVERTER, CRSF-PWM-6 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

CRSF-PWM-6


MATEK Mateksys CRSF TO PWM, Compatible with CRSF protocol receiver only 3 Bx PWM outputs (frequency 50-MATEK Mateksys CRSF TO PWM CONVERTER, CRMATEK Mateksys CRSF TO PWM, Dupont 2.54 pins are shipped unsoldered Receiver is not included in packageMATEK Mateksys CRSF TO PWM, 54 ESC SAV Power Ground Signal Ground 1 ESC ESC onboard BEC output

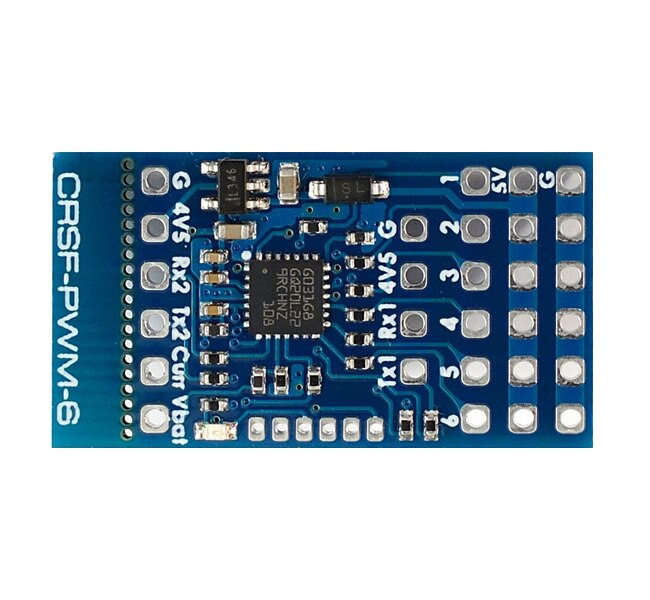

CRSF-PWM Converter, CRSF-PWM-6

  • Compatible with CRSF protocol receiver only

  • Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)

  • 6x PWM outputs

  • PWM frequency configurable (50Hz default, 100,160,330, 400Hz)

  • 2x UARTs (for Receiver and GPS)

  • Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats

  • 36V Max. battery voltage sense (1K:10K voltage divider built-in)

  • Compatible with external Current sensor (0~3.3V)

  • Vbat and Current sensor scale configurable

  • Failsafe value auto set

  • Firmware upgradeable

  • Rated voltage: 4~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr

  • No 5V regulator built-in, Servos must be powered via 5V pad by external 5V source.

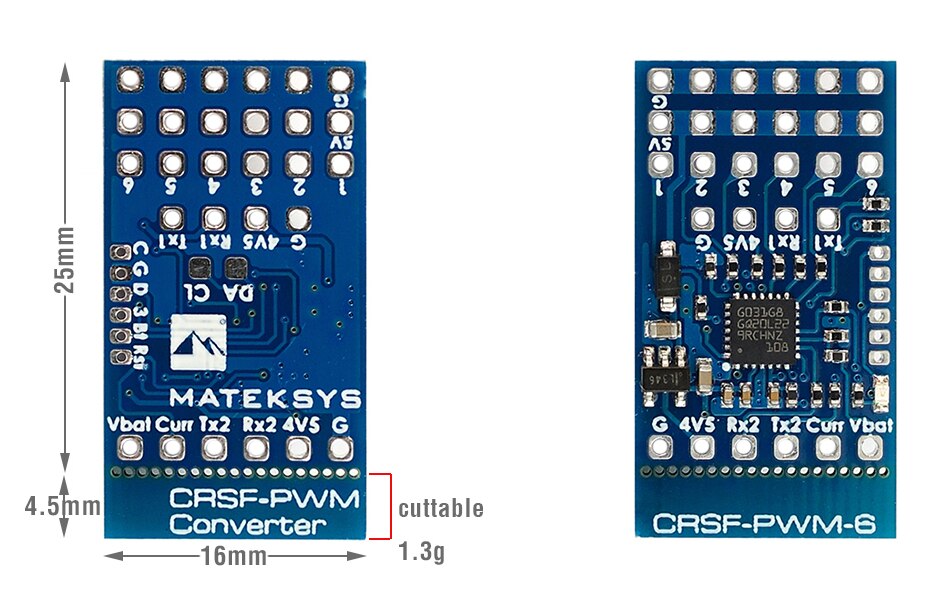

  • 25mm x 16mm, 1.3g

  • Packing: 1x CRSF-PWM-6, Dupont 2.54 pins
