MATEK ELRS-R24-D - Mateksys ELRS 2.4GHz receiver

MATEK ELRS-R24-D - Mateksys ELRS 2.4GHz receiver

MATEKSYS

$38.53 USD
$57.80 USD $38.53 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

129 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

MATEK ELRS-R24-D - Mateksys ELRS 2.4GHz receiver SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

EXPRESSLRS/ELRS 2.4GHZ RECEIVER

ELRS 2.4GHz receiver, ELRS-R24-D

MATEK ELRS-R24-D, ELRS-R24-D 2 ESP8285 , SX1280MATEK ELRS-R24-D - Mateksys ELMATEK ELRS-R24-D - Mateksys EL

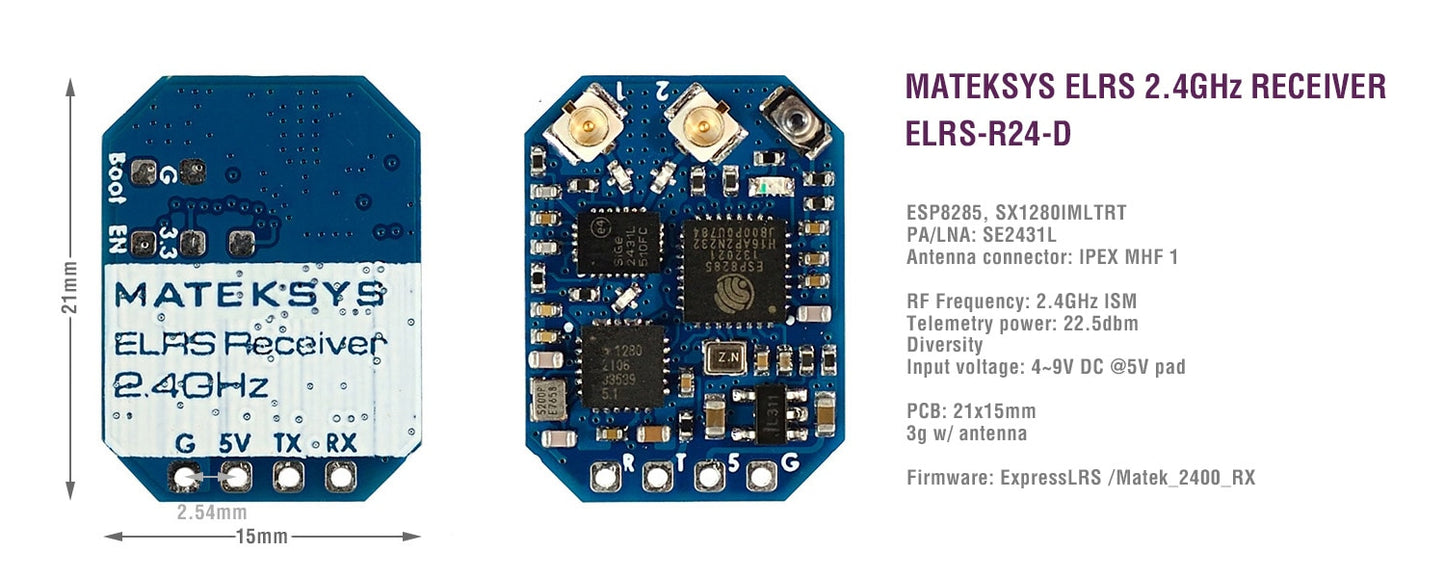

ELRS-R24-D Specifications

  • ESP8285, SX1280/1281IMLTRT

  • PA/LNA: SE2431L

  • Antenna connector: IPEX MHF 1

  • RF Frequency: 2.4GHz (2400~2480MHz)

  • Telemetry power: 22.5dbm~23dbm

  • SE2431L RX_gain: 12.5dB

  • Diversity (antenna-switching), default ANT2

  • Receiver protocol: CRSF

  • Input voltage: 4~9V DC @ 5V pad

  • Power dissipation:  40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)

  • PCB size: 21mm x 15mm

  • Weight: 3g w/ 2x antennas

  • Packing: 1x ELRS-R24-D,   2x IPEX MHF1 Antennas
