MATEK M10Q-5883 - Mateksys GPS & COMPASS MODULE  SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

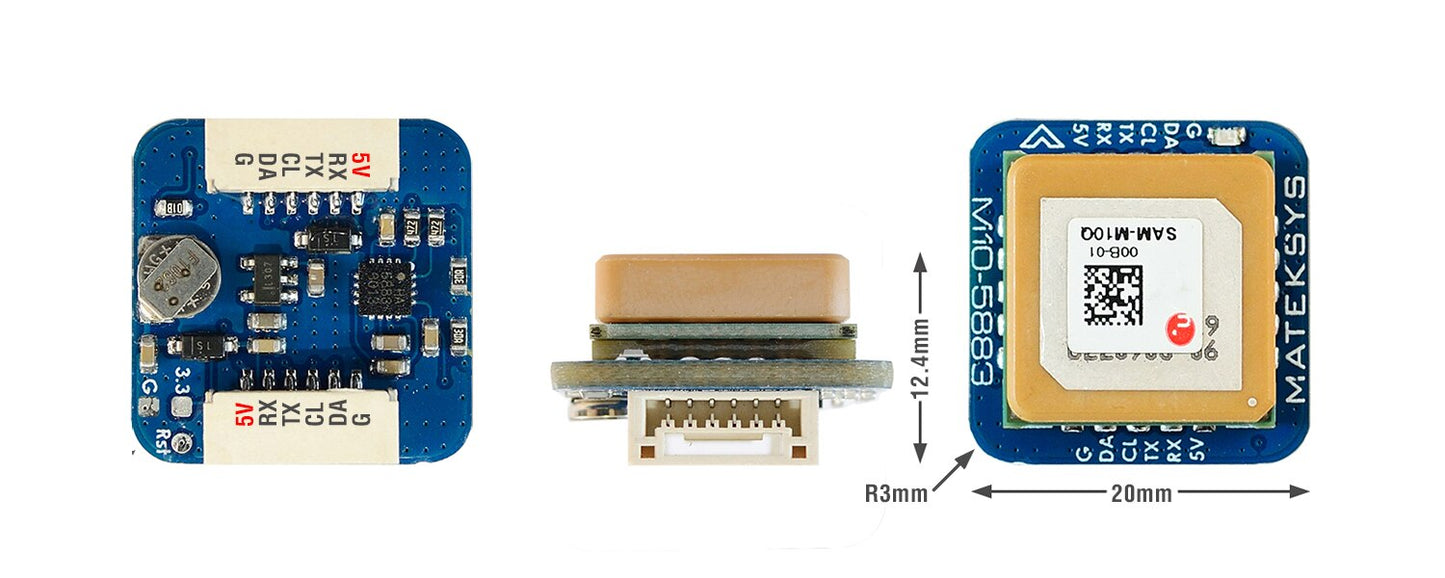

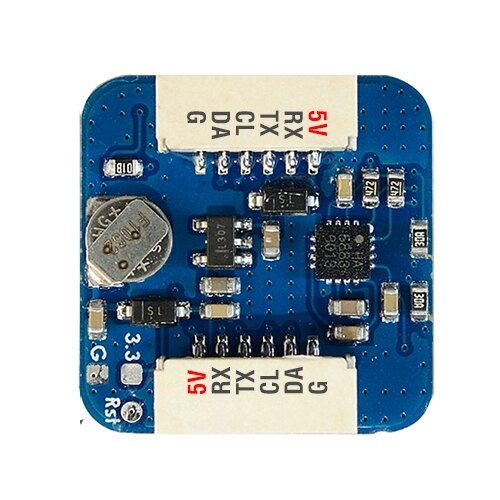

GNSS & COMPASS, M10Q-5883

• M10Q-5883 uses multi-constellation GNSS module powered by u-blox SAM-M10Q-00B.

• The SAM-M10Q features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. SAM-M10Q supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.

• The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.

• More details about the SAM-M10Q, pls check out u-blox SAM-M10Q page
