MATEK Mateksys HALL CURRENT SENSOR 150A SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

HALL CURRENT SENSOR 150A

Specifications

Hall effect current sensor

No voltage drop and heat on current sensor components

Offset and Sensitivity are calibrated in factory

Continuous current rating: 0~150A DC

Sensitivity: 20mV/A, INAV/BF scale = 200, ArduPilot BATT_AMP_PERVLT = 50

VBAT voltage sense: 0~69V, INAV scale = 2100, BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0

Power Consumption: 17mA

Voltage offset error at zero current : +-10mV

Curr output voltage error: 5%

Operating Temperatures: -30~80 °C

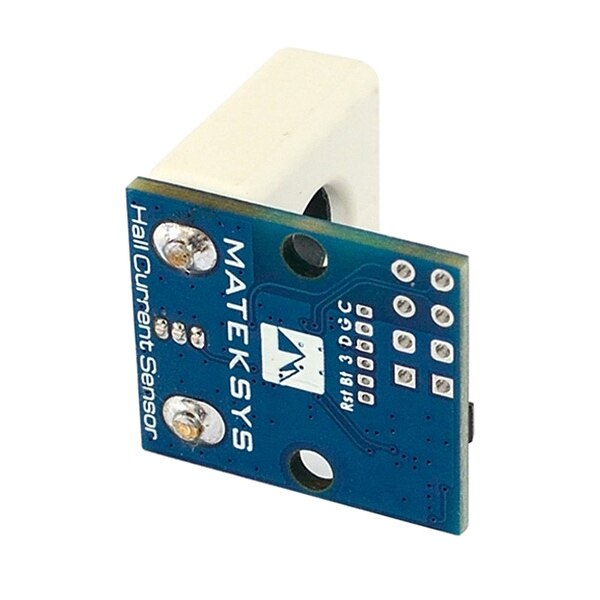

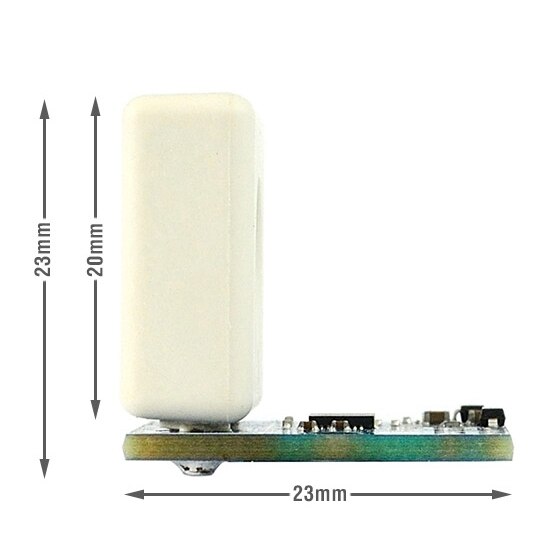

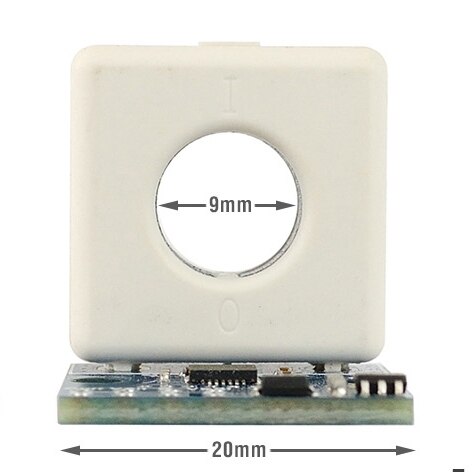

23 * 20* 23mm, 7g

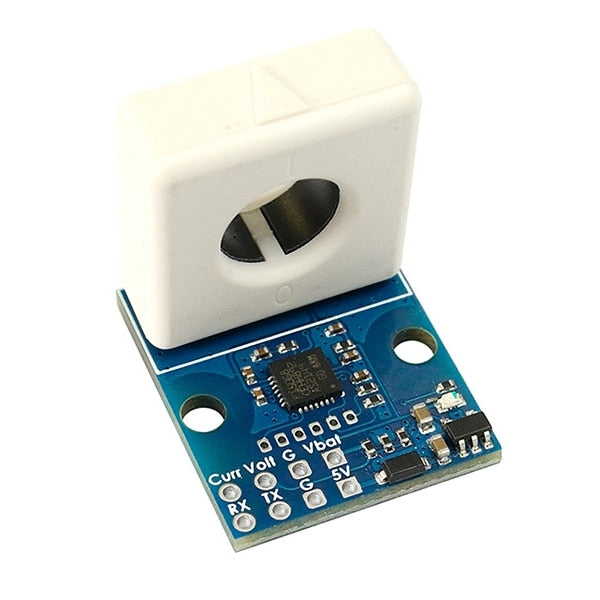

Soldering pads

• Vbat: for voltage sense, support 0~69V IN

• Volt: = 1/21 Vbat, 0~3.3V out

• Curr: Current signal, 0~3.3V out

• 5V: power supply for HCS-150A board, support 4~13V IN, 17mA

• G: GND

• TX/RX: for firmware update and configure (to be supported)

Tips

• mount Hall sensor far from iron and magnetic material
