MATEK Mateksys MICRO BEC 6-60V TO 5V9V12V-ADJ SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

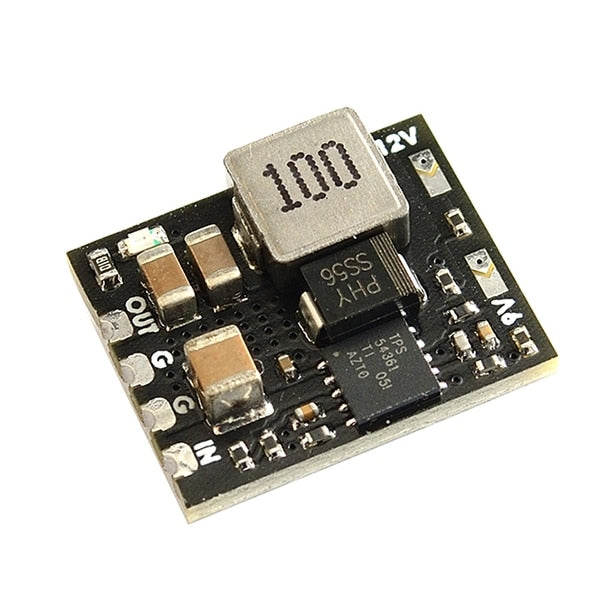

MICRO BEC 6-60V TO 5V/9V/12V-ADJ


MATEK Mateksys MICRO BEC 6-60V TO 5V9

  • Due to shortage of chips, the voltage regulator chip has been replaced with SOP-8 package.

  • PCB 1mm wider.

  • Identical performance as previous version.

MATEK Mateksys MICRO BEC 6-60V TO 5V9

  • Wide 6V to 60V Operating Input Range

  • Start-up Voltage >=6.7V

  • VOut 5V, 9V or 12V Adj. Default is 5V.

  • Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage

  • Continuous load current: Depends on input voltage and heat dissipation.


  		•

    INPUT: 6-60V,  Room Temperature. 22C,  without additional heat sink

    50V DC IN

    24V DC IN

    16V DC IN

    Output Ripple

    5V OUT

    1.8A cont.

    2.3A cont.

    2.8A cont.

    20mV

    3.5A Max.  2s/minute

    9V OUT

    1.5A cont.

    2.1A cont.

    2.6A cont.

    30mV

    3A Max.  2s/minute

    12V OUT

    1.3A cont.

    2A cont.

    2.5A cont.

    30mV

    3A Max.  2s/minute

  • Standby current: <5mA

  • OCP Protection and Hiccup

  • Thermal Shutdown

  • Output Short-circuit tolerant (3 seconds/minute)

  • No protection for reversed input polarity

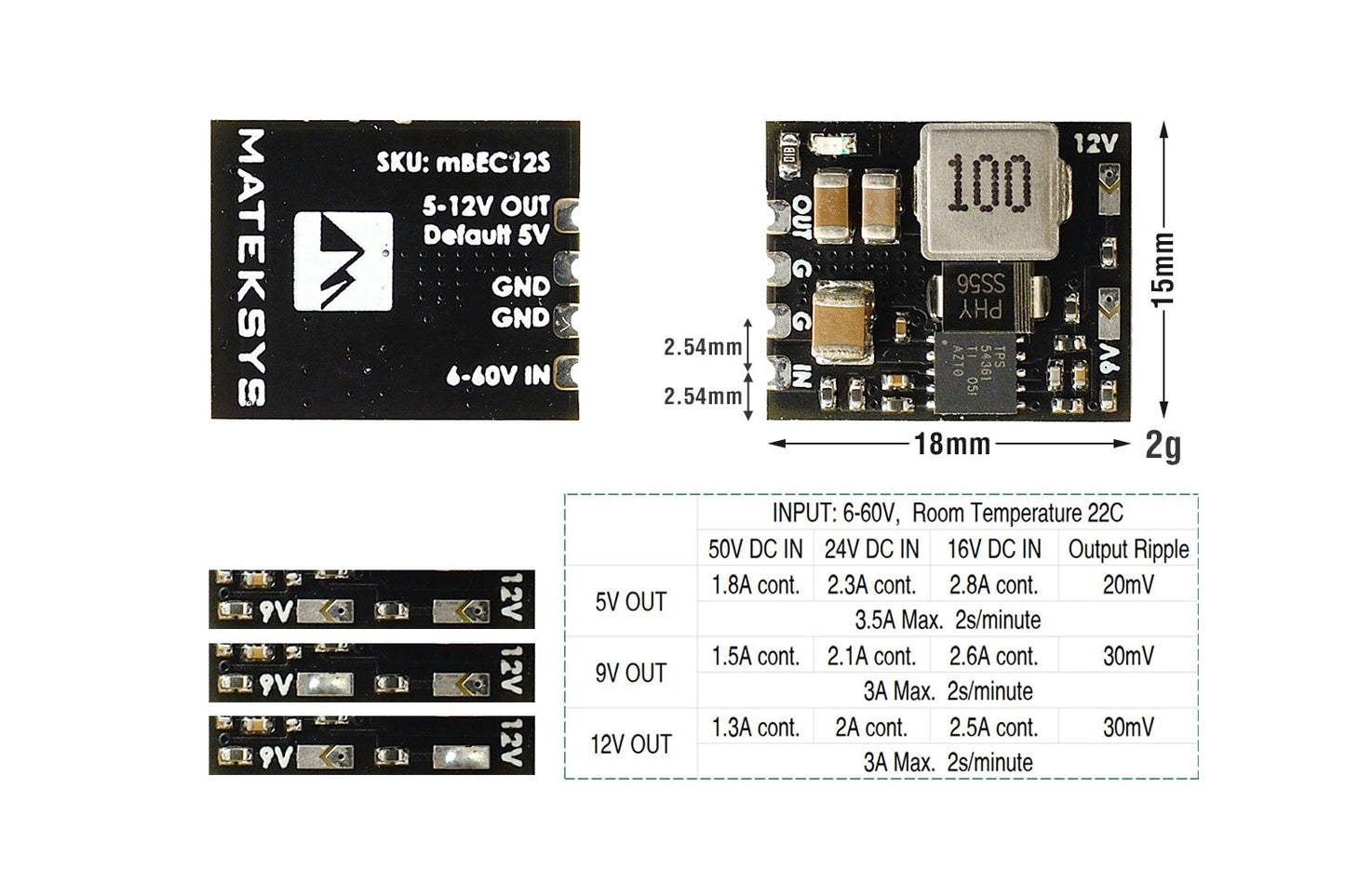

  • Pins distance: 2.54mm

  • Size & Weight: 18×15(16)x4.5mm, 2g

  • Packing: 1pc/package
