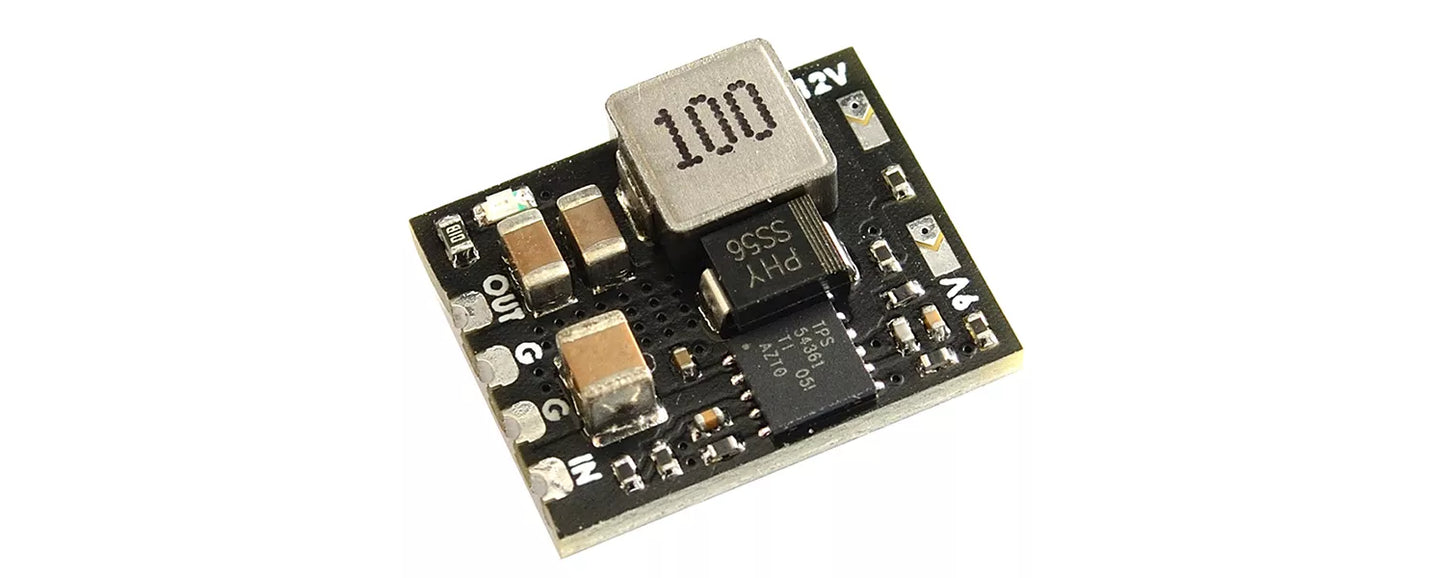

Matek System Mateksys MICRO BEC12S 6-60V TO 5V/9V/12V-ADJ FPV racing drone RC accessories parts

Matek System Mateksys MICRO BEC12S 6-60V TO 5V/9V/12V-ADJ FPV racing drone RC accessories parts

MATEK

Regular price $11.80 USD
Regular price $17.71 USD Sale price $11.80 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

51 orders in last 90 days

Type

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Matek System Mateksys MICRO BEC12S SPECIFICATIONS

Origin: Mainland China

Material: Plastic

RC Parts & Accs: MICRO BEC

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: MICRO BEC

Remote Control Peripherals/Devices: MICRO BEC

Model Number: Matek System MICRO BEC

Four-wheel Drive Attributes: MICRO BEC


  • Wide 6V to 60V Operating Input Range

  • Start-up Voltage >=6.7V

  • VOut 5V, 9V or 12V Adj. Default is 5V.

  • Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage

  • Continuous load current: Depends on input voltage and heat dissipation.

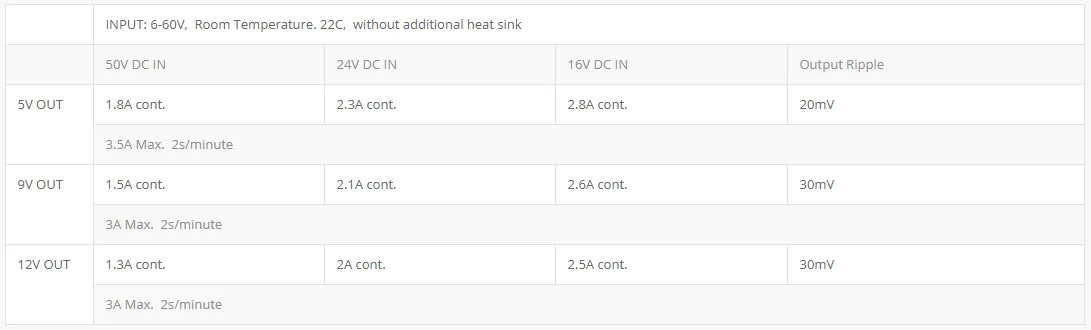

  • INPUT: 6-60V,  Room Temperature. 22C,  without additional heat sink


    50V DC IN

    24V DC IN

    16V DC IN

    Output Ripple

    5V OUT

    1.8A cont.

    2.3A cont.

    2.8A cont.

    20mV

    3.5A Max.  2s/minute

    9V OUT

    1.5A cont.

    2.1A cont.

    2.6A cont.

    30mV

    3A Max.  2s/minute

    12V OUT

    1.3A cont.

    2A cont.

    2.5A cont.

    30mV

    3A Max.  2s/minute


  • Standby current: <5mA

  • OCP Protection and Hiccup

  • Thermal Shutdown

  • Output Short-circuit tolerant (3 seconds/minute)

  • No protection for reversed input polarity

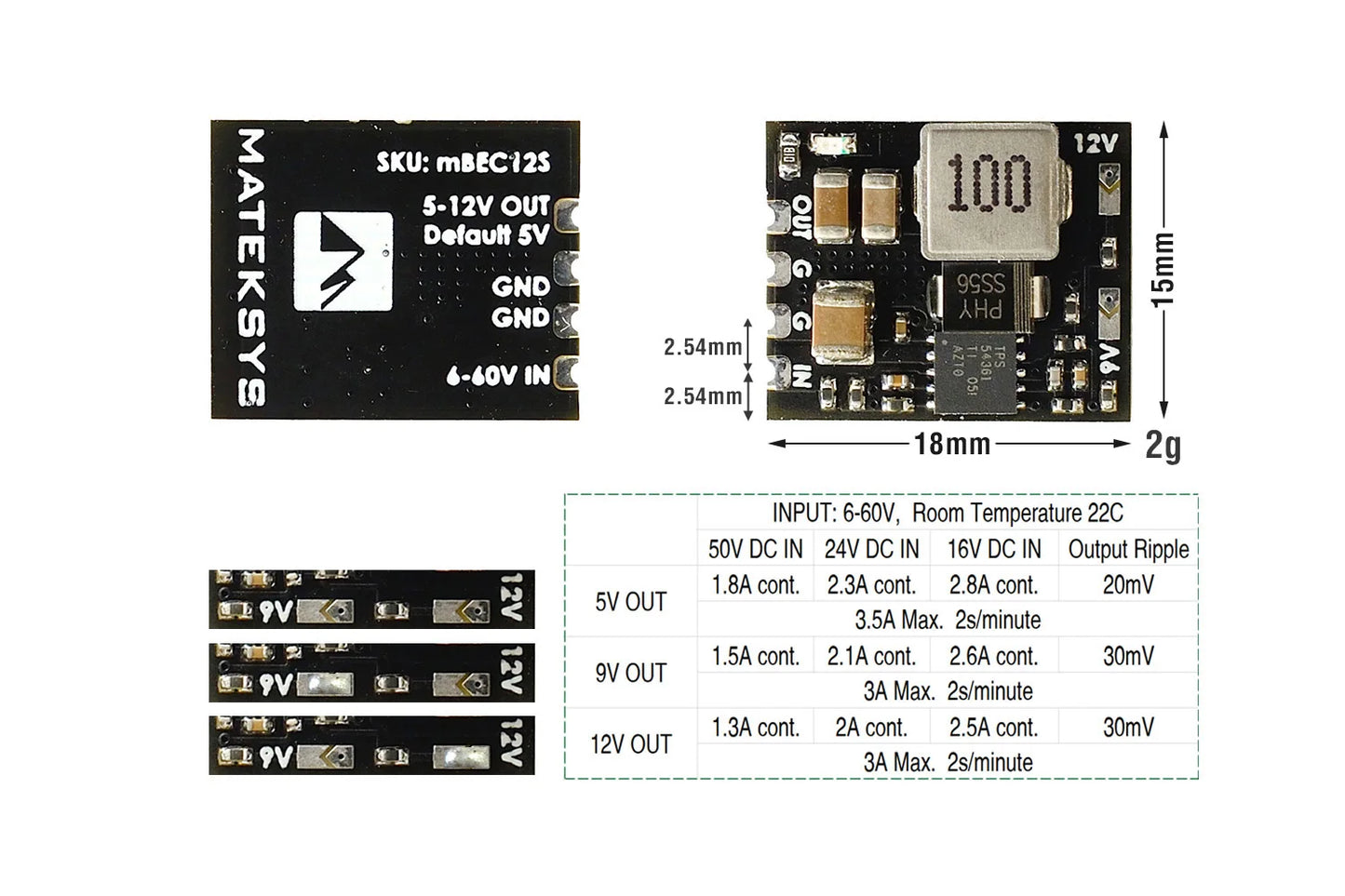

  • Pins distance: 2.54mm

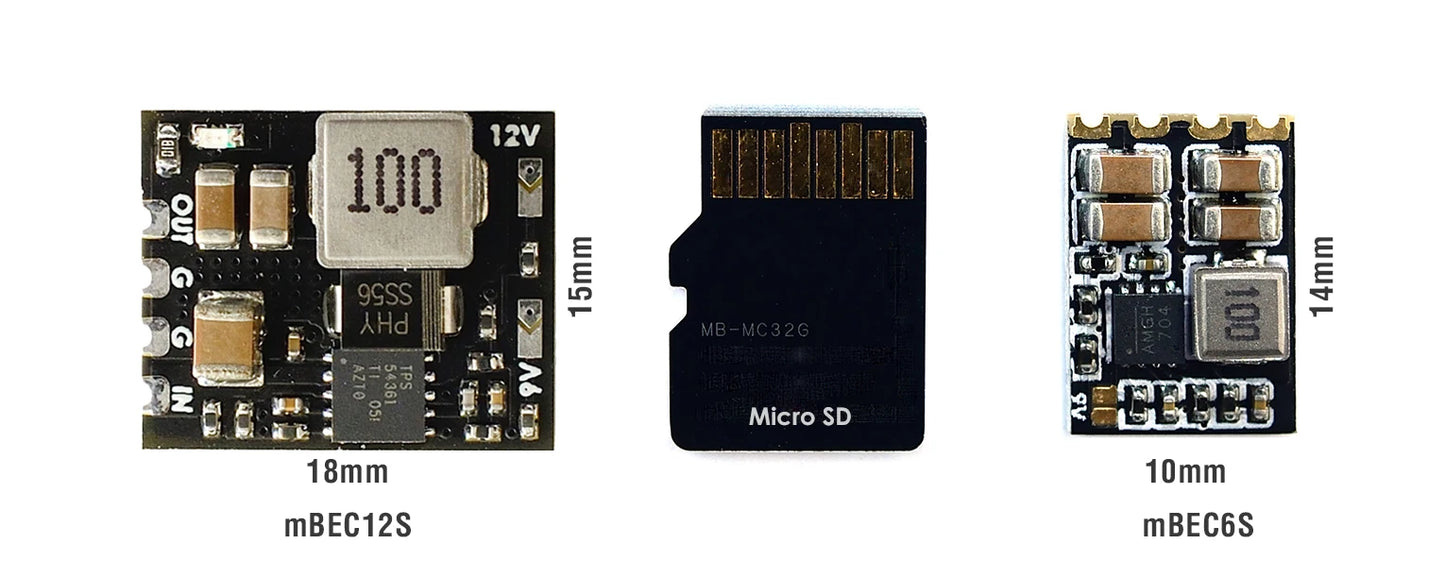

  • Size & Weight: 18x15x4.5mm, 2g

  • Packing: 1pc/package
