MATEK Mateksys CRSF TO PWM CONVERTER, CRSF-PWM-C SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y,14+y,3-6y,6-12y,0-3y

Origin: Mainland China

Material: Composite Material

Brand Name: MATEKSYS

CRSF-PWM-C

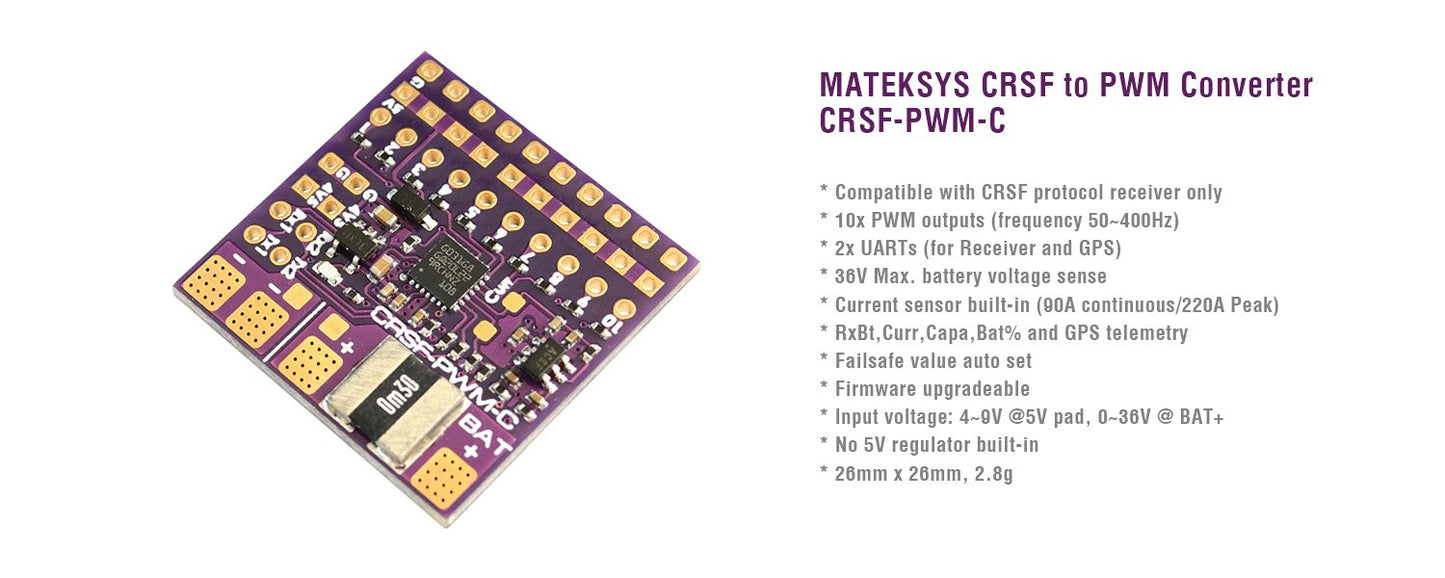

MATEKSYS CRSF to PWM Converter only 1Ox PWM outputs (frequency 50-400Hz) 2x UARTs (for Receiver and GPS) 2 36V Max. battery voltage sense

Jo Go3168 1 2 RRcAtzz 108 MATEKSYs CFSRPMI 8' CASF-PWM BAT Converter Current 3 Sensor 26mm- 2.8g

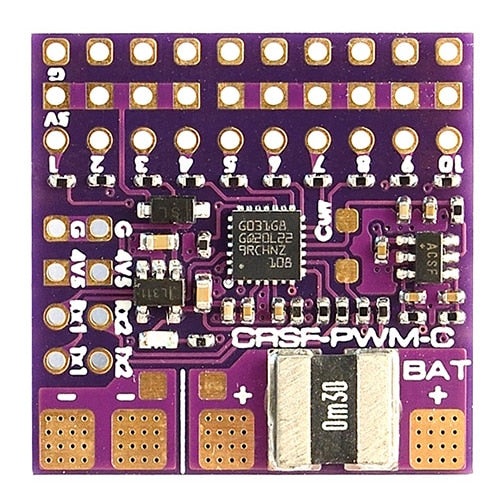

CRSF-PWM Converter, CRSF-PWM-C

• Compatible with CRSF protocol receiver only

• Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)

• 10x PWM outputs

• PWM frequency configurable (50Hz default, 100,160,330, 400Hz)

• 2x UARTs (for Receiver and GPS)

• Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats

• 36V Max. battery voltage sense (1K:10K voltage divider built-in)

• Current sensor built-in (90A continuous /220A Peak),  current scale = 150 by default

• Vbat and Current sensor scale configurable

• Failsafe value auto set

• Firmware upgradeable

• Rated voltage: 4~9V @5V pad, 0~36V @BAT+

• No 5V regulator built-in, Servos must be powered via 5V pad by external 5V source.

• 26mm x 26mm, 2.8g

• Packing: 1x CRSF-PWM-C,  1x low ESR capacitor,  Dupont 2.54 pins
