MFDLink TS4047 - 50KM Long Range System Rlink 433Mhz 16CH 1W RC UHF System Transmitter w/8 Channel Receiver TX+RX Set For fpv drone

MFDLink TS4047 - 50KM Long Range System Rlink 433Mhz 16CH 1W RC UHF System Transmitter w/8 Channel Receiver TX+RX Set For fpv drone

MFD

Regular price $187.09 USD
Regular price $261.93 USD Sale price $187.09 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 10-20 days to arrive.

Express Delivery: 6-14 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

MFDLink TS4047 SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Radio Systems

Quantity: 1 pcs

Origin: Mainland China

Model Number: TS4047

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

50KM Long Range MFDLink Rlink 433Mhz 16CH 1W FPV UHF System Transmitter w/8 Channel Receiver TX+RX Set

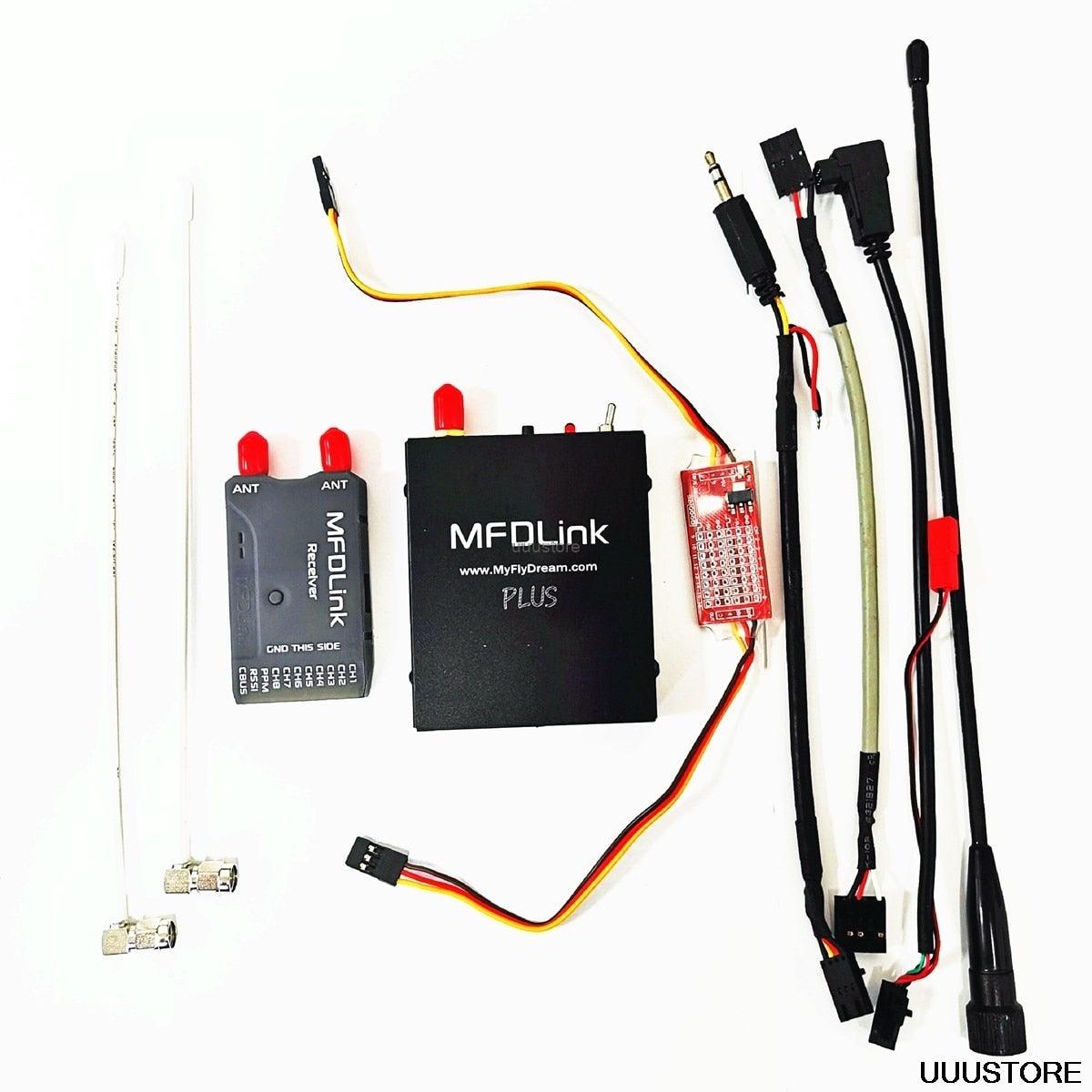

Package include

1 x TX
1 X TX antenna
1 x RX
2 x RX antennas
3 x data wires
Remark:The new version is update the Transmitter's Shell,and It Add a transfer module
if you have other questions,Please connect with us.

Description

- The first UHF solution support 16-chan perfectly, proven with Taranis X9D and Jeti DC16. Based on the latest RF solution,super high sensitivity as -115dBm. Proven robust super fast frequency hopping algorithm,combined with Unique ID for every module(RAFHSS),ensure the excellent interference-immunity capacity. Support nearly all radios in the market from 2 channels to 18 channels if there is a trainer port included.Low and high power mode switchable(400mw and 800mw)

- Failsafe set in the Tx side by simply pressing one button. Support both 2-axis and 3-axis head-tracker directly, and randomly mapping the tracking channel among the 16 channels.
- Support 2 PPM source input separately and randomly mapping
- Support 1 Tx to multiple Rxs and multiple Txs to 1 Rx.
- Frequency band configurable among 410-510Mhz(default 431-441Mhz). Micro USB port included for configuration and firmware update, no need extra flash tools, no need any driver installed, support all OS systems,supper easy to use. EXT port for extension, support Futaba Sbus and Spektrum/JR Satellite port and plan to support Joystick control, etc. Dual-direction communication is ready. Rich audio warnings for low voltage, wrong PPM connection or input, power switch, failsafe setting, binding, etc. Custom brushed metal case, well shielded and good heat dissipation, the lightest weight(64g only) make it easy to set up to your radio and won't affect the COG.
- Diversity receiver with dual LED indicators, greatly improve performance.
- CPPM output in separated channel in the Rx side.
- RSSI output(analog buffered) in separated channel in the Rx side.
- Can-bus interface included in the Rx side for extension.
- Custom antennas with low VSWR for best performance.
- Different receivers to choose for different applications Fully tested with Futaba, Spektrum/JR, Turnigy/Flysky/imax 9x2,Frsky Taranis,Jeti,TDF, walkera,etc.

Specifications:
Transmitter:
- Size:73*65*15mm
- Weight:64g
- Working voltage:7-16v
- Current:180ma12v,low power mode;360ma12v,high power mode


Receiver:
- Size:45*30*6mm
- Weight:16g
- Voltage:4-6v
- Current:75ma5V
