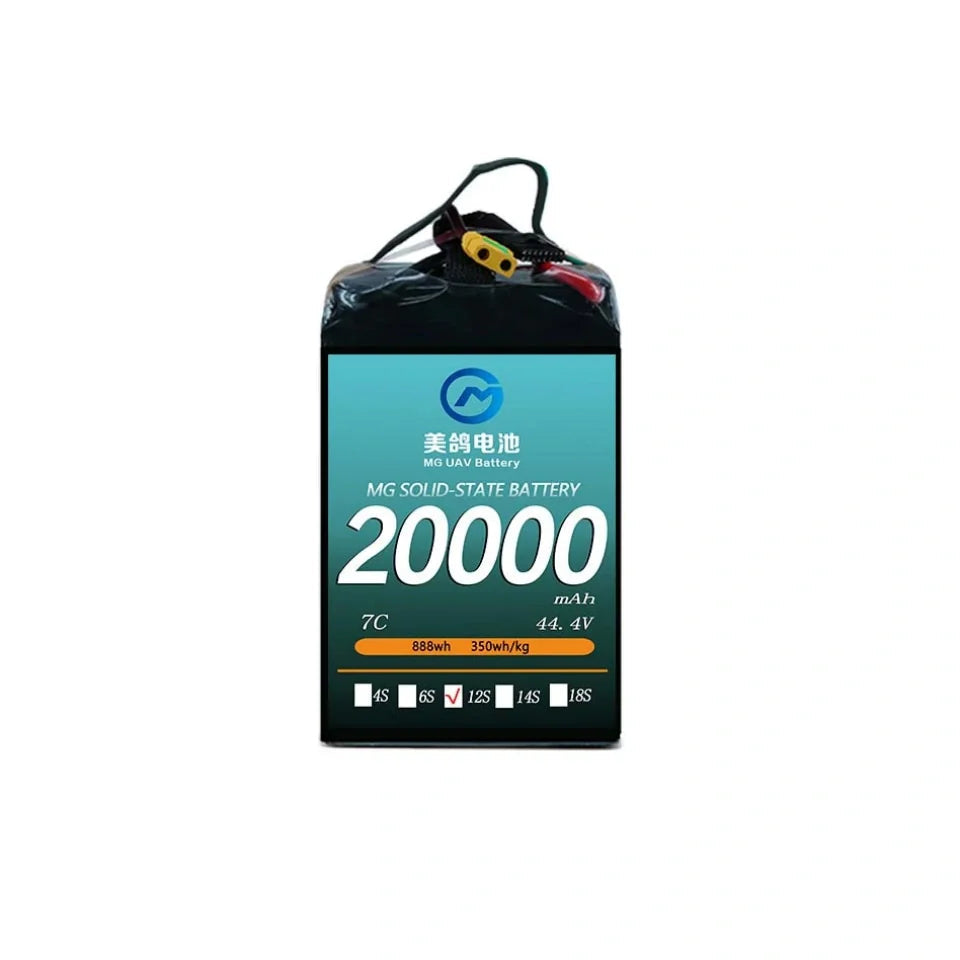

  • High-capacity 20000mAh MG solid-state battery, 44.4V, 888Wh, 350Wh/kg energy density, 12S configuration, ideal for UAVs requiring long flight times and reliable power.

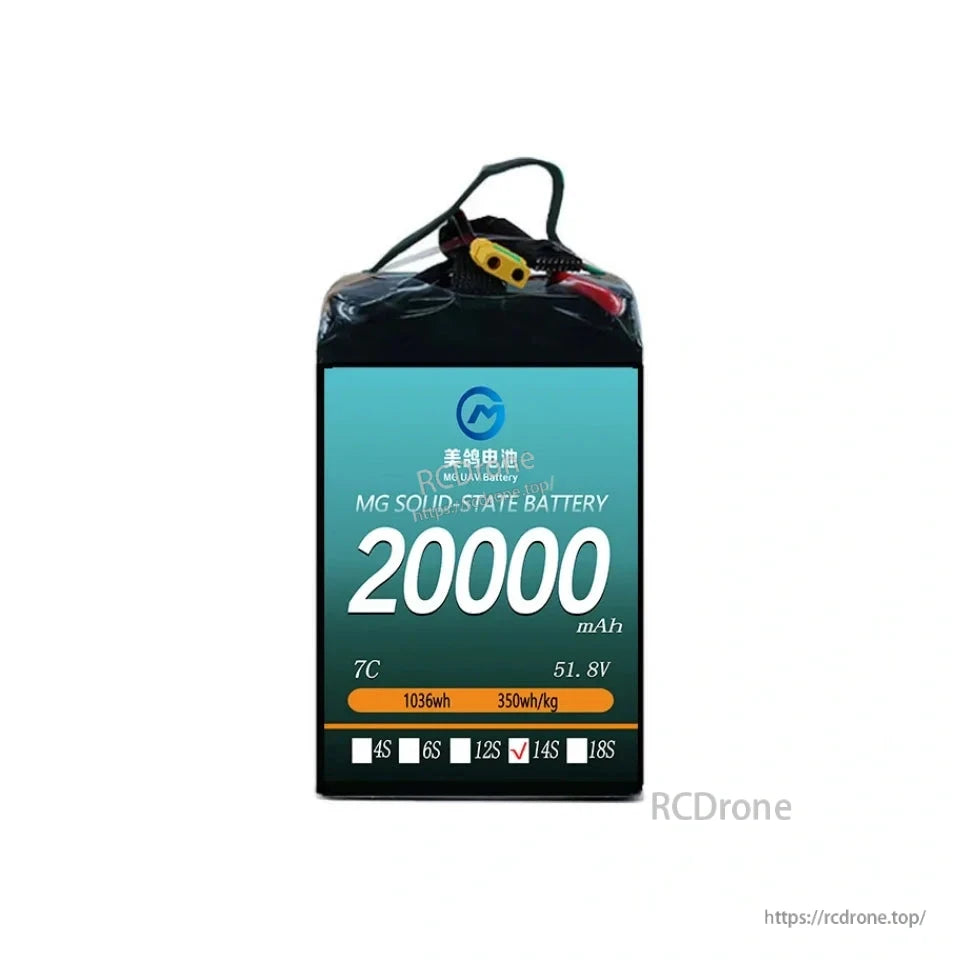

  • MG 20000mAh solid-state battery: 51.8V, 1036Wh, 350Wh/kg, 14S, 7C—ideal for high-performance, heavy-load UAVs.
  • MG MS 20000mAh 6S/12S/14S 7C 22.2V/44.4V/51.8V 350Wh/kg Solid State Lipo Battery for Heavy‑Load & Long‑Endurance UAVs

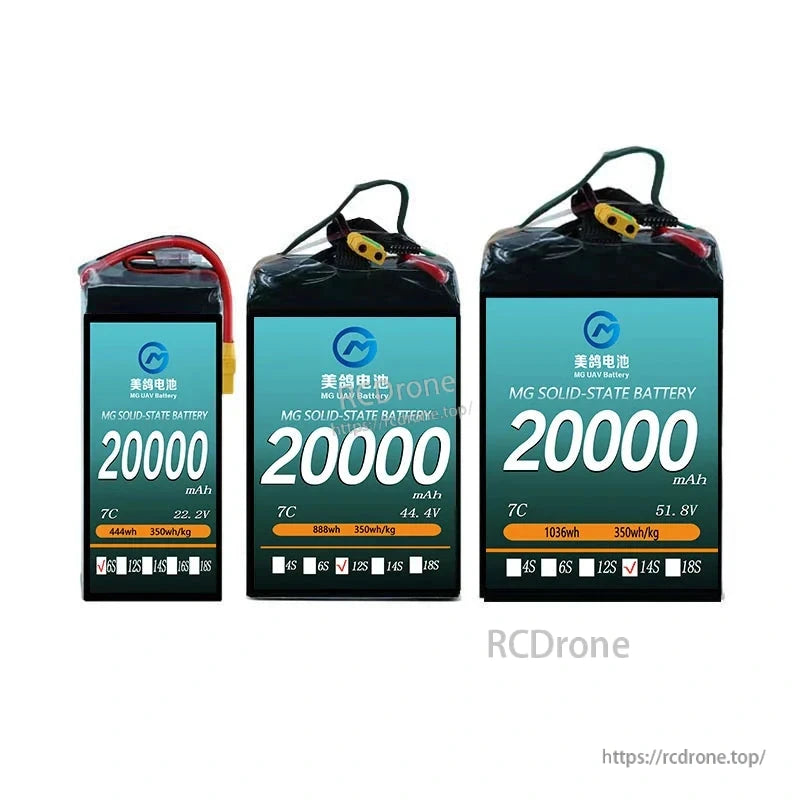

  • MG 20000mAh solid-state battery, 6S/12S/14S, high energy density (350Wh/kg), ideal for heavy-load, long-endurance UAVs.
1 5

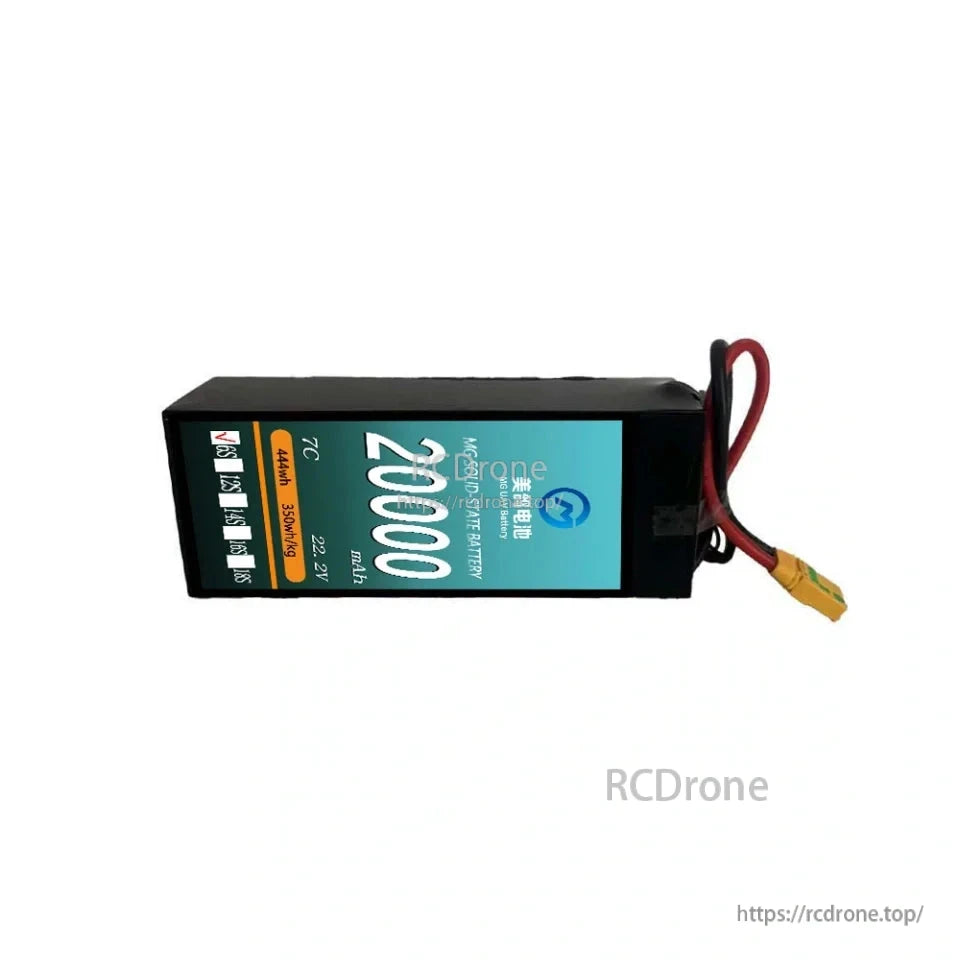

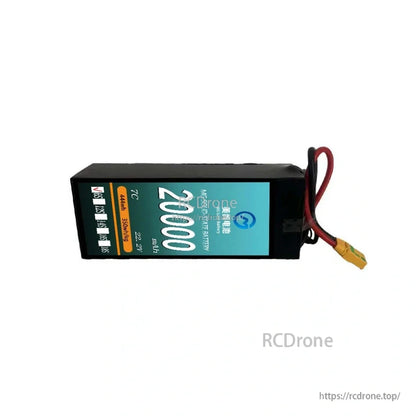

MG UAV 20000mAh 6S/12S/14S 7C 22.2V/44.4V/51.8V 350Wh/kg Solid State Lipo Battery for Heavy‑Load & Long‑Endurance UAVs

MG UAV 20000mAh 6S/12S/14S 7C 22.2V/44.4V/51.8V 350Wh/kg Solid State Lipo Battery for Heavy‑Load & Long‑Endurance UAVs

MG

$320.00 USD
$320.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
type
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The MG UAV 20000mAh Solid State Lipo Battery series is engineered for heavy-load and long-endurance UAV platforms. Offered in 6S (22.2V), 12S (44.4V), and 14S (51.8V) configurations, each variant features solid-state battery cells, a 7C rate, a 3C–4C charge rate, and an energy density of 350Wh/kg, with compact dimensions and clearly specified weights for reliable system integration.

Key Features

  • Solid-state battery cell design with 350Wh/kg energy density.
  • 20000mAh capacity in 6S/12S/14S configurations: 22.2V, 44.4V, and 51.8V.
  • Rate: 7C; charge rate: 3C–4C.
  • Compact size options for efficient packaging in UAV bays.
  • Weight-optimized variants to match different airframe power requirements.

Plug Options

Supported connector options include AS150U, XT60, XT90, QS8, QS9, QS10, and EC5. Please write your plug type in the comment link during checkout!

For order assistance, connector selection, and lead times, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Model Battery cell Capacity Voltage Rate Charge rate Energy density Dimensions Weight
20000mAh 6S Solid-state battery 20000mAh 22.2V 7C 3C–4C 350Wh/kg 61×86×140mm 1.42KG
20000mAh 12S Solid-state battery 20000mAh 44.4V 7C 3C–4C 350Wh/kg 121×86×140mm 2.86KG
20000mAh 14S Solid-state battery 20000mAh 51.8V 7C 3C–4C 350Wh/kg 141×86×140mm 3.10KG

Applications

Power solution for heavy-load and long-endurance UAVs requiring high energy density, compact pack dimensions, and defined 7C performance with 3C–4C charging.

Details

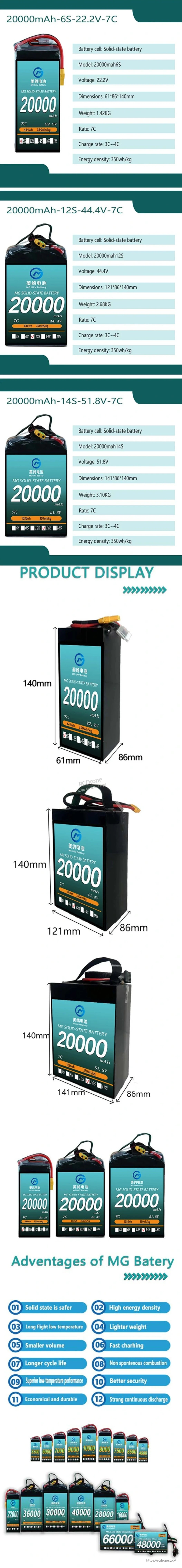

MG MS Solid State Lipo Battery, MG Solid-State Lipo Battery features 20,000mAh capacity, 6S, 22.2V, and 7C discharge rate.

MG Solid-State Battery, 20,000mAh, 7C rate, 350wh/kg energy density. Advantages: high energy density, long flight, low temperature, lighter weight, smaller volume, fast charging, longer cycle life, non-spontaneous combustion, better security, economical and durable. Dimensions: 86mm x 140mm.

MG MS Solid State Lipo Battery supports multiple plug types: AS150U, XT60, XT90, QS8, QS9, QS10, AS150, AS250, EC5, Charge end, SM, and Double row horizontal.

Plug types for MG MS Solid State Lipo Battery: AS150U, XT60, XT90, QS8, QS9, QS10, AS150, AS250, EC5, Charge end, SM, Double row horizontal.
