BETAFPV Micro-Nano Module Adapter for JR/Micro Bay to Nano/Lite Bay, 3Pin GH1.25, Cable
BETAFPV Micro-Nano Module Adapter for JR/Micro Bay to Nano/Lite Bay, 3Pin GH1.25, Cable
BETAFPV
Couldn't load pickup availability

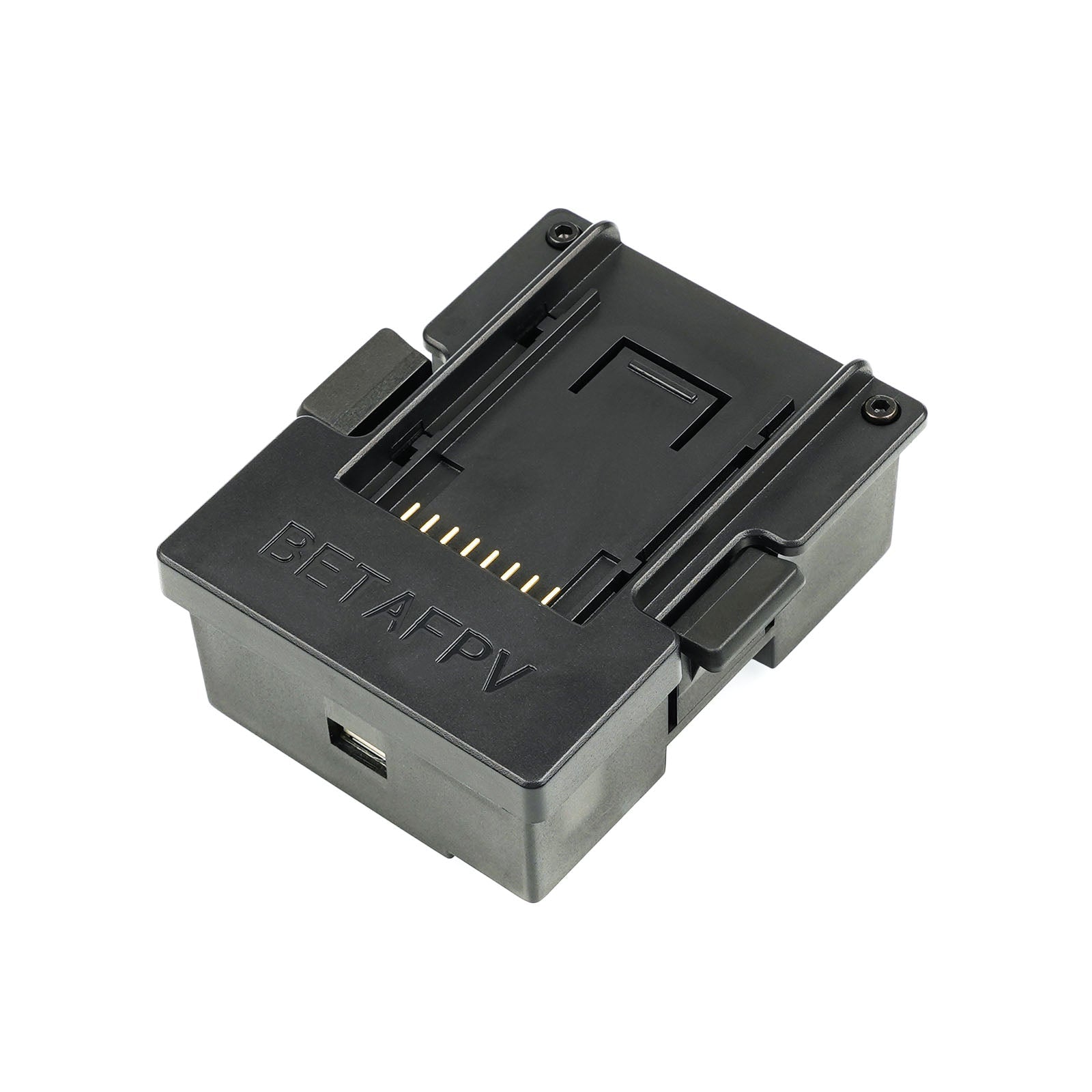

Overview
The BETAFPV Micro-Nano Module Adapter is a module adapter that lets a Nano TX module work on radio transmitters with a Micro port (or JR port). This upgraded version adds a 3Pin GH1.25 terminal socket for Futaba and other non-OpenTX radio controllers, and is designed for easy installation. It supports the BETAFPV ELRS Nano TX Module.
Key Features
- Converts JR module bay (Micro module bay) to Nano module bay (Lite module bay).
- 3Pin GH1.25 terminal socket added for Futaba and other non-OpenTX radio controllers.
- Wide compatibility across OpenTX and non-OpenTX radio transmitters.
Specifications
| Item | Micro-Nano Module Adapter / Micro-Nano Module PCBA |
| Size | 65*48*28mm (JR module size) |

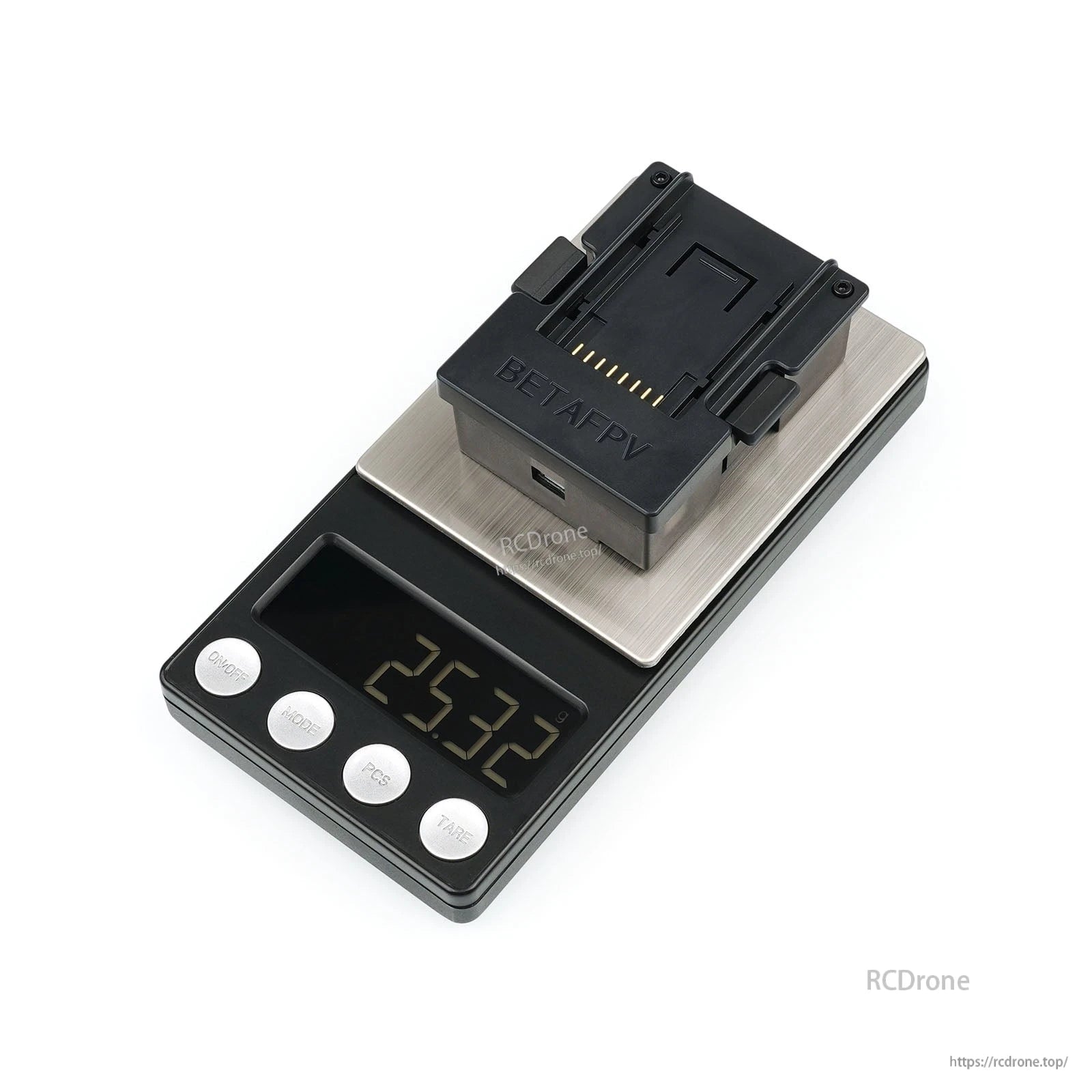

| Weight | 25g |
| Input | JR module bay (Micro module bay) |
| Output | Nano module bay (Lite module bay) |

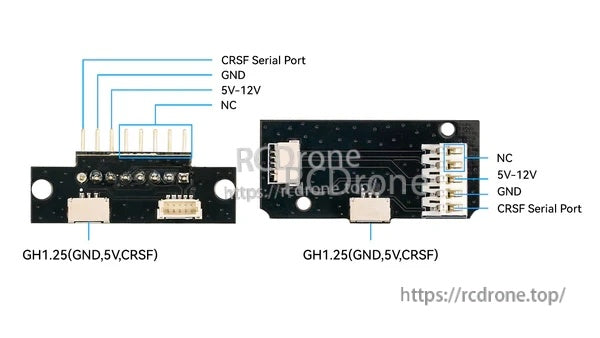

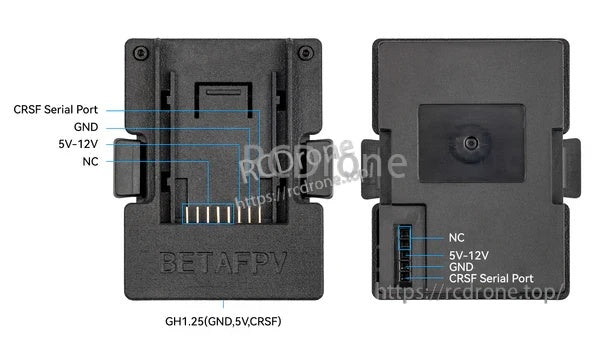

| GH1.25 terminal / signal labels | CRSF Serial Port, GND, 5V-12V, NC; GH1.25 (GND, 5V, CRSF) |
| Supported radio transmitter | Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S; Flysky TH9X; Turnigy 9XR/9XR PRO; FUTABA 16IZ; Jumper T16/T18/T18 Pro; Radiomaster TX16S/TX18S; TBS Mambo |
| Supported TX Module | BETAFPV Nano TX Module; TBS Crossfire Nano TX; Frsky XJT Lite/R9M Lite/R9M Lite Pro |
PCBA Only

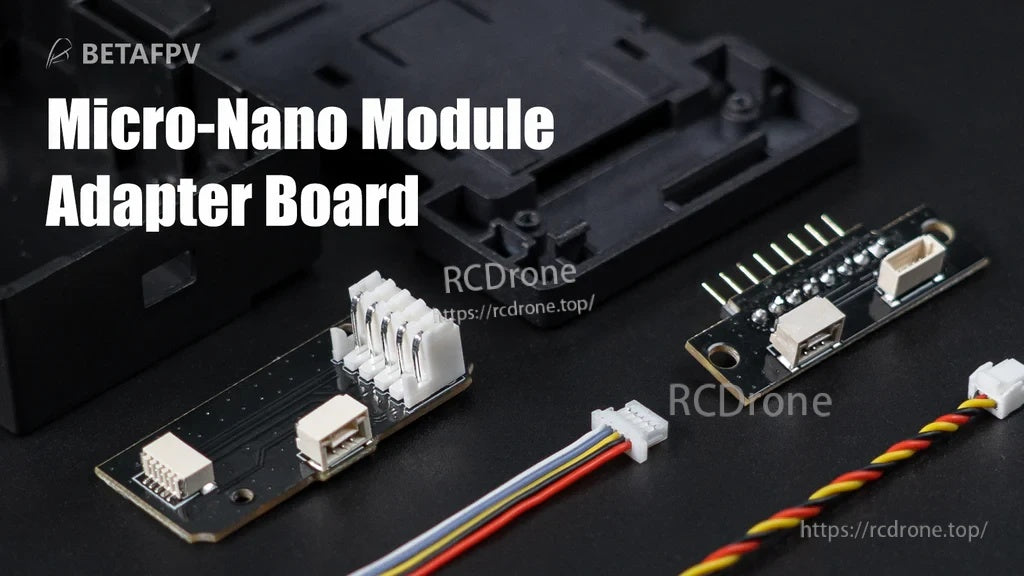

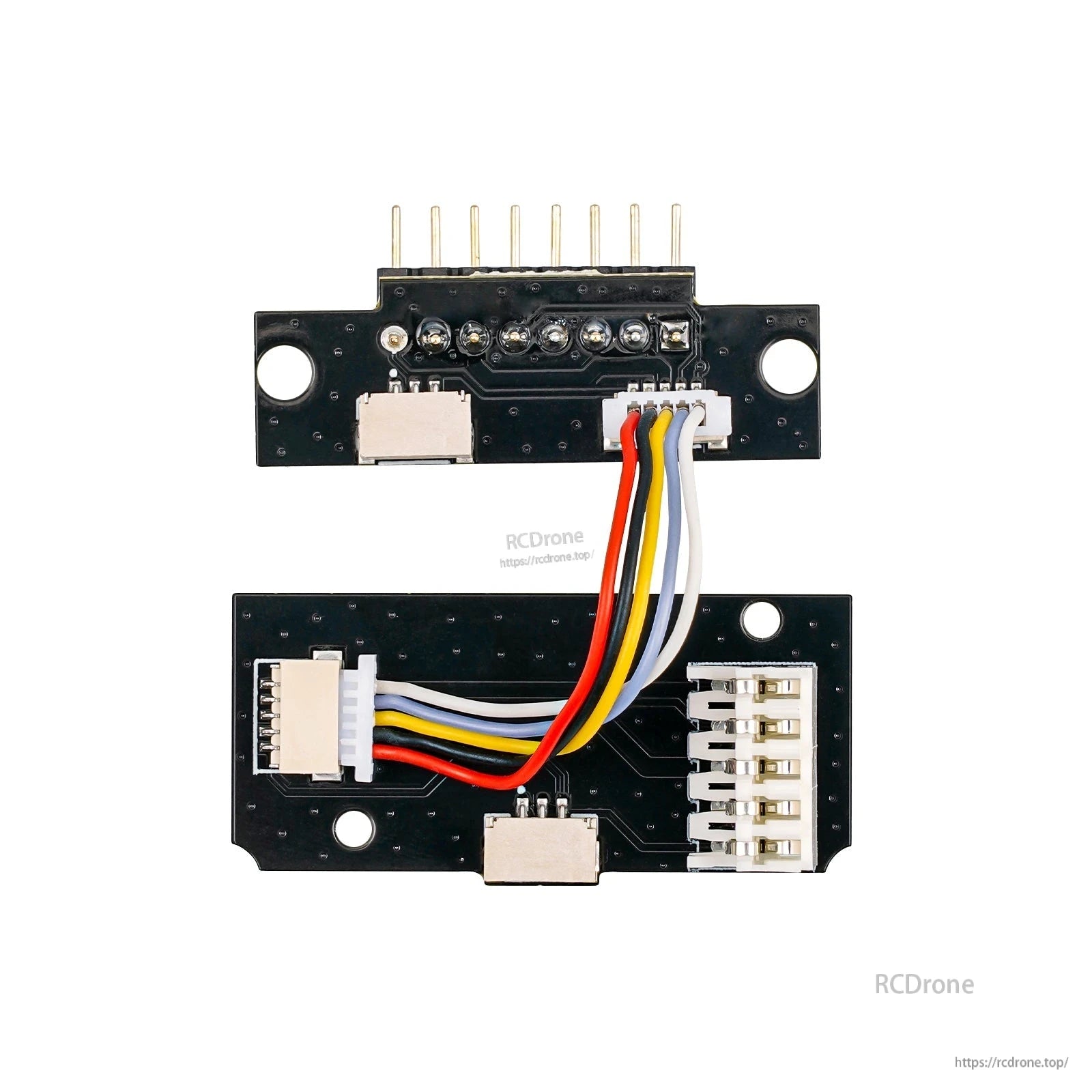

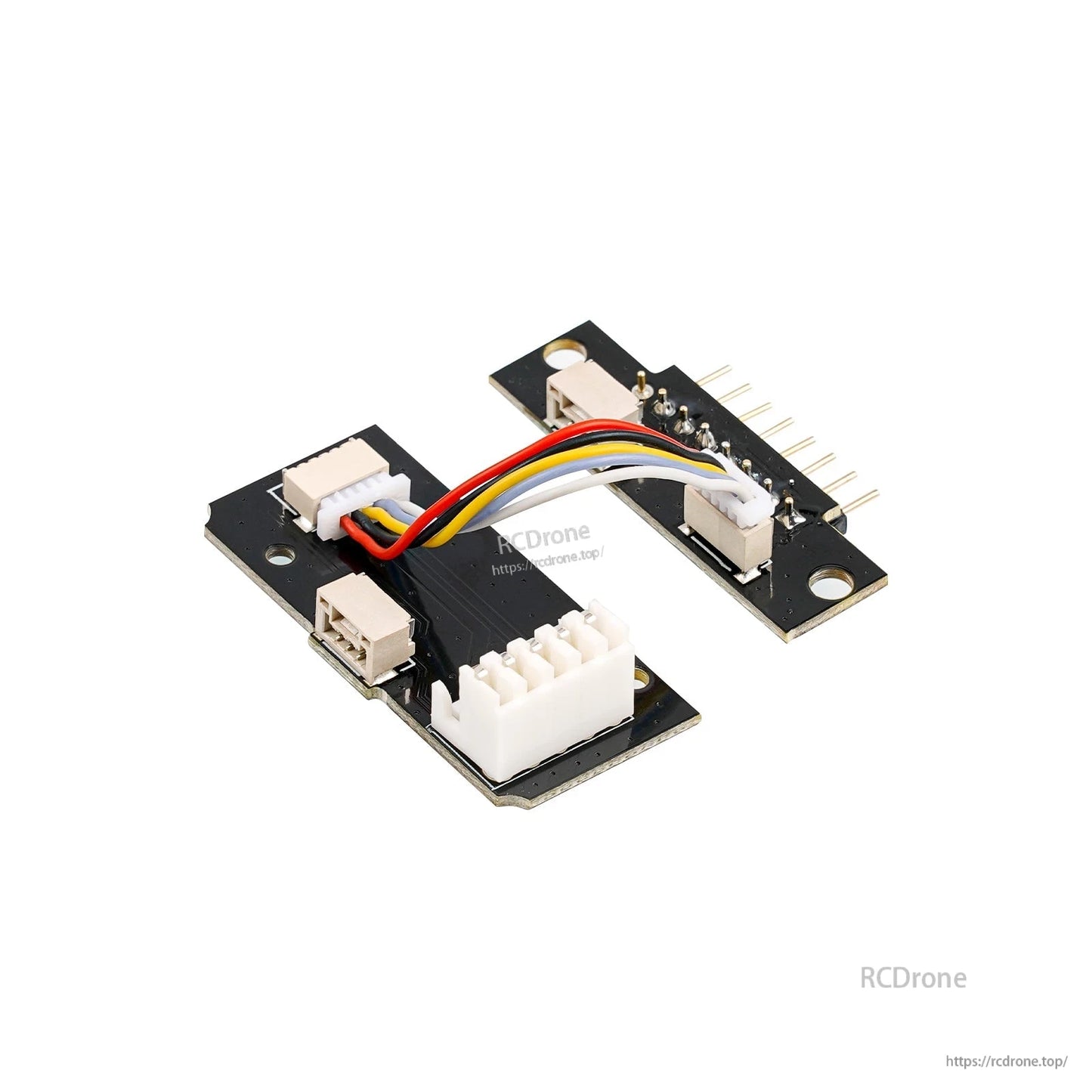

Compared with the previous version, the appearance of the PCBA is modified and a 3Pin GH1.25 terminal socket is added, suitable for other non-OpenTX radio controllers. The PCBA can be used directly without a case or used with a printed case. Note: make sure the wiring is correct if the PCBA is used without a case.
Manuals
Adapter case STL file (official support page): https://support.betafpv.com/hc/en-us/articles/4404659352345-The-base-and-surface-shell-for-TX-Module

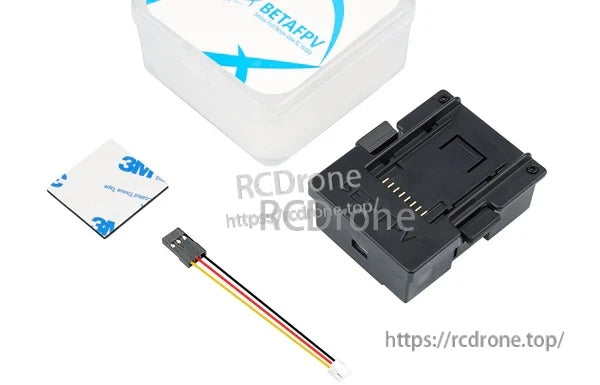

What’s Included
- 1 * Micro-Nano Module Adapter
- 1 * Converter cable
- 1 * Double-sided tape
Applications
- Use Nano/Lite TX modules on radios with a Micro/JR module bay.

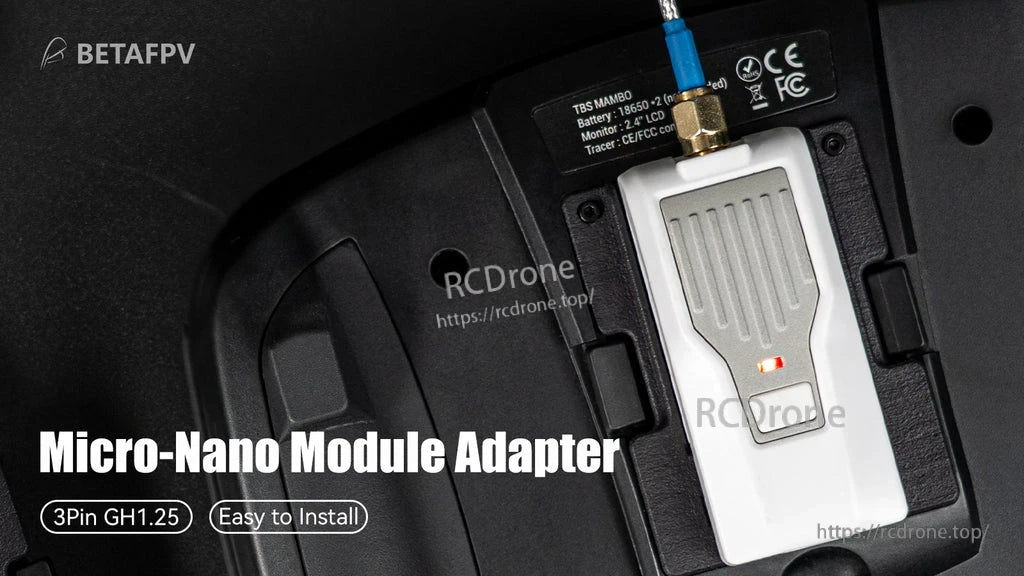

- Compatible with transmitters such as Frsky X9D, FUTABA 16IZ, TBS Mambo, Turnigy 9XR, Jumper T18, and others listed in the specifications.
For pre-sales compatibility questions or installation support, contact support@rcdrone.top.
Details
Convert a Micro/JR module bay to a Nano/Lite module bay for cleaner Nano TX module installs across more radios.
The upgraded adapter board adds a 3-pin GH1.25 terminal for Futaba and other non-OpenTX transmitters.

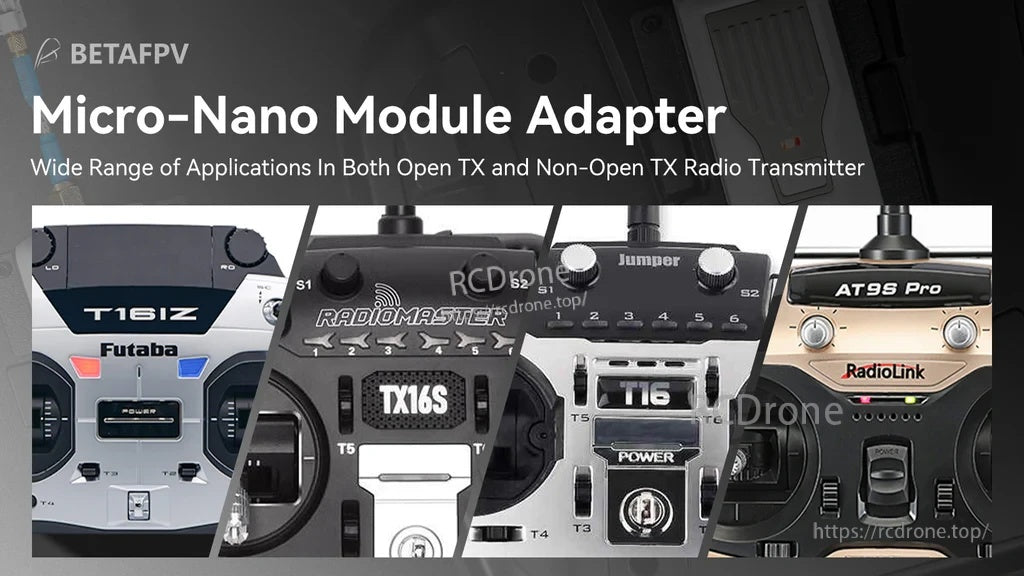

Designed to work with a wide range of radios, including popular OpenTX models and select non-OpenTX controllers.

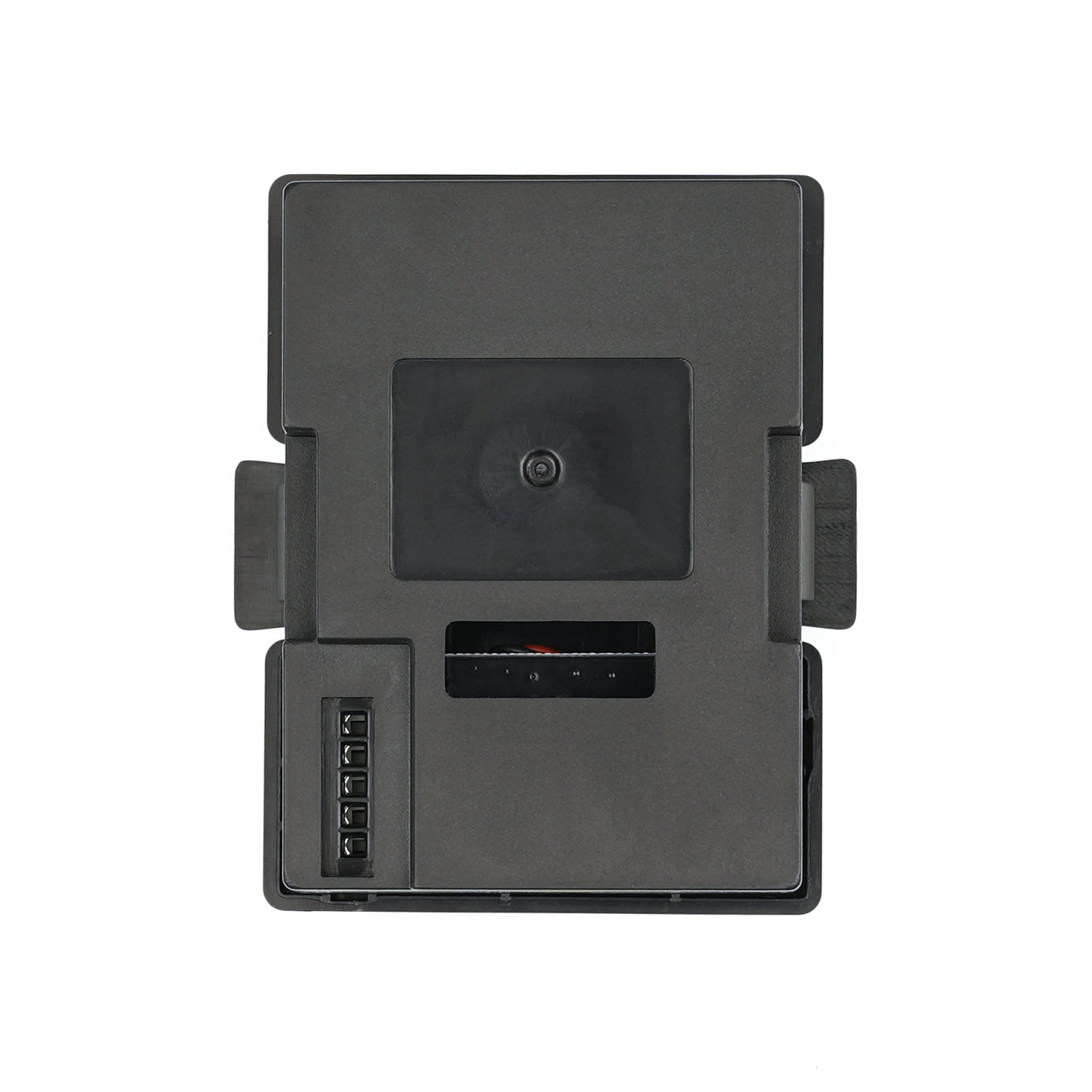

Clear signal labeling helps verify the JR bay pinout before powering on, especially when using the PCBA without a case.
Use the GH1.25 connector for simple CRSF power and signal wiring on compatible transmitters.

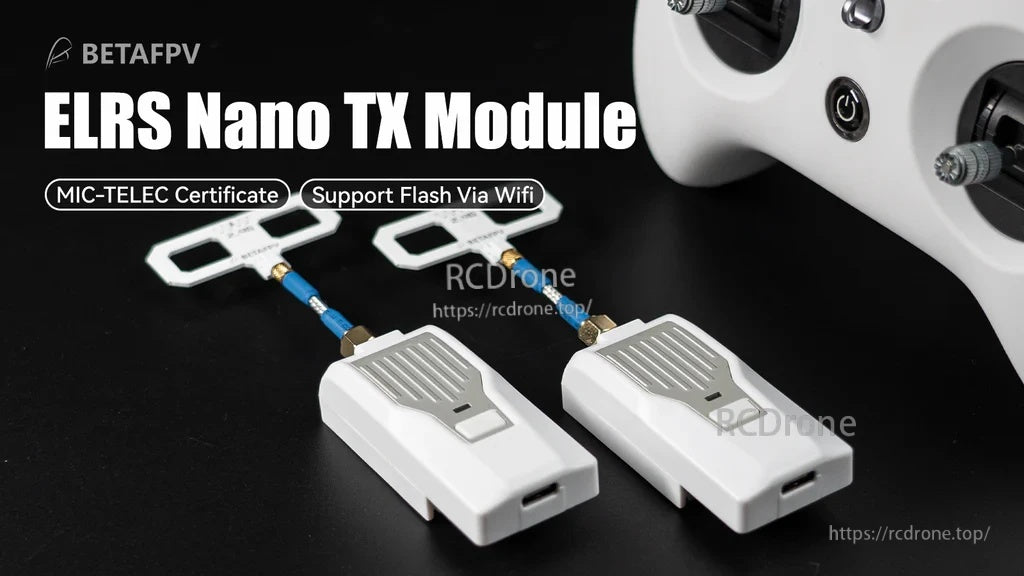

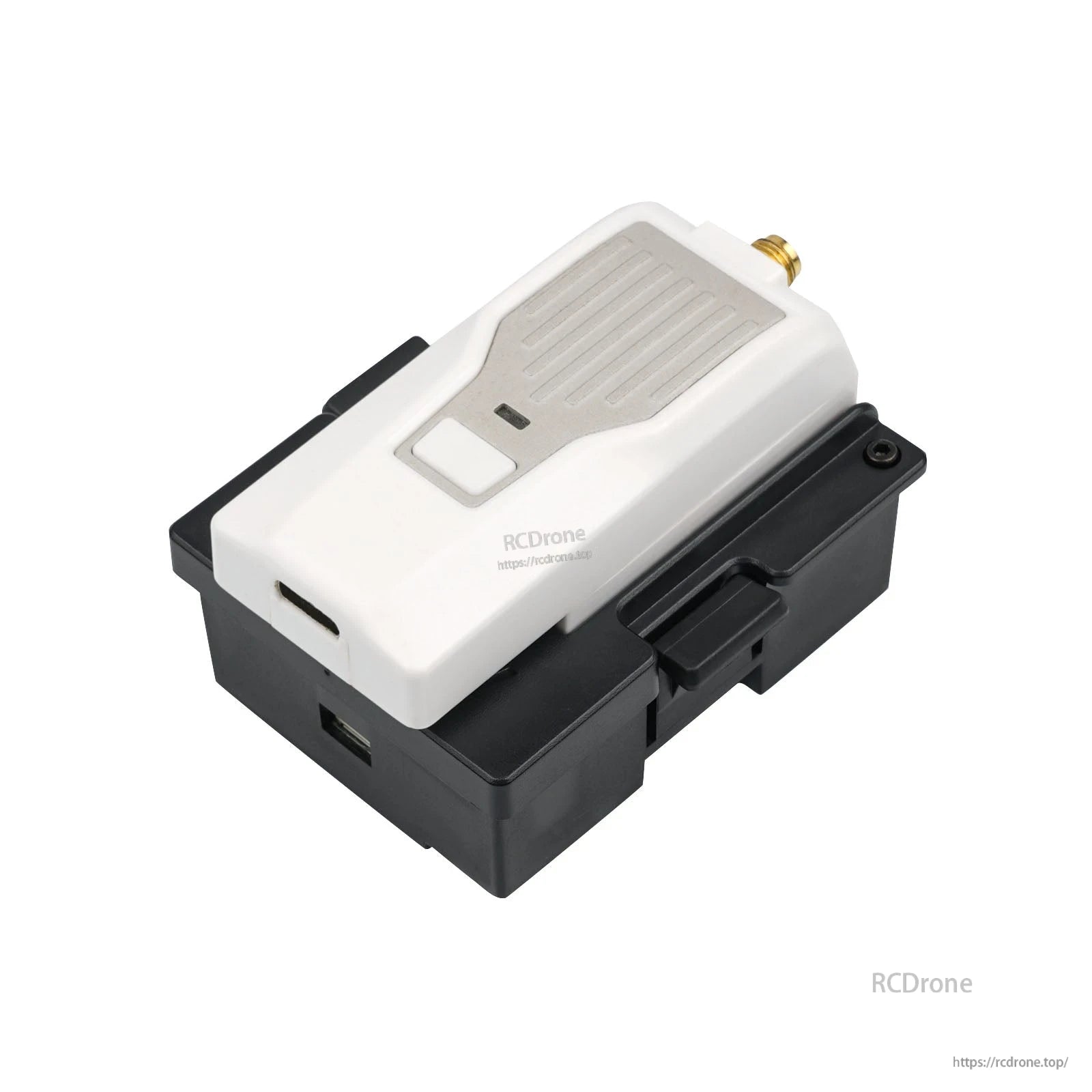

Pair the adapter with supported Nano TX modules such as the BETAFPV ELRS Nano TX for a Nano-size external link.
Everything needed to mount and connect the adapter is included: the adapter, converter cable, and double-sided tape.
