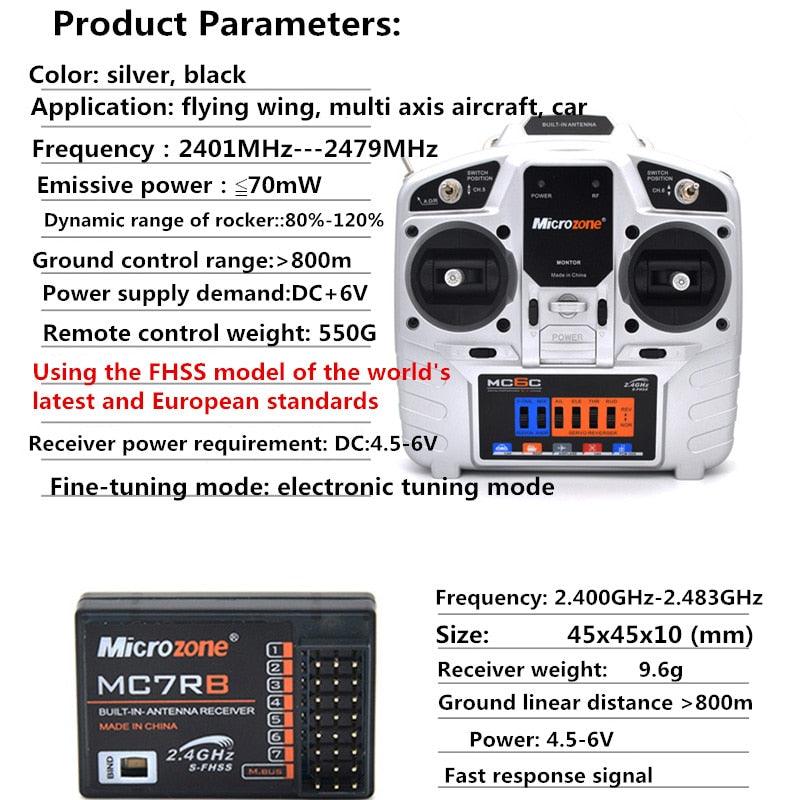

Channel: 6
Color: Black / Silver
Suitable model: fixed wing model airplane, UAV, vehicle, ship.
RF range: 2401MHZ---2479MHZ
RFpower: less than 100MW
Working current: less than 120MA
Working voltage: 4.5--8.5V
Modulation mode: FSK
Sensitivity: 1024
Signal output: 6 PWM signals and 1 SBUS signals.
Analog and external power supply (not more than 8V): YES
Low voltage alarm mode: LED indicator and buzzer alarm at the same time.
Power : 6V 1.5AA*4
Adopt the latest FHSS mode in line with European standards.
Authentication standards: FCC, CE_RED
Package size: 215MM*105MM*220MM
Weight (gross weight): 550G

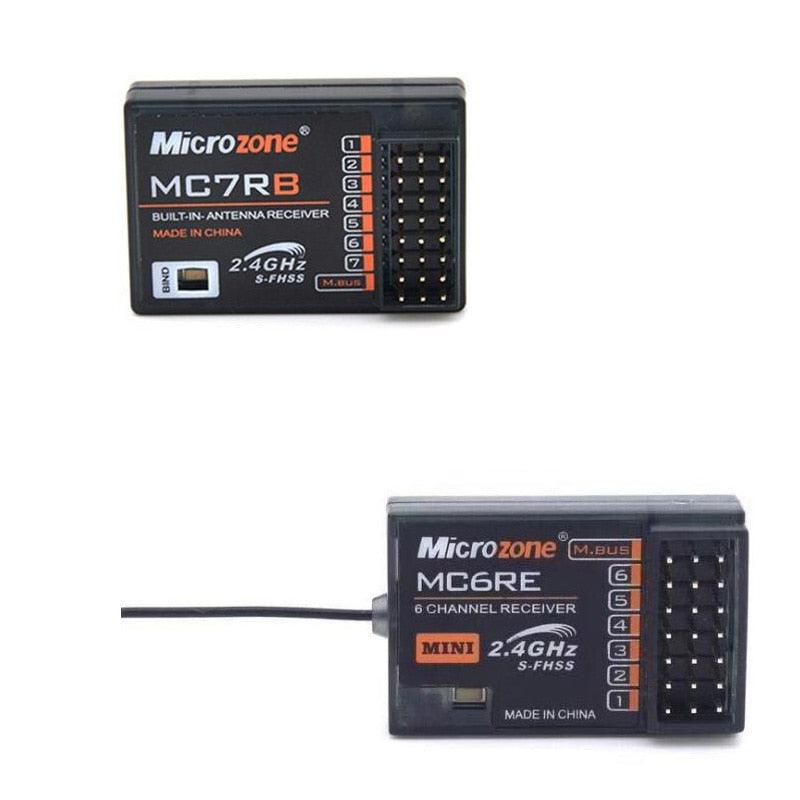

Microzone Receiver weight: 9.6g MC7RB OUILTN ANENNAARECEIVLR Ground linear distance >800m Wadliinchina Power: 4.5-6V 2.4GHz 3FmSS Fast response signal .

MCEC DIGITAL PROPORTIONAL R/C SYSTEM 2.4GHz FHSS MC6C OPERATION GUIDE Remove the battery cover, and put 4 AA Microzone batteries according to the polarity in the MCZRB mi AA-LaKEEnfR battery box .

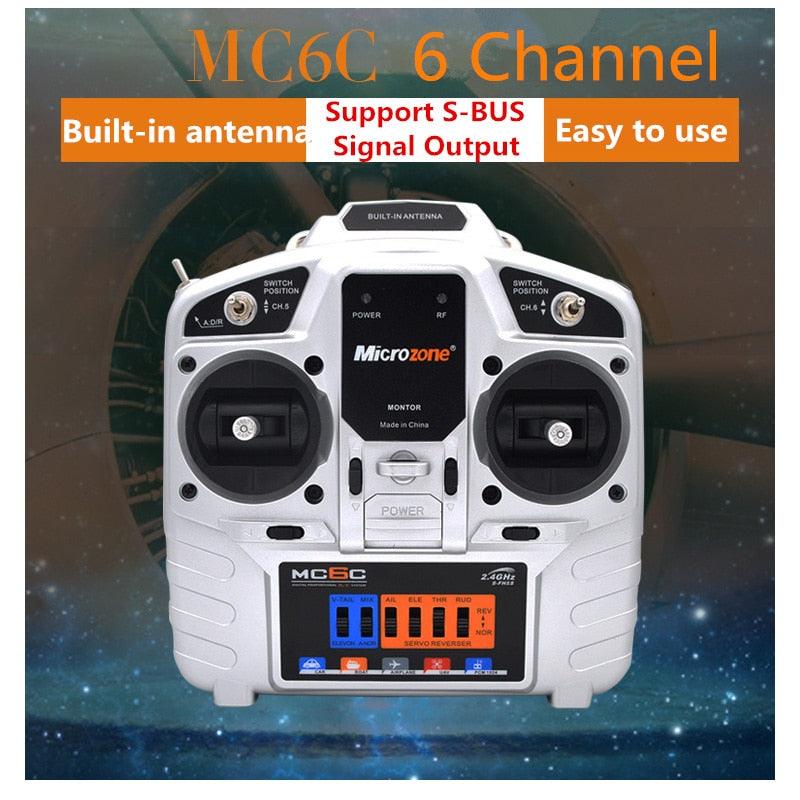

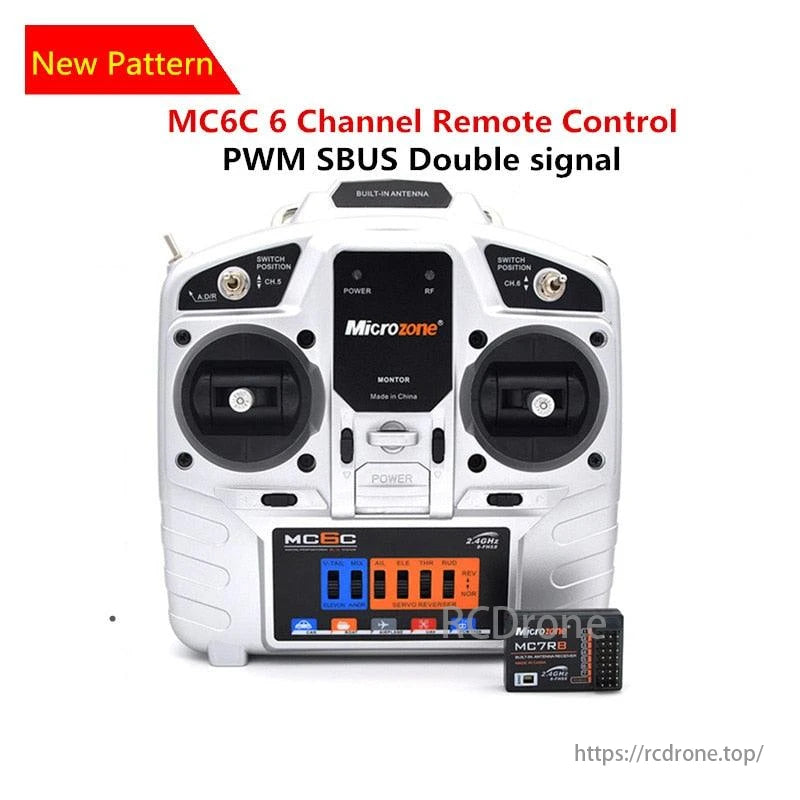

New Pattern MC6C 6 Channel Remote Control PWM SBUS Double signal built antthaa Postfio Postcol cho PowEa AiDk Microzone"

the microzone 2.4G MC6c radio systems require the transmitter and receiver which are in pairs . if the receiver is powered on, the orange indicator light on the receiver changes from slow blinking to fast flashing .
