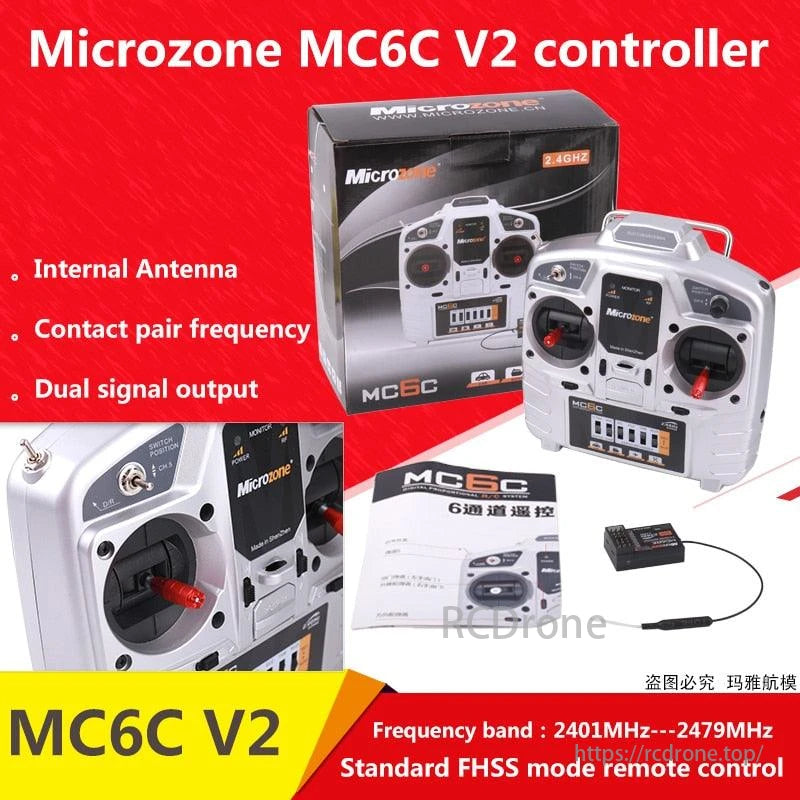

MC6C V2 6 Channels 2.4G Aeromodel Remote Controller with Receiver for Fixed-wing Multicopter Car Boat Model
Note the difference between the MC6C Standard and MC6C V2 is the 6th channal, standard is a two stop switch, V2 is a rotary switch. If you need to control pan-tilt, V2 is the best choice.
NOTE：At present, the new and old versions of the product are distributed randomly. Different versions have different appearance and packaging. It does not affect the use. Please refer to the physical goods received. Thank you.
Product introduction
Upgraded version of MC6B, with all the original functions reserved, while the response speed is increased by 4 times. The remote control's CH5 three-stage switch and ch6 rotary switch are convenient for multirotor flight.
1. the receiver supports PWM and SBUs dual signal output, easy to play with fixed-wing and multirotor FPV racing!
2. receiver contact frequency binding, simple and convenient.
Product parameters:
Remote control parameters
Products applicable to: fixed wing, multirotor, vehicle, etc
Frequency band: 2401MHz-2479MHz
Transmitting power: ≤ 70mW
Fine tuning mode: electronic fine tuning mode
Rocker range: 80% - 120%
Ground control range: more than 800m
Power supply requirements for transmitter: DC + 6V (4 AA batteries)
Power supply requirements of receiver: DC 4.5-6V
Total weight: 550g
Remote control weight: 443g
Dimension: 215 * 105 * 220mm
Modulation mode: adopt the latest FHSS mode in the world and in line with European standards
Receiver parameters
Frequency band: 2.400GHz-2.483GHz
Size: 36 * 23 * 12 (mm)
Weight: 7.5g
Ground control range: more than 800m
Power supply requirements of receiver: DC 4.5-6V
Recovery performance: fast signal recovery
Receiver signal: PWM / SBUs
Antenna type: external antenna
Frequency matching mode: contact frequency matching
Mayatech Microzone Laul MCERE 0 CHANNEL RECEIVER MINI 2.4gHz SFHSS WadewchiU Luecc
Details:

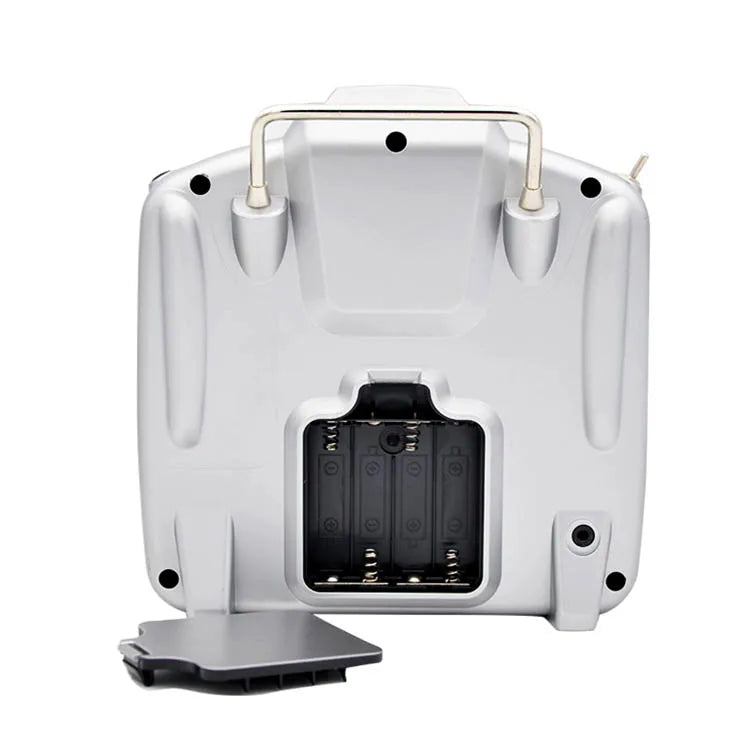

DC+6V(4 AA batteries) power supply
How to bind:
1. turn off the transmitter, power pu the receiver,
2. whenreceiver is powered on, the orange indicator flashes slowly
3. touch the BIND button lightly, the orange indicator changes from flashing slowly to flashing quickly
3. hit the transmitter thruttle to minimum, then turn on the transmitter. The orange indicator light on the receiver changes from fast flashing to stay on.
4. if the indicator stays on, the bind is complete. Connect servos for test
5. check if the remote controller has full control of the receiver, then check if all channals are normal
6. if test fails, Repeat the whole process.
7. after binding, connect the M.BUS channal to your flight control for parameter adjustment and calibration of multirotor using flight control parameter adjustment software
MCEC DIGITAL PROPORTIONAL R/C SYSTEM 6ij*# 3 C ouilt-Ii DJRHA Snitch j05 Positiom Chs Power Iaor Micr T ibi 7exia Eaiai .

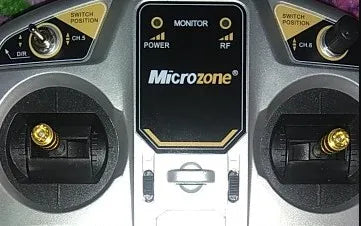

Built-in Antenna Position Monitor: Displaying Directional Power, Shenzhon Pvw MCEC ZJGHI V2.0, BervO Reverser, MicroZone MC6C.

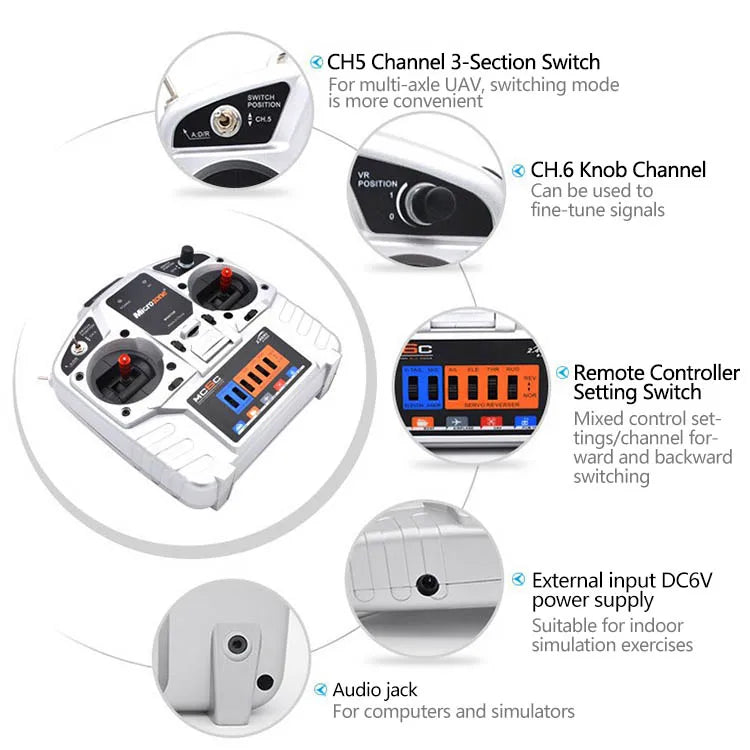

The CH.6 knob allows for fine-tuning of channel positions, making it easier to adjust signal output and achieve better reception quality.

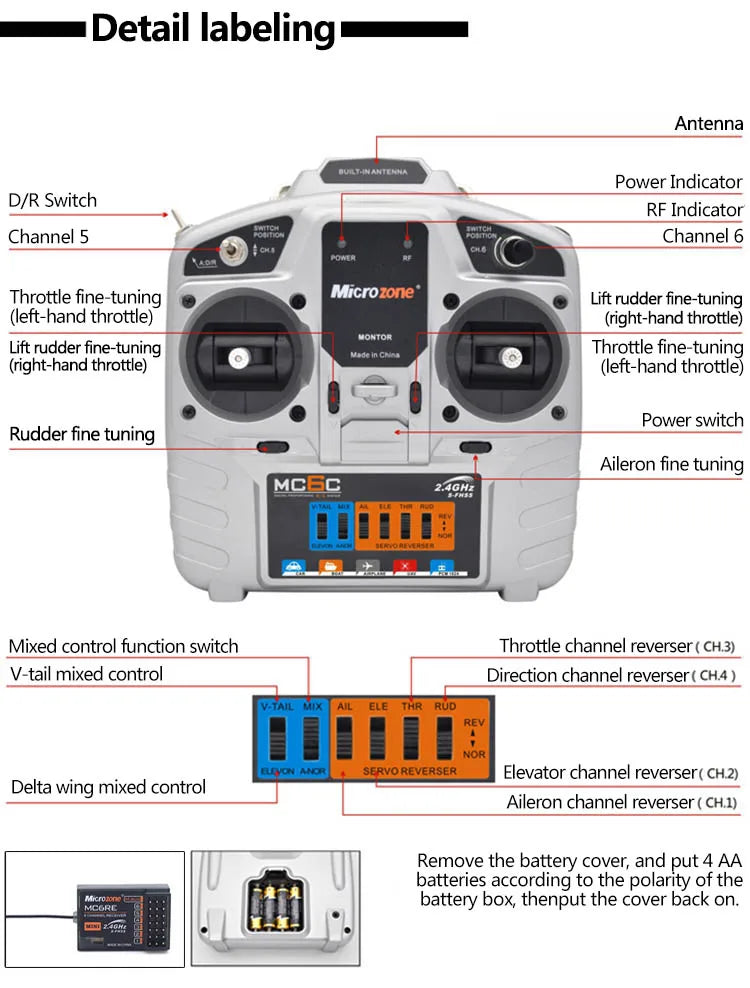

The DIR Switch features a RF Indicator, Channel 5 REO, Channel 6 VLN Throttle with fine-tuning capabilities. The Microzone Lift also includes rudder fine-tuning for left-hand throttle control, as well as Vontor Lift-Rudder fine tuning. Additionally, the MC20HI Mixed Control function switch offers flexible control options.

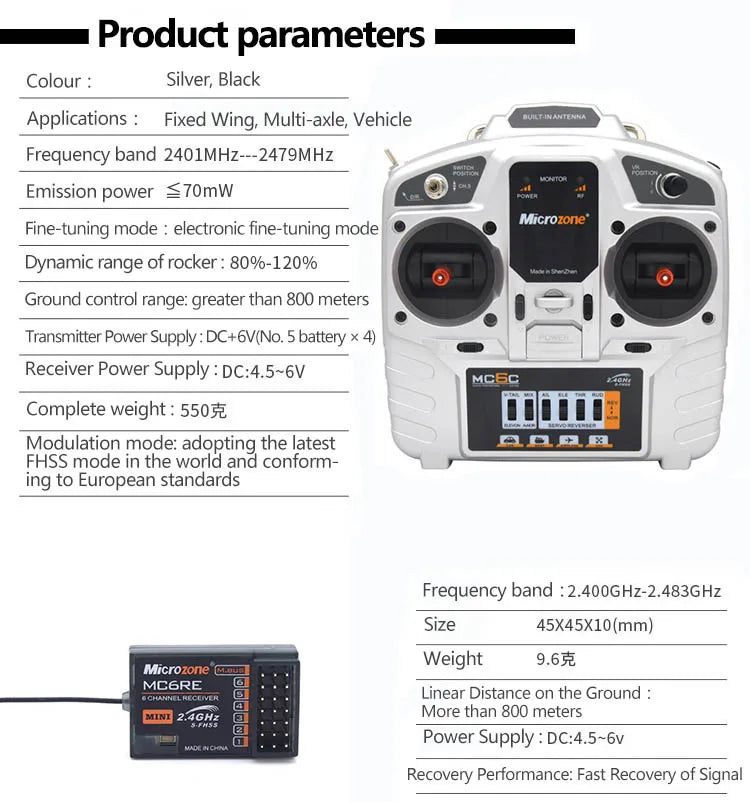

Microzone Mum MCGRE OChknnoleccunt Linear Distance on the Ground 0 More than 800 meters 24gH Power Supply DC:4.56v MCSC Aon Complete weight : 5505 Modulation mode: the latest T FHSS mode in the wdaating conform- ing to European standards Frequency band 2.40OGHz-2.483GHz Size 45X45X1O(mm)
The MicroZone MC6C V2 is suitable for fixed-wing, multi-axis (MCERE) models, as well as cars and boats. This 2.4GHz radio system uses FHSF and SBUS signals, making it ideal for DIY enthusiasts building multi-rotor UAVs.
Logistics size：22cm ×11 cm ×22 cm
Logistics weight: 0.58KG/piece
