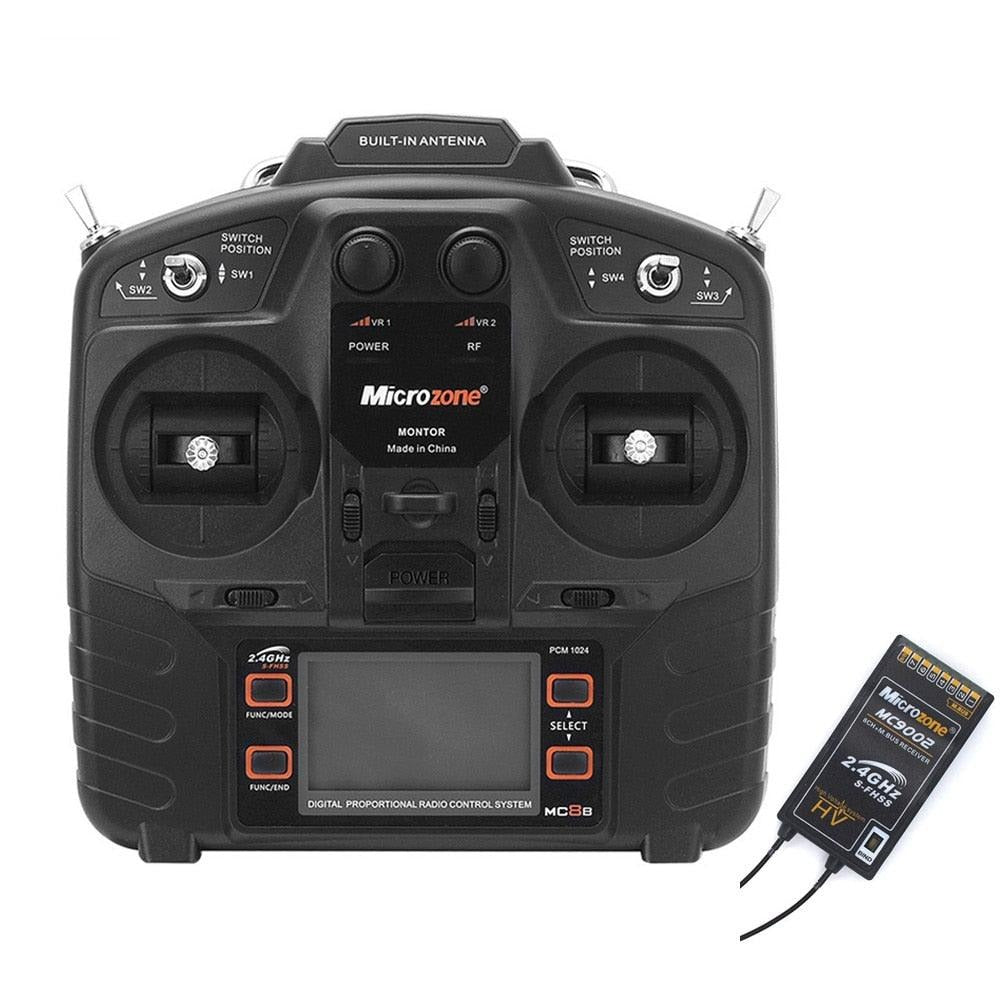

Microzone MC8B 2.4G 8CH Remote Control Transmitter & MC9002 CH Receiver Radio System for RC Aircraft Fixed-wing Helicopter Drone

Microzone MC8B 2.4G 8CH Remote Control Transmitter & MC9002 CH Receiver Radio System for RC Aircraft Fixed-wing Helicopter Drone

MicroZone

Regular price $67.77 USD
Regular price $101.65 USD Sale price $67.77 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

104 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Microzone MC8B 2.4G 8CH Remote Control Transmitter SPECIFICATIONS

is_customized: Yes

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Microzone MC8B

Tool Supplies: 8CH Transmitter

Technical parameters: Value 2

Size: 215MM*105MM*220MM

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Radio Systems

Quantity: 1 pcs

Origin: Mainland China

Model Number: CFMX015

Material: Metal

Four-wheel Drive Attributes: MC8B Transmitter

For Vehicle Type: Airplanes

Brand Name: U-Angel-1988

Microzone MC8B 2.4G 8CH Remote Control Transmitter Details

supply analog and external power, LCD displays Chinese and English menu

Low voltage alarm mode: LED indicator and buzzer alarm at the same time. Supply analog and external power, LCD displays Chinese and English menu.

The receiver wide voltage design (DV 2V-9V) supports 8 PWM signals and 1SBUS signals.

Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.

The classical neutral knob is fine tuned to facilitate quick switching of the platform and attitude.

The 8 channel full function remote controller is suitable for fixed wing aircraft, helicopters and multi axis aircraft.

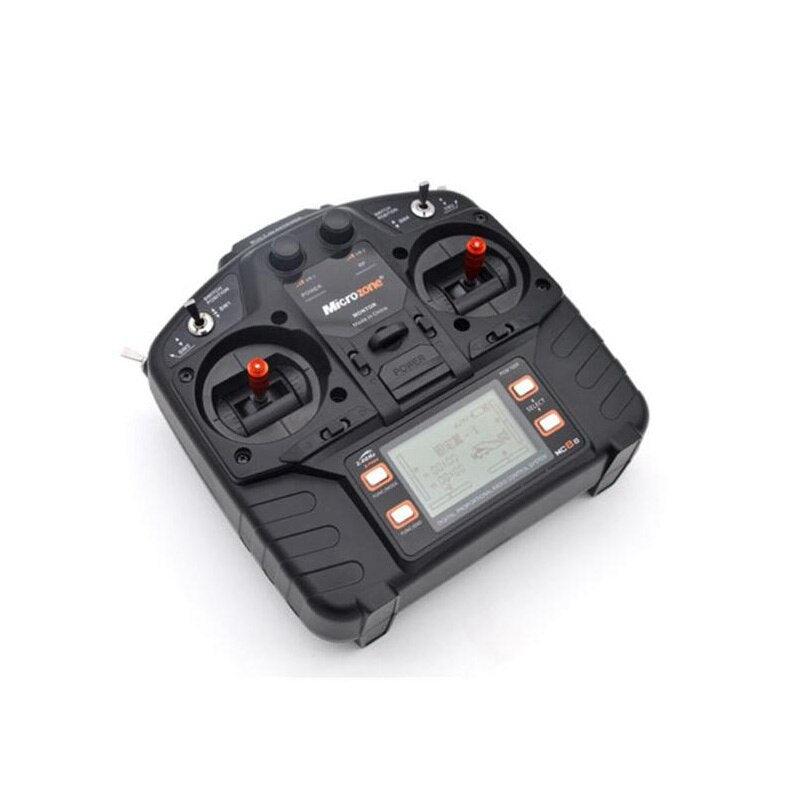

Transmitter Specifications:

Channels: 8

Color: Black / silver

Model: fixed wing model airplane, UAV, helicopter, cars, boat.

RF range: 2405MHZ---2479MHZ

RF power: less than 100MW

Working current: less than 150MA

Working voltage: 4.5--8.5V

Modulation mode: FSK

Sensitivity: 1024

Signal output: 8 PWM signals and 1 SBUS signals.

Analog and external power supply (not more than 8V): YES

Low voltage alarm mode: LED indicator and buzzer alarm at the same time (according to battery type in the system).

The LCD Chinese and English menu displays.

Internal software support: CH5---CH8, arbitrary replacement of settings and CH1--CH8 signal detection.

Internal software support: M1 and M2  throttle swap (double return), can set the flight time, the main screen to build a lock, a factory reset.

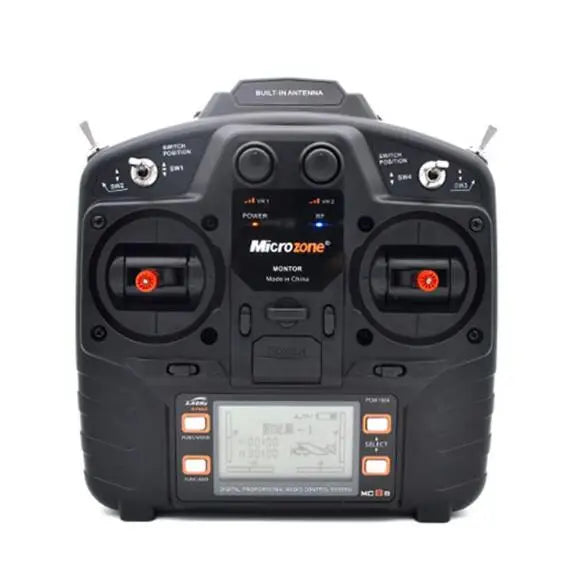

Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.

Power : 6V 1.5AA*4

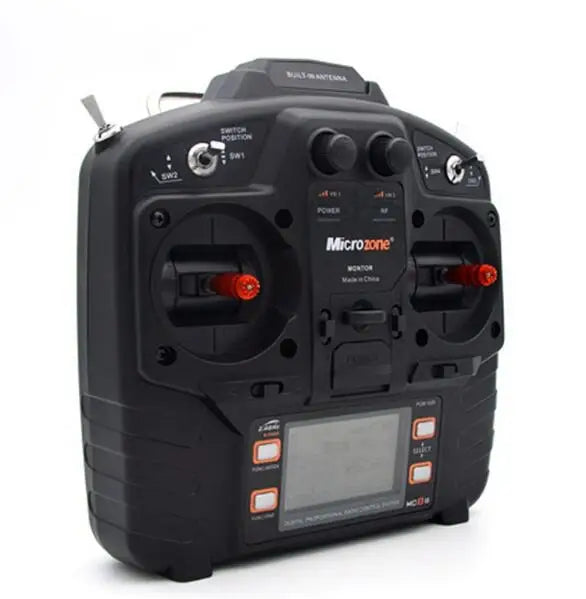

Adopt the latest FHSS mode in line with European standards.

Certificate: FCC, CE_RED

Size: 215MM*105MM*220MM

Weight (gross weight): 580g

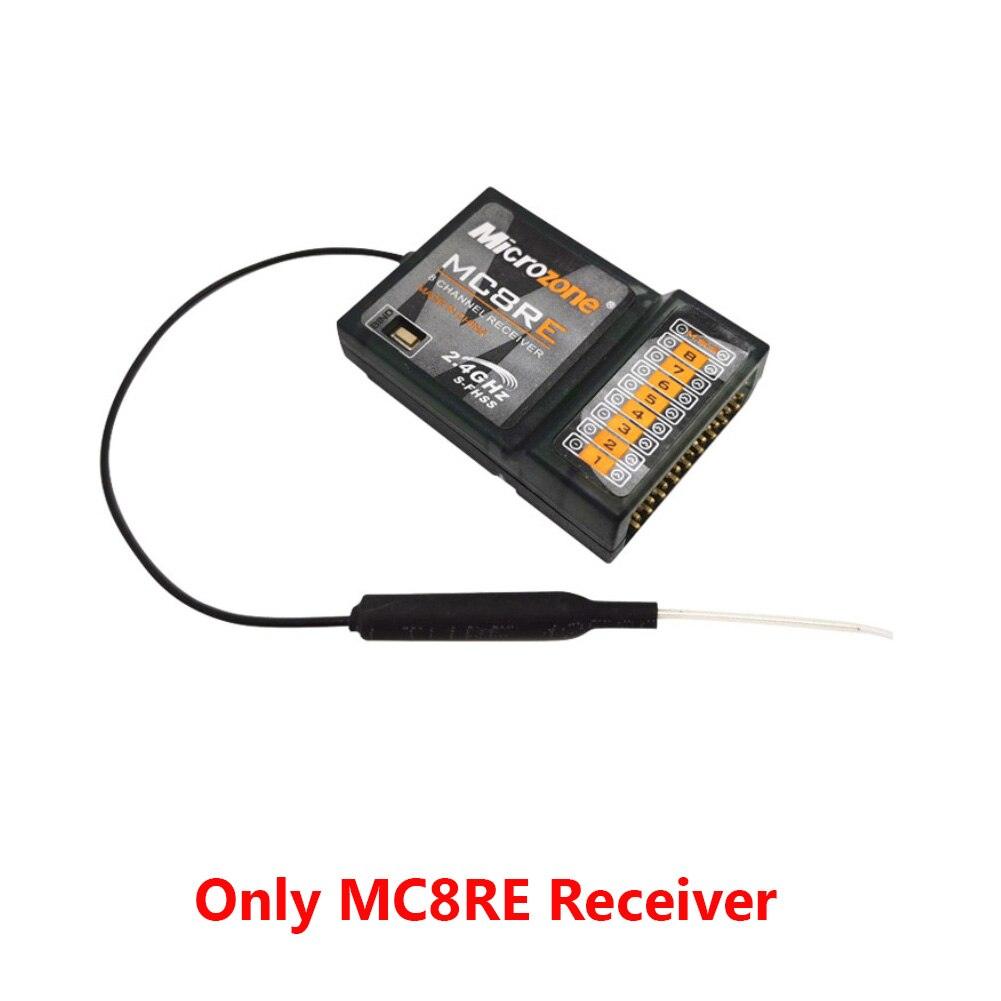

Receiver Specifications:

Product name: MC8RE Receiver

Antenna length: 110mm

Output channel: 8 PWM signal channels and 1 SBUS signal channel

Reception frequency: 2401MHZ-2479MHZ

Application: MC8A, MC8B remote control, fixed wing models, UAV, helicopter models, trams and tanker models, ship models

Size: 42 * 28 * 12mm

Weight: 12g

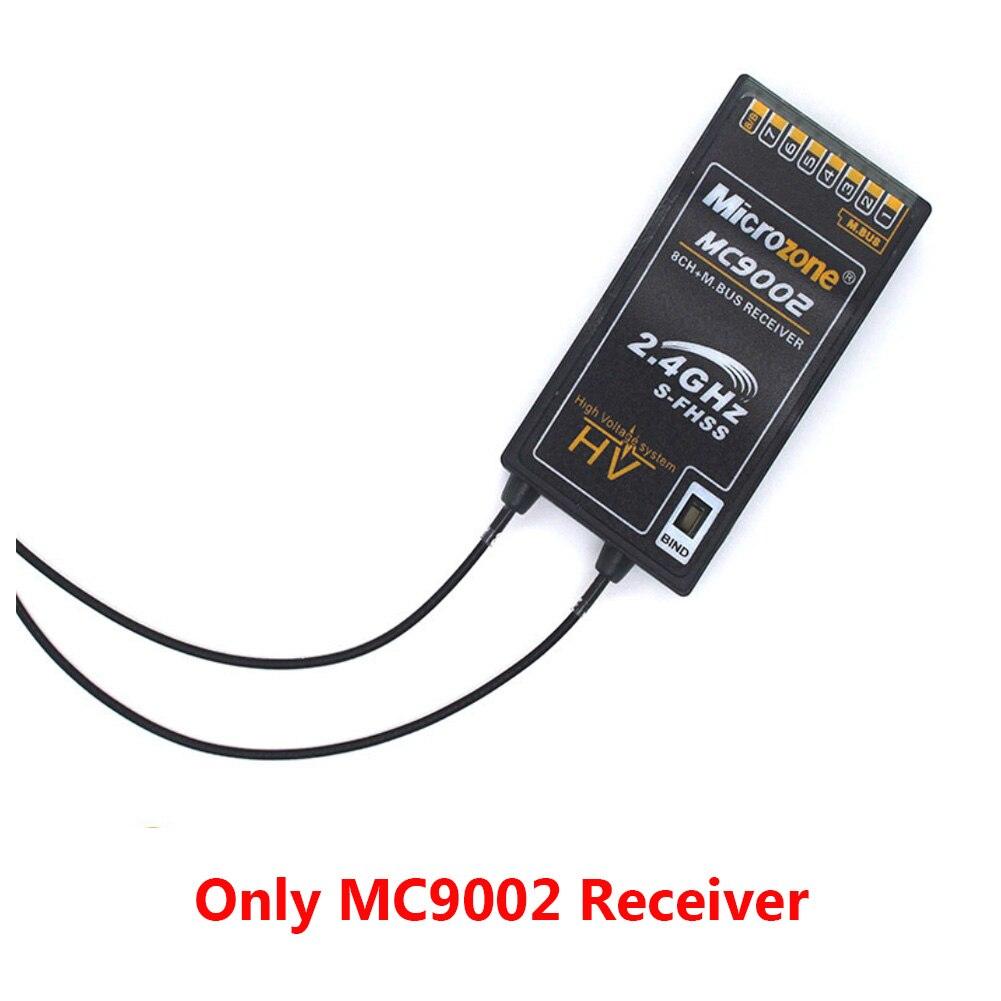

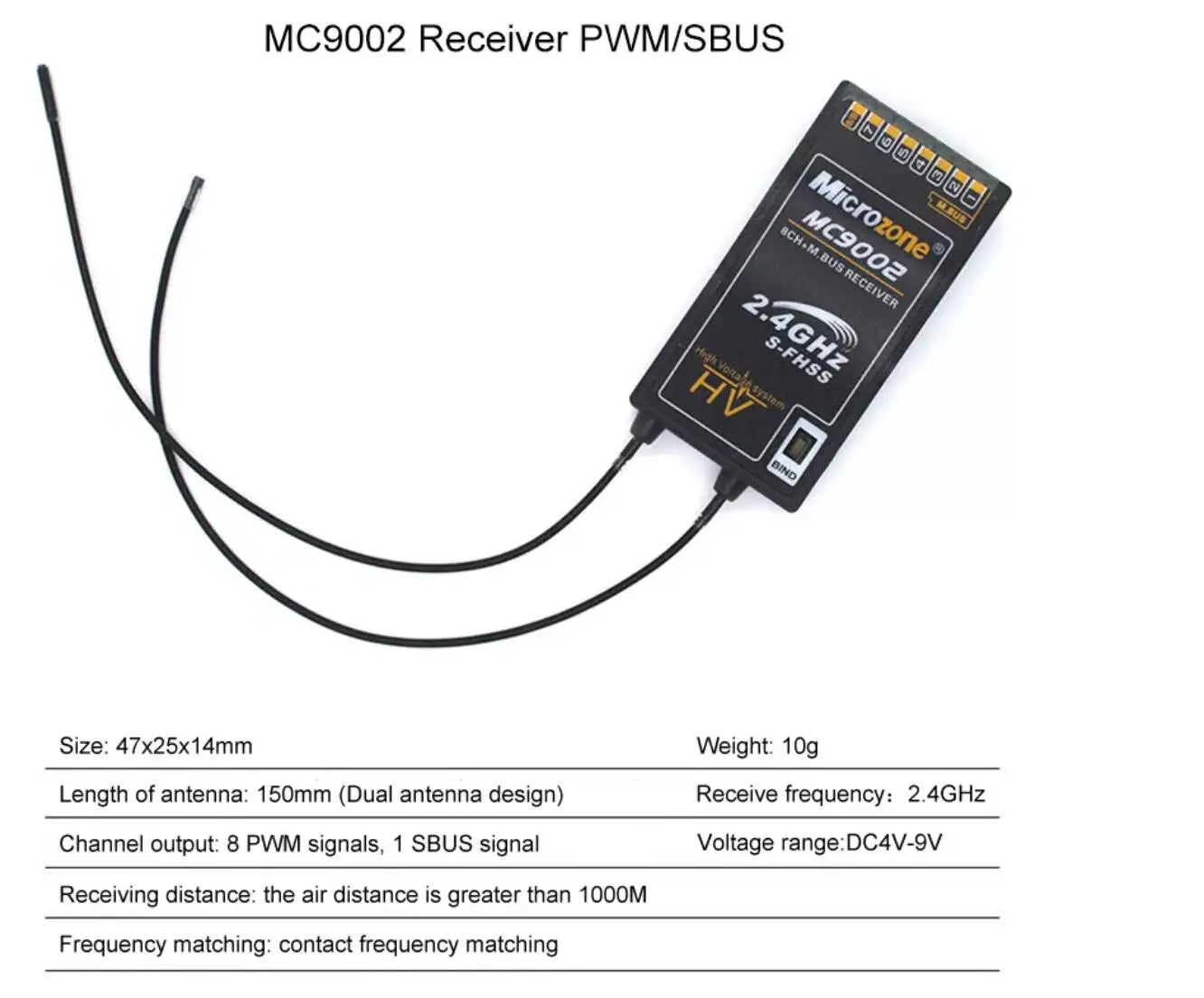

MC9002 Receiver PWMISBUS "M 9 Size: 47x25

MC9002 Receiver PWMISBUS "M 9 Size: 47x25x14mm Weight: 10g Length of antenna: 150mm (Dual antenna design) Receive frequency: 2.4GHz Channel output: 8 PWM signals, 1 SBUS signal Voltage range DC4V-9V Receiving distance: the air distance is greater than 1OOOM Frequency matching: contact frequency matching 00dooodu Microz Mc9OOz zone Ich= DUS JreceivER AGHz

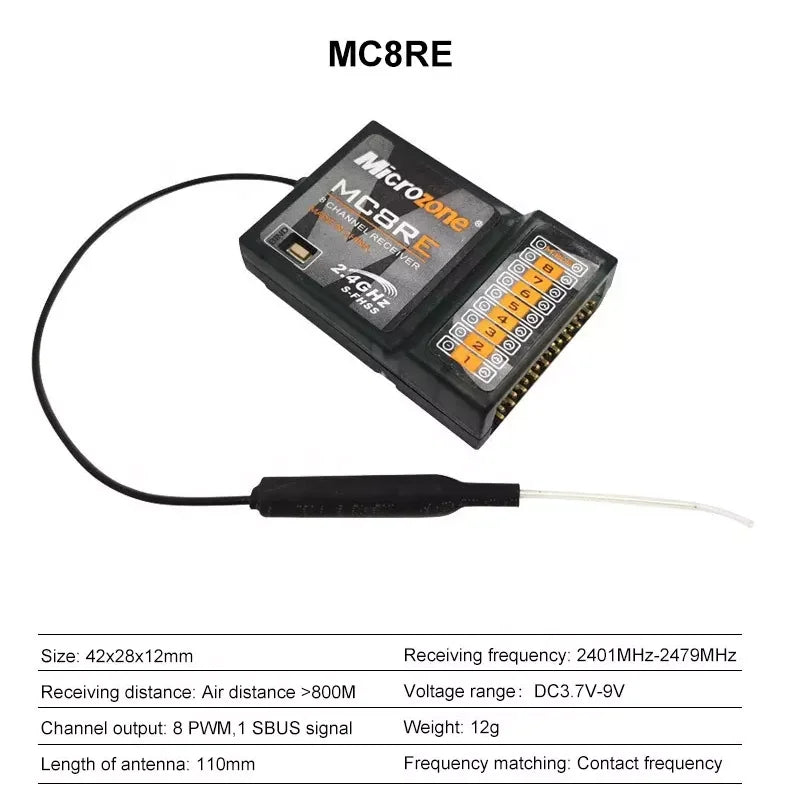

Microzone MC8B 2.4G

Microzone MC8B 2.4GHz 8-channel remote control transmitter (MC8RE) features a compact size of 42x28x12mm, with a receiving frequency range of 2401MHz-2479MHz and an air reception distance of over 800 meters. The system operates within a voltage range of DC 3.7V to 9V, outputs 8 PWM/SBUS signals, weighs only 12g, and has an antenna length of 110mm. Frequency matching is required for optimal performance; please contact Microzone MCBR zone Channel LLC for further information.

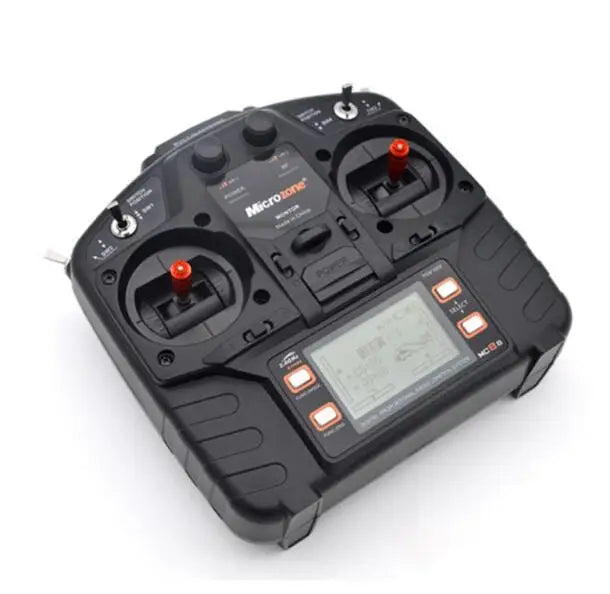

Microzone MC8B 2.4G 8CH Remote Control Transmitter SPECIF

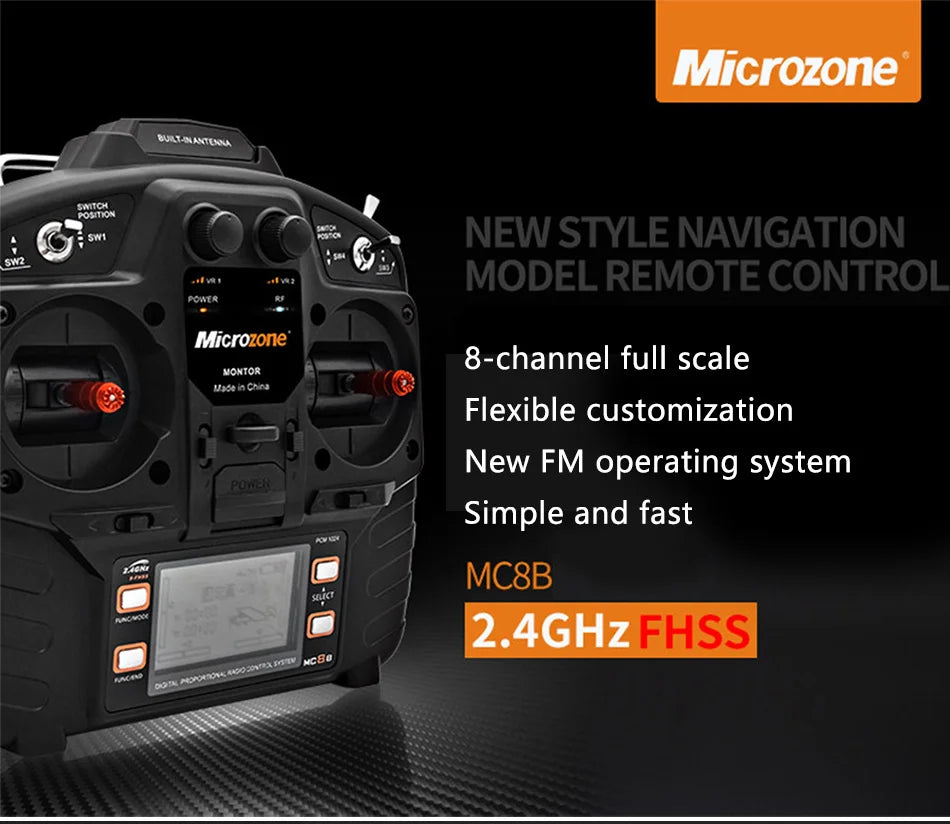

Microzone Outtmanuu Aca Rohtol NEW STYLE NAVIG

Microzone Outtmanuu Aca Rohtol NEW STYLE NAVIGATION MODEL REMOTE CONTROL Foata Microzone' Wontor 8-channel full scale Wlia c Flexible customization New FM operating system'"17 Simple and fast MC8B 2.4GHz FHSS 15u Laosn te Fonna

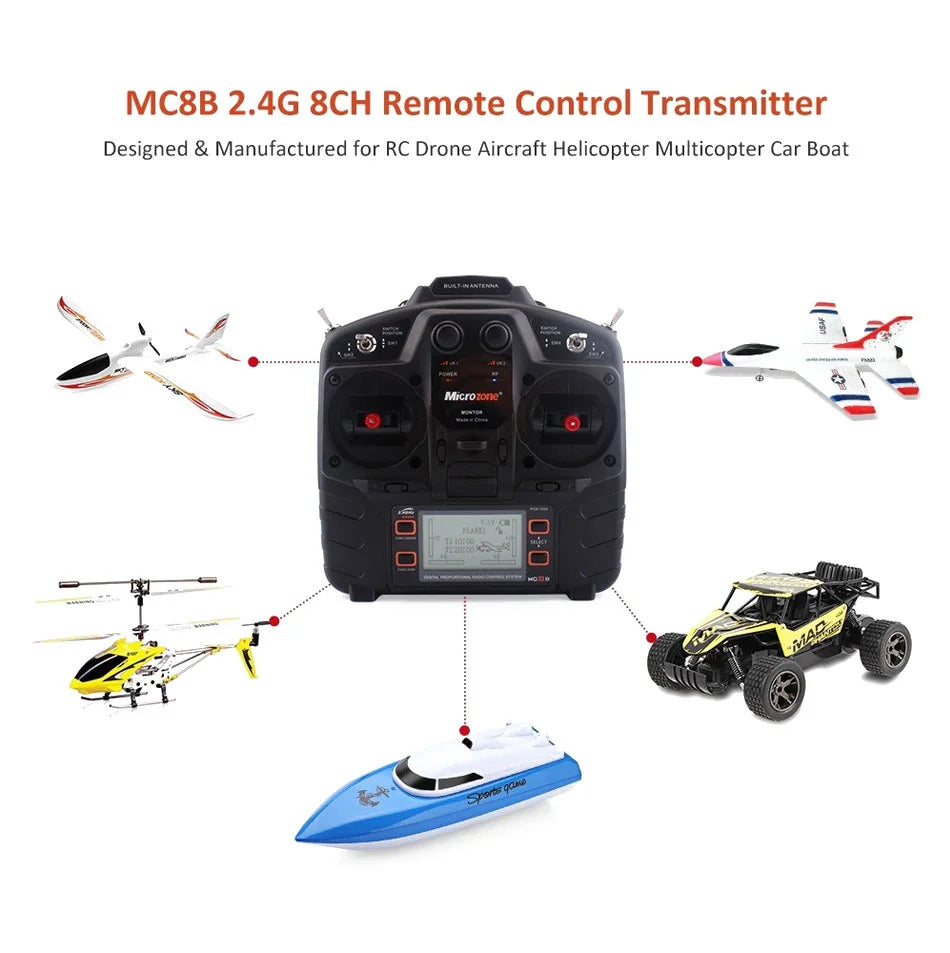

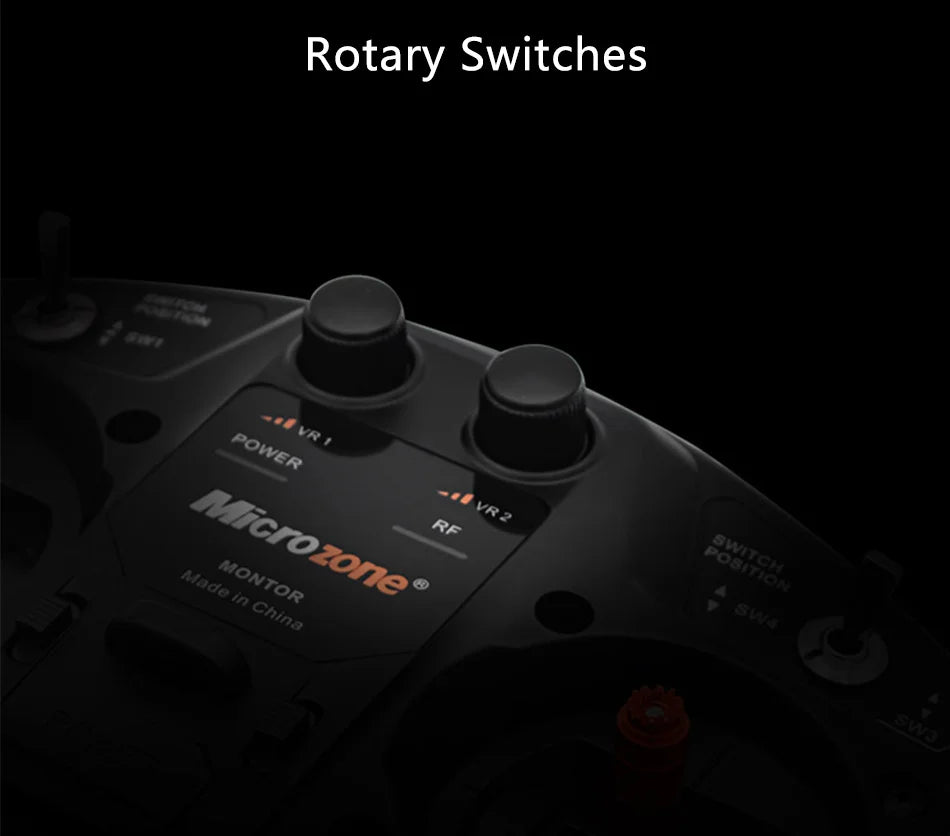

Rotary Switches Rf U TRt Power Mlcrozone VVR? SwtMC8B 2.46 8CH Remote Control Transmitter Designed & Manu

MC8B 2.46 8CH Remote Control Transmitter Designed & Manufactured for RC Drone Aircraft Helicopter Multicopter Car Boat Microzone" Ert

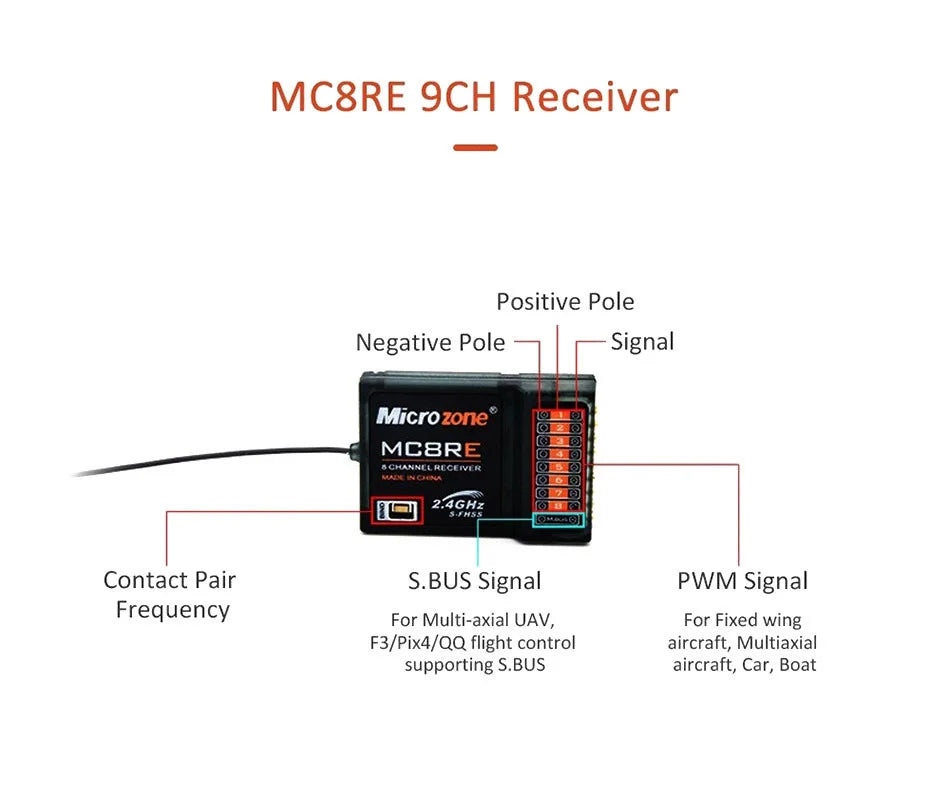

MC8RE 9CH Receiver Positive Pole Negative Pole Signal Microzone MCBRE

Microzone MC8B 2.4GHz transmitter (MC8RE) with an 8-channel receiver (MC9002), specifically designed for fixed-wing helicopters, drones, and multi-axial UAVs using S.BUS signal, PWM signal, and frequency contact pair for flight control systems like F3/Pix4/Quadcopter.

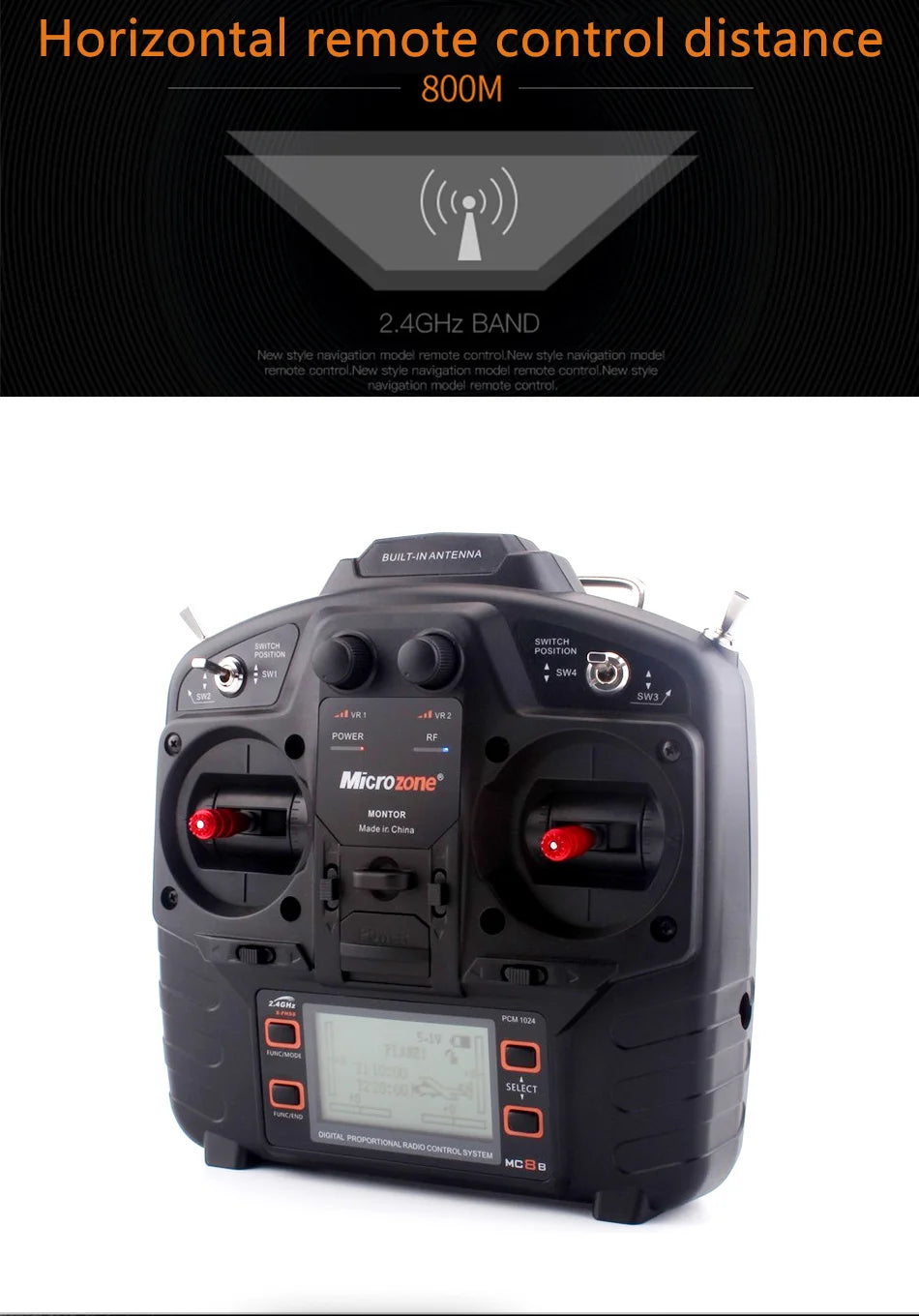

built-in ANTENNA SeCt Postod' Position SwA Sw3

Built-in antenna, secure position switch, and power on/off function are featured in this Microzone non-remote control transmitter made in China.

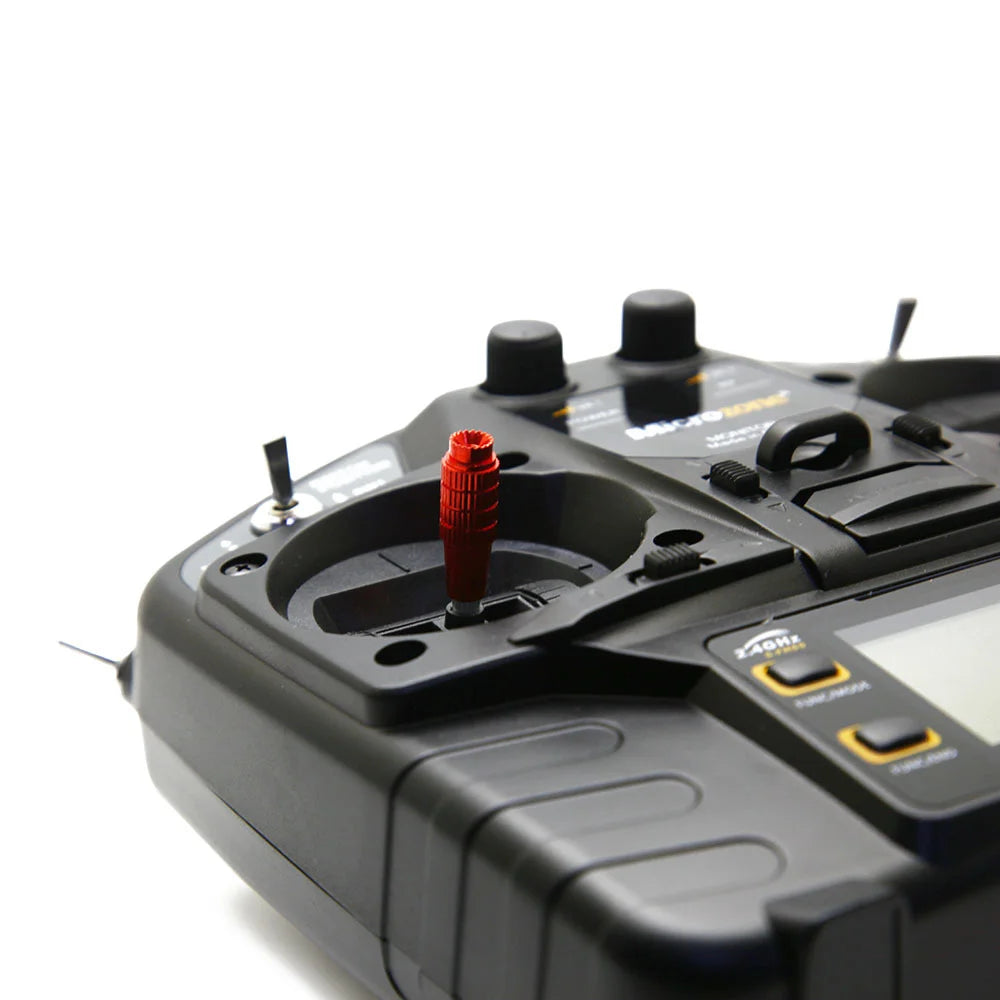

support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.78 Microzone" poner Jongr McBe -propoat

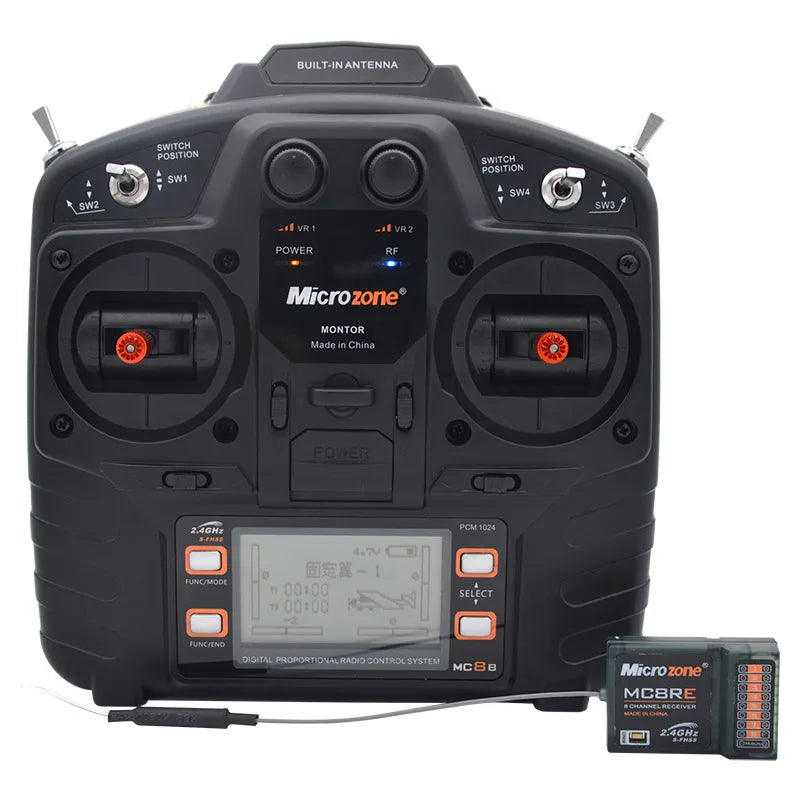

BUILT-INANTENNA Switch Position Swi Swa SwJ POWER Microzone

BUILT-INANTENNA Switch Position Swi Swa SwJ POWER Microzone MontoR China Fa ZGohe Aeele e E=# Tuncmool' selEcT O:; Wtncitno Disui crodoctoralrnd o Conieeeaat Mc8 Microzone MCBRE Ocelanc HtGtn 2JCH3 Sch Position Made

Microzone MC8B 2.4G 8CH Remote Control Transmitter SPECIFsupport 90 degree, 120 degree CCPM and gyro sensitivity adjustment.Adopt the latest FHSS mode in line with European standards.internal software support: M1 and M2 throttle swap (double return) can set the flight
