Microzone MC8B 2.4G 8CH Remote Control Transmitter & MC8RE/ MC9002 Receiver Radio System

Low voltage alarm mode: LED indicator and buzzer alarm at the same time. Supply analog and external power, LCD displays Chinese and English menu.
The receiver wide voltage design (DC 2V-9V) supports 8 PWM signals and 1SBUS signals.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
The classical neutral knob is fine tuned to facilitate quick switching of the platform and attitude.
The 8 channel full function remote controller is suitable for fixed wing aircraft, helicopters and multi axis aircraft.

Transmitter Specifications:
Channels: 8
Color: Black / silver
Model: fixed wing model airplane, UAV, helicopter, cars, boat.
RF range: 2405MHZ---2479MHZ
RF power: less than 100MW
Working current: less than 150MA
Working voltage: 4.5--8.5V
Modulation mode: FSK
Sensitivity: 1024
Signal output: 8 PWM signals and 1 SBUS signals.
Analog and external power supply (not more than 8V): YES
Low voltage alarm mode: LED indicator and buzzer alarm at the same time (according to battery type in the system).
The LCD Chinese and English menu displays.
Internal software support: CH5---CH8, arbitrary replacement of settings and CH1--CH8 signal detection.
Internal software support: M1 and M2 throttle swap (double return), can set the flight time, the main screen to build a lock, a factory reset.
Helicopter function: support 90 degree, 120 degree CCPM and gyro sensitivity adjustment.
Power: 6V 1.5AA*4
Adopt the latest FHSS mode in line with European standards.
Certificate: FCC, CE_RED
Size: 215MM*105MM*220MM
Weight (gross weight): 580g


MC8RE 8CH Receiver:
Voltage Range: DC3.7V-9V;
Channel Output: 8PWM, 1SBUS signal;
Receiving Frequency: 2401MHz-2479MHz;
Receiveing Distance: Air Distance>800m;
Length Of Antenna: 110mm;
Frequency Matching: Contact Frequency;
Size: 42*28*12mm;
Weight: 12g;
Application: MC8A, MC8B remote control, fixed wing models, UAV, helicopter models, trams and tanker models, ship models


MC9002 Receiver PWM/SBUS:
Voltage Range: DC4V-9V;
Channel Output: 8PWM, 1SBUS signal;
Receiving Frequency: 2.4GHz;
Receiveing Distance: Air Distance>1000m;
Length Of Antenna: 150mm;
Frequency Matching: Contact Frequency;
Size: 47*25*14mm;
Weight: 10g;

Microzone introduces a new style navigation model with remote control for their Microzone Wonder 8-channel full-scale RC aircraft, featuring flexible customization options and a new FM operating system. The MC8B 2.4GHz FHSS transmitter offers fast and reliable control.

The MC8B 2.4 GHz 8-channel remote control transmitter, designed and manufactured by Microzone, is specifically intended for use with radio-controlled (RC) aircraft, including fixed-wing helicopters, multicopters, cars, and boats.

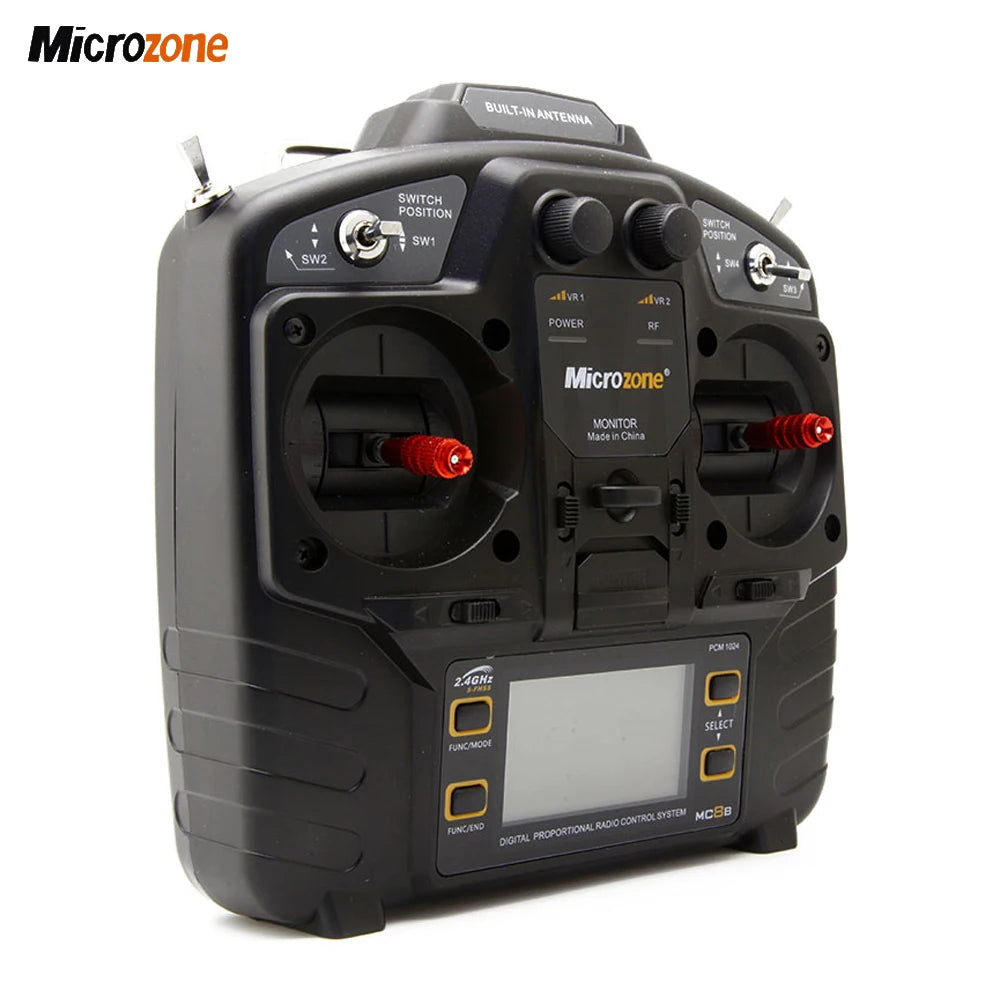

Built-in antenna, secure position switch, S/W voltage 1, power output: Microzone non-remote made in China, select one of eight channels.

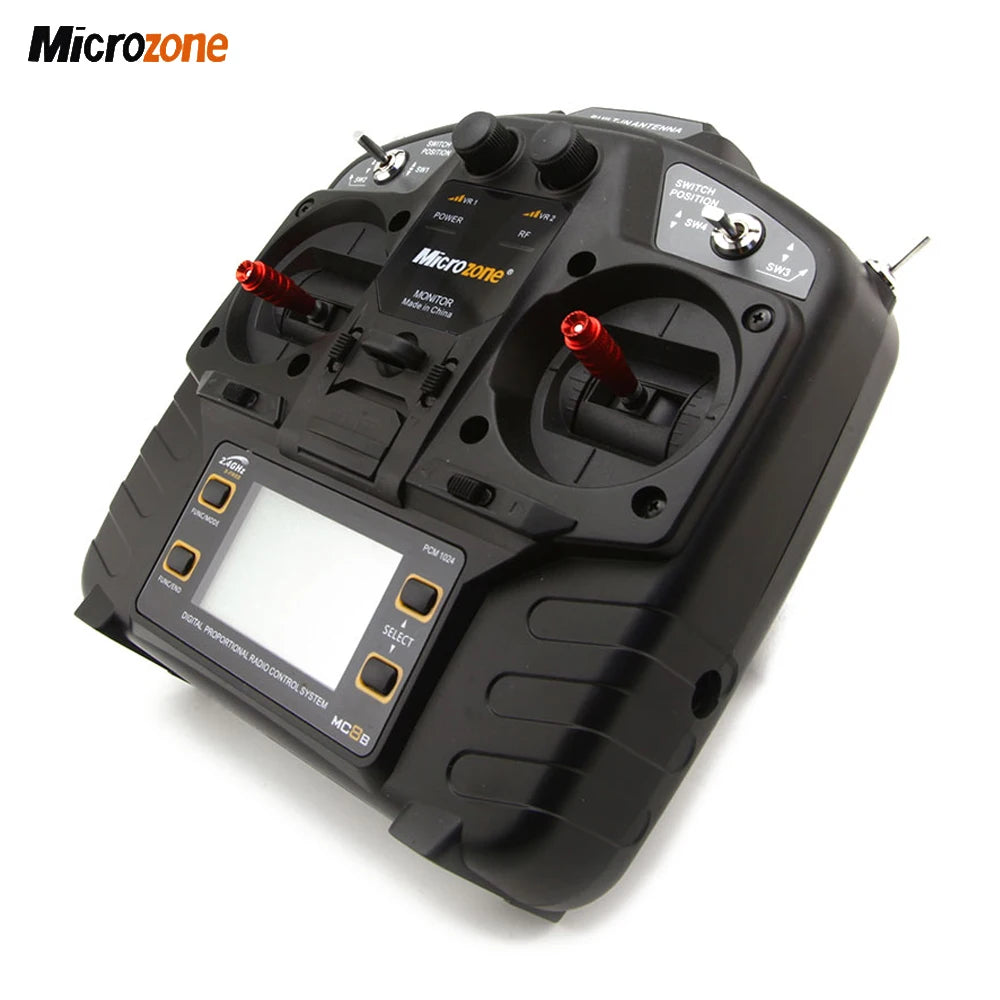

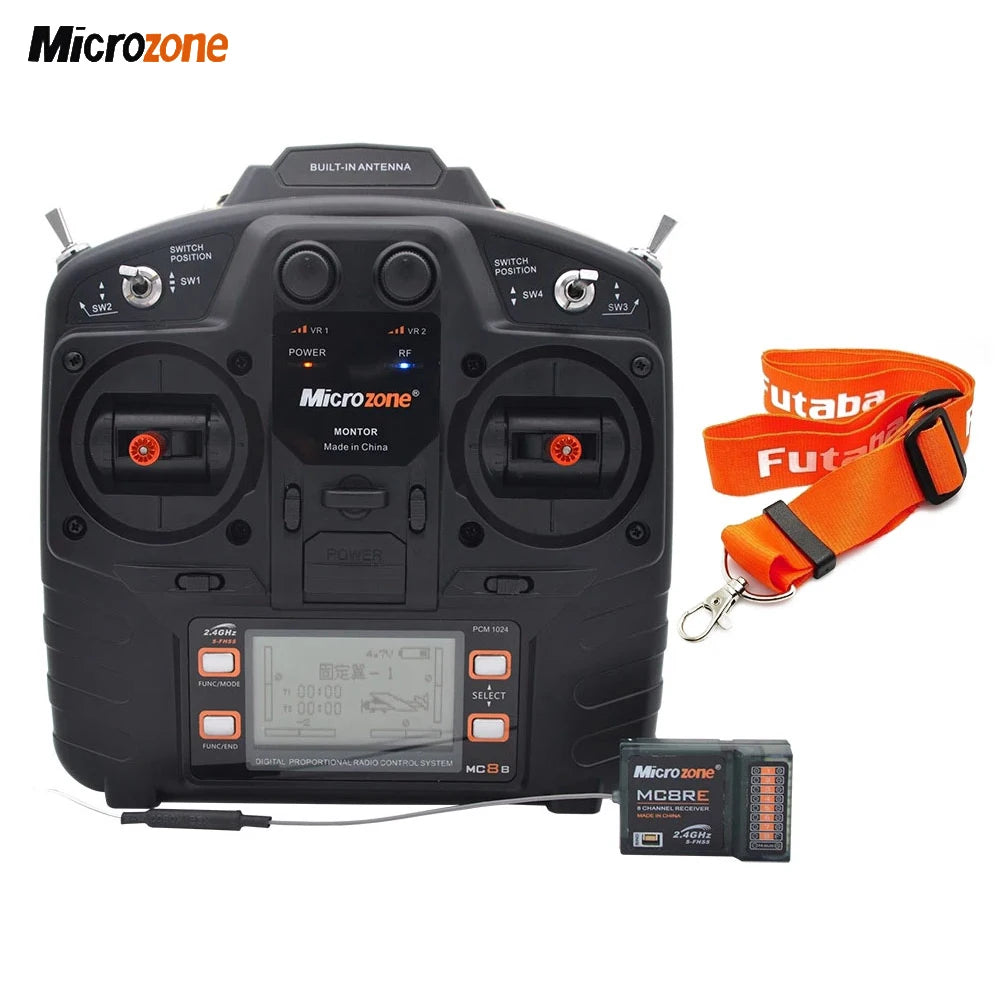

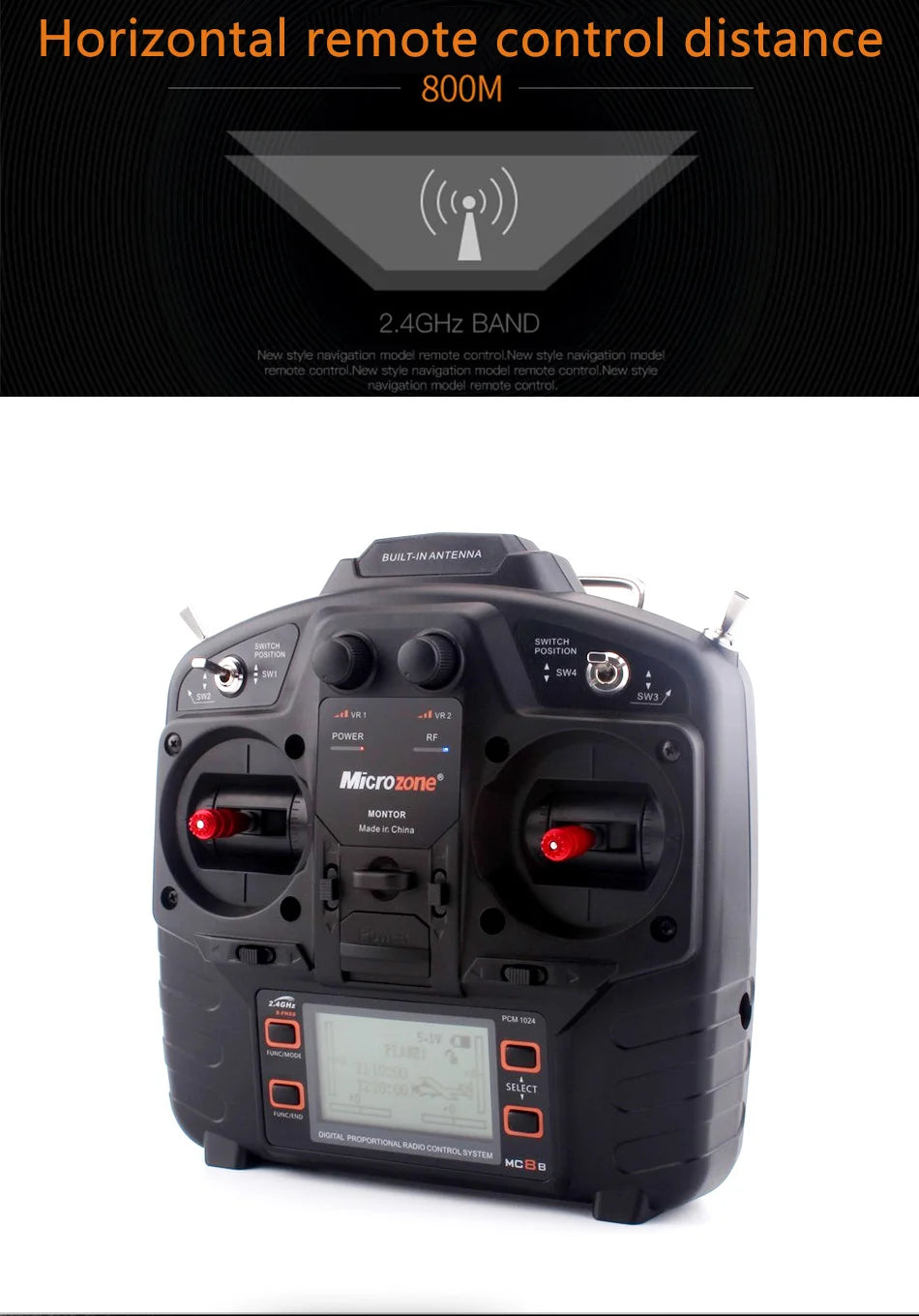

Microzone MC8B transmitter features an internal antenna with switch positions (SW1, SW2, and SWJ) and a power indicator. The built-in antenna is made in China by Fut-Zohs Electronics. The SELECT button on the MC8B allows for digital signal processing. This system consists of the MC8B transmitter and the MC9002 receiver, ideal for RC aircraft with fixed-wing or helicopter designs.

The Microzone MC8B transmitter is a remote control unit designed for fixed-wing helicopters and aircraft, offering 2.4GHz frequency and 8-channel transmission capabilities.
