Mini QAV250 FPV Quadcopter RTF Frame+4 x Motor+4xEsc+Flight Control+4xProp+Radio+Charger+Battery+Monitor+Cam+AV Tx Rx

Mini QAV250 FPV Quadcopter RTF Frame+4 x Motor+4xEsc+Flight Control+4xProp+Radio+Charger+Battery+Monitor+Cam+AV Tx Rx

Fiber Mini 250 FPV Quadcopter Frame Specifications:

- Materials: Fiberglass
- Fasteners: Stainless Steel & Black Nylon 6/6
- Size: 220mm diagonally, 175mm wide, 130mm long motor-to-motor; about 1/2 the size of a regular quadcopter
- Maximum Propeller: 5"
- Motor Mount: M2 12mm - 16mm (Tiger MN1806 2300kv, RCX 1804 2400kv), M3 19mm (Tiger MT2206 2000kv, Sunnysky X2204 2300kv)
- Flight Controller Mount: 30.5mm x 30.5mm
- Board Camera Mount: 32mm x 32mm

MT1806 2280kv Brushless Motor Specification:


- KV: 2280
- Max Trust: 460g
- No. of cell: 2-3S
- Framework: 12N14P
- Propeller: 5" ~ 6"
- Length: 26.7mm
- Shaft: 2mm
- Diameter: 23mm
- Weight: 18g

12A Simonk ESC Specifications:

- Max continuous load: ~11 amps
- Burst Current: 16A/10sec
- BEC: 5v/1amp max
- Lipo Cells: 2 to 3 cells
- Cables are fitted with female 2mm bullet connectors
- Weight: 10g
- Dimensions: 24mm L x 18mm W x 7mm H (29mm in length including capacitor)
- 15cm signal wire / 5v power
- 5cm motor wires (including 2mm bullet connector)

 5030 Prop Specifications:

- Propeller: 5" ~ 6"
- Length: 26.7mm
- Shaft: 2mm
- Diameter: 23mm
- Weight: 18g
MWC 2.5 Flight Control Board Specifications:

- 6 PWM input channels for standard receiver or PPM SUM receiver.
- Up to 8-axis motor output.
- FTDI/UART port for upload firmware, debug, Bluetooth module or LCD display.
- I2C port for extend sensor, I2C LCD/ OLED display or I2C-GPS NAV board for GPS and Sonar.
- Ultra low noise 3.3V LDO voltage regulator
- AT Mega 328P Microcontroller
- MPU6050C 6 axis gyro/ accel with Motion Processing Unit
- HMC5883L 3-axis digital magnetometer
- BMP085 digital pressure sensor
- PCA9306DP1 logic level converter

Flysky FS-T6 2.4G 6CH Radio Specifications:

- RF Range: 2.40-2.48GHz
- Bandwidth: 500Hz
- Band: 160
- RF Power: Less Than 20dBm
- 2.4ghz System: AFHDS
- Code Type: GFSK
- Sensitivity: 1024
- Low Voltage Warning: 9V
- DSC Port: PS2
- Output: PPM
- Charger Port: Yes
- Power: 12V DC (1.5AA* 8)
- Certificate: CE, FCC

Battery Specifications:

11.1V 2200MAH 25C

B3 Charger Specifications:

- Input Voltage: 100-240V AC 50/60Hz
- Output Current: 3* 800mA
- Suitable Battery: 2 - 3 Cell Lipo Battery
- Total weight: 2400g

Monitor Specifications:

more detail please click here  http://www.aliexpress.com/store/product/FPV-Ground-Station-7-inch-LCD-TFT-FPV-Monitor-Photography-HD-800x480-Blue-Screen-w-Sun/1397292_2019432153.html

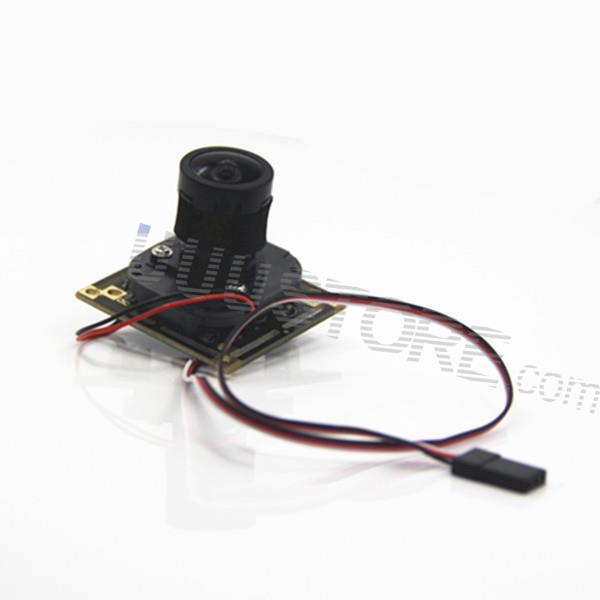

700TVL camera Specifications:

more detail please click here  http://www.aliexpress.com/store/product/~/1397292_32285399548.html

Video Transmitter and Receiver w/antenna Specifications:

more detail please click here  http://www.aliexpress.com/store/product/Gorpo-FPV-Set-5-8Ghz-200mw-TS5823-Transmitter-RC805-Video-Receiver-w-5-8G-Mushroom-Aerial/1397292_32279307905.html

Mount Holder Specifications:

more detail please click here  http://www.aliexpress.com/store/product/CNC-Aluminum-Alloy-FPV-Monitor-Mounting-Bracket-for-Transmitter-in-Silver/1397292_2032746056.html

Package includes:

- Mini 250 FPV Quadcopter Fiberglass Frame x1
- 12A Simonk ESC x4

- MT1806 2280kv x4

- 5030 Propeller CW&CCW x4

- Flight Control Board x 1

- T6 transmitter with 6CH receiver system and CD x1

- 11.1V 2200MAH 25C Lipo battery x1

- B3 Charger x1

- Distribution board with shrink tube and connectors

- Monitor x1

- 700TVL Camera x1

- Mount Holder x1

- Video Transmitter x1

- Video Receiver x1

- 5.8Ghz Cloverleaf Antennax2
